The E-Plus 3D EP-M650 is an industrial SLM 3D printer with a sizable build volume, designed for efficient production of large-scale, high-quality metal parts for aerospace, automotive, engineering, and other industries. Equipped with four 500W fiber lasers, each of them covering its own area, the EP-M650 ensures reliable and highly productive printing with various metal and metal alloy powders.
The machine features optimized gas flow for homogeneous part properties throughout the entire build volume and efficient smoke and splash removal. The EP-M650 maximum build rate is 120 cm³/h, and the deviation in part mechanical properties is less than 3%. To ensure reliable, safe operation, the build chamber is tightly sealed, the oxygen concentration is kept below 100 ppm during printing and can be monitored in real time. Scanning speed of up to 8 m/s makes for time-efficient operation.
The EP-M650 is a modular system, including printing, filtration, and post-processing units, which greatly facilitates installation and maintenance of the machine.
The EP-M650 can print layers with a thickness ranging from 20 to 120 microns, allowing for precise print setting adjustment depending on a certain application and required print quality and level of detail. Quad-laser system with a spot size of 80–120 microns ensures highly accurate and fast printing. The integrated software provides the possibility to divide the model into sections and apply different process parameters to each of them, thus allowing for building complex parts with required properties in various areas.
Aluminum alloy, 470 x 400 x 499 mm, printing time 176 h
In718, 620 x 150 mm, printing time 240 h
The machine prints with metal and metal alloy powders that are suitable for direct manufacturing of high-quality metal components with various properties. It can process titanium, aluminum, and nickel-based alloys, maraging steel, stainless steel, cobalt chrome and copper alloys, and others.
The spacious build volume of 655 x 655 x 800 mm allows creating fairly large models or batches of smaller items in one printing session. This provides wide opportunities for the industries requiring series manufacturing of high-quality metal parts.
The EP-M650 is operated via an integrated control unit with a user-friendly interface, real-time monitoring and adjustment of printing parameters, and fully automatic one-click printing function. The software calculates the estimated processing time and generates a printing report when the printing is over.
The proprietary EP-Hatch processing software allows using optimized scanning strategies to reduce print times.
Credit: directindustry.com
For some items, package content may change. In case of any questions, please get in touch.

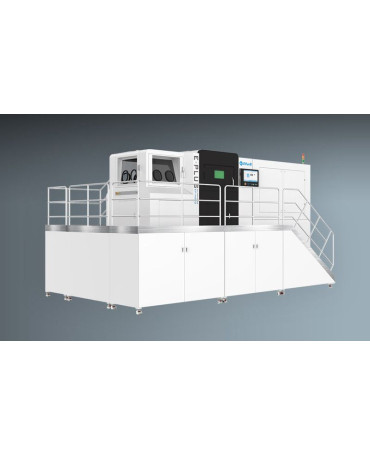

The EP-M650 SLM 3D printer is available in white with black trimmings. Its solid look makes it ideal for a variety of industrial applications in the aerospace, automotive, and other fields.
The machine dimensions are 267.7 x 155.3 x 149 in (6800 x 3945 x 3785 mm). It weighs 33069 lbs (15000 kg).
To learn the current price of the EP-M650 3D printer, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
