The EP-P3850 is an industrial high-performance 3D printer based on the SLS technology. The machine allows producing large-size models with complex geometries from various polymer powders. Due to its uniform thermal control system, the EP-P3850 ensures consistent final part quality with excellent mechanical properties.
The machine features a scanning speed of up to 7.8 m/s. To increase productivity, the EP-P3850 adopts a bi-directional recoating system and automatic material loading. The detachable forming cylinder allows for reduced downtime between printing sessions since there is no need to wait for the printed part to cool down inside the machine.
Equipped with a number of smart functions and technologies, the EP-P3850 ensures user-friendly and reliable operation, providing a possibility to build high-quality functional prototypes and end-use products. The proprietary control software automatically generates printing reports that allow analyzing the printer’s performance.
The EP-P3850 can print layers with a minimum thickness of 80 microns, which can be adjusted based on a certain application. Thanks to customizable settings, the machine can produce high-quality consistent parts that find use in various industries including automotive, engineering, electronics, medicine, clothing and footwear fabrication, and more.
PA12, 203 x 155 x 198 mm, printing time 15 h
Credit: @formadditive / Instagram
The EP-P3850 is compatible with a variety of polymer powder materials suitable for a wide application range. The machine can handle PA6, PA11, PA12 powders as well as their composites, such as PA12GF (glass fiber) or PA11CF (carbon fiber).
The EP-P3850 is an open-material system, which means you can use third-party powders as well as proprietary polymers.
The sizable build volume of 380 x 380 x 500 mm allows printing medium to large parts or batches of smaller objects in one printing session.
The EP-P3850 is operated via a control screen with a user-friendly interface which provides access to multiple control settings and allows adjusting various printing parameters. The proprietary E-Plus 3D control software is a powerful tool for printing process management, from build preparation and part positioning to printing monitoring and report generation function. Open printing parameters allow for precise setting adjustment for specific applications.
The EP Hatch process planning software provides a number of advanced scanning strategies like long straight lines, short straight lines, and checkerboards. It also offers optimal print settings for various materials. The software allows the user to set the scanning path separately for the outline, inside, top, and bottom surface of the part.

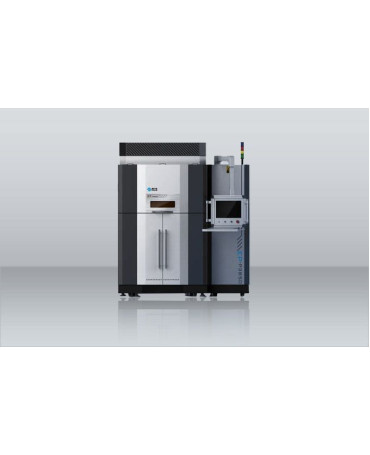

The EP-P3850 SLS 3D printer is available in white with gray trimmings. Its stylish look makes it ideal for a variety of industrial applications.
The machine dimensions are 55.1 x 51.2 x 96.5 in (1400 x 1300 x 2450 mm). It weighs 3527 lbs (1600 kg).
To learn the current price of the EP-P3850 3D printer, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
