E3D Revo HotEnd

In Stock
Effective drop-in replacement for popular 3D printers
  • Improved heating capabilities
  • Easy nozzle swap
  • Increased safety
  • Wide material compatibility
When purchasing with us you get:
  • FREE Delivery
  • 1 Year Warranty
  • Local U.S. Support
  • Up to 20% Filament Discount
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This device comes with:
  • Brass Revo nozzles (depending on the kit)
  • Revo HeaterCore (12V or 24V)
  • Specific extension cable kit
  • PTFE tube (100 mm)
Price $98.00
The estimated lead time is 5-10 business days.

The E3D Revo HotEnd is a high-performance drop-in upgrade for popular 3D printers, including Voron, Prusa i3 MK3 variants, and Creality CR-10 and Ender 3 series. It is designed with better reliability and efficiency in mind and comes available in two versions — 12V and 24V (for Prusa version, 24V only). Also, the package differs in terms of nozzle quantity: one can choose a Single or Fully Loaded kit depending on the user’s needs (for more information check out the “What’s in the box” section).

To find out your printer’s compatibility with the Revo CR or Voron HotEnd (ideal for Voron StealthBurner), check out the Specifications section. Apart from the listed models, it is also possible to use the device with other machines using the NTC thermistor (mount / Z sensor modification might be required).

As for the Prusa i3 MK2 variants, they are most often 12V systems that are not compatible with this particular HotEnd. Please try the 12V Revo Six instead.

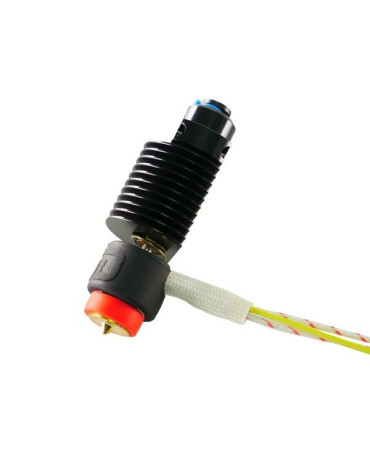

A general look of the E3D Revo HotEnd.

This easy-to-adapt upgrade offers the user all the benefits of the E3D’s self-developed RapidChange Revo ecosystem, such as a simple nozzle change with no tools or hot tightening involved and lower risk of leaks due to the factory sealed nozzles. Moreover, it is supplied with dedicated extension cables to provide a true drop-in replacement experience.

Thanks to reliable construction and enhanced safety features, the E3D Revo HotEnd can be effectively applied in manifold professional and personal spheres.



Specifications:

  • Highlights
  • What’s in the box
  • Look and feel
  • Price



Highlights

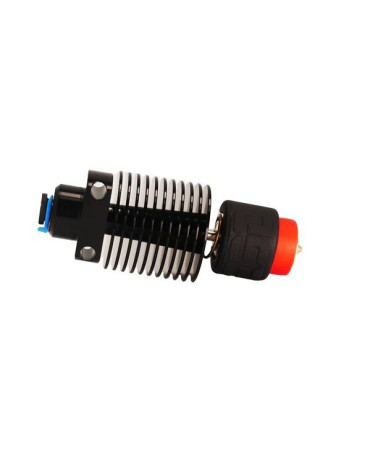

A side view on the E3D Revo HotEnd.

Custom design

Convenient M3 clearance holes completely correspond to the assigned printers’ mounting patterns, so no extra mounts or adaptors are necessary to install the Revo HotEnd. With its rigid and ultra-lightweight construction, the device provides reliable high-speed operation.

Enhanced performance

The included Revo HeaterCore provides much faster heating compared to a traditional aluminum heater block, which makes for significantly improved printing efficiency.

Revo nozzles support

Being a part of the Revo ecosystem, the HotEnd is fully compatible with Revo nozzles that can be easily swapped by hand, at room temperature and with no complex tools.

Hassle-free connection

The device provides simple connection due to solderless, crimpless, butt splice connectors. This makes for smooth and quick integration of the Revo HotEnd in terms of wiring.

Smart safety features

Thanks to integrated PTC behavior, the Revo HotEnd ensures timely power reduction to the Revo HeaterCore to provide reliable protection against hazards caused by thermal runaways.

Stylish look

With an anodised black or red aluminum heatsink, the Revo HotEnd boasts an eye-pleasing design compared to its predecessor.

Thoughtful package

The device comes with everything one needs to start 3D printing right after receiving the package, including a variety of dedicated Brass Revo nozzles and a Revo HeaterCore. The latter is engineered with a built-in 100K NTC thermistor, which has the same response as the stock HotEnd, so no firmware adjustments are needed.



What’s in the box

The Revo HotEnd supply package in detail.

CR version:

  • Revo CR heatsink
  • Collet
  • Collet clip
  • Revo HeaterCore (12V or 24V)
  • Revo HeaterCore spring
  • Extension cable kit
  • 4x butt splice connectors
  • 0.40mm Brass Revo Nozzle (Single nozzle kit)
  • 0.25mm, 0.40mm, 0.60mm, and 0.80mm Brass Revo Nozzles (Fully loaded nozzle kit)

Prusa MK3 version:

  • Revo HeaterCore (24V)
  • Spring
  • Prusa-specific extension cable kit
  • 100mm PTFE tube
  • 0.40mm Brass Revo Nozzle (Single nozzle kit)
  • 0.25mm, 0.40mm, 0.60mm, and 0.80mm Brass Revo Nozzles (Fully loaded nozzle kit)

Voron version:

  • Revo Voron Sink
  • Revo HeaterCore (12V or 24V)
  • Revo spring
  • 100mm PTFE tube
  • Heater extension cable
  • Temperature sensor extension cable
  • 0.40mm Brass Revo Nozzle (Single nozzle kit)
  • 0.25mm, 0.40mm, 0.60mm, and 0.80mm Brass Revo Nozzles (Fully loaded nozzle kit)

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

A close-up on the E3D Revo HotEnd.

The E3D Revo HotEnd is fairly compact and light. It has the same length as the stock HotEnds and weighs 30 g at most.



Price

The price for the E3D Revo HotEnd is $98.00, which is reasonable considering its printing capabilities and high performance.
