E3D Revo Micro HotEnd

In Stock
Compact and efficient hotend for improved 3D printing experience
  • Enhanced heating capabilities
  • Simple nozzle change
  • Improved safety
  • Universal mounting
When purchasing with us you get:
  • FREE Delivery
  • 1 Year Warranty
  • Local U.S. Support
  • Up to 20% Filament Discount
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This device comes with:
  • Brass Revo nozzles (depending on the kit)
  • Revo HeaterCore (12V or 24V)
  • Fan and regulator board
  • Extension cable kit
Price $98.00
The estimated lead time is 5-10 business days.

The E3D Revo Micro is a potent lightweight hotend designed to significantly increase the performance of the printer’s motion system. Engineered with a broad compatibility in mind, it fits the majority of modern 3D printers and easily adapts to both direct and Bowden set-ups. The Revo Micro comes available in two versions — 12V and 24V. Also, the package differs in terms of nozzle quantity: one can choose a Single or Fully Loaded kit depending on the user’s needs (for more information check out the “What’s in the box” section).



This easy to maintain device offers the user all the benefits of the E3D’s self-developed RapidChange Revo ecosystem, such as a simple nozzle change with no tools or hot tightening involved and lower risk of leaks due to the factory sealed nozzles.

Thanks to reliable construction and enhanced safety features, the E3D Revo Micro HotEnd can be effectively applied in manifold professional and personal spheres.



Specifications:

  • Highlights
  • What’s in the box
  • Look and feel
  • Price



Highlights

A general view on the Revo Micro HotEnd.

Enhanced heating performance

The included Revo HeaterCore provides much faster heating compared to a traditional aluminum heater block, which makes for significantly improved printing efficiency.

Flexible design

The Revo Micro is fully compatible with both Bowden and direct drive set-ups, but is particularly effective with the latter due to the device’s lightweight construction.

Smart safety features

Thanks to integrated PTC behavior, the Revo Micro HotEnd ensures timely power reduction to the Revo HeaterCore to provide reliable protection against hazards caused by thermal runaways.

Stylish look

With an anodised black aluminum heatsink, the Revo Micro HotEnd boasts an eye-pleasing design coupled with streamlined operation.

Thoughtful package

The device comes with everything one needs to start 3D printing right after receiving the package, including a variety of dedicated Brass Revo nozzles and a powerful Revo HeaterCore.



What’s in the box

The supply package for the Revo Micro HotEnd in detail.

  • Revo Micro heatsink
  • M12 x 1.5 nut
  • 5V fan (20 x 20 x 10 mm)
  • 12V or 24V to 5V regulator board
  • Revo Micro fan duct
  • Collet
  • Collet clip
  • Revo HeaterCore (12V or 24V)
  • Revo HeaterCore spring
  • Extension cable kit
  • 100mm PTFE tube
  • 0.40mm Brass Revo Nozzle (Single nozzle kit)
  • 0.25mm, 0.40mm, 0.60mm, and 0.80mm Brass Revo Nozzles (Fully loaded nozzle kit)

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

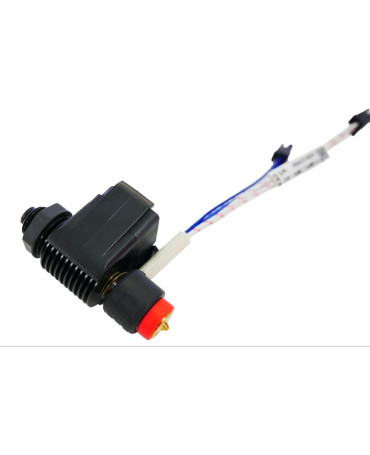

A side perspective on the Revo Micro HotEnd.

The E3D Revo Micro HotEnd is fairly compact and light. It weighs only 30 g. In the picture below, you can find the exact dimensions of the device:

The exact dimensions of the E3D Revo Micro HotEnd.


Price

The price for the E3D Revo Micro HotEnd is $98.00, which is reasonable considering its printing capabilities and high performance.
