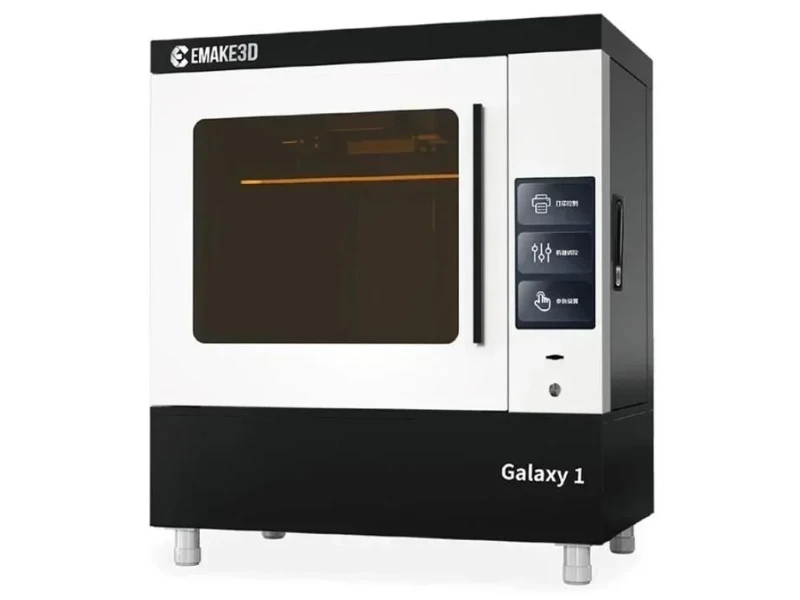

The EMAKE3D Galaxy 1 is a large-format SLA 3D printer with a 400 x 200 x 400 mm build volume, combining desktop convenience with industrial precision. Designed for professionals and advanced users, it features a 20,000-hour high-intensity laser, 100 μm accuracy, 25 μm XY resolution, and 25–200 μm layer heights. Key features include permanent leveling, auto resin feeding, carbon-filtered air purification, and support for both proprietary and third-party 405 nm resins. Its 7-inch touchscreen, wide software compatibility, and durable all-metal build make it ideal for producing large, detailed prints in both professional and personal settings.
What is the print quality and performance of the EMAKE3D Galaxy 1 SLA 3D Printer?

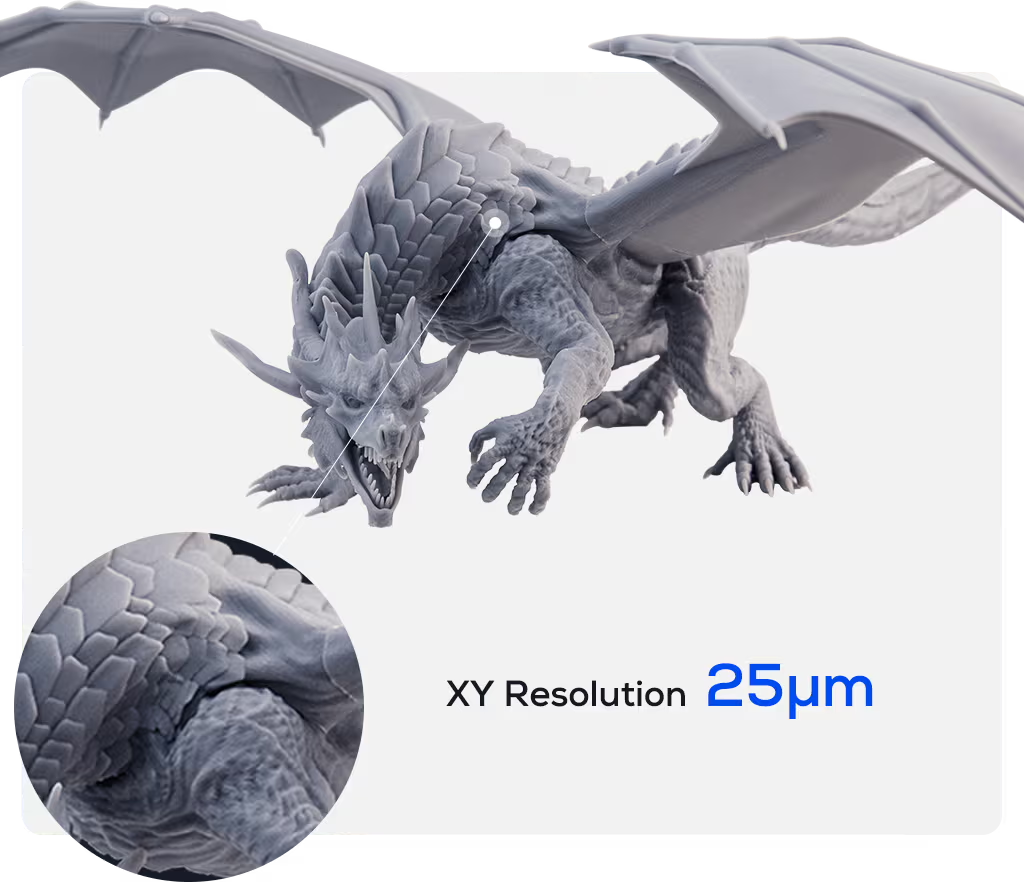

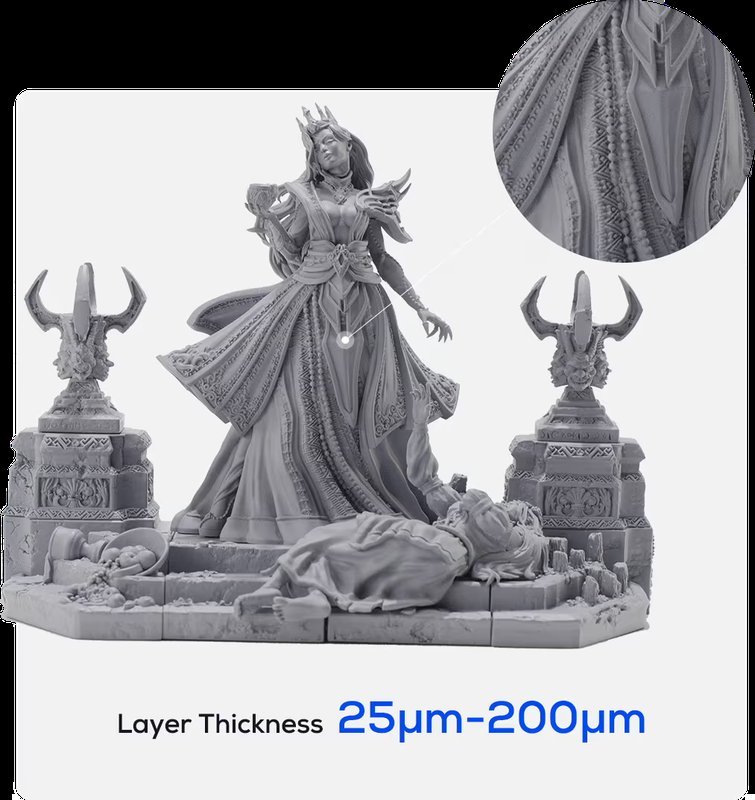

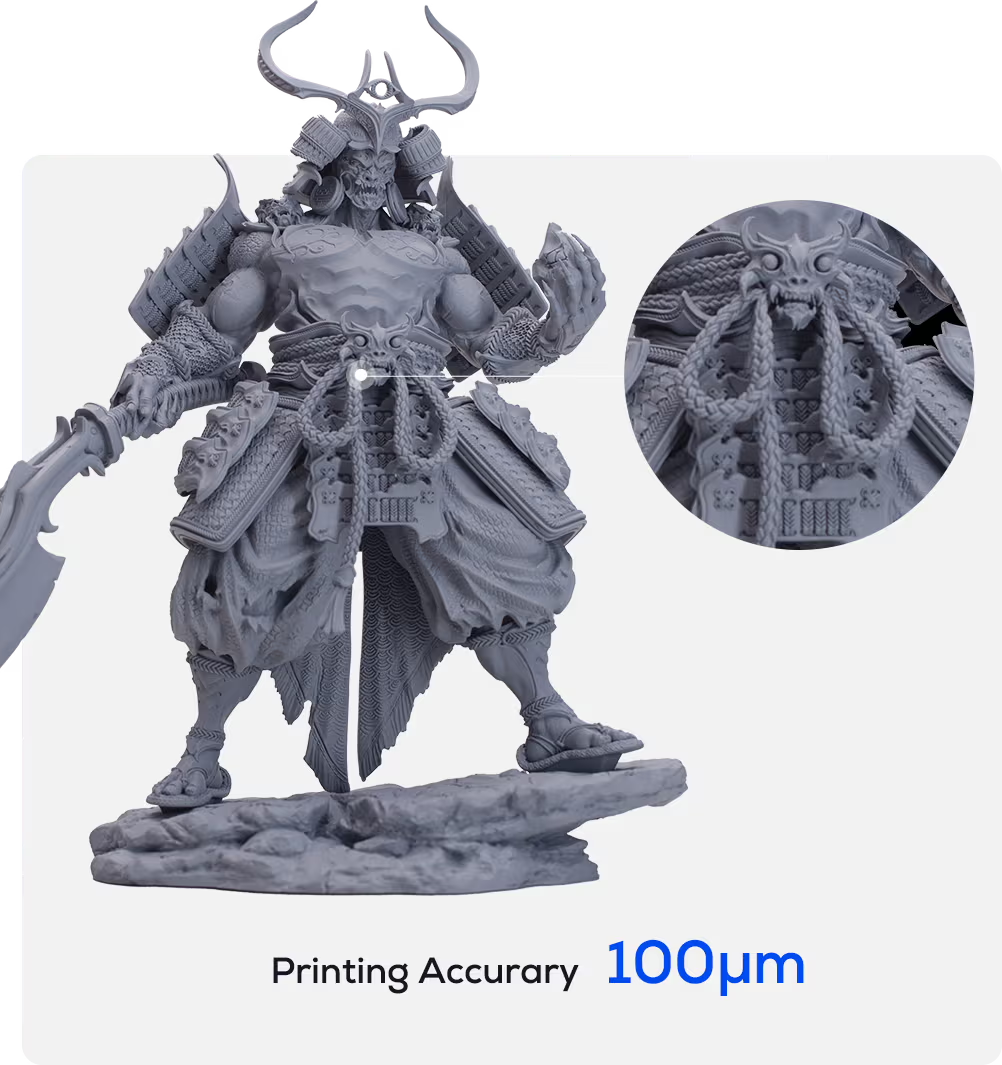

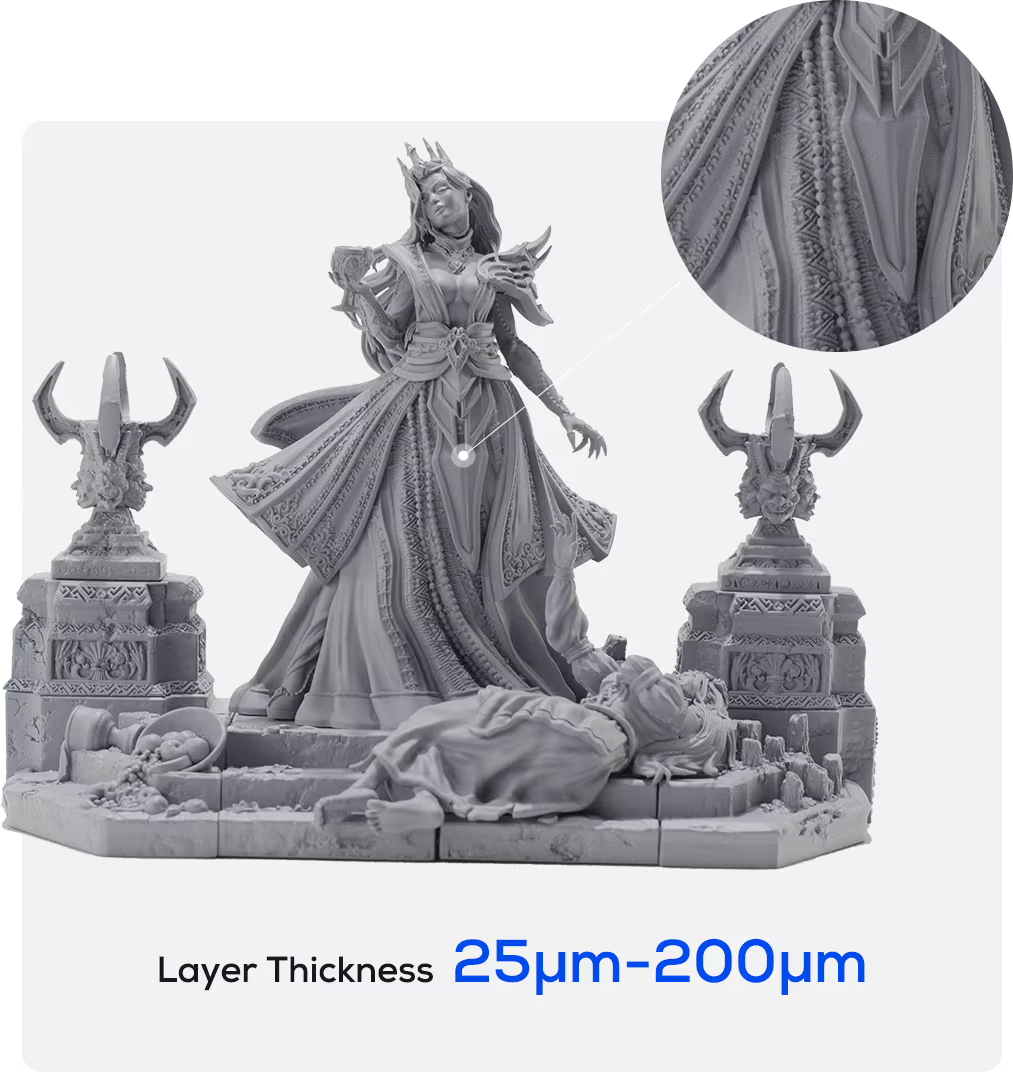

The Galaxy 1’s high-intensity laser delivers 100 µm accuracy, 25 µm XY resolution, and 25–200 µm layer thickness for a balance of detail and speed. Its 80 µm laser spot ensures precise curing, smooth surfaces, and clear translucent prints with minimal post-processing.

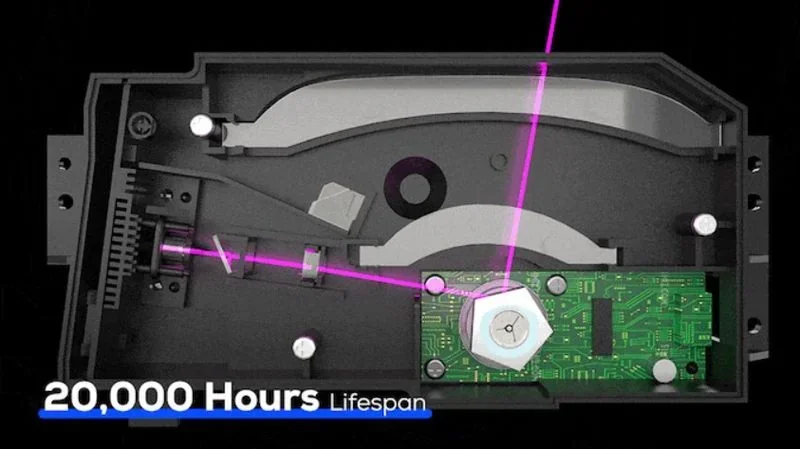

The Galaxy 1 prints up to 50 mm/h within its 400 x 200 x 400 mm build volume. Its 20,000-hour laser ensures long-lasting quality, while optimized settings with Siraya Tech Fast ABS-like Grey resin boost speed and extend laser life without sacrificing detail.
The Galaxy 1 ensures reliable, precise printing with a permanent leveling system, stable all-metal design, and vibration-resistant rack. Its temperature control supports special materials above 5°C, while automatic resin feeding prevents failures from low resin levels.
The Galaxy 1 uses linear laser scanning with flywheel generators and a rotating mirror system to precisely control and direct the laser for higher print accuracy.
Which resins can you use with the EMAKE3D Galaxy 1?
The EMAKE3D Galaxy 1 uses 405 nm resins including EMAKE3D’s gray and white ABS-like resins and third-party options like Siraya Tech Fast ABS-like resin, optimized for fast, high-quality prints with settings such as 55% power and 3 scan times.
EMAKE3D provides gray and white ABS-like resins optimized for the Galaxy 1, delivering higher quality and faster prints. The printer also works especially well with Siraya Tech Fast ABS-like resin, whose low viscosity enables fewer scans, quicker print times, extended laser life, and improved success rates for large-scale models.

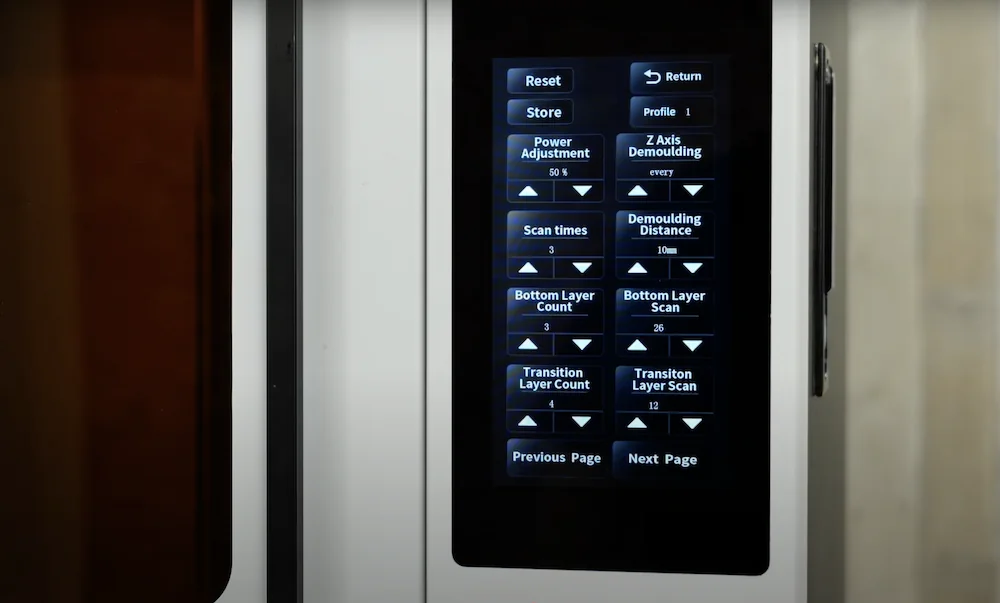

Setting Category
Parameter
Value
Resin Details
Resin Brand
Siraya Tech
Resin Type
Fast Grey
Ambient Temp
30°C
Print Settings
Power Adjustment
55%
Scan Times
3
Z Axis Speed
6400P
Layer Configuration (Set 1)
Bottom Layer Count
3
Transition Layer Count
4
Layer Configuration (Set 2)
Bottom Layer Count
26
Transition Layer Count
12
Demoulding Settings
Z Axis Demoulding
Every
Demoulding Distance
10mm
100 Layers Demoulding
Off
Advanced Settings
Z Axis Transition
Off
Spot Adjustment
0
Z Axis Supplement
0μm

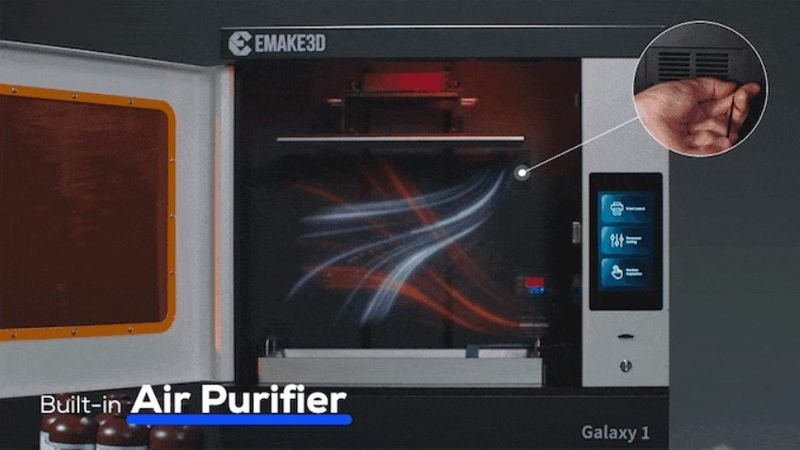

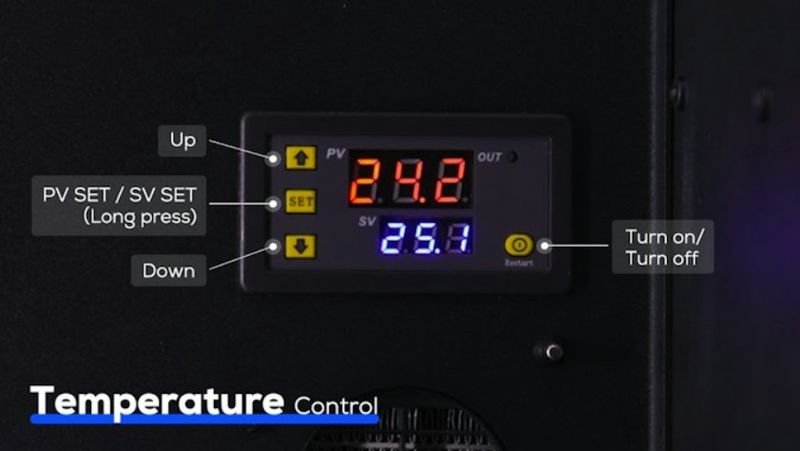

The Galaxy 1 maintains optimal conditions above 5°C with built-in temperature control, supporting temperature-sensitive resins. Its automatic resin feeding, 3-liter vat, and swappable cartridge system enable long prints and quick material changes for efficient workflows.

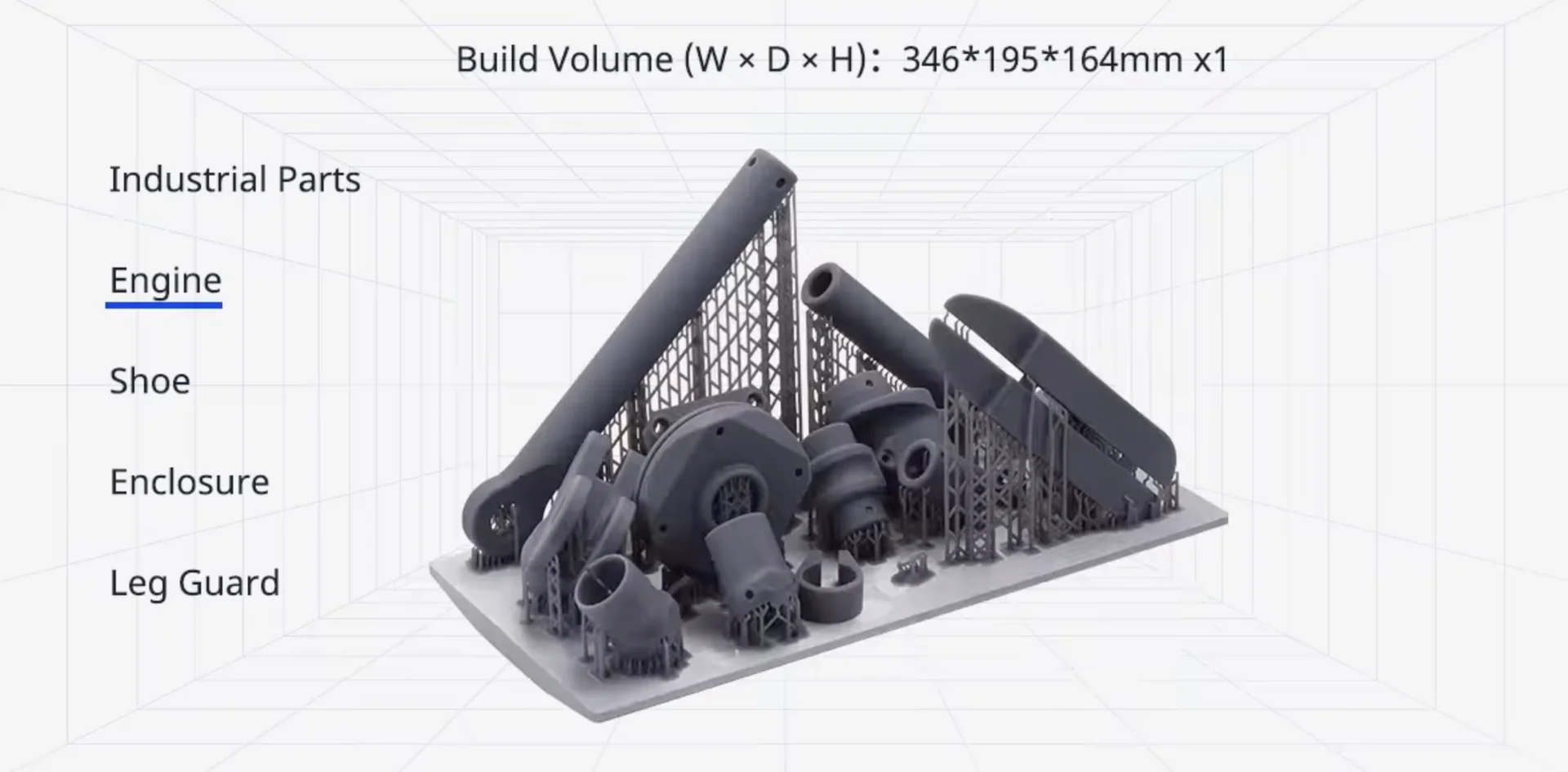

Engine 3D Print Sample: 346 x 195 x 164 mm
The Galaxy 1 supports aftermarket upgrades like the Wham Bam XTR Kit with a 404 x 204 mm flexi plate for stronger build plate adhesion. Its 25 μm XY resolution, powerful laser, and broad slicing software compatibility deliver excellent results with any 405 nm resin.

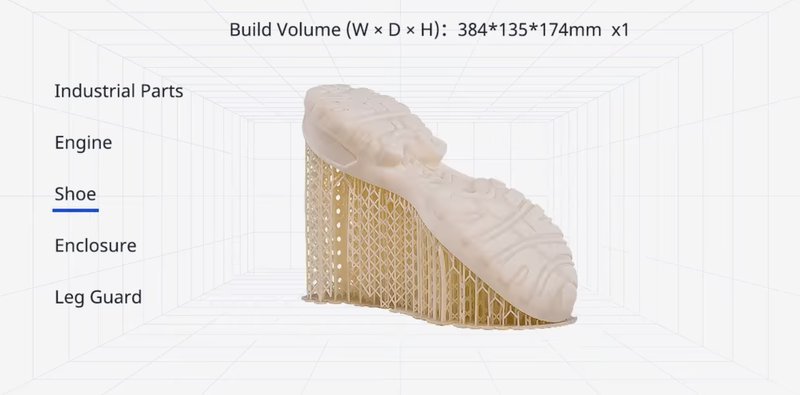

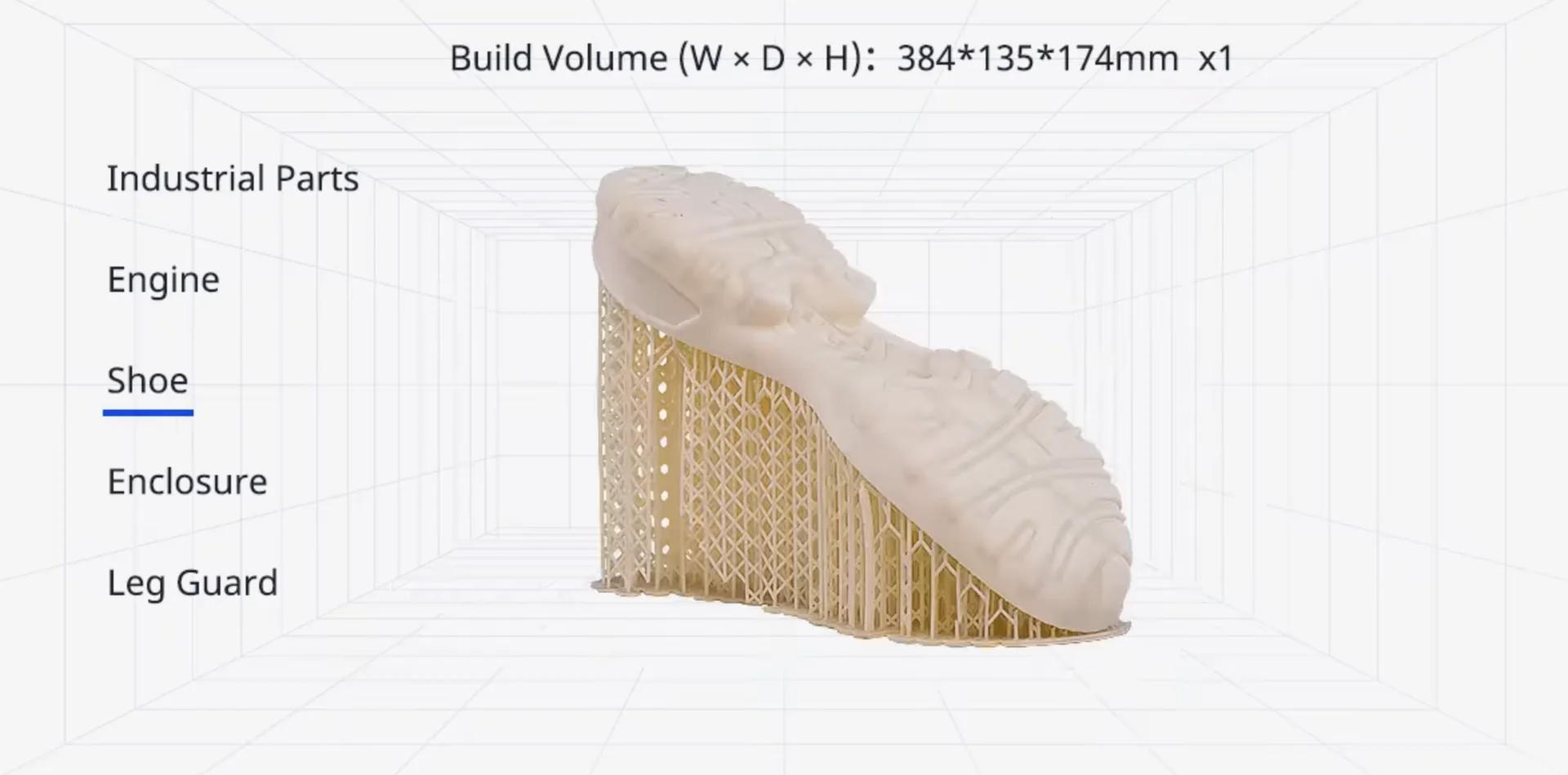

Shoe 3D Print Sample: 384 x 135 x 174 mm

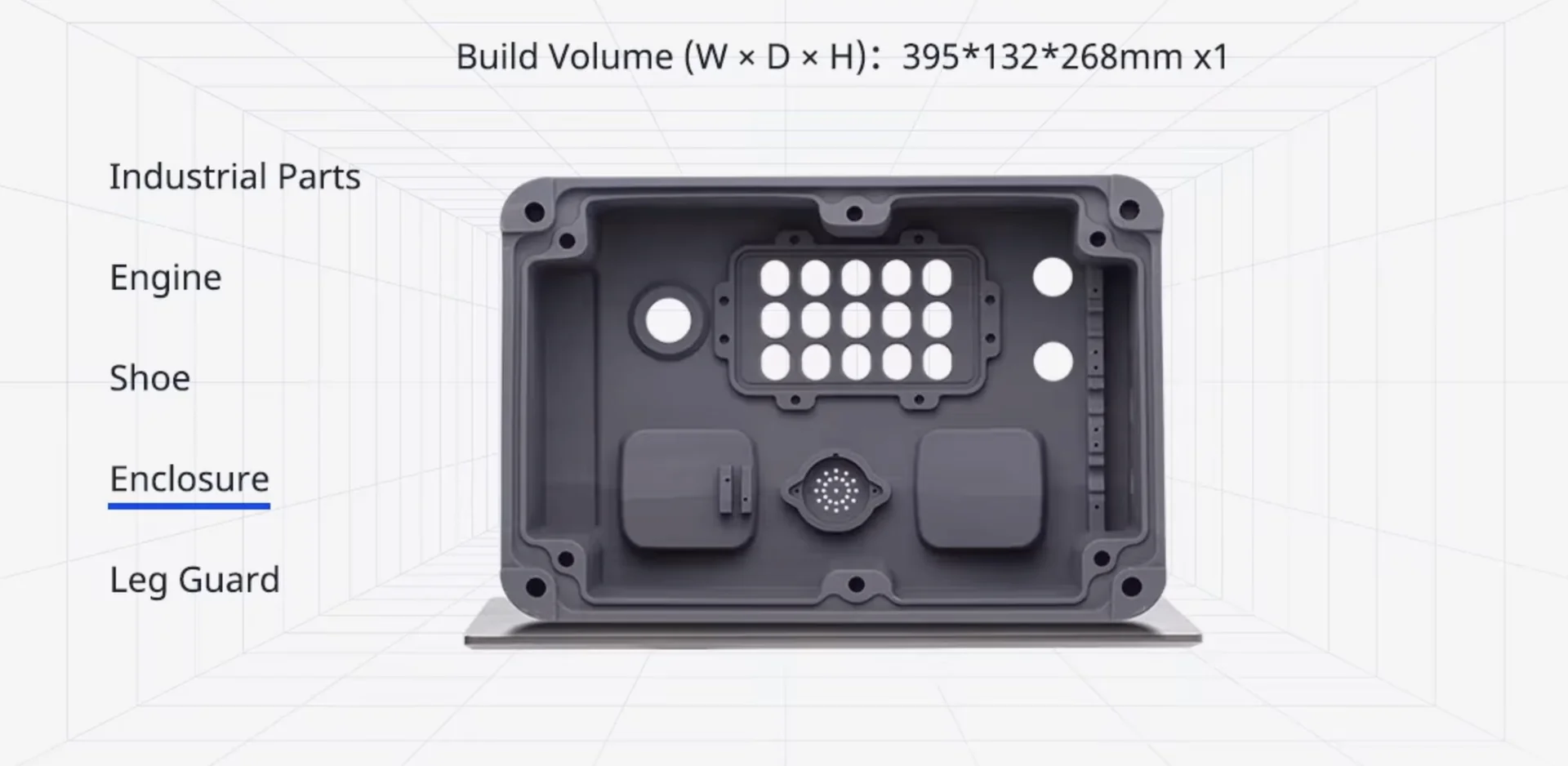

Enclosure 3D Print Sample: 395 x 132 x 268 mm

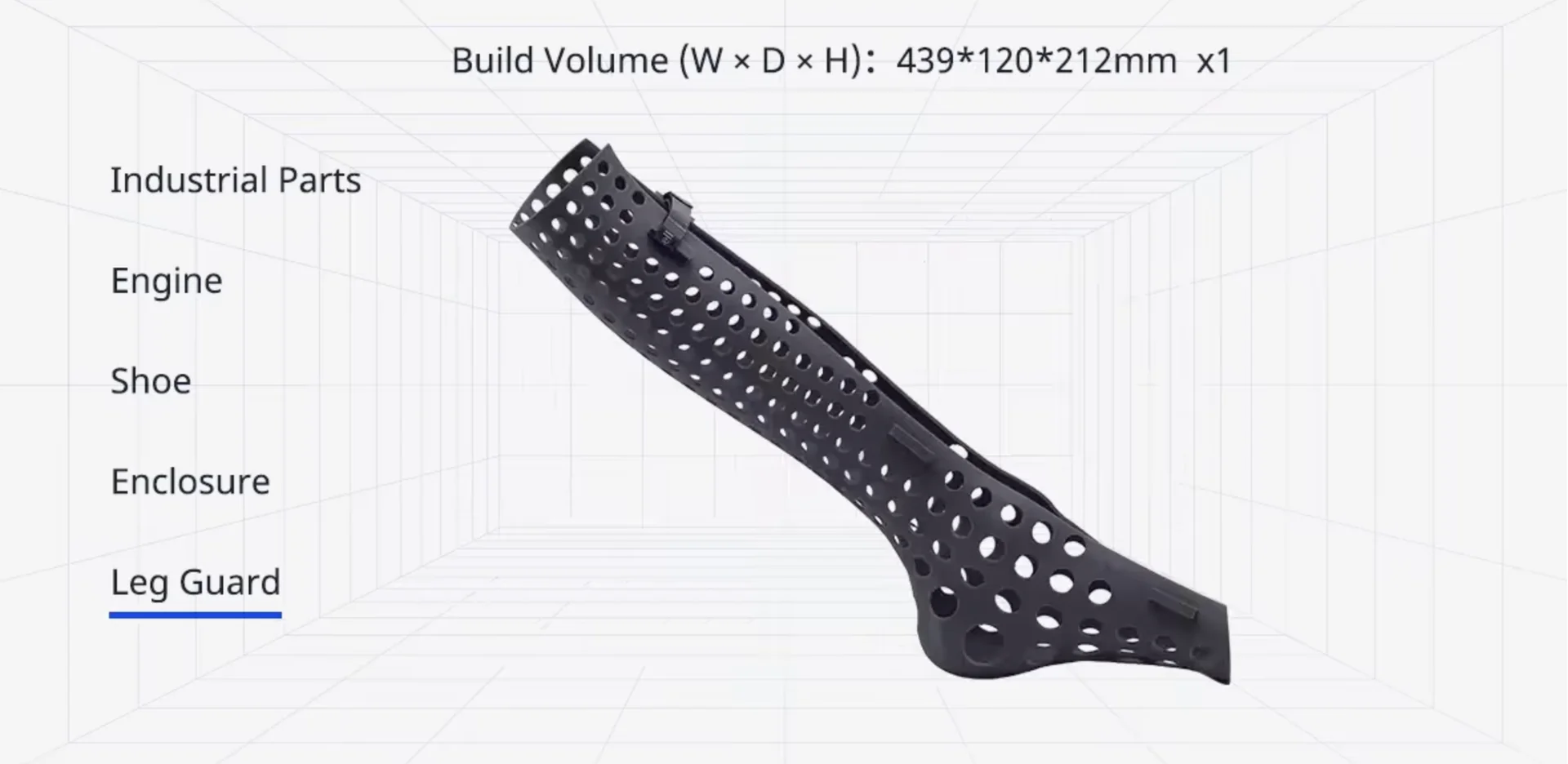

Leg Guard 3D Print Sample: 439 x 120 x 212 mm
What is the build volume of the EMAKE3D Galaxy 1?

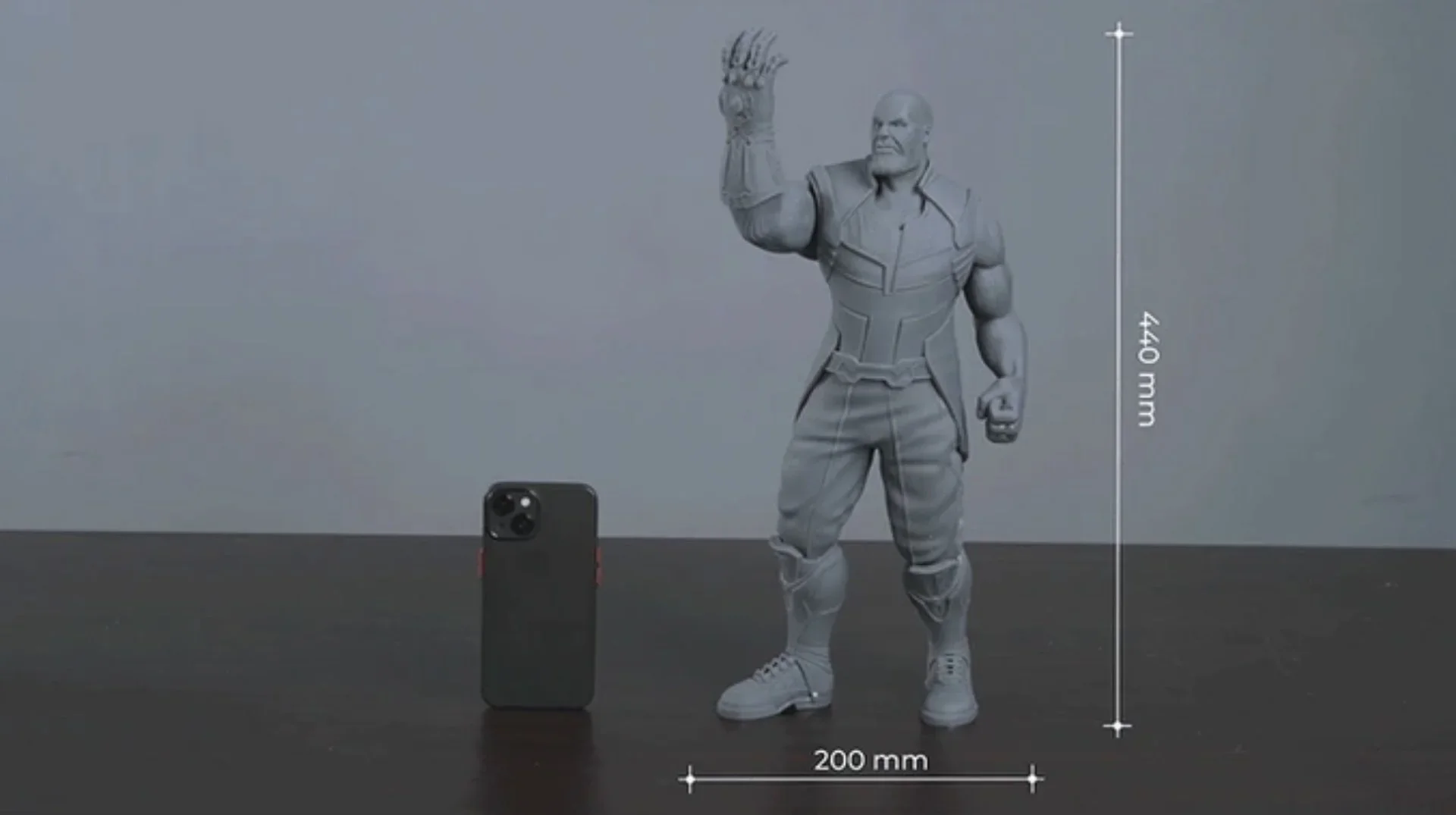

The Galaxy 1 offers a 400 x 200 x 400 mm build volume and a 17-inch platform, ranking among the largest desktop SLA printers. It supports full-scale models, large prototypes, or batch printing smaller parts without sacrificing quality or requiring assembly.
Compared to other large-format resin printers, the Galaxy 1 offers a notably larger build volume.
3D Printer
Build Volume (mm)
Technology
EMAKE3D Galaxy 1
400 x 200 x 400
SLA
Phrozen Sonic Mega 8K
330 x 185 x 400
MSLA
Elegoo Jupiter
278 x 156 x 300
MSLA
Anycubic Photon M3 Max
298 x 164 x 300
MSLA
Peopoly Phenom Forge
288 x 163 x 350
MSLA
EMAKE3D MegaLabs M1
533 x 300 x 550
DLP
What printer controls are available on the EMAKE3D Galaxy 1?

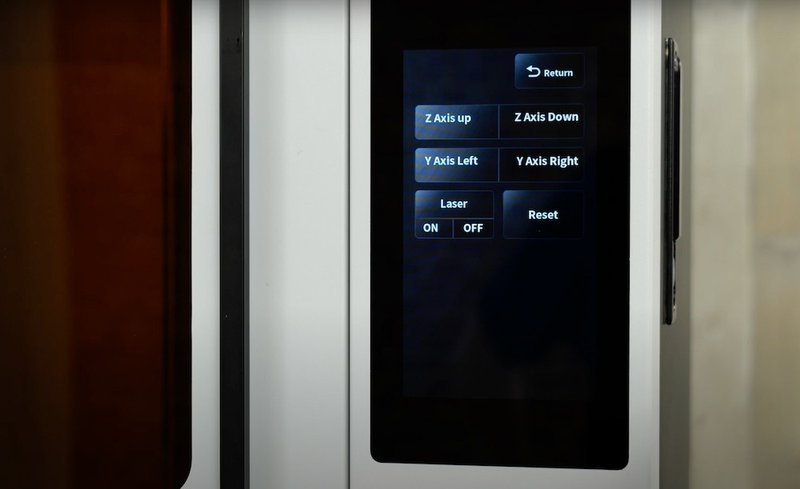

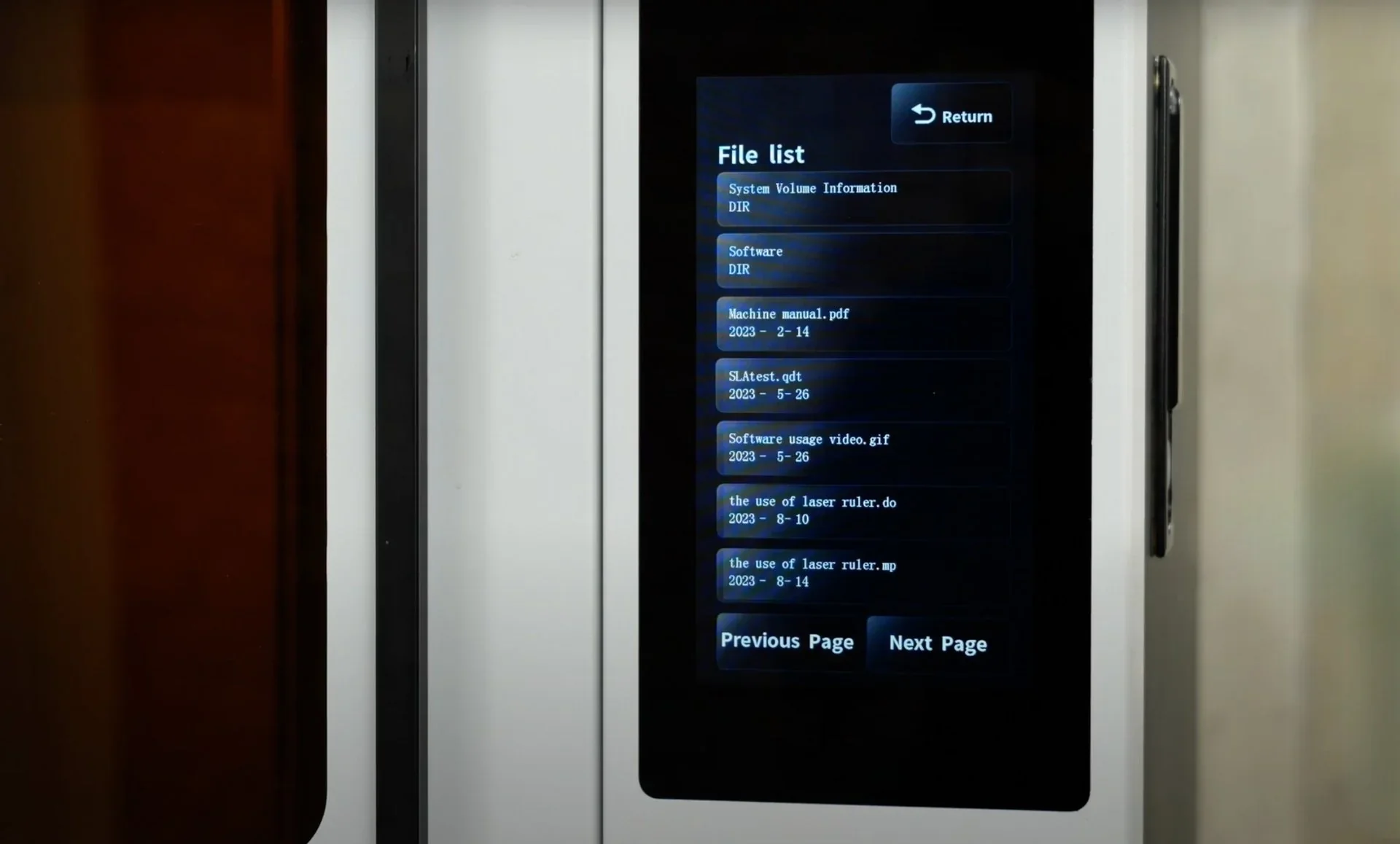

The EMAKE3D Galaxy 1 features a 7-inch color touchscreen for adjusting settings, monitoring prints, accessing pre-sliced models, and fine-tuning permanent leveling, complemented by resin vat adjustment knobs and an onboard thermostat maintaining temperatures above 5°C.

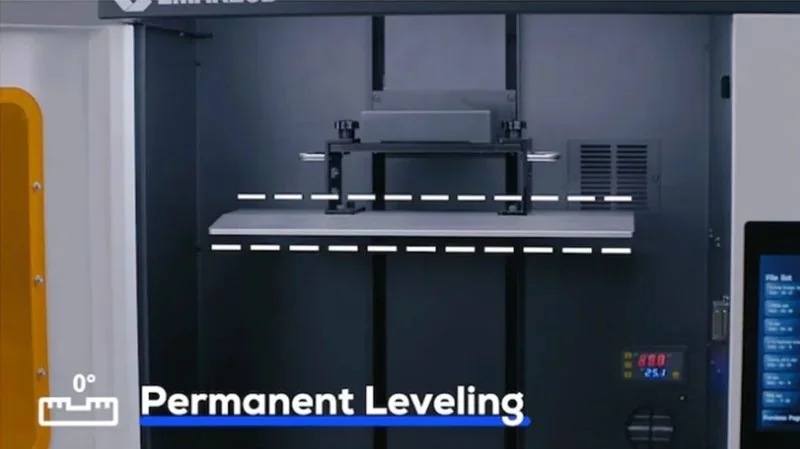

The Galaxy 1’s permanent leveling system eliminates frequent recalibration, with touchscreen fine-tuning for precision. Resin vat adjustment knobs, a sturdy build platform, and precision mounting add stability. Its onboard thermostat maintains optimal conditions above 5°C, supporting a wide range of materials.

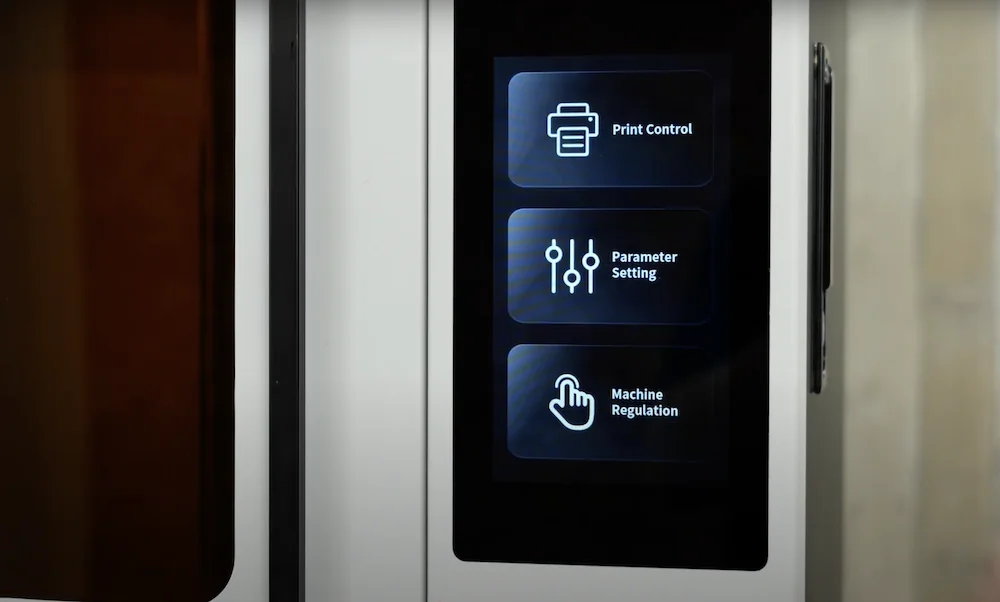

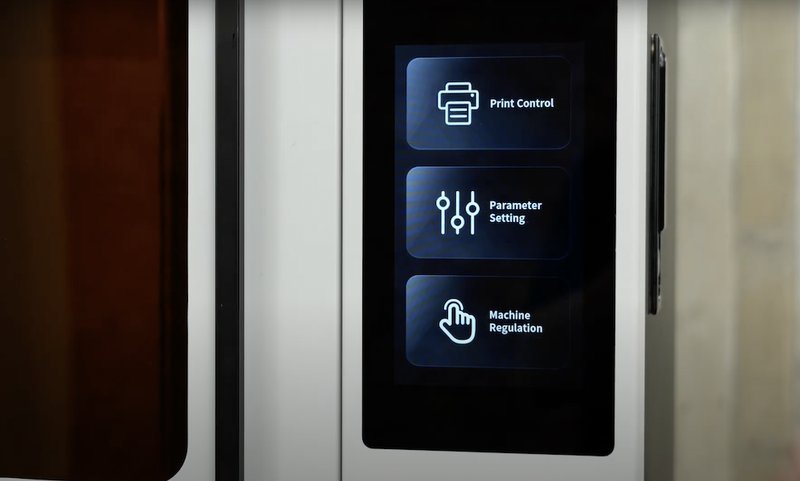

Menu Options.
Print Control Options.
Parameter Setting Options.
Machine Regulation Options.
What connectivity options are available on the EMAKE3D Galaxy 1?

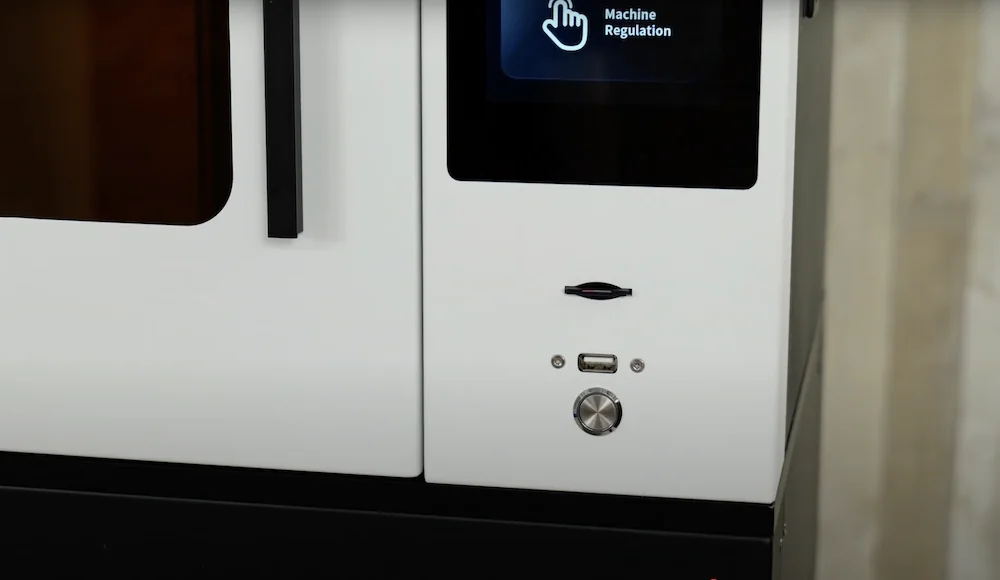

The Galaxy 1 comes with a card reader and SD card for reliable, out-of-the-box use. This setup is ideal for long prints, avoiding wireless interruptions. The 7-inch touchscreen pairs with these ports for easy file browsing, while the SD card helps organize multiple projects.
What software is offered with the EMAKE3D Galaxy 1?
The Galaxy 1 includes one year of CHITUBOX Pro, offering advanced slicing, model repair, island detection, and auto-support tools optimized for SLA, DLP, and LCD printing. This software ecosystem enhances reliability and print success.
The Galaxy 1 supports multiple slicers, including Voxeldance, PrusaSlicer, Lychee, Materialise Magics, and Workshop, giving users flexibility in their workflow.
What is the design and build quality of the EMAKE3D Galaxy 1?

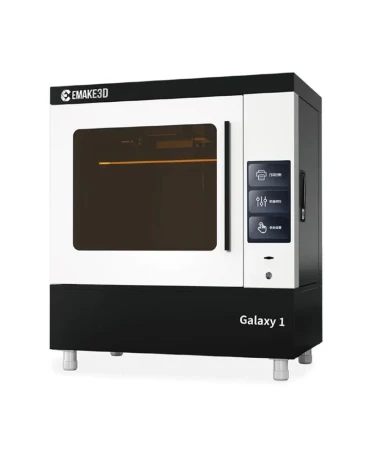

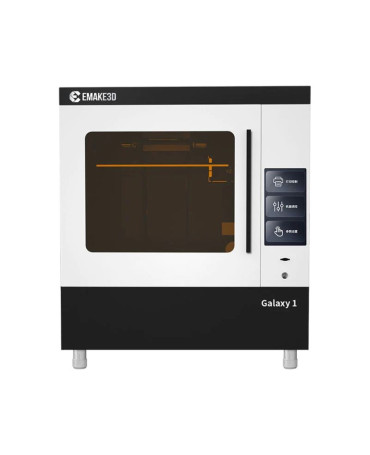

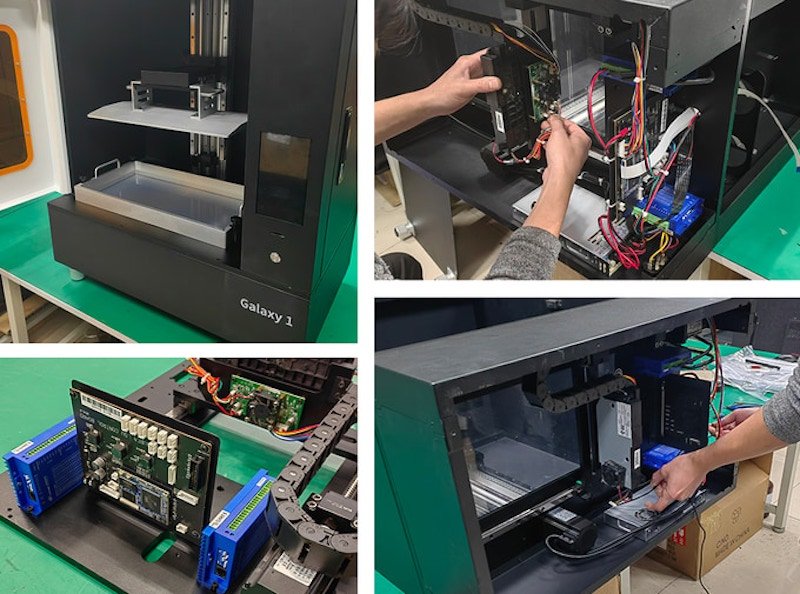

The EMAKE3D Galaxy 1 features a robust all-metal frame with an integrated rack system for stability and vibration reduction, delivering precise prints within its 400 x 200 x 400 mm build volume while measuring 700 x 432 x 803 mm, weighing 57 kg, and operating quietly below 50 dB.

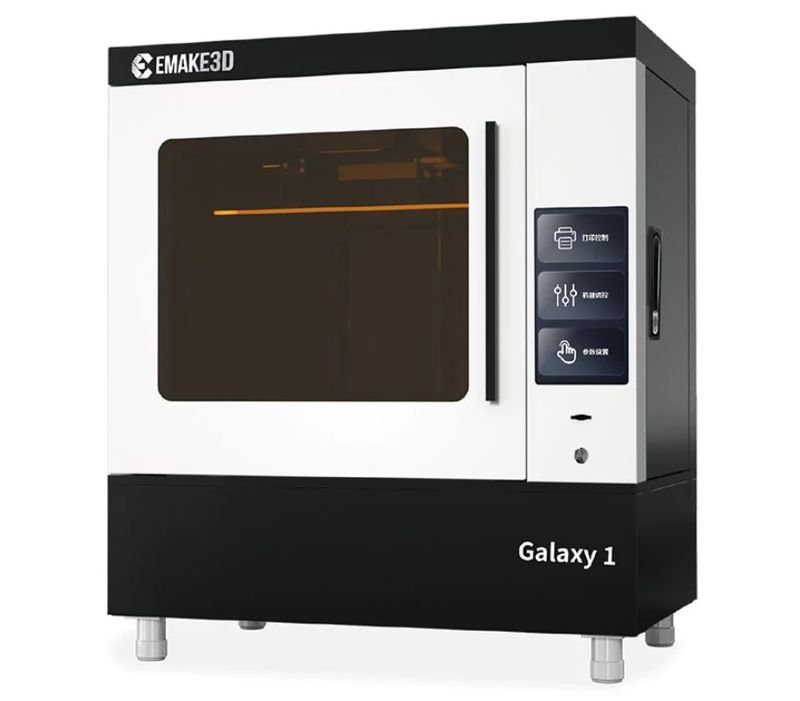

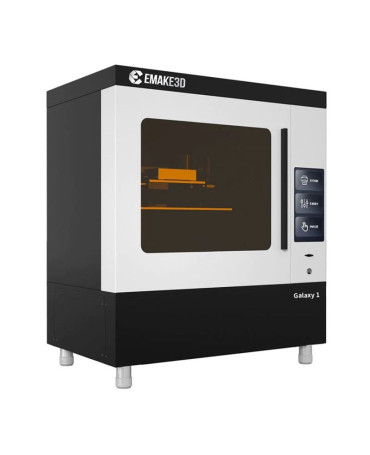

The Galaxy 1 offers a compact footprint with a UV-protective orange viewing window and a black-and-white design suited to both professional and personal spaces.
The Galaxy 1’s linear laser scanning with flywheel generators and a rotating mirror system delivers precise laser control, making it more accurate and reliable than traditional SLA printers.

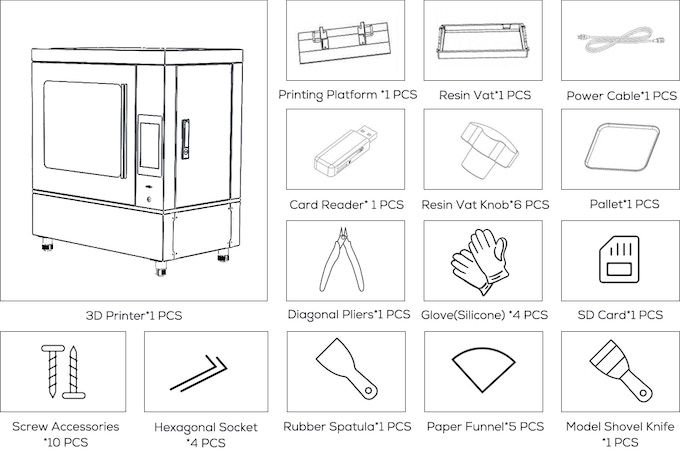

What comes included in the box with EMAKE3D Galaxy 1?
Galaxy 1 3D printer (fully assembled)
Printing platform
Resin vat with 6 vat knobs
Power cable & pallet
Card reader + SD card
Diagonal pliers
4x silicone gloves
10x screw accessories
4x hexagonal sockets
Rubber spatula
5x paper funnels
Model shovel knife
CHITUBOX Pro gift card (1-year subscription)
The Galaxy 1 arrives fully assembled with everything needed to start printing, including the build platform, resin vat, tools, and accessories for setup and maintenance. A one-year CHITUBOX Pro subscription provides advanced slicing, while the SD card and reader simplify file transfers. Extras like gloves and funnels streamline resin handling, reflecting EMAKE3D’s focus on user experience.
Note: Package contents may vary by manufacturer and are subject to change without notice. Confirm included items with a sales representative before ordering.
What upgrades and accessories are available for the EMAKE3D Galaxy 1?
The EMAKE3D Galaxy 1 offers upgrades such as a 350mW laser module for ~30% faster printing, replacement resin vats (400 × 200 × 400 mm), a 17" spare printing platform, anti-clouding ACF films, non-stick NFEP vat films, a 120W UV cure machine, and supports third-party accessories like the Wham Bam XTR Kit with a 404 × 204 mm flexi plate.
Accessory/Upgrade
Description
Functionality
Price
350mW Laser Module
Higher-power laser
~30% faster printing vs. 230mW
$500.00+
Resin Vat (400 × 200 × 400 mm)
Replacement vat
Quick resin swaps, continuous use
$100.00+
Printing Platform (17")
Spare platform
Enables nonstop printing
$100.00+
ACF Films
Anti-clouding film
Lowers force/static, improves quality
$50.00+
NFEP Film
Non-stick vat film
Easier release, extends vat life
$30.00+

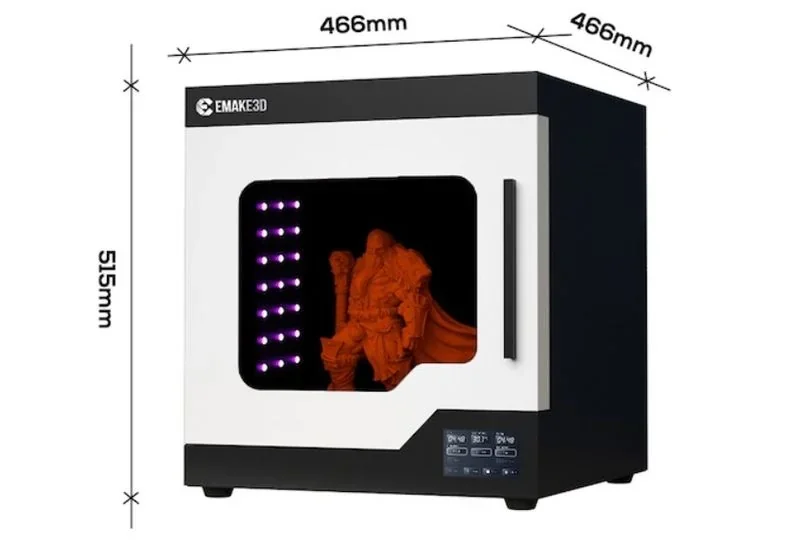

Cure Machine
UV curing station
Cures large prints (400 × 400 × 400 mm, 120W)
Request a quote from Top 3D Shop
The Galaxy 1 supports third-party upgrades like the Wham Bam XTR Kit (404 × 204 mm). This system includes a spring steel Flexi Plate and strong magnetic base, giving excellent adhesion and tool-free print removal in seconds. The rustproof plate and 800+ Gauss base improve durability and ease of use.
EMAKE3D offers resins tailored for the Galaxy 1: an ABS-like resin in gray or white ($30), a High Heat Resistance Resin ($45), and a Standard Rigid Resin ($25). While optimized for the printer, the Galaxy 1’s open material system also supports any third-party 405 nm photopolymer resin.
What maintenance is required for the EMAKE3D Galaxy 1 3D printer?
After Each Print
Clean build platform and resin tank with IPA and lint-free cloth
Remove cured particles/debris from tank
Dispose of contaminated resin per local regulations
Wipe exterior surfaces clean
Inspect build platform adhesion surface
Store unused resin in a dark, stable environment
Daily
Filter used resin (200-micron mesh) before reuse
Check resin level and refill if needed
Inspect FEP film/tank for cloudiness or punctures
Clean optics window with approved solution
Verify build platform leveling and adhesion
Weekly
Deep clean resin tank (ultrasonic + IPA)
Inspect galvanometer mirrors
Clean laser optics and focusing lens
Lubricate Z-axis bearings and lead screw
Check rack/pinion gears
Calibrate laser power/spot size
Test emergency stop and interlocks
Monthly
Replace worn/cloudy FEP film
Verify full optical alignment
Clean/replace cooling fan filters
Check electrical connections
Recalibrate build platform leveling
Inspect UV LED array output (if equipped)
Every 500 Print Hours
Replace carbon filters
Clean galvanometer servos
Check laser beam profile/optics
Lubricate moving components
Inspect frame mounting points
Every 2,000 Print Hours
Calibrate laser power and beam quality
Replace degraded galvanometer mirrors
Inspect/replace worn linear motion parts
Clean internal optics (beam splitters, mirrors)
Laser Module (20,000-Hour Lifespan)
Monitor output diagnostics
Clean cooling system and thermal components
Verify driver temperature regulation
Replace laser module near lifespan limit
Safety & Environmental
Maintain ventilation and replace filters
Use gloves/PPE when handling resin
Ensure UV-blocking enclosure integrity
Store/dispose of IPA properly
Keep ambient temperature 20–25°C
How does Auto Resin Feeding work?
The Galaxy 1 prevents resin shortages with an external sensor and auto-pump system that refills the vat from an internal bottle when levels run low.
What support and warranty come with the EMAKE3D Galaxy 1?
The Galaxy 1 includes a 1-year warranty covering defects and component failures under normal use. Purchases from authorized dealers like Top3DShop also include local support.
EMAKE3D offers resources like setting sheets with optimized parameters for different resins, including detailed profiles for Siraya Tech Fast ABS-like Grey.
Galaxy 1 users can also join the official EMAKE3D Facebook group, an active community sharing tips, support, and project inspiration.
Full warranty terms: https://emake3d.com/pages/term-services
How much does the EMAKE3D Galaxy 1 cost?
The Galaxy 1 is available for $2,899.00, offering exceptional value for a large-format SLA printer. It combines a 400 × 200 × 400 mm build volume, 20,000-hour laser, permanent leveling, and auto resin feeding. The price includes all essentials, accessories, and a one-year CHITUBOX Pro subscription.
