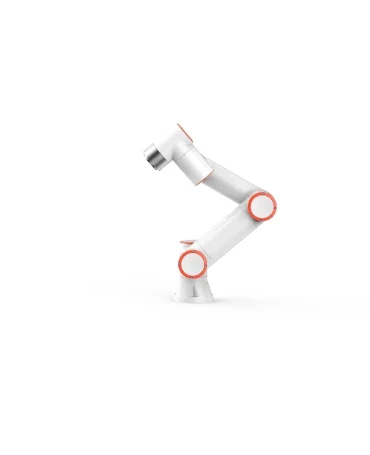

The FAIRINO FR3 is a 6-axis collaborative robot designed for industry automation in electronics, machining, and general manufacturing. It offers a 3 kg payload, 622 mm reach, and ±0.02 mm repeatability for precise work in compact spaces. Programming is accessible via a browser-based WebAPP and optional Teach Pendant, with SDKs for C# / C++ / Python and ROS / ROS 2 for integration. Weighing around 15 kg, it has an IP54 rating (IP65 optional) and mounts in any orientation. Preconfigured factory kits — vision, palletizing, welding, bin-picking, and CNC tending — speed setup and ease integration.
The FAIRINO FR3 has a 3 kg rated payload but can handle up to 5 kg with a close center of gravity and limited motion range.
The FR3 has a 622mm TCP reach within a spherical-segment workspace, enabling overhead and below-base positioning. Joint limits define this envelope: base ±175°, shoulder +85°/−265°, elbow ±150°, and wrist axes +85°/−265°, ±175°, and ±175°, leaving only a small unswept area at the base.
The FR3 achieves ±0.02 mm repeatability (ISO 9283), with 1 m/s TCP speed and joint velocities up to ±180°/s, enabling fast, precise motion.
Example: Food & Beverage Service Cells
Example: Photography Robot
Example: Crop Harvesting
Example: Screw Fastening
Example: Industrial Gluing Operations
Example: Assembly of Components
Example: Palletizing
Example: Healthcare
Example: Sewing
Example: Pick & Place
The controller supports point-to-point and linear moves with joint-overspeed protection to maintain path accuracy near joint limits. B-spline look-ahead planning smooths motion and reduces jerk, while a singularity strategy ensures continuous travel through difficult poses.

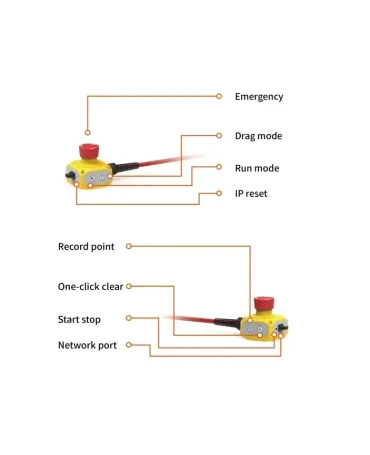

The FR3 includes an emergency stop on the teach pendant or button box that instantly halts motion and cuts joint power.
An end-of-arm LED shows robot states — Automatic, Manual, Drag, Start/Stop, Enable, and errors — to keep operators informed during close interaction.
The FR3 supports hand-guiding via Drag mode with user-defined joint soft limits to restrict movement. Collision detection is adjustable by level (1–10 or custom %) with selectable responses — error-stop or continue — allowing behavior to match risk assessments.
The FR series meets ISO 10218, ISO 13849, ISO/TS 15066, CE, and RoHS 2.0 standards, enabling compliant human-robot collaboration technology deployment.

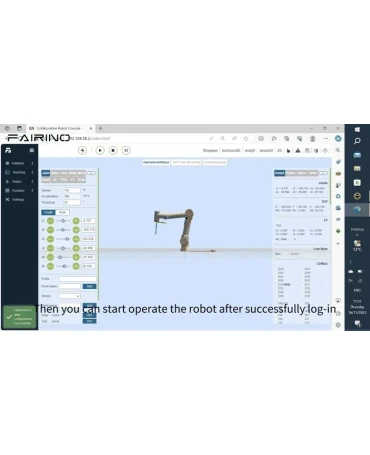

The FR3 uses FAIRINO’s self-developed browser-based WebAPP for programming on PC, tablet, or phone, with a mirrored interface on the optional teach pendant.
The interface supports graphical programming and Lua scripting, allowing users to drag-and-drop functions or write code in one environment.
FAIRINO offers SDKs for C#, C++, and Python, plus ROS/ROS2 integration for robotics secondary development.
FAIRINO’s application kits offer no-code workflows — palletizing sets up in three guided steps, and welding includes prebuilt logic. For advanced control, the Controller Communication Protocol provides API access to motion, I/O, safety, and peripherals.
The WebAPP and teach pendant UI support multiple languages, including Chinese, English, French, and Japanese, to suit local operators.
The FR3 offers 50+ connectivity options. Its controller includes 16 DI, 16 DO, 2 AI, 2 AO, and 2 high-speed pulse inputs (24 V) for cell-level I/O. The tool flange adds 2 DI, 2 DO, 1 AI, 1 AO, and a 24 V / 1.5 A power rail for end-effector integration.
The digital I/O uses 24 V industrial signaling with selectable NPN/PNP wiring. Outputs sink up to 1 A (≈0.5 V drop, ≤0.1 mA leakage), and inputs trigger at 11–30 V. An internal 24 V supply (1.5–2 A) supports light loads; external power is recommended for higher draw.
Standard networking includes Ethernet (TCP/IP) with Modbus TCP/RTU for PLC/SCADA integration. Optional MiniPCIe cards add EtherCAT, EtherNet/IP, PROFINET, and CC-Link IE Field Basic for fieldbus support.
FAIRINO’s Safety Box connects via RJ45 and PoE, presenting the WebAPP over TCP/IP for easy operator access, commissioning, and handshaking on the plant network.

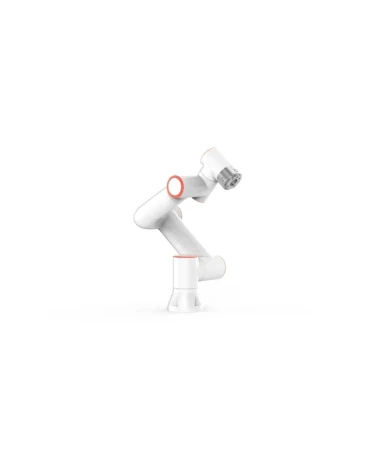

The FAIRINO FR3 is a 6-axis cobot with aluminum and steel links on a 128 mm footprint, weighing ≈15 kg for stability and low inertia. It’s rated IP54 (IP65 optional), operates at 0–45 °C and up to 90% Relative Humidity (non-condensing), runs below 65 dB, and supports any mounting orientation for flexible cell layouts.
The controller has a galvanized IP54-rated chassis, measuring 245 x 180 x 44.5 mm and weighing 2.1–2.5 kg.
The optional teach pendant is an IP54-rated ABS/PP unit, 268 x 210 x 88 mm, weighing 1.6 kg — durable and compact for industrial use.
Installations should avoid shock, corrosive or explosive environments, and unstable power — standard practice for collaborative arms.

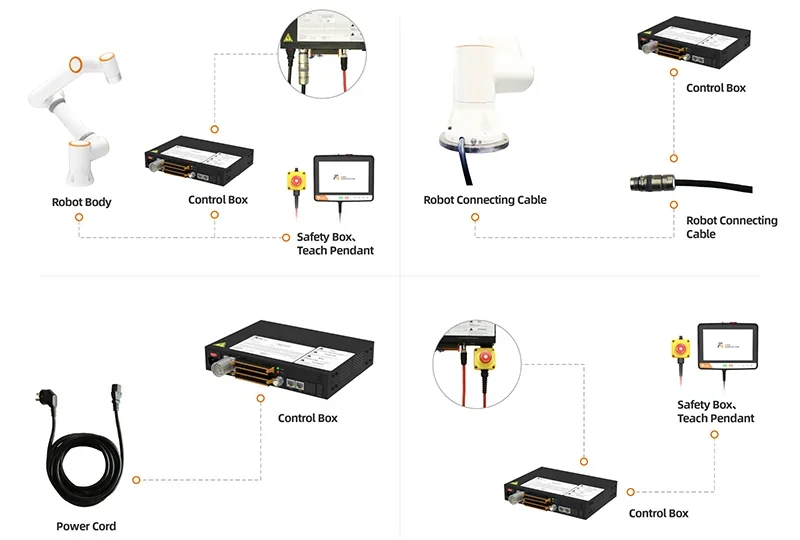

The standard FAIRINO FR3 collaborative robot arm package includes:

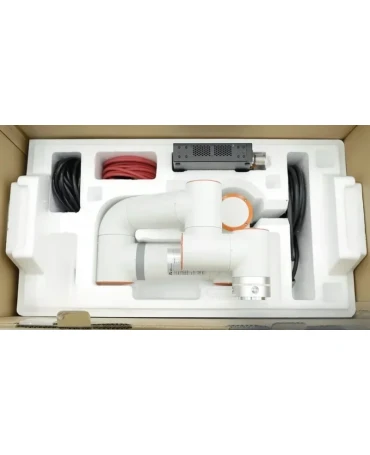

The FR3 ships fully assembled with a separate control and button box. After securing the base and connecting the cables and power, it’s ready to run via the WebAPP.
Please Note: Package contents are determined by the manufacturer and may change without notice. To confirm the current items included with this product, please contact a Top3DShop sales representative before placing your order.
|
Accessory |
Variation |
Function |
Price (USD) |
Image |
|
Fairino Teach Pendant |
Rugged tablet-style teach pendant for Fairino cobot operation and programming. Displays the Fairino web interface on a dedicated handheld device, so the operator can control and teach the robot directly at the cell without a laptop or desktop. Designed for industrial environments where a PC is not practical. |
800 |
|
|
|
Fairino Quick Control Buttons |
Physical quick-control button set for Fairino cobots. Supports manual drag-and-drop teaching and fast motion commands without using the web interface. Intended for quick operator interaction during tasks such as welding and other manual teaching workflows. |
415 |
|
|
|
Force Torque Sensor |
Force/torque sensor for contact tasks such as compliant assembly, surface finishing, and force-controlled motion. |
1000 |
|
Default specifications for all electric grippers: 24 V DC (±10%), Modbus RTU (RS485) + Digital I/O, optional TCP/IP / USB 2.0 / CAN2.0A / PROFINET / EtherCAT, operating 0–40 °C, <85% RH, CE/FCC/RoHS.
|
Accessory |
Variation |
Function |
Price (USD) |
Image |
|
DH-Robotics AG Series Adaptive Grippers (2-finger) |
AG-160-95 |
Linkage-driven jaws conform to uneven or variable-shape parts for stable gripping.
|
3215 |
|
|
AG-105-45 |
What’s different from AG-160-95:
|
3365 |
|
|
|
DH-Robotics PGC Series Collaborative Electric Parallel Grippers |
PGC-50-35 |
Two jaws move in parallel for repeatable pick-and-place and machine tending.
|
1715 |
|
|
PGC-140-50 |
What's different from PGC-50-35:
|
2065 |
|
|
|
PGC-300-60 |
What's different from PGC-50-35:
|
2435 |
|
|
|
DH-Robotics RGI/RGIC Series Rotary Electric Grippers |
RGIC-35-12 |
Grips the part and rotates it continuously (endless rotation axis).
|
1315 |
|
|
RGI-100-14 |
What's different from RGIC-35-12:
|
1565 |
|
|
|
RGI-100-22 |
What's different from RGIC-35-12:
|
1515 |
|
|
|
RGI-100-30 |
What's different from RGIC-35-12:
|
1565 |
|
|
|
RGIC-100-35 |
What's different from RGIC-35-12:
|
1965 |
|
|
|

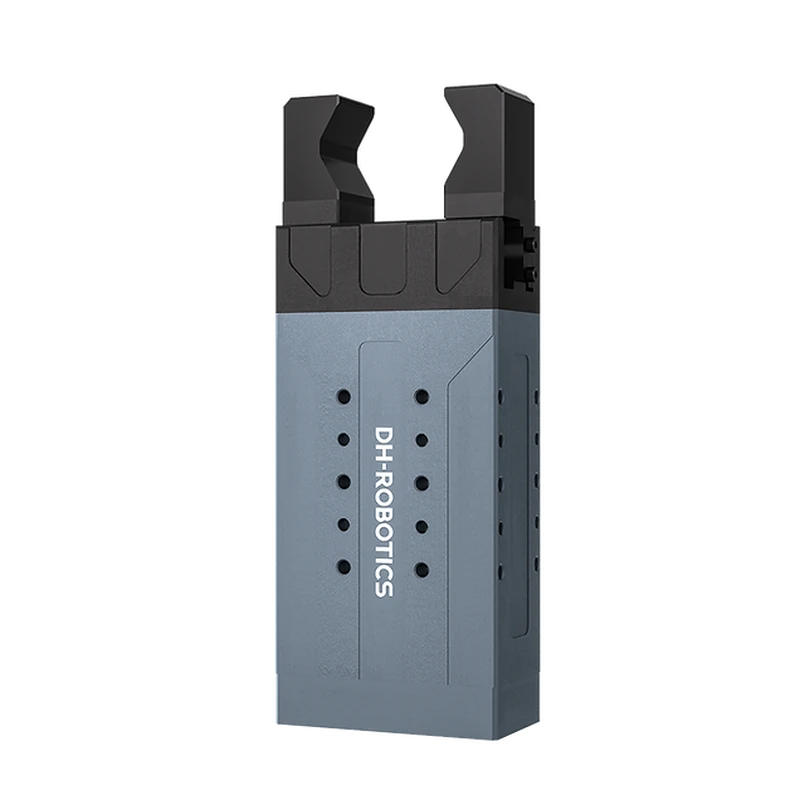

DH-Robotics PGE Series Slim Electric Parallel Grippers |
PGE-2-12 |
Slim parallel gripper for tiny parts.
|
685 |
|
|
PGE-5-26 |
What's different from PGE-2-12:
|
685 |
|
|
|
PGE-8-14 |
What's different from PGE-2-12:
|
685 |
|
|
|
PGE-15-10 |
What's different from PGE-2-12:
|
685 |
|
|
|
PGE-15-26 |
What's different from PGE-2-12:
|
685 |
|
|
|
DH-Robotics PGE Series Electric Parallel Grippers |
PGE-50-40 |
For general pick-and-place tasks.
|
715 |
|
|
PGE-100-26 |
What's different from PGE-50-40:
|
785 |
|
|
|

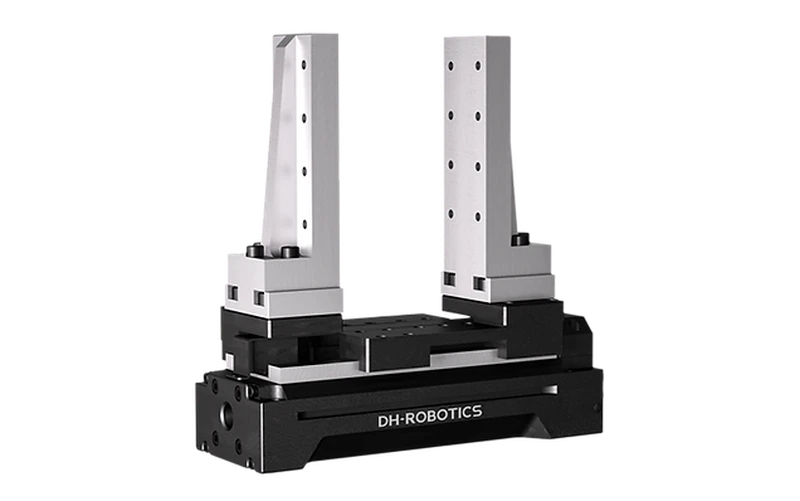

DH-Robotics PGHL Series Heavy-Load Electric Parallel Gripper |
PGHL |
Heavy-load parallel gripper for high clamping force and large workpieces.
|
1600 |
|
|

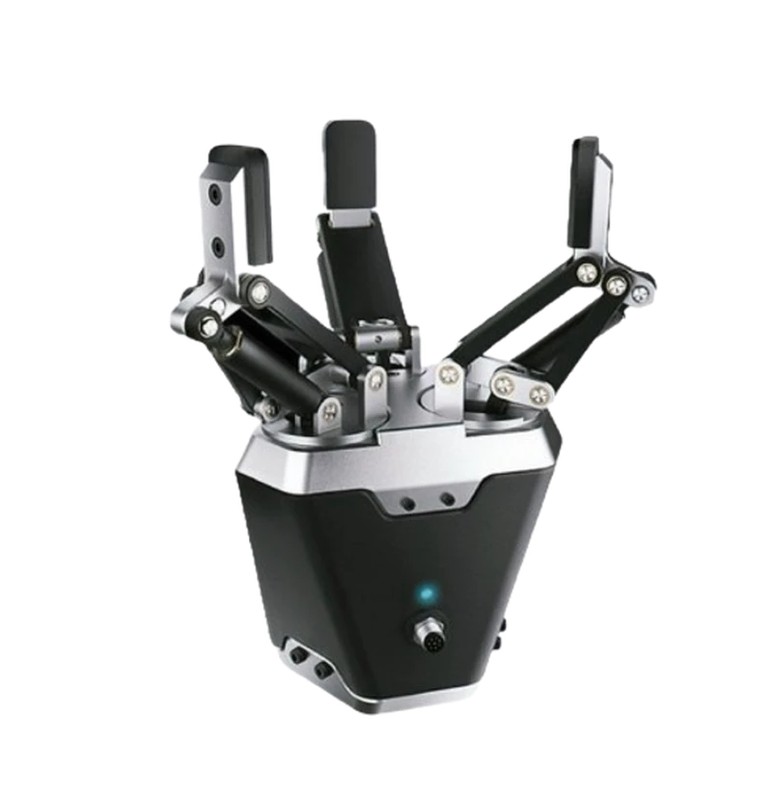

DH-Robotics AG3 Adaptive Electric Gripper (Three-Finger) |
AG3 |
Three-finger adaptive gripper with centric (self-centering) grasp for irregular shapes.
|
9950 |
|
|
Accessory |
Variation |
Function |
Price (USD) |
Image |
|

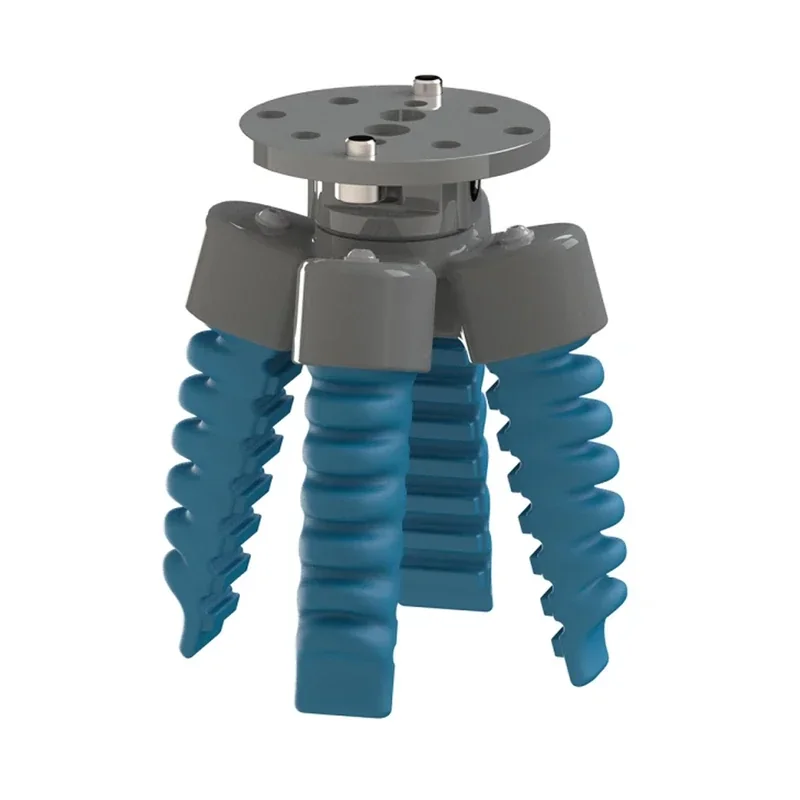

Centric Finger - SoftActuator (AR Series) |
Three Fingers |
Three finger soft, lightweight grippers use rounded, edge-free silicone fingers that conform to each item’s shape for secure, damage-free holding. Their low mass and pneumatic actuation enable fast, high-speed handling across many food products. The fingers are made from FDA-approved silicone rubber. |
770 |
|
|
Centric Finger - SoftActuator (AR Series) |
Four Fingers |
Same as above, with 4 fingers. |
1015 |
|
|
Centric Finger - SoftActuator (AR Series) |
Six Fingers |
Same as above, with 6 fingers. |
1500 |
|
|

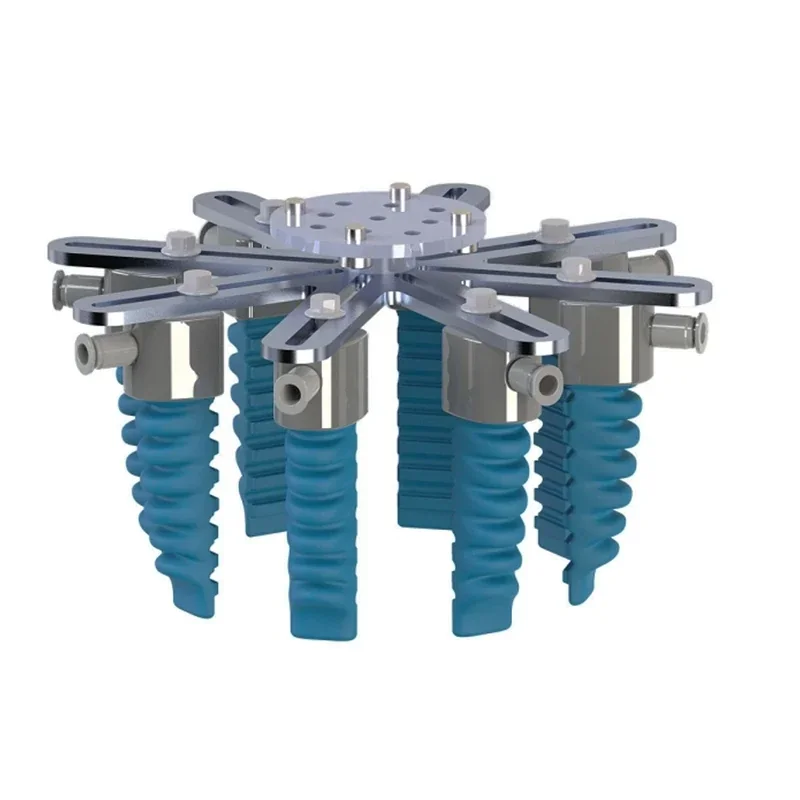

Centric Finger - SoftActuator (AR Series) |
Eight Fingers |
Same as above, with 8 fingers. |
2000 |
|
|

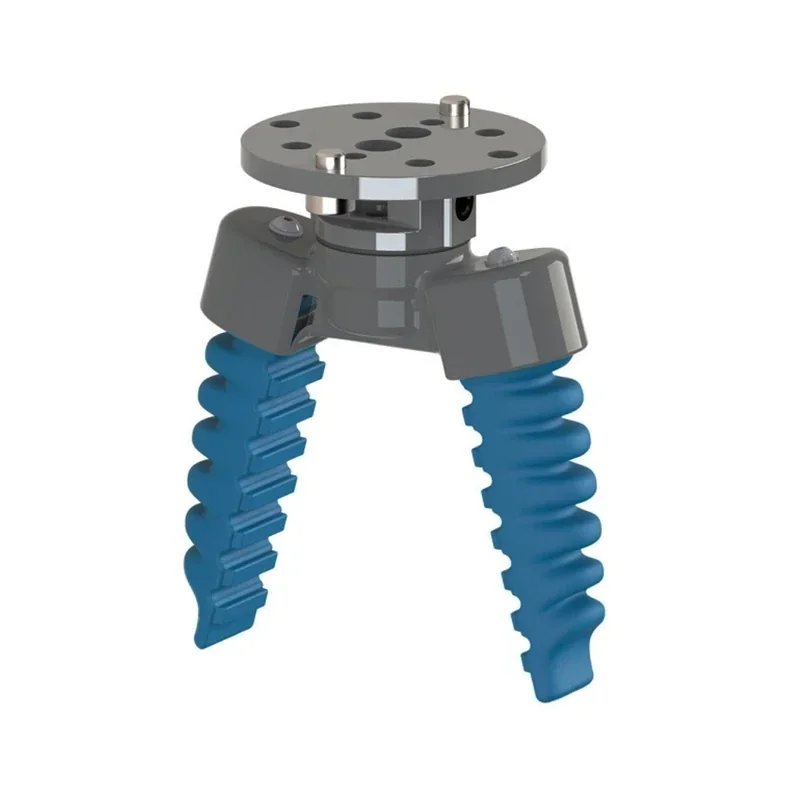

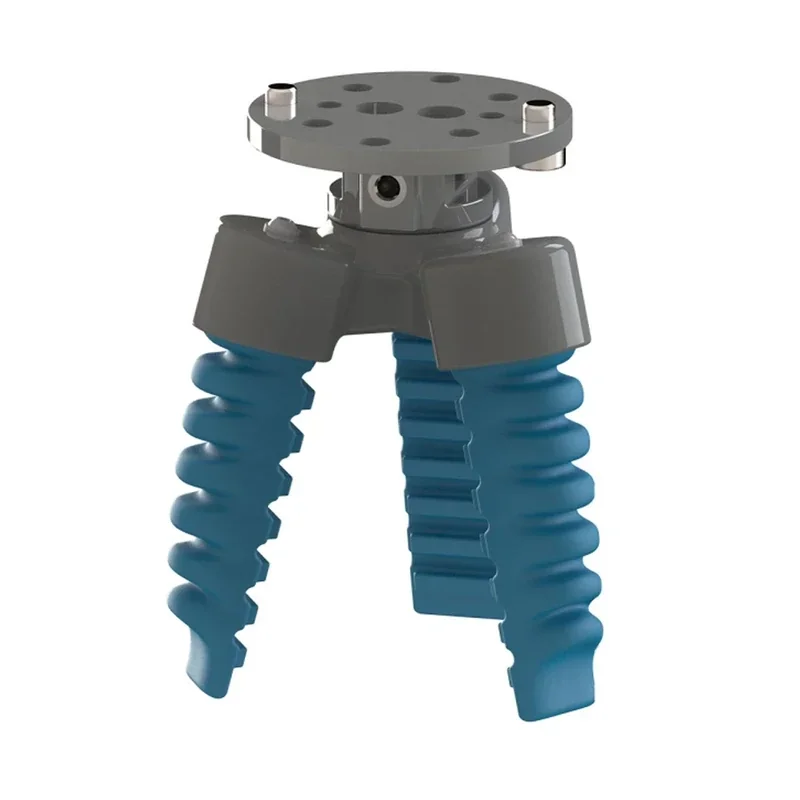

Centric Finger - SoftGripper (R Series) |
Three Fingers |
Three finger lightweight, edge-free grippers use soft, pneumatically actuated FDA-approved silicone fingers that conform to each item for secure, damage-free handling. Their low mass enables high-speed cycling across a wide range of food products. |
740 |
|
|

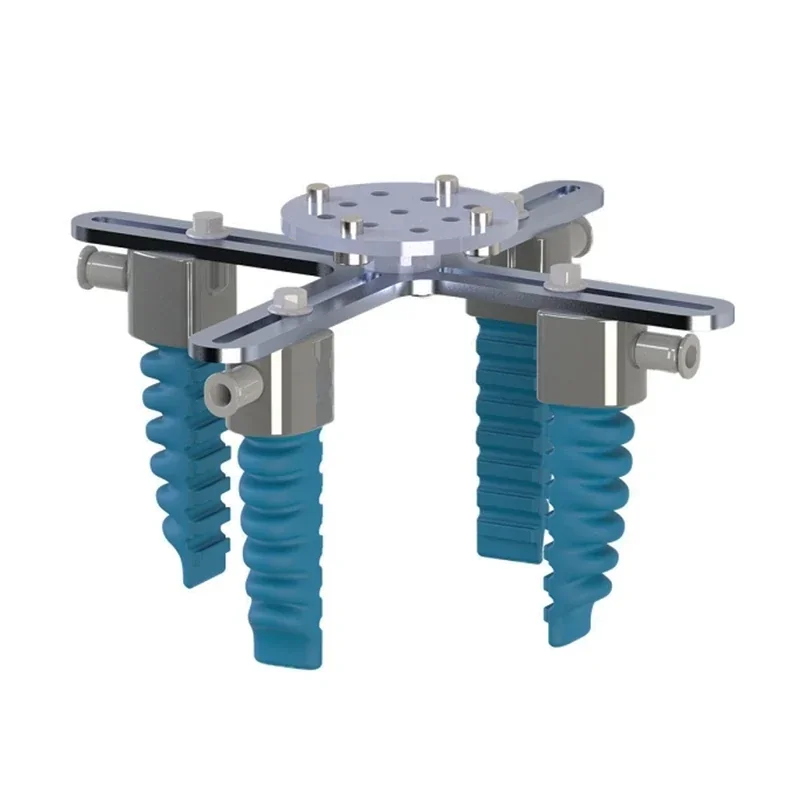

Centric Finger - SoftGripper (R Series) |
Four Fingers |
Same as above, with 4 fingers. |
900 |
|
|

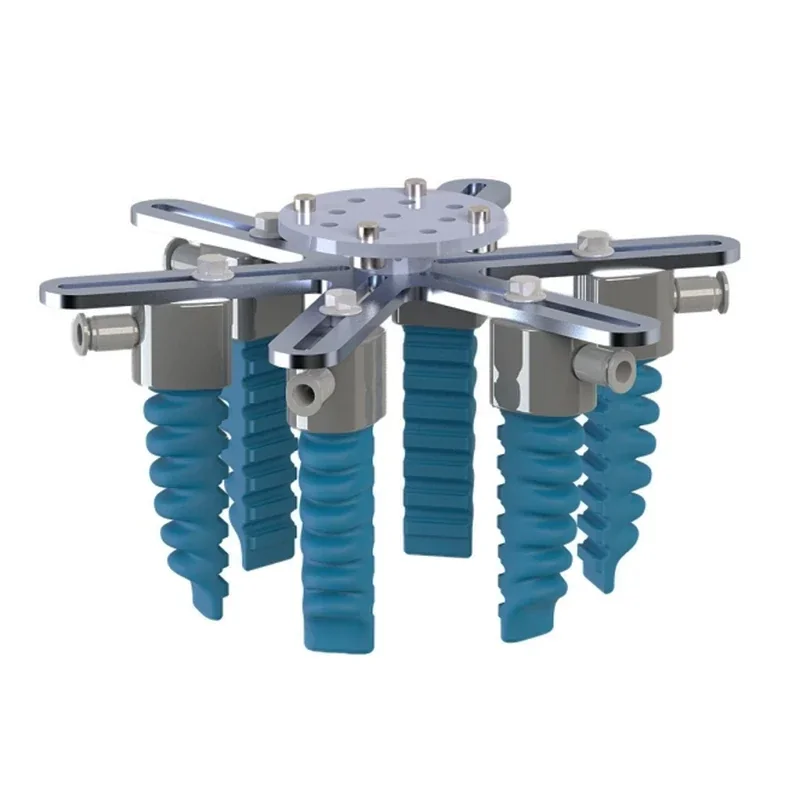

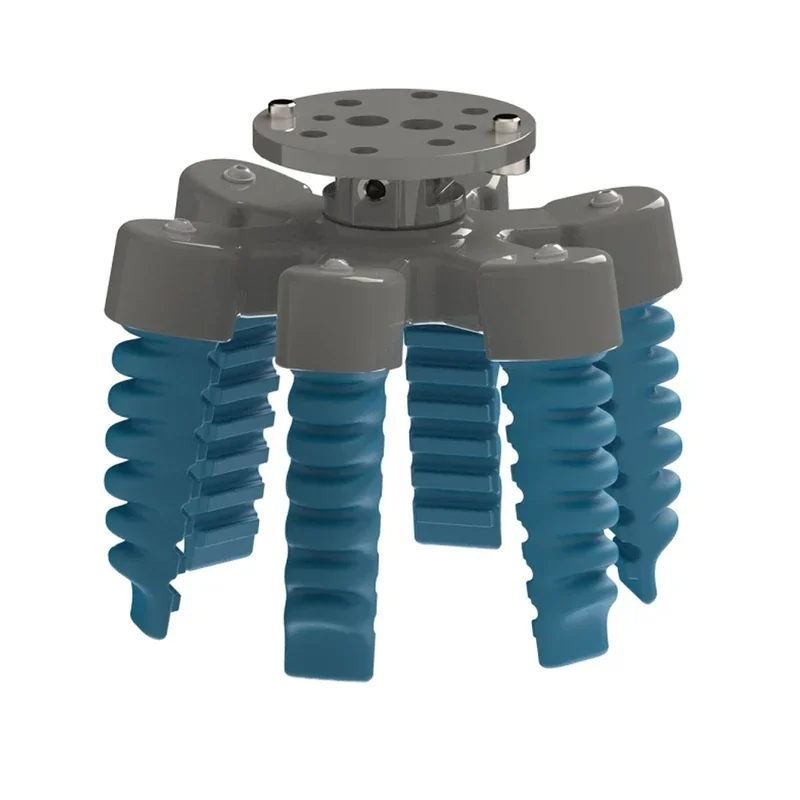

Centric Finger - SoftGripper (R Series) |
Six Fingers |
Same as above, with 6 fingers. |
1230 |
|
|

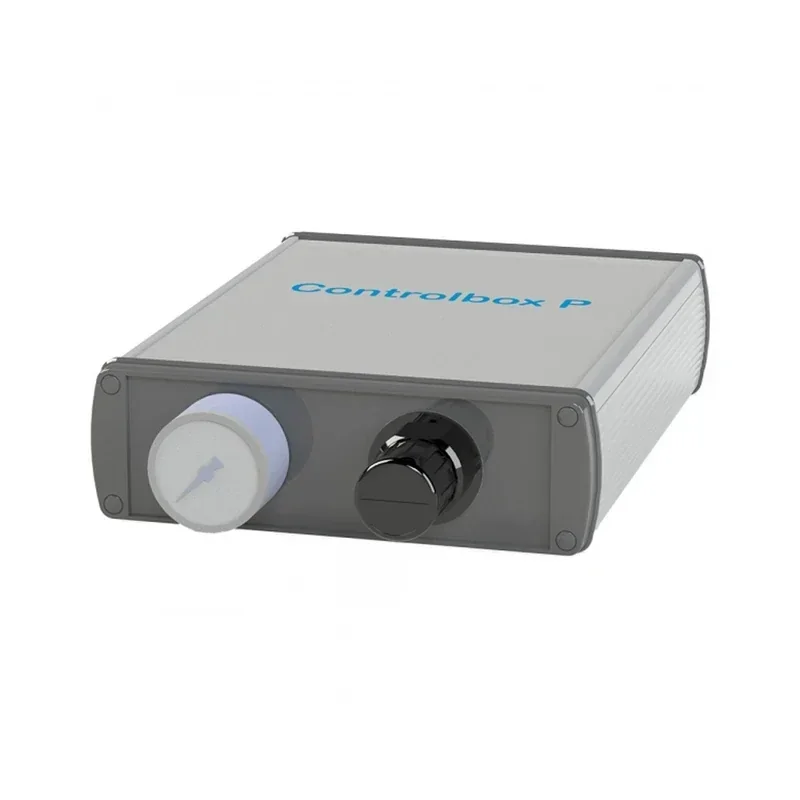

Controlbox - SoftGripping |
Built-In Pump |
This controller provides simple, precise control of soft, flexible grippers. A front-panel display shows current air pressure, and a rotary knob allows accurate pressure adjustment. The rear panel includes a pressure outlet and control signal input. The signal selects finger position in three modes: Grip, Open, and Relax. It’s available in two versions:
|
1100 |
|
|
Controlbox - SoftGripping |
Compressed Air |
1700 |
|
|
|

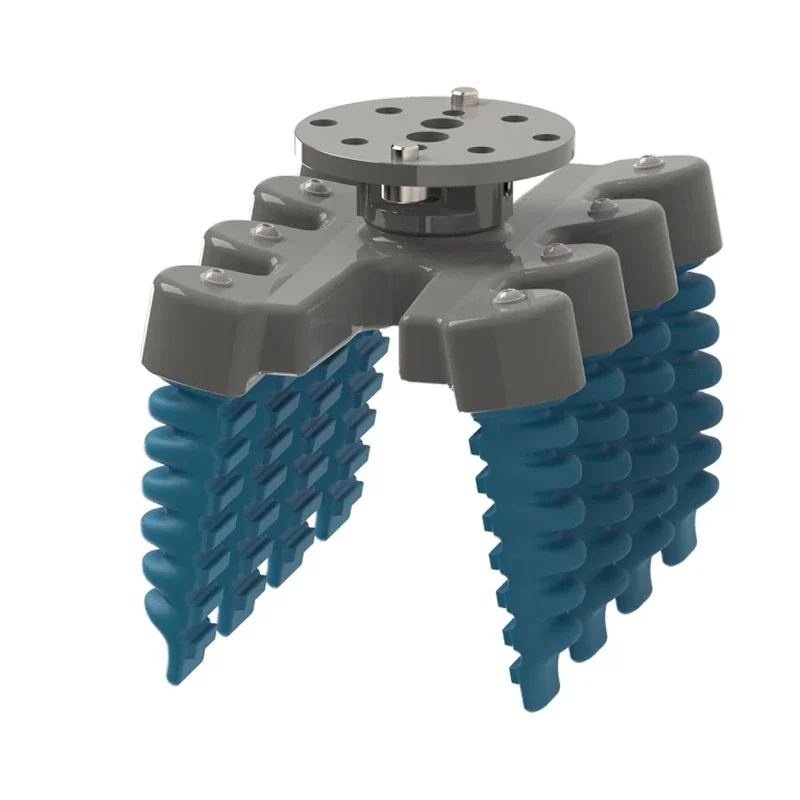

Parallel Finger - SoftGripper (S Series) |
Two Fingers |
Two finger lightweight, edge-free grippers use soft, pneumatically actuated FDA-approved silicone fingers that conform to each item for secure, damage-free handling, and come in multiple base models with varied finger layouts and angles to fit your application. |
600 |
|
|
Parallel Finger - SoftGripper (S Series) |
Four Fingers |
Same as above, with 4 fingers. |
900 |
|
|
Parallel Finger - SoftGripper (S Series) |
Six Fingers |
Same as above, with 6 fingers. |
1230 |
|
|
Parallel Finger - SoftGripper (S Series) |
Eight Fingers |
Same as above, with 8 fingers. |
1630 |
|
|
Accessory |
Variation |
Function |
Price (USD) |
Image |
|

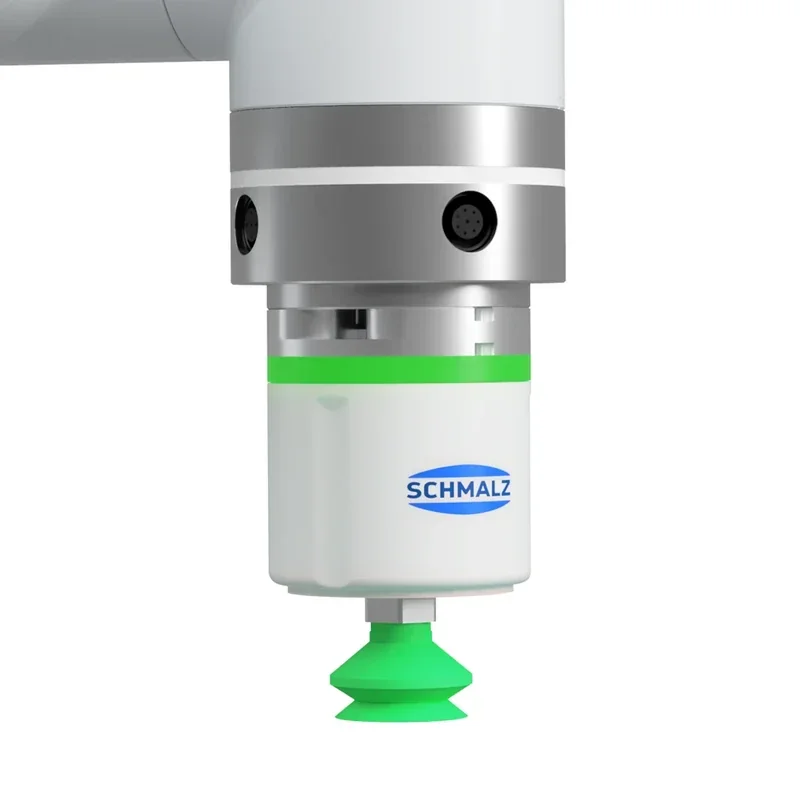

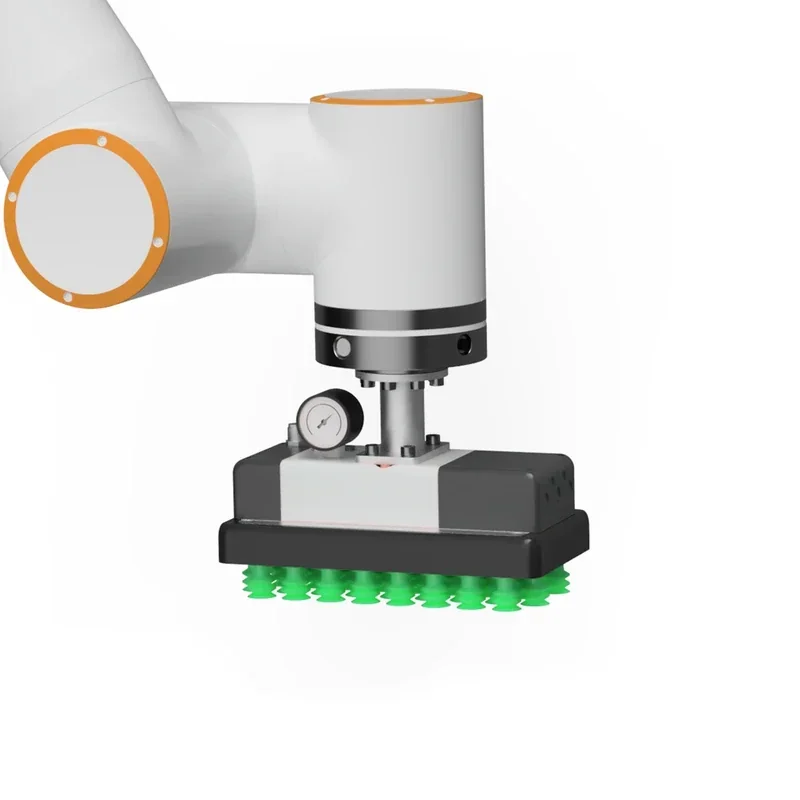

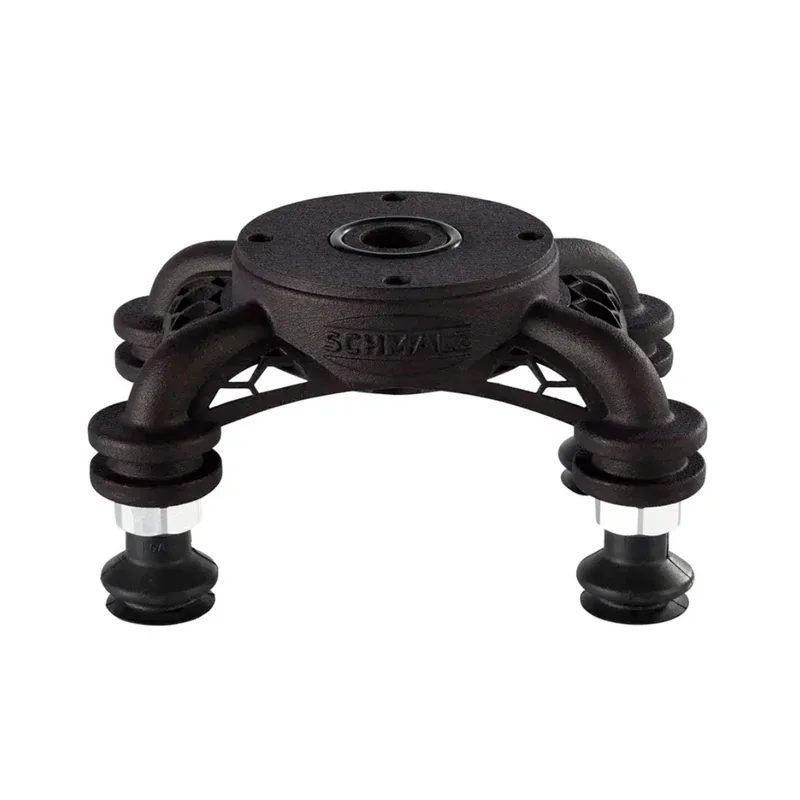

Electric Cobot Vacuum Gripper - Schmalz |
This Schmalz electric vacuum gripper is fully compatible with Fairino collaborative robots (including FR5 and FR10), features integrated vacuum generation for pump/compressor-free installation, offers quick-change suction cups in multiple versions for versatile small-part handling, and supports up to a 3 kg payload. |
1540 |
|
|
|

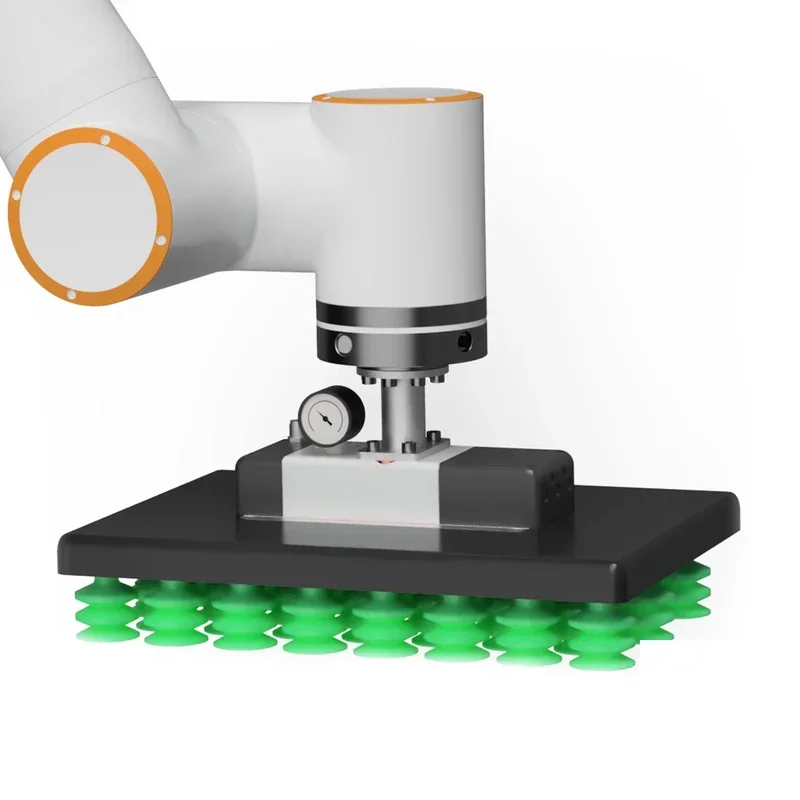

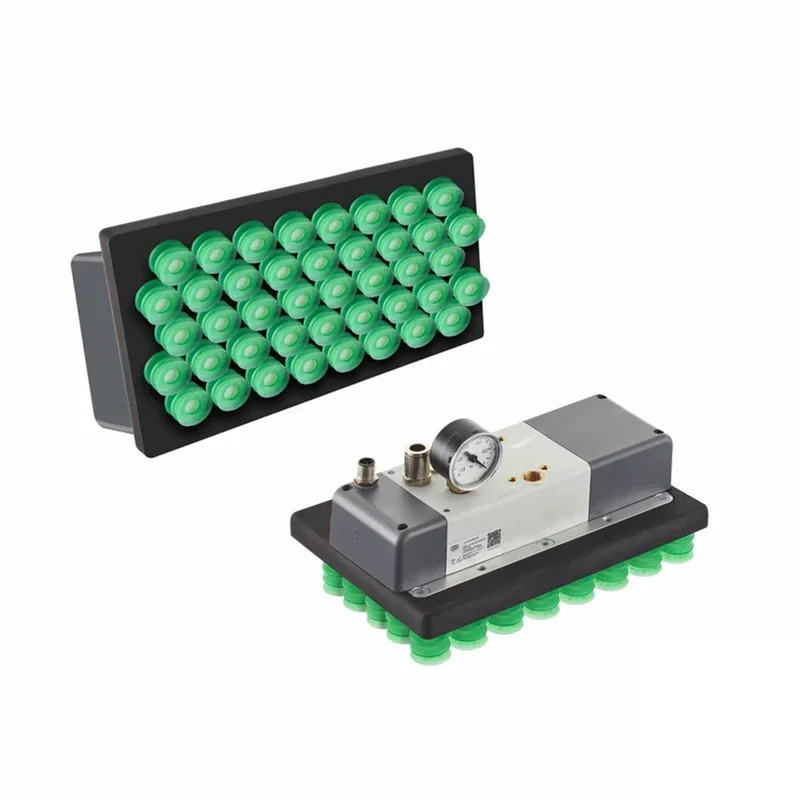

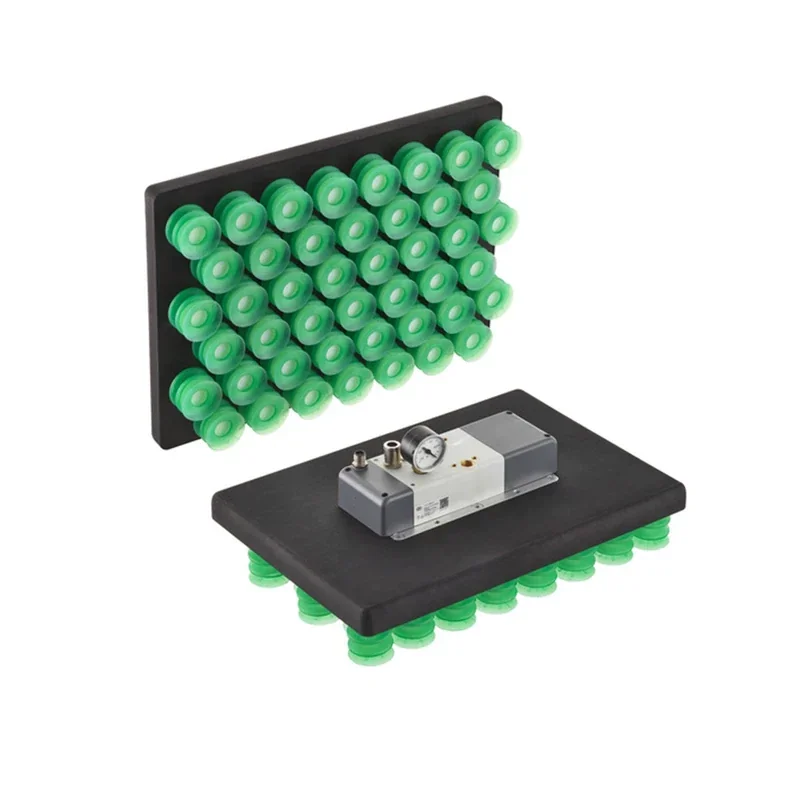

Cobot Vacuum Gripper Set - 230×120 - Schmalz |
Suction Cups |
Developed with Schmalz, this plug-and-play, self-contained vacuum gripper set for palletizing cartons and boxes generates and switches vacuum internally using compressed air (no external pump), includes all mounting hardware and connectors, is compatible with Fairino cobots, and provides a 230 × 120 mm suction surface with up to a 37 kg load capacity. |
3080 |
|
|
Cobot Vacuum Gripper Set - 230×120 - Schmalz |
Foam |
The foam version of the above grippper. |
2750 |
|
|
Cobot Vacuum Gripper Set - 400×280 - Schmalz |
Suction Cups |
Same gripper with the 400×280 mm suction surface. |
4300 |
|
|
Cobot Vacuum Gripper Set - 400×280 - Schmalz |
Foam |
The foam version of the above grippper. |
3850 |
|
|

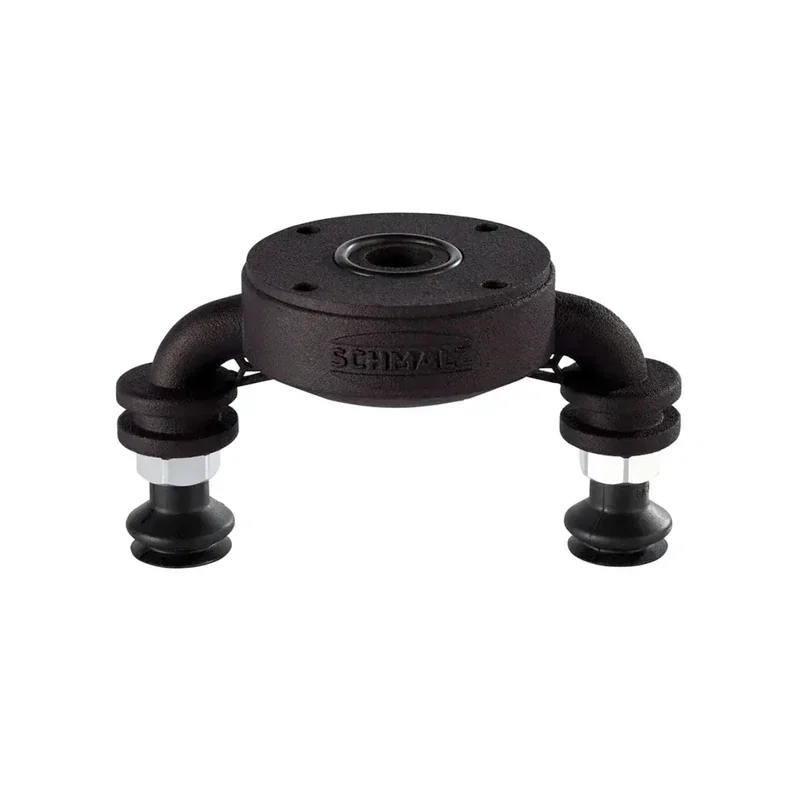

Electric Vacuum Gripper Adapter - Schmalz |
SLG2 |
Adapters for the Schmalz electric vacuum gripper let you add extra suction cups for better load distribution and stability, and are available as SLG2 (2 cups), SLG3 (3 cups), and SLG4 (4 cups). |
440 |
|
|

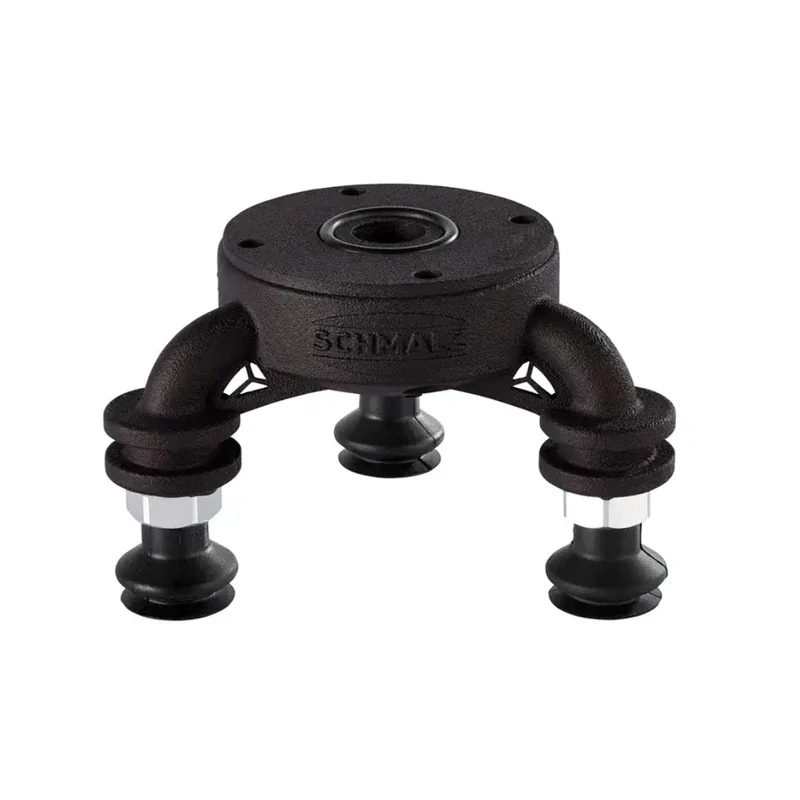

Electric Vacuum Gripper Adapter - Schmalz |
SLG3 |
470 |
|
|
|
Electric Vacuum Gripper Adapter - Schmalz |
SLG4 |
530 |
|
|
Accessory |
Variation |
Function |
Price (USD) |
Image |
|

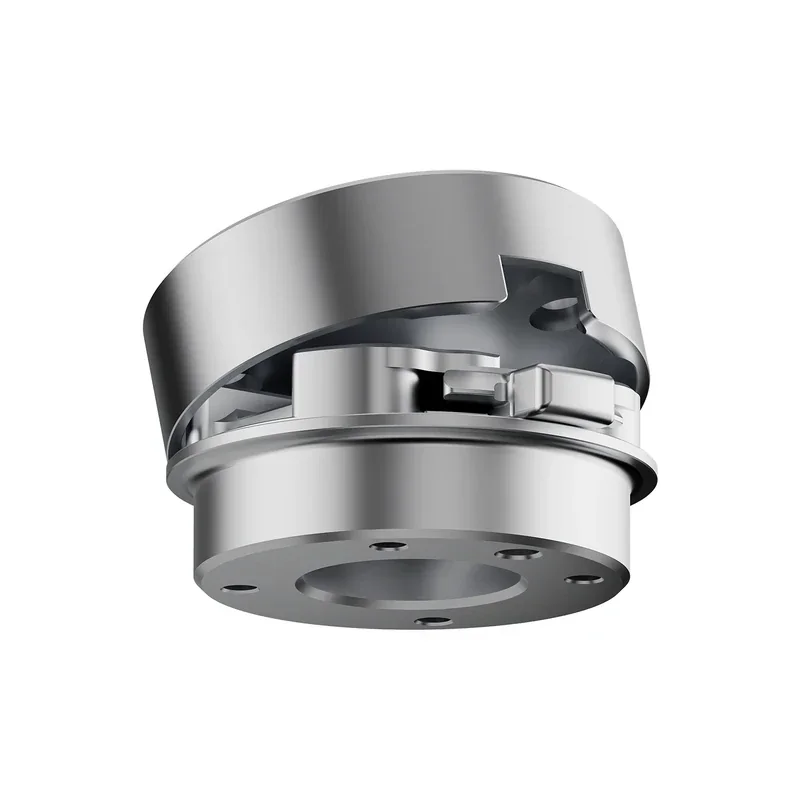

Quick Cobot Tool Changer |
Complete set (Cobot side + Tool side) |
The Quick Tool Changer is compatible with all FAIRINO cobots (FR3, FR5, FR10, FR16, FR20, and FR30) and enables fast, tool-free tool changes with a simple click—no screws or readjustment required. |
315 |
|
|
Quick Cobot Tool Changer |
Cobot side only |
150 |
|
|
|
Quick Cobot Tool Changer |
Tool side only |
165 |
|
|
|

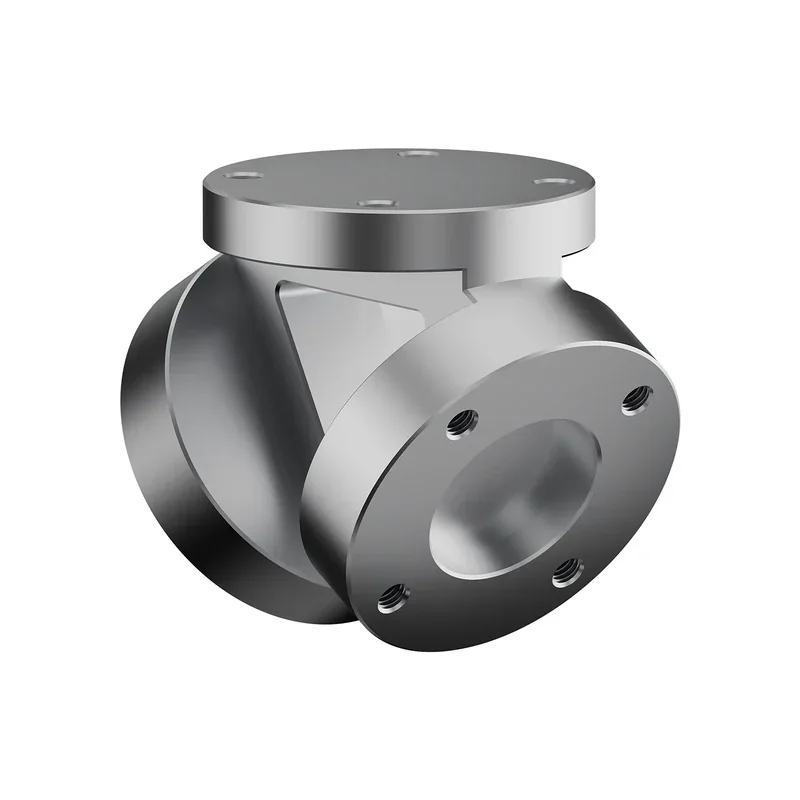

Dual Cobot Tool Adapter |
Compatible with all FAIRINO cobots (FR3, FR5, FR10, FR16, FR20, and FR30), the Dual Tool Adapter lets the robot carry and use two tools simultaneously and is precision CNC-milled from 6061 aluminum, then blasted and anodized for a durable finish. |
370 |
|
|
|
Magnetic Cobot Base |
The lever-operated Magnetic Cobot Base mounts directly to FAIRINO FR3 and FR5 cobots and lets you switch magnetic holding on/off in seconds for quick, flexible placement on metal surfaces like welding tables. |
860 |
|
|
|

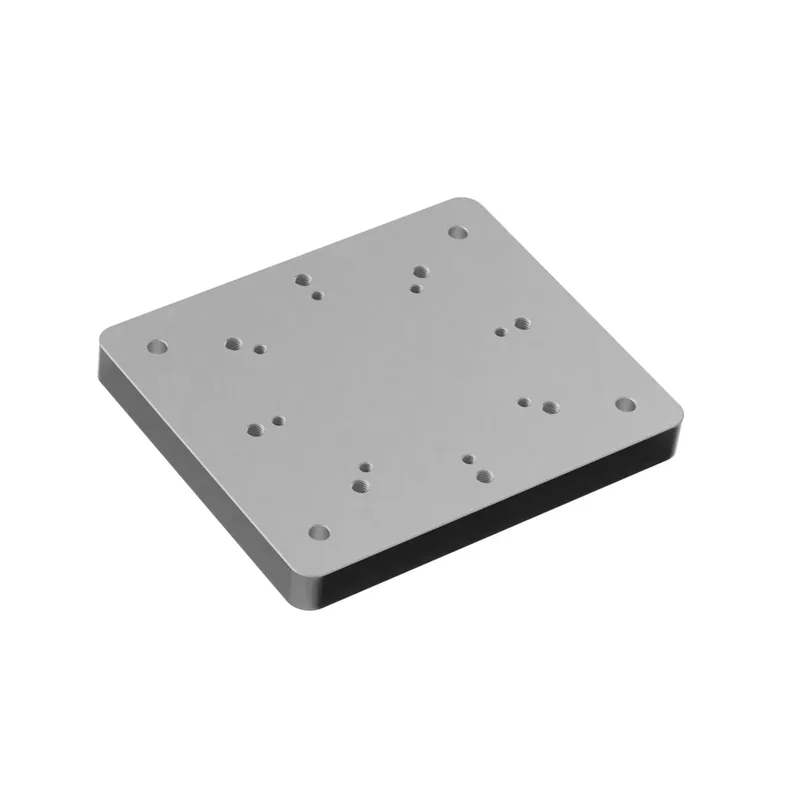

Cobot Mounting Plate |
Small – FR3 – 160 mm |
This mounting plate lets you securely attach a cobot to 4040 aluminum profiles for fast, clean installation. It fits a 160 mm-wide 4040 profile. |
250 |
|
|

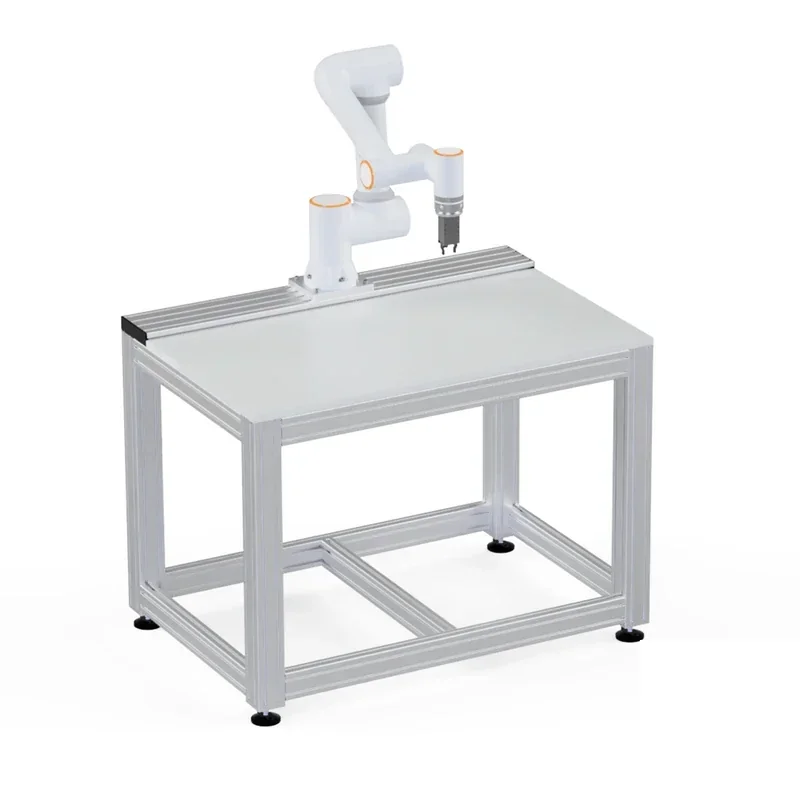

Cobot Development Table |
Standard |
This cobot development table features a rigid aluminum-extrusion frame with a CNC-cut adapter plate and sliding rail for flexible mounting plus a wooden work surface, supports Fairino FR3/FR5, measures 120 × 80 × 80–90 cm, and is available as a Standard kit with open underside or a Deluxe fully enclosed, assembled version with drawer, doors, and large internal storage. |
1930 |
|
|
Cobot Development Table |
Deluxe |
3100 |
|
|
|

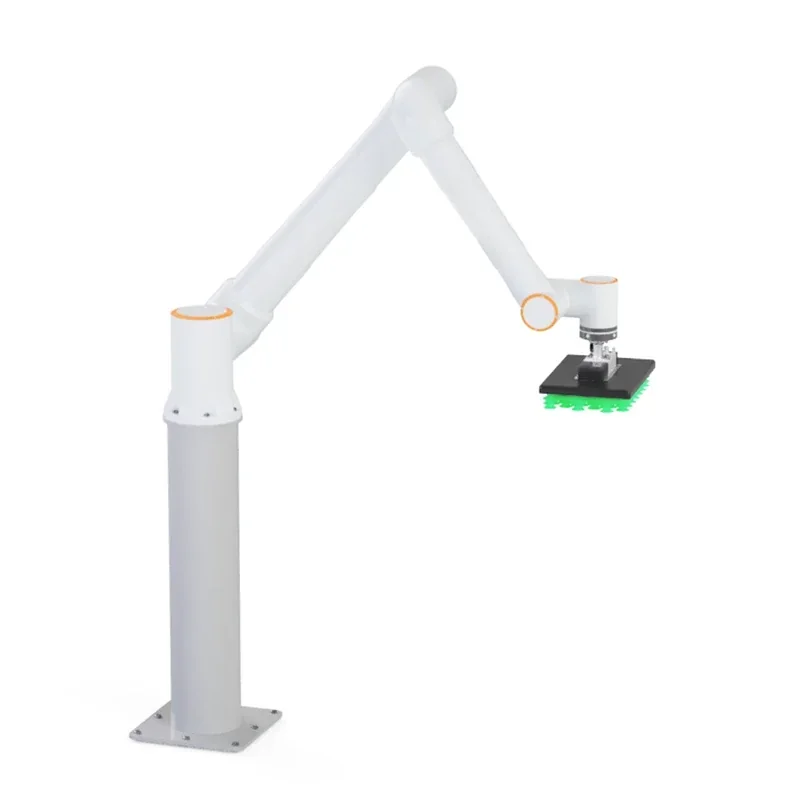

Cobot Stand |
This rigid cobot column fits the full Fairino range (FR3–FR30) with a top plate drilled for each model’s mounting pattern, adding stability—especially for larger units like the FR20—for precision tasks such as palletizing, pick-and-place, and machine tending, with a standard height of 1000 mm. |
1210 |
|
|
|

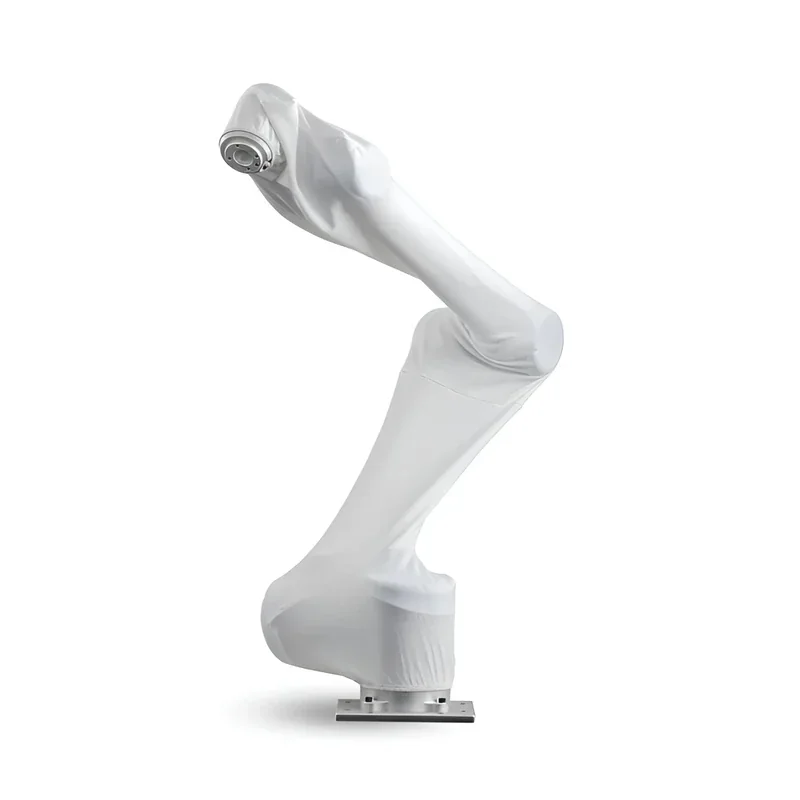

Cobot Cover |
FR3 |
This disposable robot cover protects the robot from paint overspray, liquid splashes, dust, and other contaminants in dirty work environments. |
80 |
|
|
Accessory |
Variation |
Function |
Price (USD) |
Image |
|
2D Vision Kit - Fairino - IFM |
Object recognition |
This complete IFM 2D vision kit integrates directly with Fairino cobots to locate objects, read barcodes, and perform text recognition using guided setup wizards (no complex programming), includes software, manual, camera, mounting bracket, data and power/I/O cables, and is available in multiple camera variants with support to choose the right one. |
2525 |
|
|
2D Vision Kit - Fairino - IFM |
Object recognition + QR/Barcode recognition |
3200 |
|
|
|

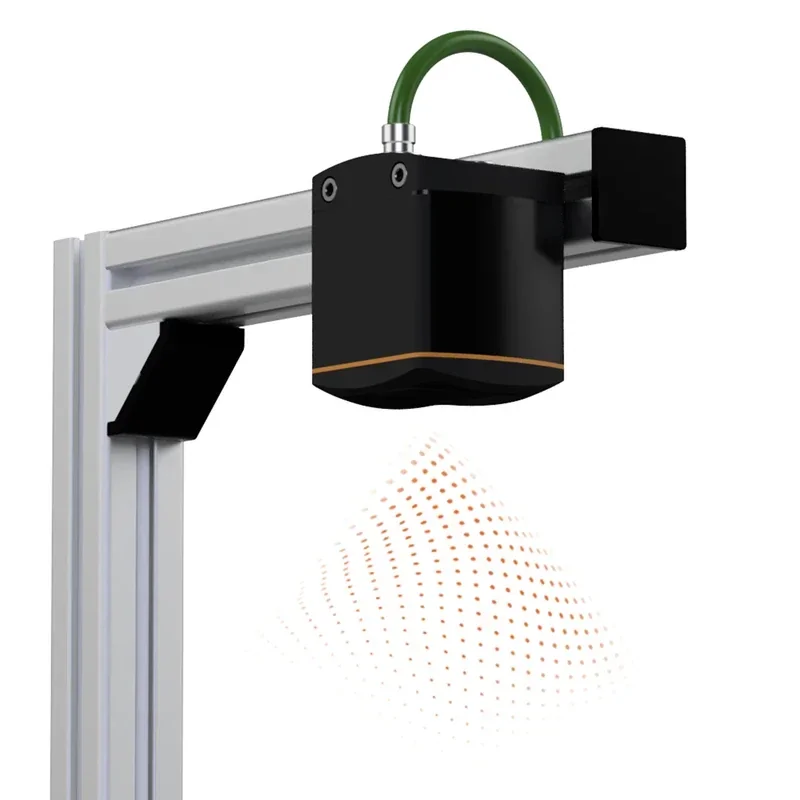

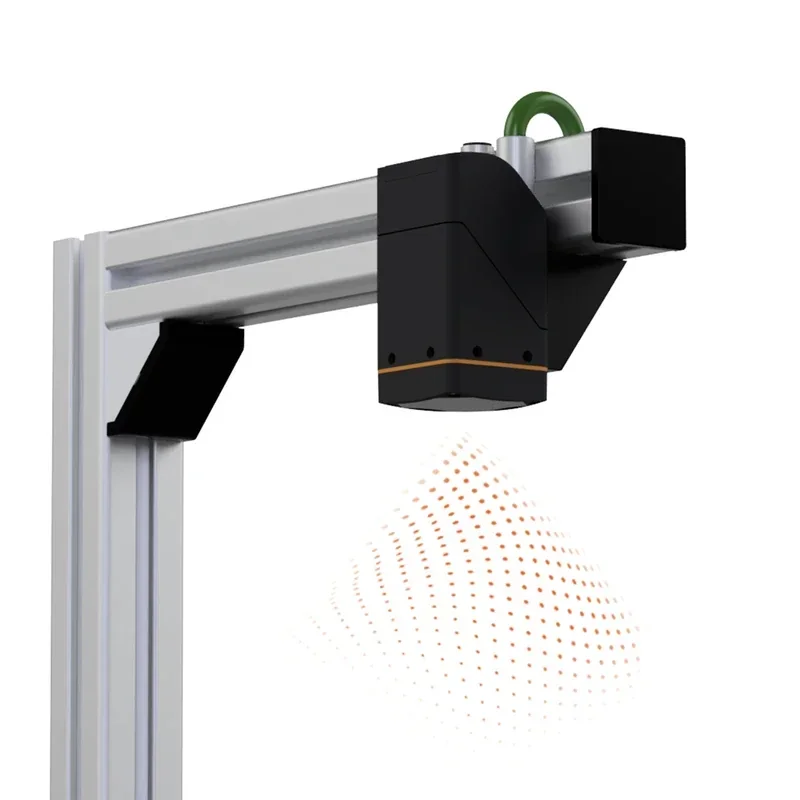

3D Vision Kit - Fairino - IFM |
This complete IFM 3D vision kit integrates directly with Fairino cobots to detect objects and measure properties like dimensions and volume via guided setup wizards (no complex programming), and includes software, manual, 3D camera, mounting bracket, data and power/I/O cables, and a power supply, with multiple camera variants available for different use cases. |
2650 |
|
|
|

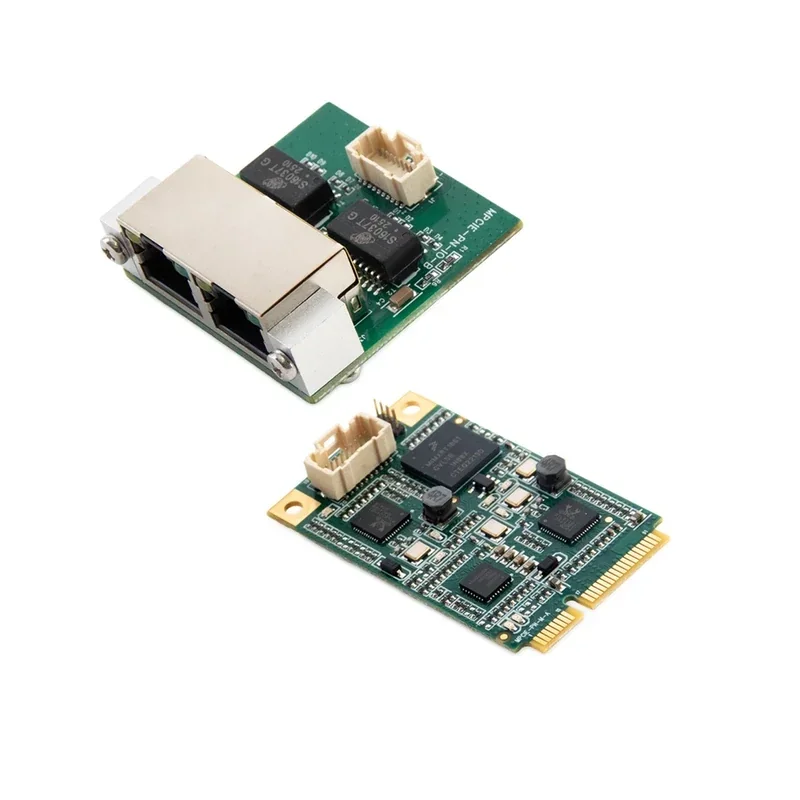

Fairino - Profinet - Ethernet/IP - Communication Card |
The Fairino communication card expands Fairino cobot connectivity for easy PLC and industrial network integration, supporting PROFINET, EtherNet/IP, and CC-Link to enable reliable, standardized data exchange across a wide range of control platforms and simplify deployment in existing production lines. |
630 |
|
|
|

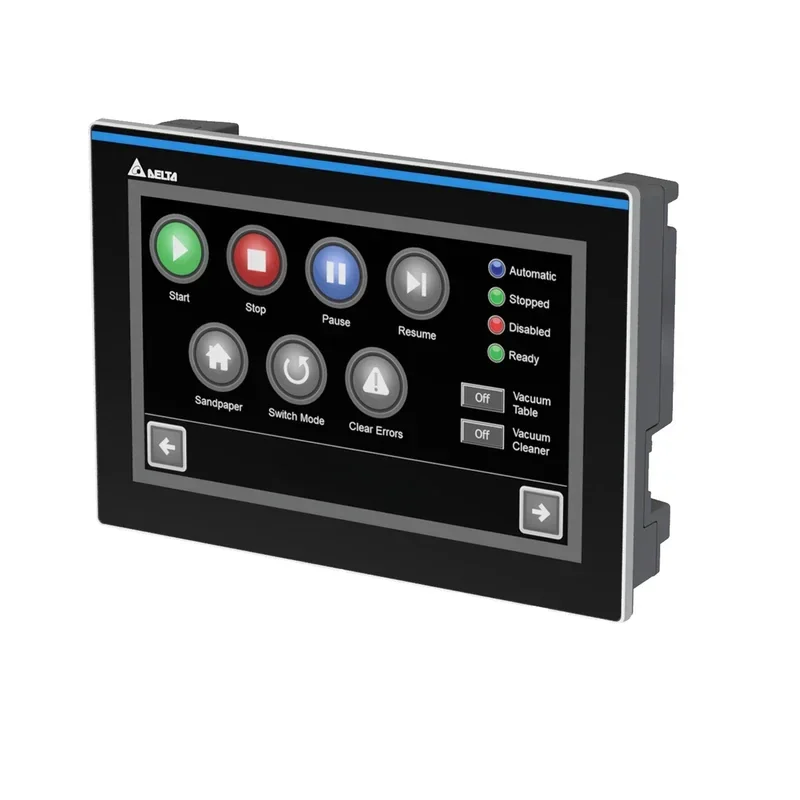

HMI Kit - Fairino - Delta |
7 inch |
This HMI kit integrates with Fairino cobots via Modbus TCP for easy read/write monitoring and control, includes Delta’s free design software with a sample project for quick setup, and comes with a Wi-Fi adapter for wireless remote operation plus access to Fairino’s web interface for support and parameter adjustments. |
1210 |
|
|
HMI Kit - Fairino - Delta |
10 inch |
1550 |
|
|
Accessory |
Variation |
Function |
Price (USD) |
Image |
|

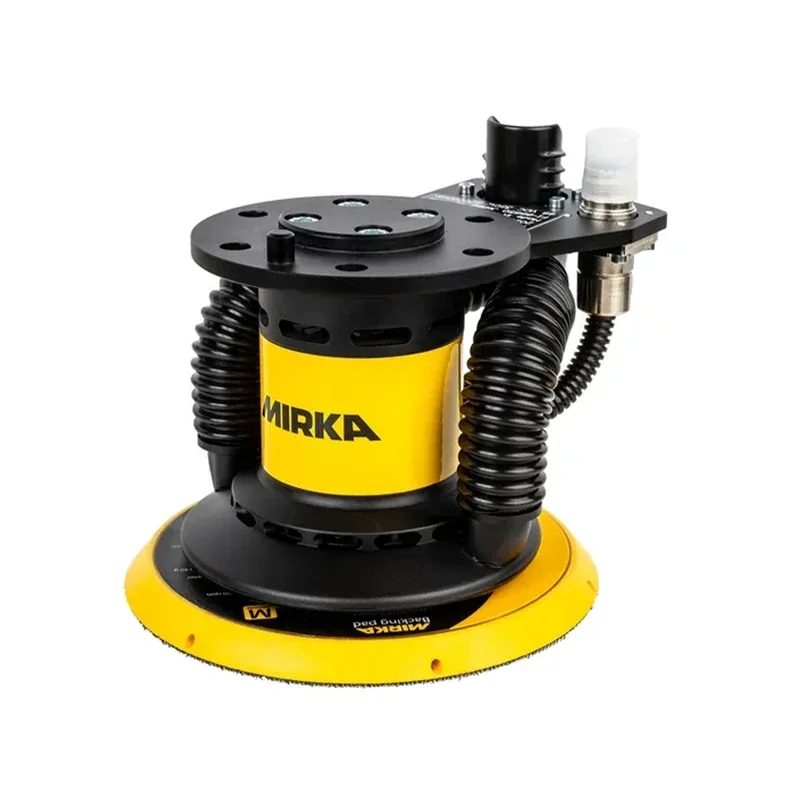

Cobot Sanding Kit - Mirka |
The Mirka Cobot Sander is a collaborative-robot-ready sanding kit for Fairino cobots, offering adjustable 1,000–10,000 RPM for precise, repeatable finishing, available with 150/125/77/32 mm pads, and supplied complete with sanding head, control box, mounting bracket, connection cables, and a Fairino connection kit. |
8400 |
|
|
|

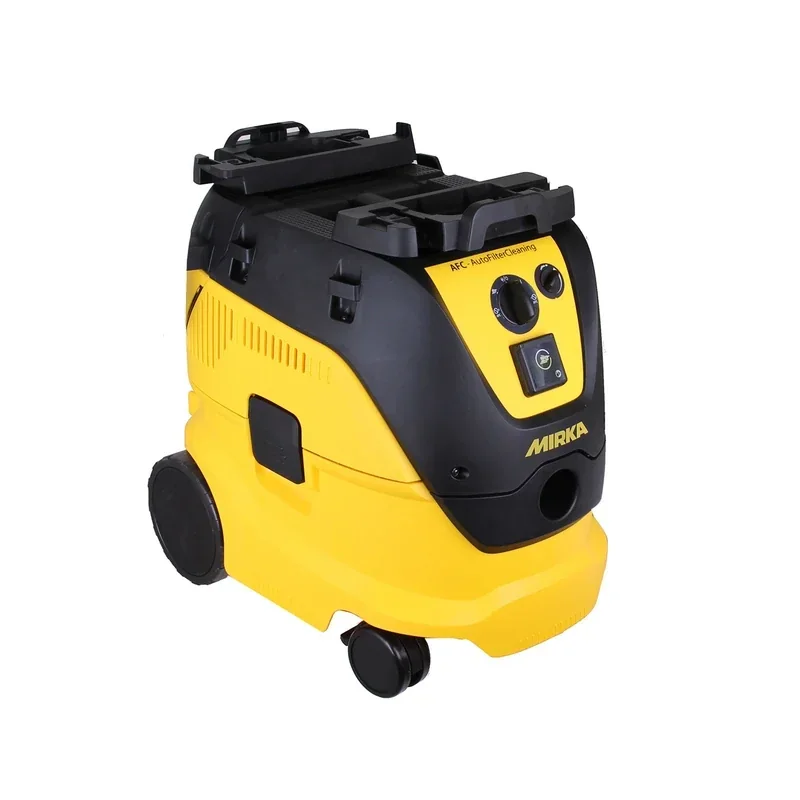

Cobot Dust Collection Kit - Mirka |
The Mirka dust collection kit integrates with the cobot sanding kit to let Fairino cobots automatically switch the 1200 W vacuum on/off for consistent, clean sanding, and includes the Mirka vacuum cleaner (4500 L/min airflow, 30 L tank), matched hose, and cobot-to-vacuum switching equipment. |
1350 |
|

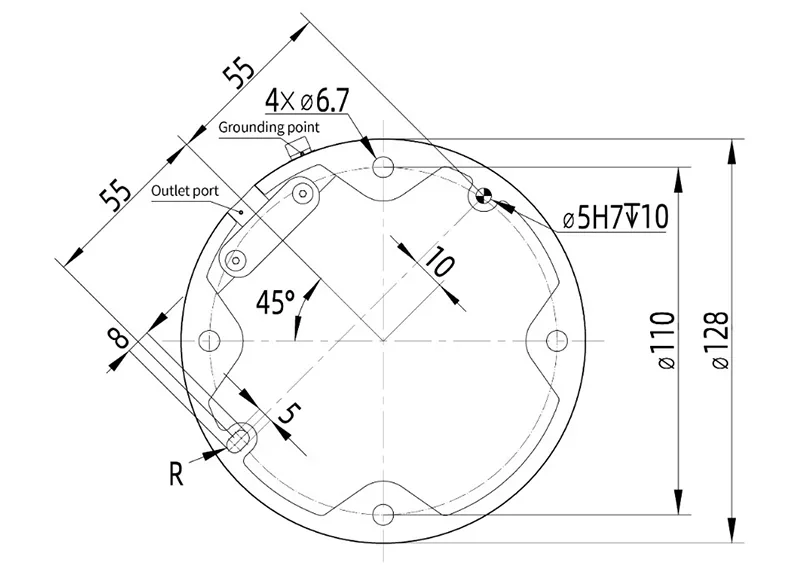

Mount the FR3 to a rigid, flat surface using four M6 bolts (≥10 Nm) and two Ø5 mm locating pins. The base must support 5x the robot’s weight and 10x the J1 torque, and be isolated from moving equipment to avoid vibration or resonance — keep external-axis acceleration minimal.
FR3 model collaborative robot installation size

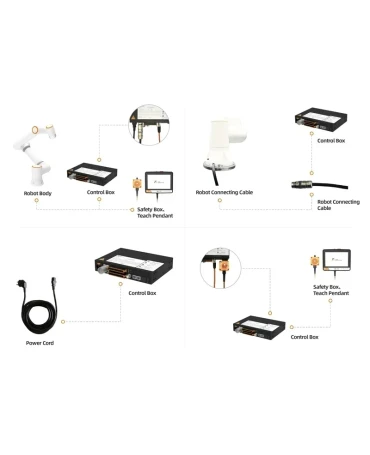

Connect cables in order: robot–controller umbilical, button-box cable, then power. Ensure the button-box E-stop is released before powering on. During startup, the end-of-arm LED cycles red–green–blue; solid green indicates the controller is ready.
Robot wiring schematic diagram
The FR series offers control boxes with varying input ratings. For the FR3, the matched controllers are the AC MINI Controller 2 kW or the DC MINI Controller 2 kW (input 30–60 VDC); check the nameplate, ground the system, and use quick connectors for wiring.
| Maximum Input (for customers to configure the front-stage power supply) | Maximum Output (maximum output peak) | |
| DC 2kW | 30–60VDC/30A | 2000W/48VDC/41A |
| DC 5kW | 30–60VDC/40A | 5000W/48VDC/104A |
| AC narrow voltage 2kW | 176–264VAC/10A/Single Machine/50Hz | 2000W/48VDC/41A |
| AC wide voltage 2kW | 100–240VAC/10A/Single Machine/50–60Hz | 2000W/48VDC/41A |
| AC wide voltage 5kW | 100–240VAC/16A/Single Machine/50–60Hz | 5000W/48VDC/104A |
For commissioning, connect a PC to the button box via Ethernet, set the PC IP to 192.168.58.xx (not .2), and go to 192.168.58.2 to activate using the controller SN. After the success prompt, power-cycle the controller, wait for solid green, then log in (admin / 123) and check enable–start–stop and E-stop in the WebAPP. If needed, set the install orientation (floor/side/ceiling) using SetRobotInstallPos for correct gravity compensation and safety limits.

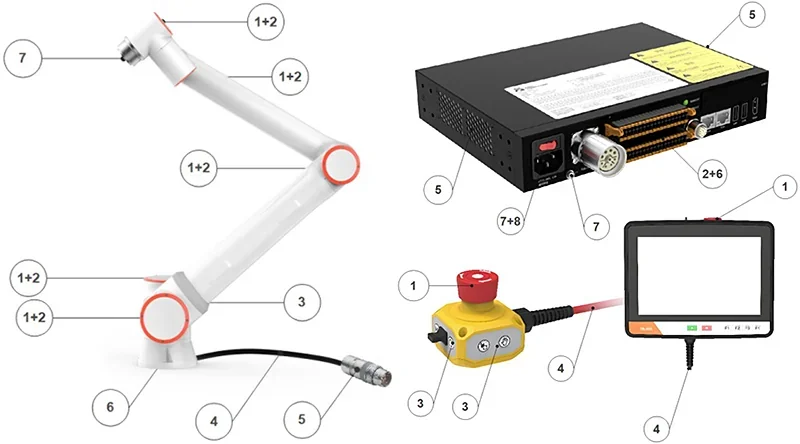

The FR3 requires 15+ maintenance tasks at monthly, semi-annual, and annual intervals to ensure safe operation, electrical safety, and placement accuracy.
These include:
1. The manufacturer’s arm checklist (rear covers, screws, rubber rings, cables / cable links, base mounting bolts, and end-tool mounting bolts).
| Check item | Monthly | Semi-annually | Annually | ||
| 1 | Check joint rear cover * | V | ✓ | ||
| 2 | Check joint rear cover screws | F | ✓ | ||
| 3 | Check joint rubber ring | V | ✓ | ||
| 4 | Check robot cables | V | ✓ | ||
| 5 | Check robot cable links | V | ✓ | ||
| 6 | Check robot base mounting bolts * | F | ✓ | ||
| 7 | Check end tool mounting bolts * | F | ✓ |
Note: F = Functional check, V = Visual inspection, * = Must be checked after severe collision.
2. The controller / teach pendant / button-box checklist (E-stop, safety I/O, mode switching, pendant cable, control-box air filter, terminal tightness, ground resistance ≤1 Ω, and main power checks).
| Check item | Monthly | Semi-annually | Annually | ||
| 1 | Emergency stop button on test button box (teach pendant) | F | ✓ | ||
| 2 | Safety input and output functions on the test terminal strip | F | ✓ | ||
| 3 | Detection button box start/stop, mode switching function | F | ✓ | ||
| 4 | Test button box (teach pendant) cable | V | ✓ | ||
| 5 | Check and clean the air filter on the control box | V | ✓ | ||
| 6 | Check whether the terminals of the control box are firm | F | ✓ | ||
| 7 | Ground resistance of detection control box ≤1Ω | F | ✓ | ||
| 8 | Check the main power supply of the control box | F | ✓ |
Note: F = Functional check, V = Visual inspection.
Operational maintenance (during planned stops)
Power down, then visually inspect the robot–controller cable, base and tool bolts, joints, and seals. Clean the arm with water, isopropyl alcohol, or 10% ethanol/naphtha. Never use compressed air on the arm or in the control box. Small grease traces at joints are normal and don’t affect lifespan.
Preventive maintenance (monthly & semi-annually)
Inspect the arm's rear covers, screws, rubber rings, and cables. Check base and tool-flange fasteners with a torque wrench to spec. Test the control system — E-stop, safety I/O, and mode switching. Verify pendant cable condition, clean the control-box air filter, re-seat terminals if needed, and ensure ground resistance is ≤ 1 Ω.
Comprehensive maintenance (annually)
Repeat full arm and controller checks. Test E-stop from the pendant and button box — verify the robot stops, joint power is cut, then recovers. Re-check mounting torque: base 4xM6 ≥ 10 Nm with Ø5 mm pins; tool flange 4xM6 at 8 Nm, bolts ≤ 8 mm long. Avoid storage over 6 months without inspection.
The FAIRINO FR3 includes a 12-month warranty and lifetime maintenance support. FAIRINO commits to 24/7 service response, with remote triage targeting a 12-hour resolution. The warranty excludes damage caused by misuse, alterations, or unauthorized modifications. Support is available around the clock through FAIRINO’s Support Center by phone or email. For training and troubleshooting, users have access to downloadable manuals, an online FAQ, a dedicated documentation portal, and a command-tutorial video channel for hands-on learning.
Full warranty terms: https://fairino.com/SupportCenter
The FAIRINO FR3 is priced at $6,099.00. Add-ons for operator interfaces add modest cost to the base unit, typically around 14% for the Teach Pendant and 7% for the Safety Box. Application tooling has a larger impact: electric grippers usually add 3–5%, vision starter kits 15–25%, 6-axis force/torque sensors 4–7%, palletizing hardware 20–35%, and explosion-proof controller cabinets 40–60%. Enterprise packages are quoted individually based on project scope, including options like welding or bin-picking kits, fieldbus support, end-effectors, mounting hardware, commissioning, training, extended warranty, spare parts, logistics, and applicable taxes. For an exact quote, contact the Top 3D Shop team.
Update your browser to view this website correctly. Update my browser now
