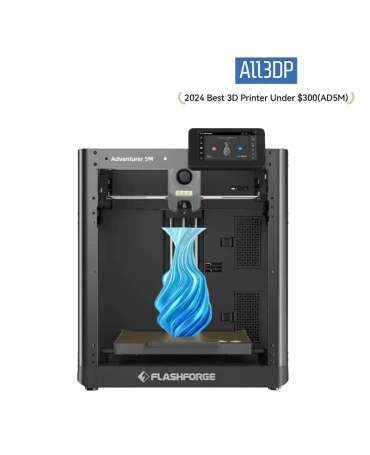

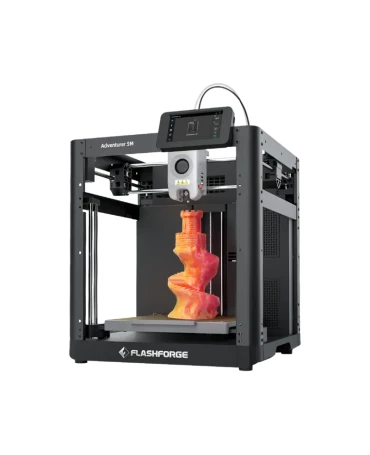

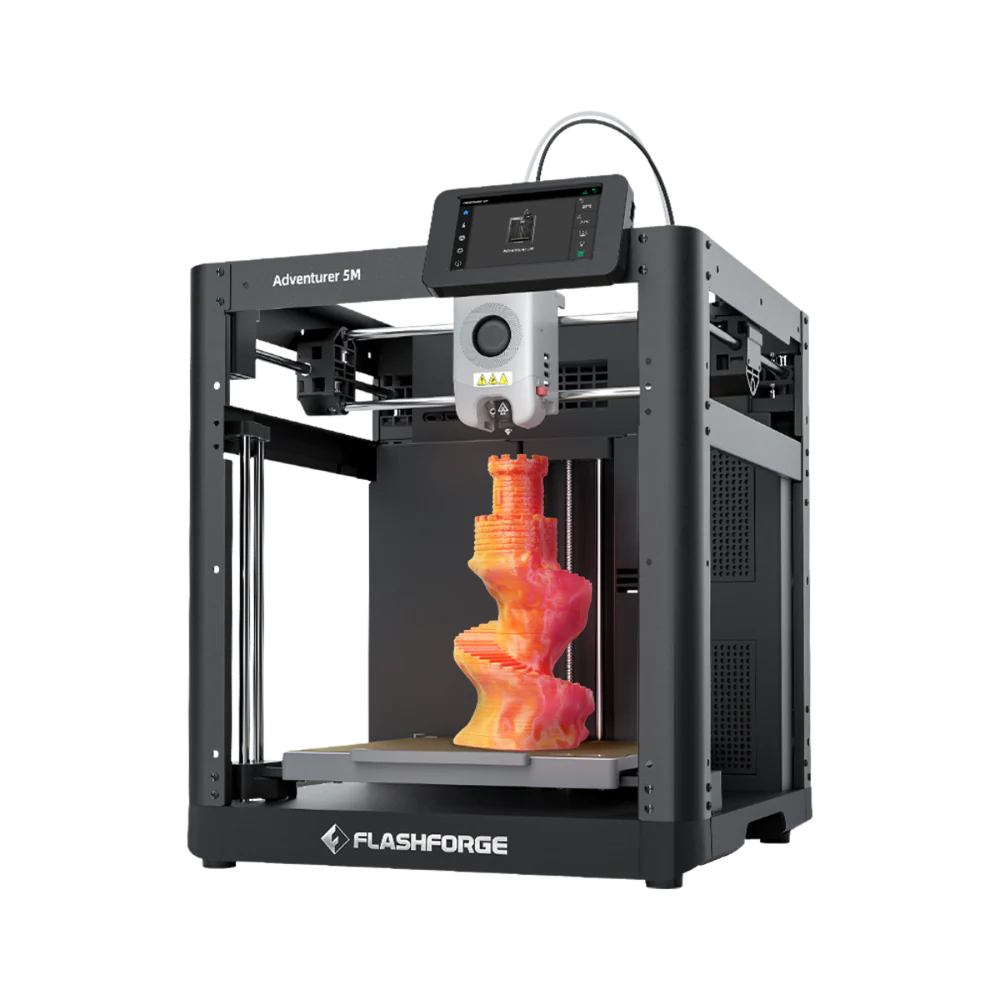

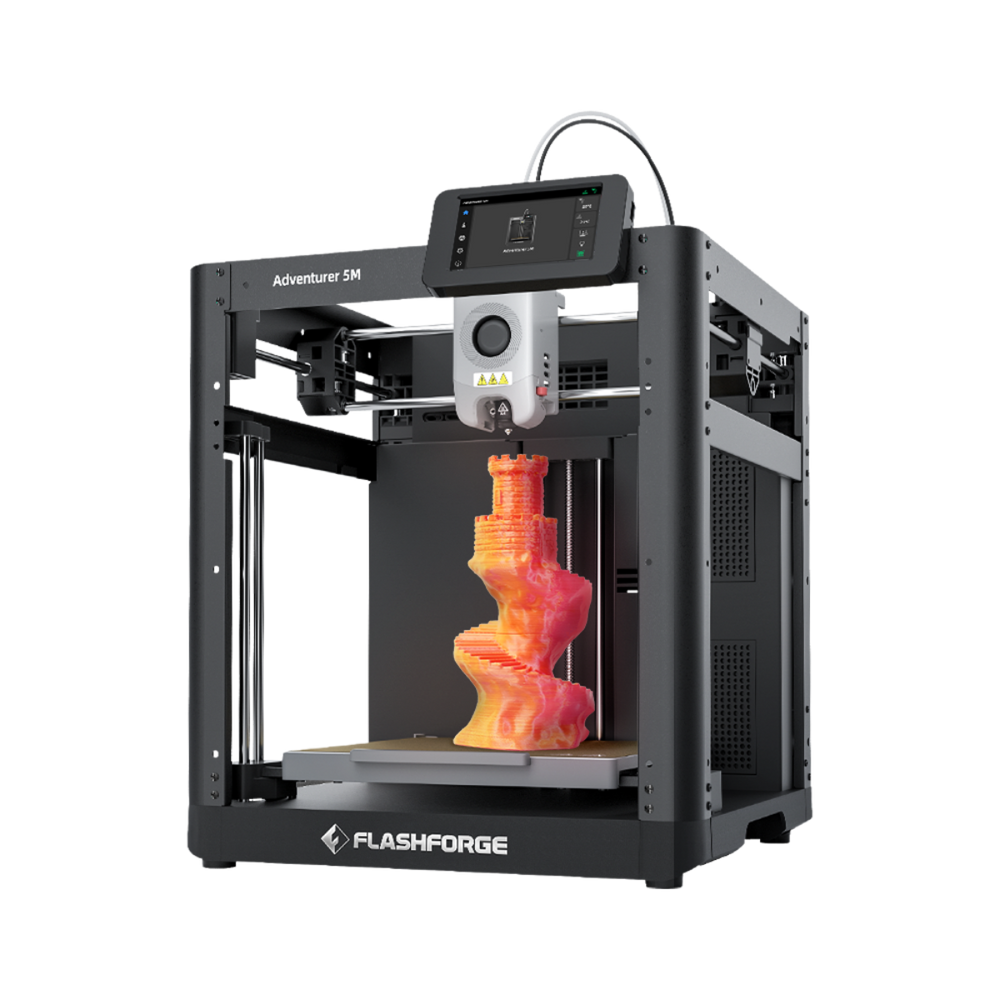

The Flashforge Adventurer 5M is a beginner-friendly, high-speed 3D printer featuring a stable CoreXY all-metal frame, 600 mm/s speed, and 20,000 mm/s² acceleration. It offers precise prints with a 280°C direct drive extruder, auto bed leveling, a quick-swap nozzle system (0.25–0.8mm), filament run-out detection, and power loss recovery. With a 220×220×220 mm build volume, flexible PEI build plate, and 95% pre-assembled design for fast setup, it supports Wi-Fi, Ethernet, and USB connectivity, and works with slicers like FlashPrint 5, Orca-Flashforge, and FlashMaker.
What is the difference between the Flashforge Adventurer 5M and Adventurer 5M Pro?
Feature
Flashforge Adventurer 5M
Flashforge Adventurer 5M Pro
Design
Open-frame. An optional DIY enclosure is sold separately.
Fully enclosed design.
Air Filtration
Not included as a standard feature.
Built-in dual air filtration system with internal and external circulation, using a HEPA filter and activated carbon.
Camera
Not included.
Includes a built-in camera for remote monitoring and time-lapse video recording.
Build Volume
220 x 220 x 220 mm.
220 x 220 x 250 mm.
Material Compatibility
Supports PLA, PETG, TPU.
Supports ABS, ASA, and carbon fiber composites due to its enclosure.
Included Nozzles
Comes with a 0.4 mm nozzle.
Includes both a 0.4 mm stainless steel and a 0.6 mm hardened steel nozzle.
What is the print quality and performance of the Flashforge Adventurer 5M 3D Printer?

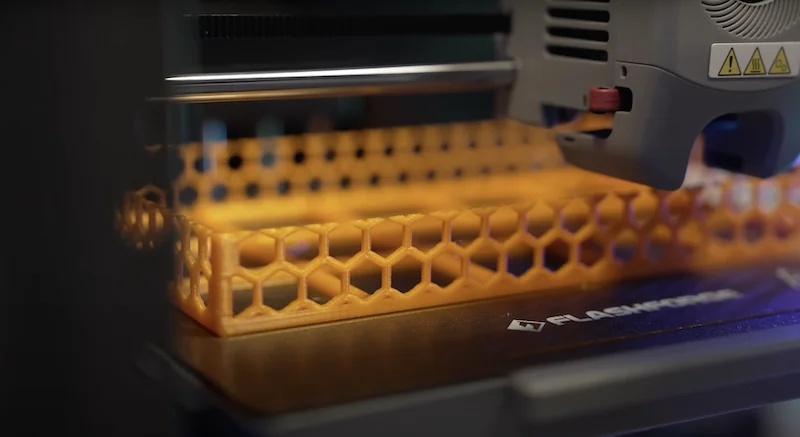

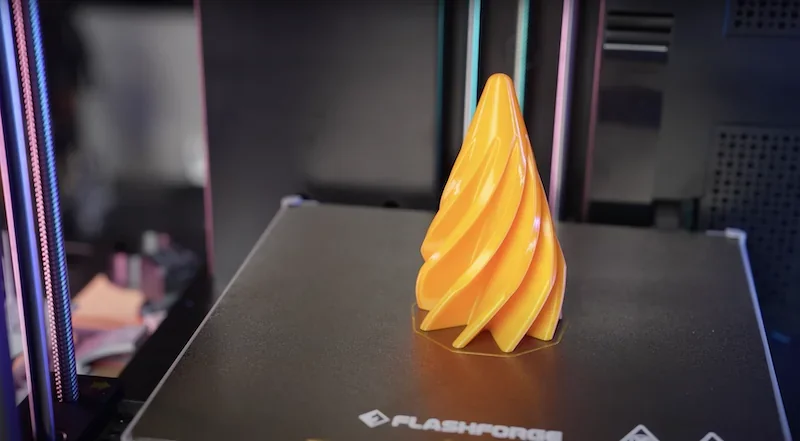

The Flashforge Adventurer 5M offers high-speed, high-quality printing with a CoreXY frame reaching 600 mm/s and 20,000 mm/s² acceleration. It prints a Benchy in 26.8 minutes, supports 100–400 micron resolution, and uses vibration suppression to prevent ringing. Its direct-drive extruder heats to 200°C in 35 seconds and supports up to 280°C for advanced filaments like PLA-CF and PETG-CF.
Left Side: Vibration Compensation Switched On, Right Side: Vibration Compensation Switched Off.

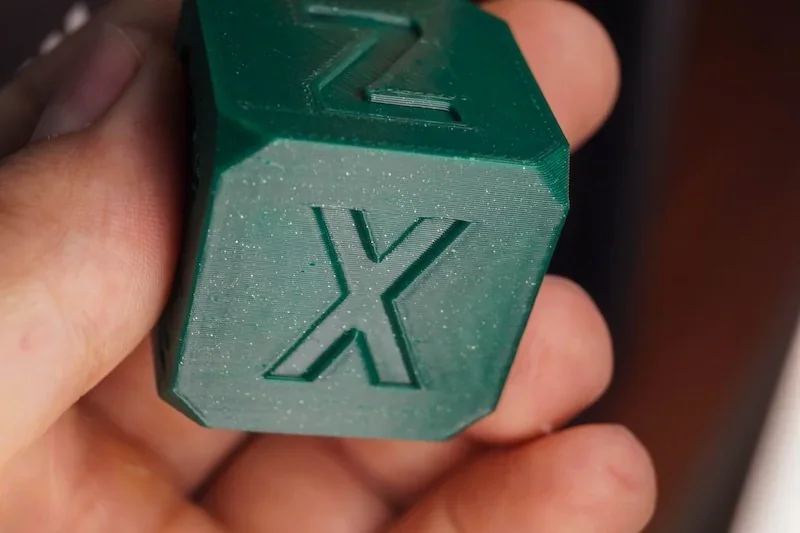

XY calibration cube printed with ABS on the FlashForge Adventurer 5M.

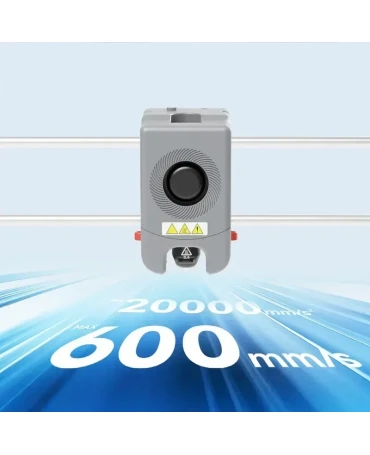

The Flashforge Adventurer 5M reaches 600 mm/s with 20,000 mm/s² acceleration, printing a Benchy in 26.8 minutes with good quality. Its direct-drive extruder heats to 200°C in 35 seconds and supports up to 280°C, handling filaments like PLA, PETG, TPU, PLA-CF, and PETG-CF.
The Adventurer 5M’s Automatic Datum Management system handles real-time bed leveling, ensuring strong first-layer adhesion and reducing print failures.
Overhang tests delivered strong results.
Vertical fine artifacts were most visible at 80–110 mm/s on both X and Y axes.
X-Axis:
Y-Axis:

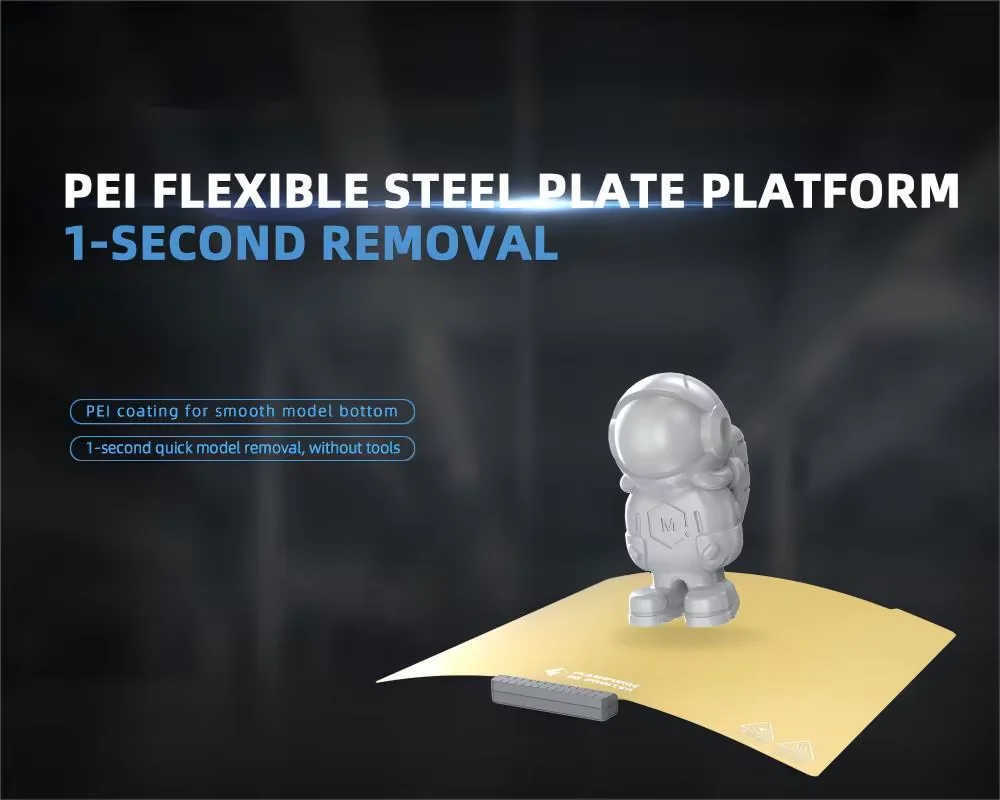

The PEI-coated flexible steel plate ensures strong adhesion and easy model removal. Testing showed the heated bed held consistent temperatures with just a 2.6°C gradient, supporting reliable prints.

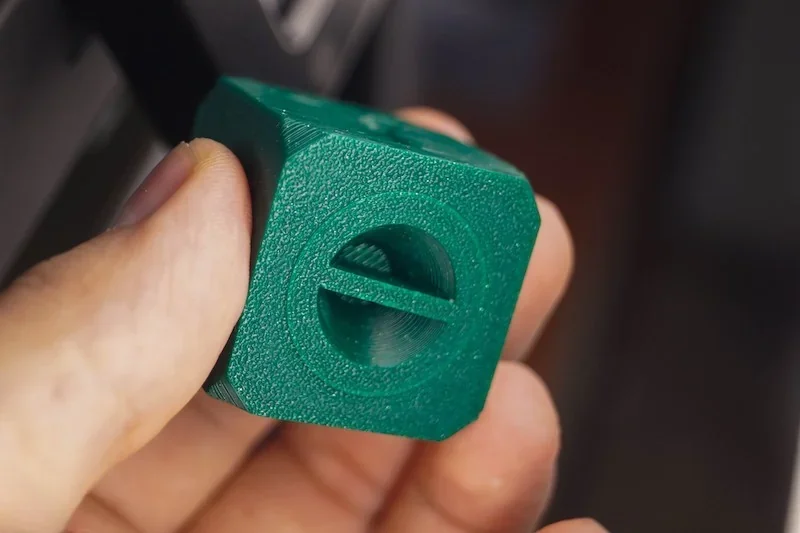

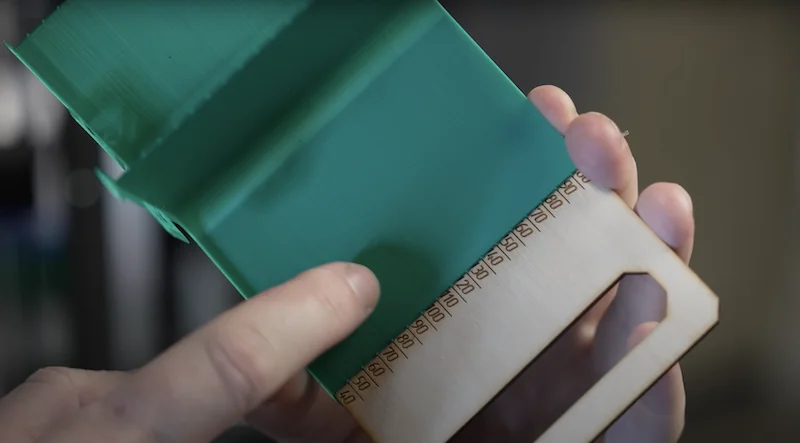

Support removal tests showed excellent surface quality with barely visible marks. While 90° corners had minor inconsistencies, the printer delivered precise tolerances, as seen in the Nickel Calibration Test and fidget spinner models.
Which filaments can you use with the Flashforge Adventurer 5M?
The Flashforge Adventurer 5M supports 1.75mm filaments like PLA, PETG, TPU, PLA-CF, and PETG-CF at up to 280°C. It uses a 0.4mm nozzle by default, with 0.6mm and 0.8mm options for specialty materials. ABS printing requires an optional enclosure.

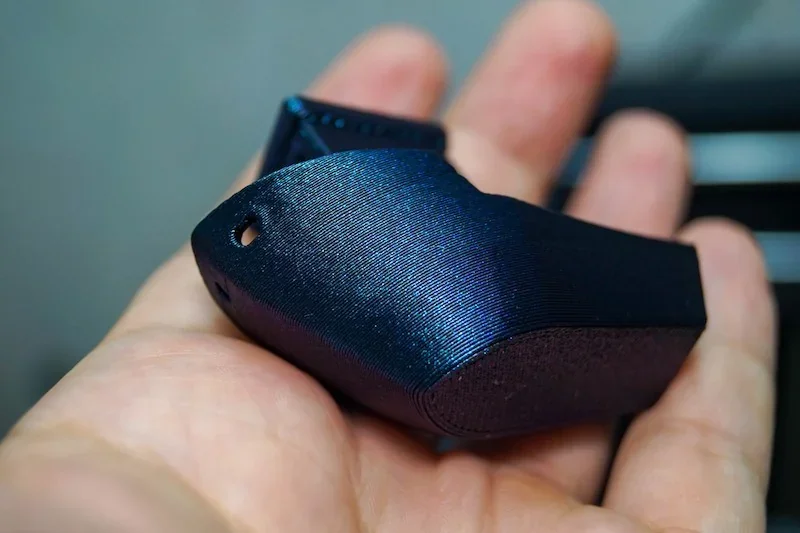

PLA test print of Baldur's Gate 3 at 200–300 mm/s (avg. 270 mm/s) showed excellent quality, though some areas needed support.

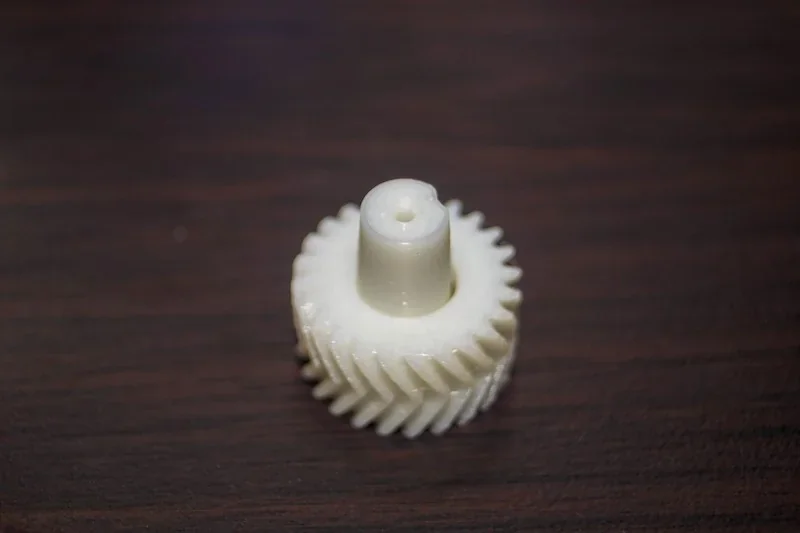

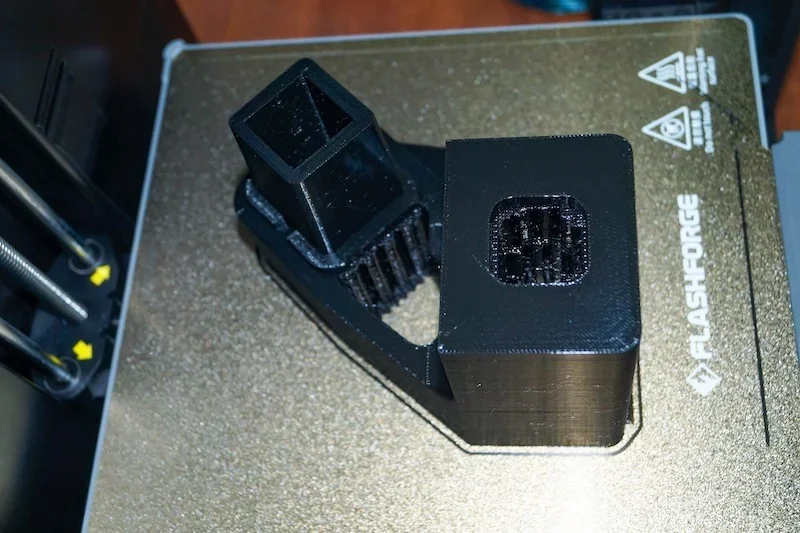

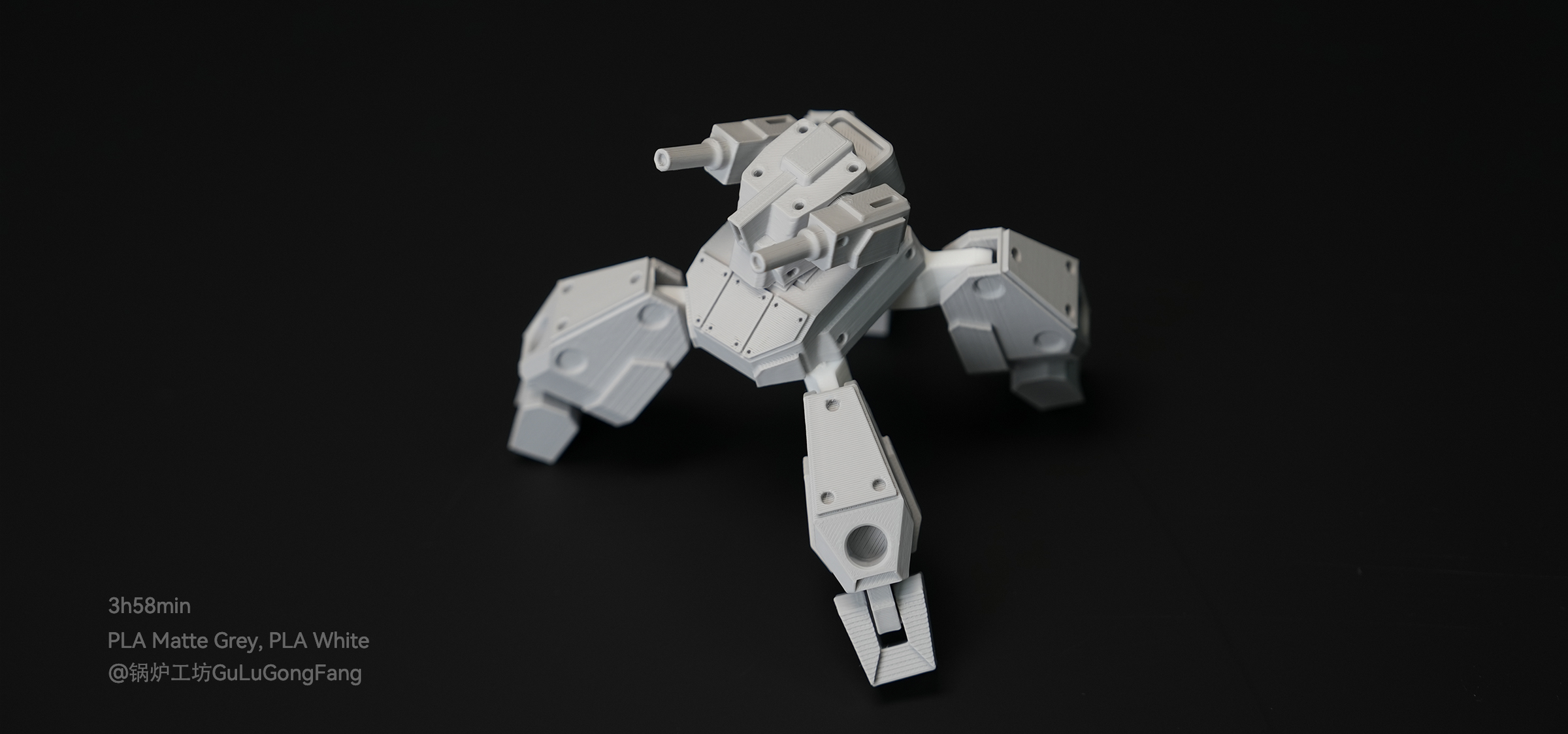

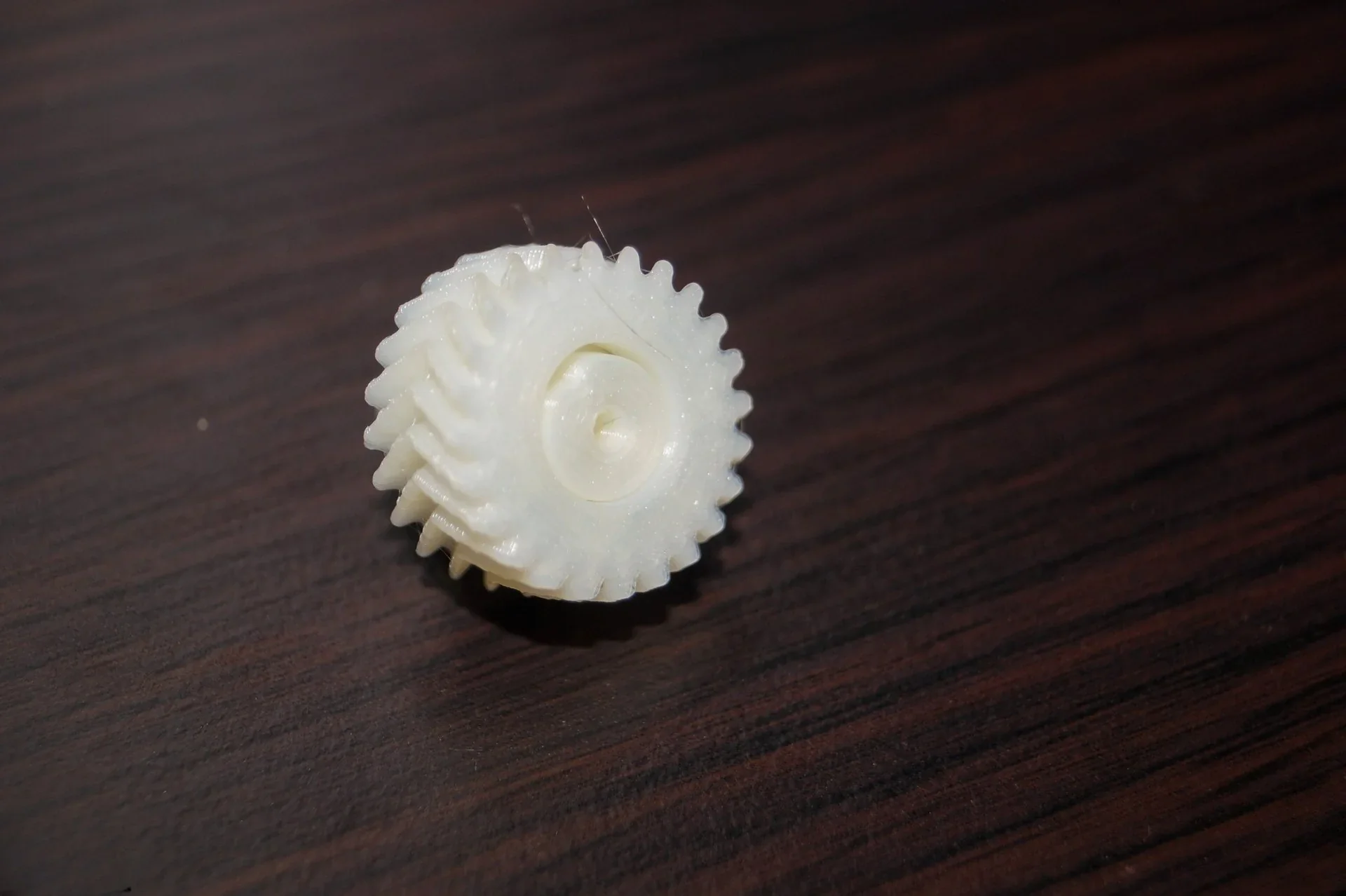

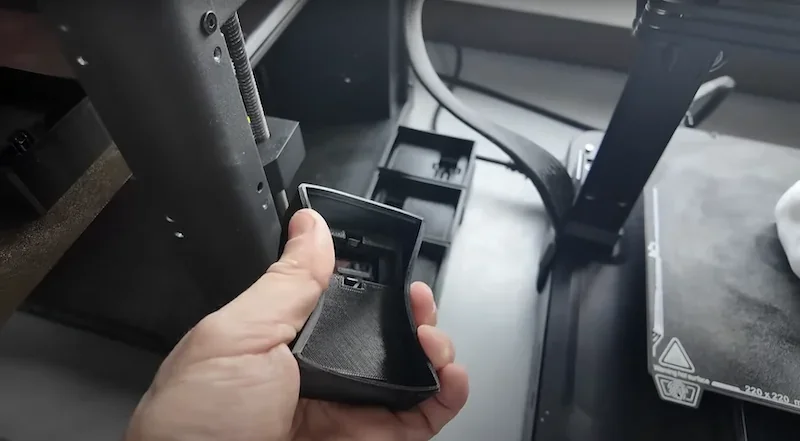

PLA mechanical parts printed successfully in a single batch.
PLA Print Sample:

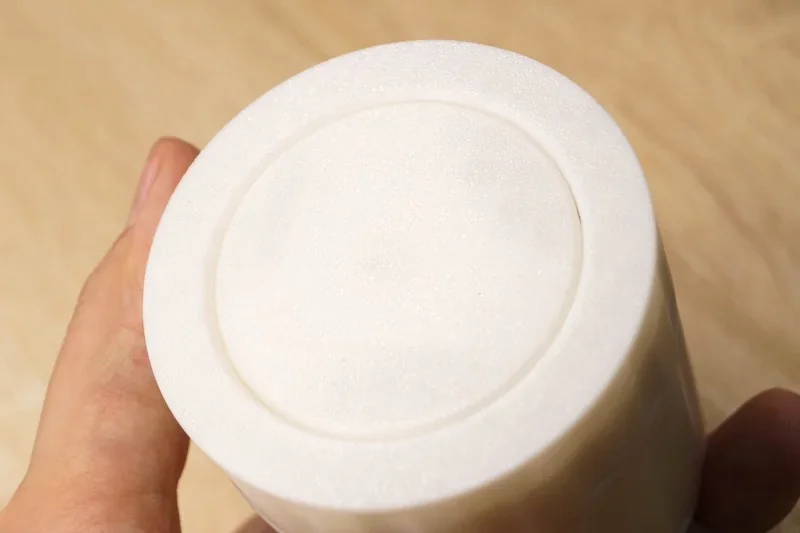

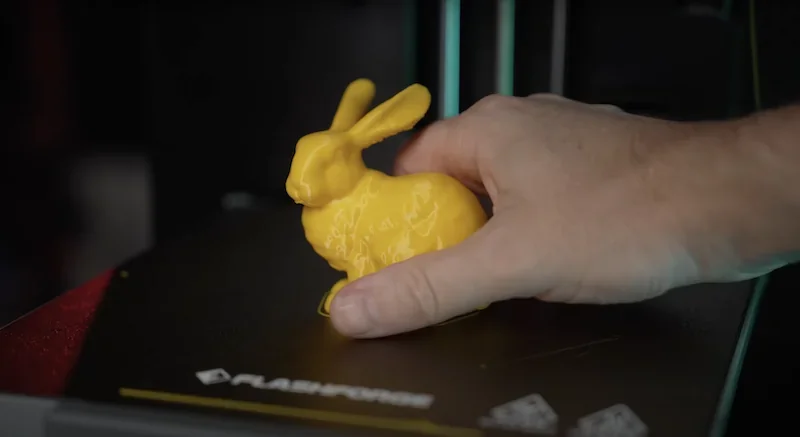

PLA print showed exceptional surface quality at 0.2mm layer height, with layer lines barely visible on the monolithic-style case.
PETG Print Sample:
PETG Print Sample:
TPU Print Sample:
TPU Print Sample:
The Adventurer 5M FDM printer supports both FlashForge and third-party filaments, offering flexibility by project or budget. A high-sensitivity filament sensor alerts users when material runs out, avoiding print failures.
ABS filaments are not compatible with the Adventurer 5M in its standard setup. An optional enclosure improves temperature stability for printing ABS and similar materials. The heated bed (up to 110°C) and PEI-coated plate ensure strong adhesion and easy print removal.
What is the build volume of the Flashforge Adventurer 5M?
The Adventurer 5M offers a 220×220×220 mm (8.66 x 8.66 x 8.66 inches) print size. Actual test measurements showed a usable area of 217×217 mm—a 2.71% reduction from specs.
What is the difference between the Flashforge Adventurer 5M, Bambu Lab A1 Mini and Creality K1 SE ?
In the $250+ range, the Adventurer 5M mainly competes with the Bambu Lab A1 Mini and Creality K1 SE.
The Bambu LabA1 Mini offers excellent software and build quality but has a smaller 180³ mm bed-slinger build and slower speeds compared to the 5M’s faster CoreXY system and 83% larger volume.
The Creality K1 SE matches the 5M’s CoreXY design and adds 30mm Z-height but is plagued by inconsistent quality, frequent part failures, and slow, language-barriered support.
The Adventurer 5M strikes a balance with consistent build quality, solid features, and reliable performance across units.
3D Printer Model
Type
Build Volume
Price Range (USD)
Flashforge Adventurer 5M 3D Printer
Core-XY
220 x 220 x 220 mm
$250+
Creality K1 SE
Core-XY
220 x 220 x 250 mm
$250+
Bambu Lab A1 Mini 3D Printer
Bed Slinger
180 x 180 x 180 mm
$250+

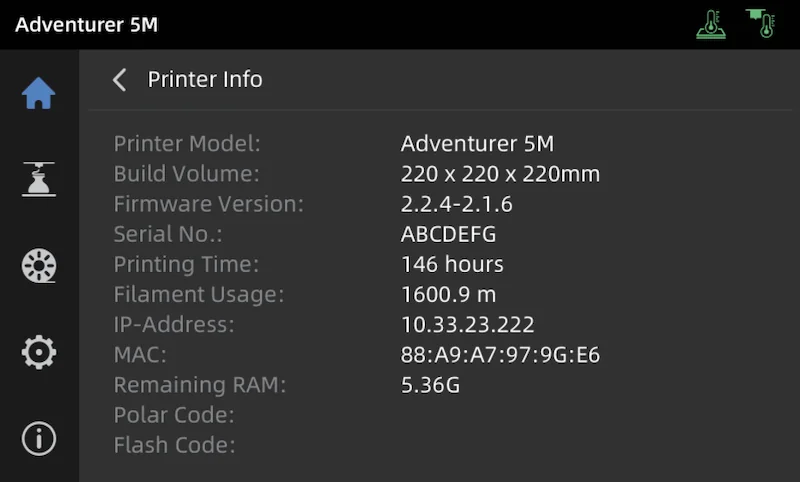

What printer controls are available on the Flashforge Adventurer 5M?
The Flashforge Adventurer 5M offers 11 key controls via a 4.3" touchscreen, power switch, and USB port. Touchscreen menus cover filament management, one-click auto-leveling, temperature control (extruder up to 280°C, bed up to 110°C), network setup, print monitoring, and cloud connectivity.
Physical Controls (3)
4.3" touchscreen (main interface)
Power switch
USB port for file transfer/printing
Touchscreen Controls (8 categories)
Filament Management Controls: Load/change filament with material selection and heating functions

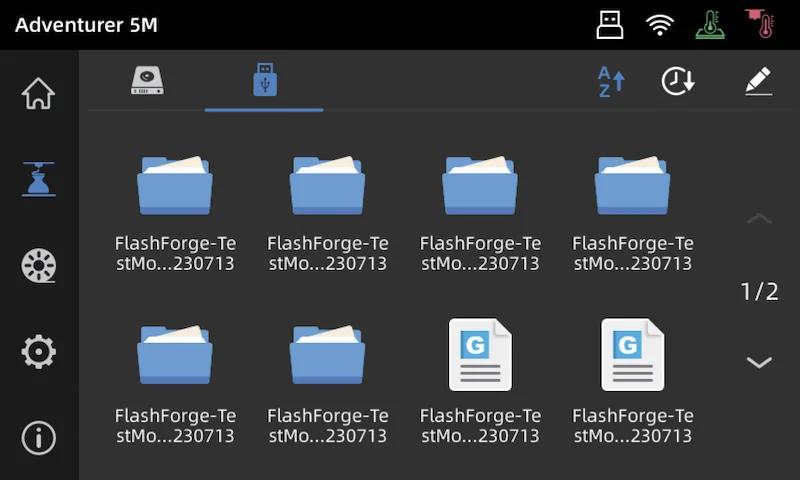

Print Jobs: File selection and real-time print monitoring
Temperature: Extruder (up to 280°C) and bed (up to 110°C) control
Settings: Sound and filament detection toggles

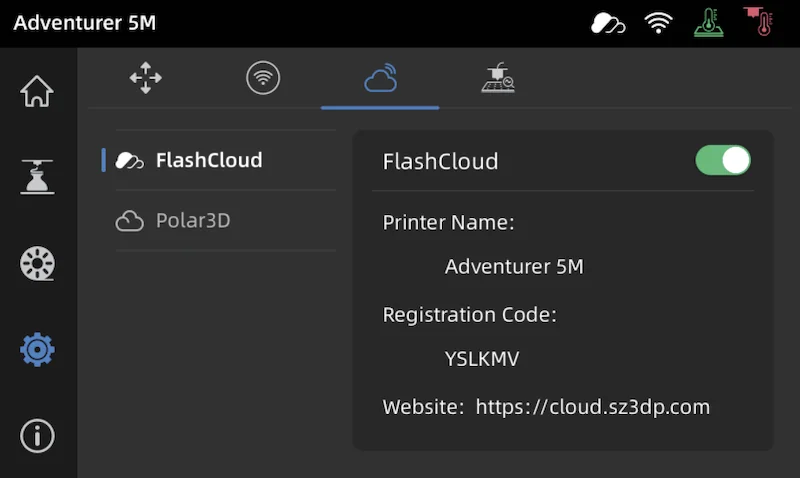

Cloud: FlashCloud and Polar Cloud setup
Firmware: Version check and online updates

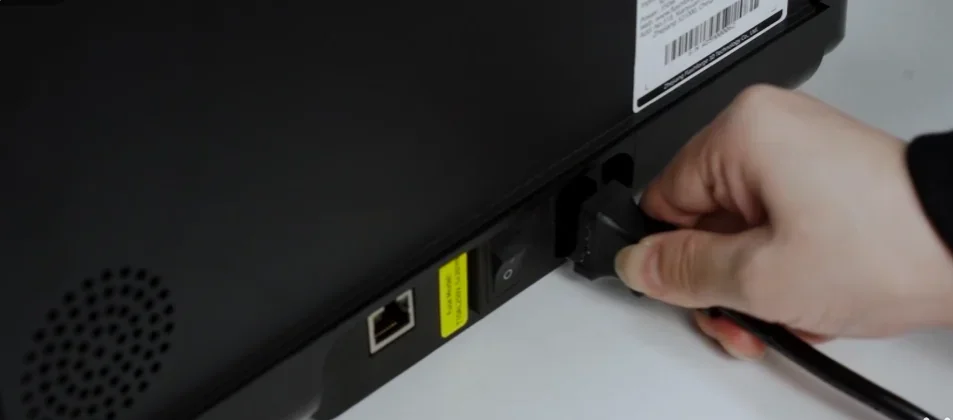

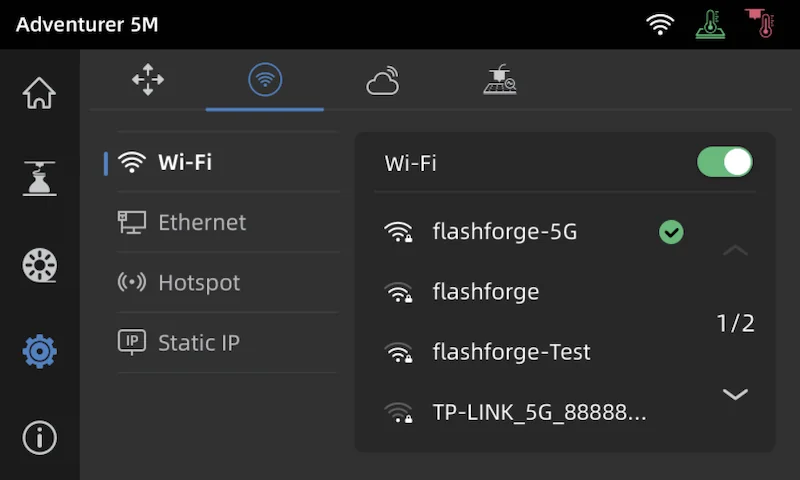

What connectivity options are available on the Flashforge Adventurer 5M?
The Adventurer 5M supports Wi-Fi, Ethernet, and USB. USB allows offline file transfers, Ethernet offers stable high-speed networking, and Wi-Fi enables wireless printing from anywhere on the same network.
Users can send files from computers or mobile devices, and with the optional camera kit, monitor prints remotely.
What software is offered with the Flashforge Adventurer 5M?
The Adventurer 5M supports three slicers: FlashPrint 5 (Windows, macOS, Linux), Orca-Flashforge (optimized OrcaSlicer with presets), and FlashMaker on your mobile device. These tools offer wireless transfers, print queue management, and remote control for streamlined workflows.
Full video series on the FlashPrint Slicing Software: https://www.youtube.com/playlist?list=PLWfXP01hqgWtywqXhzhTSlnqNT4bZEuXJ
The printer runs on Klipper firmware, enabling advanced motion control and high-quality prints. Firmware updates via FlashForge’s download center add performance and feature improvements.
What is the design and build quality of the Flashforge Adventurer 5M?
What is the form factor and design of the Flashforge Adventurer 5M?

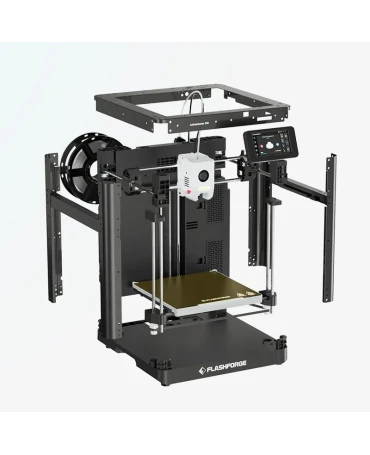

Visual Design: The Adventurer 5M has a matte-black, open-frame “speed-cube” look with clean edges, exposed metal uprights, and a cantilevered 4.3" touchscreen on the top-right. Motion parts and wiring are concealed, giving it a clean, industrial aesthetic. Optional acrylic panels (printable or purchasable) can convert it into a closed design.
Enclosure: No doors, lid, or side panels by default. STEP files are available for users to add custom enclosures. The Pro version comes fully enclosed.

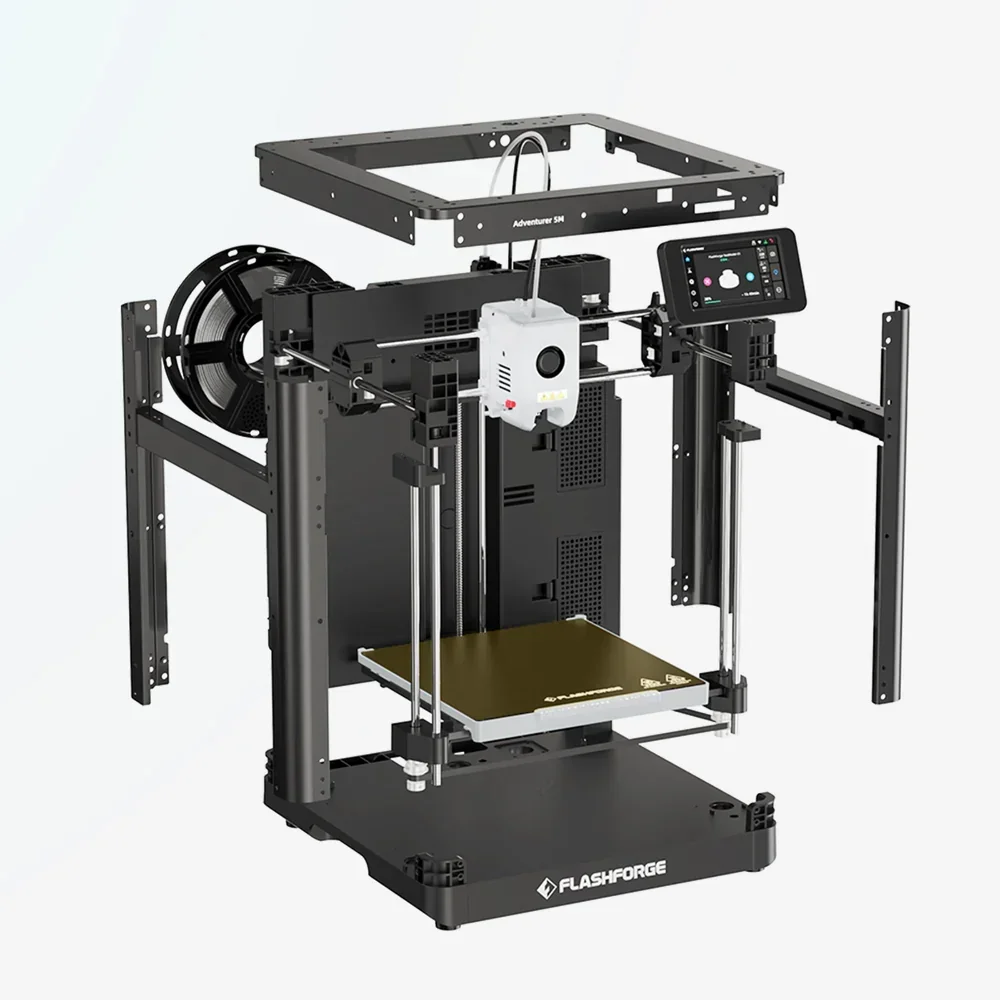

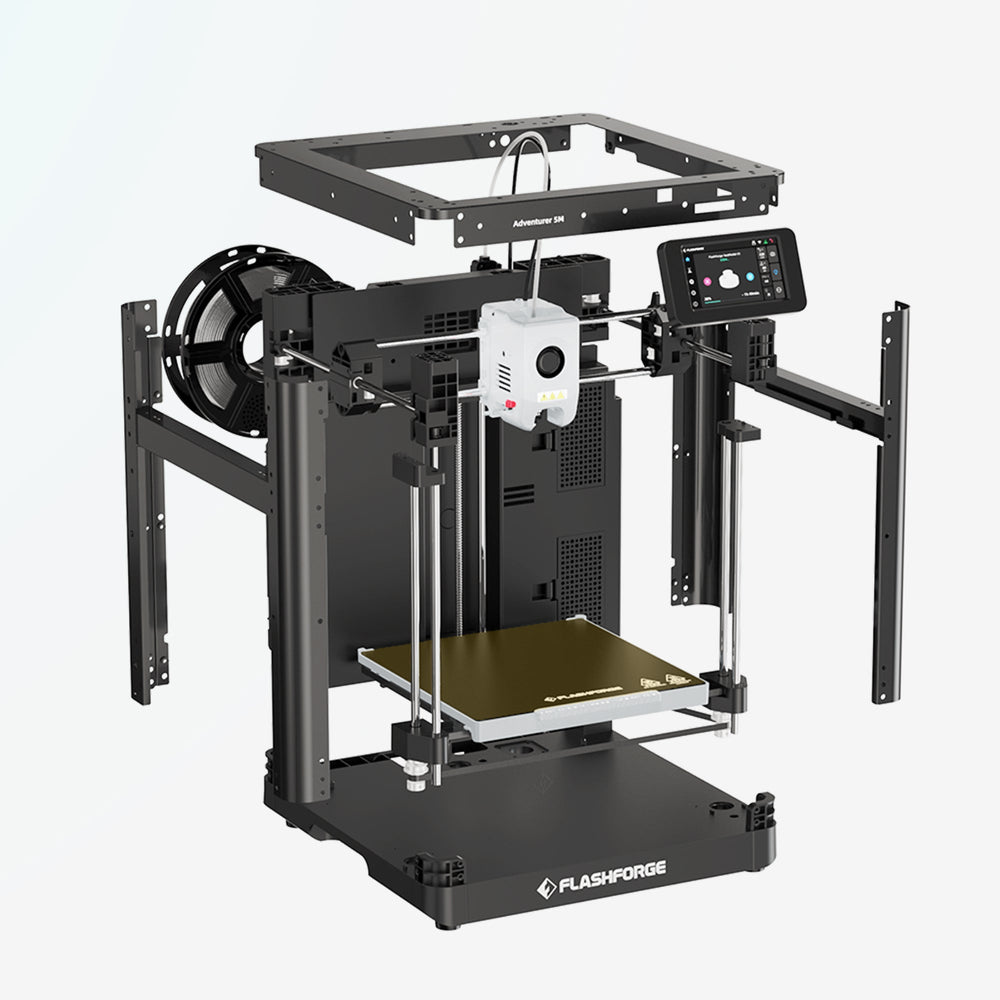

Chassis Materials: Built with rigid stamped steel portals, steel cross-members, powder-coated metal skins, and plastic rear/bottom covers.
Dimensions: Without screen/spool holder: 363 × 376 × 413 mm; With screen, no spool holder: 363 × 402 × 448 mm.
Weight: 10.8 kg
What is the motion system of the FlashForge Adventurer 5M?

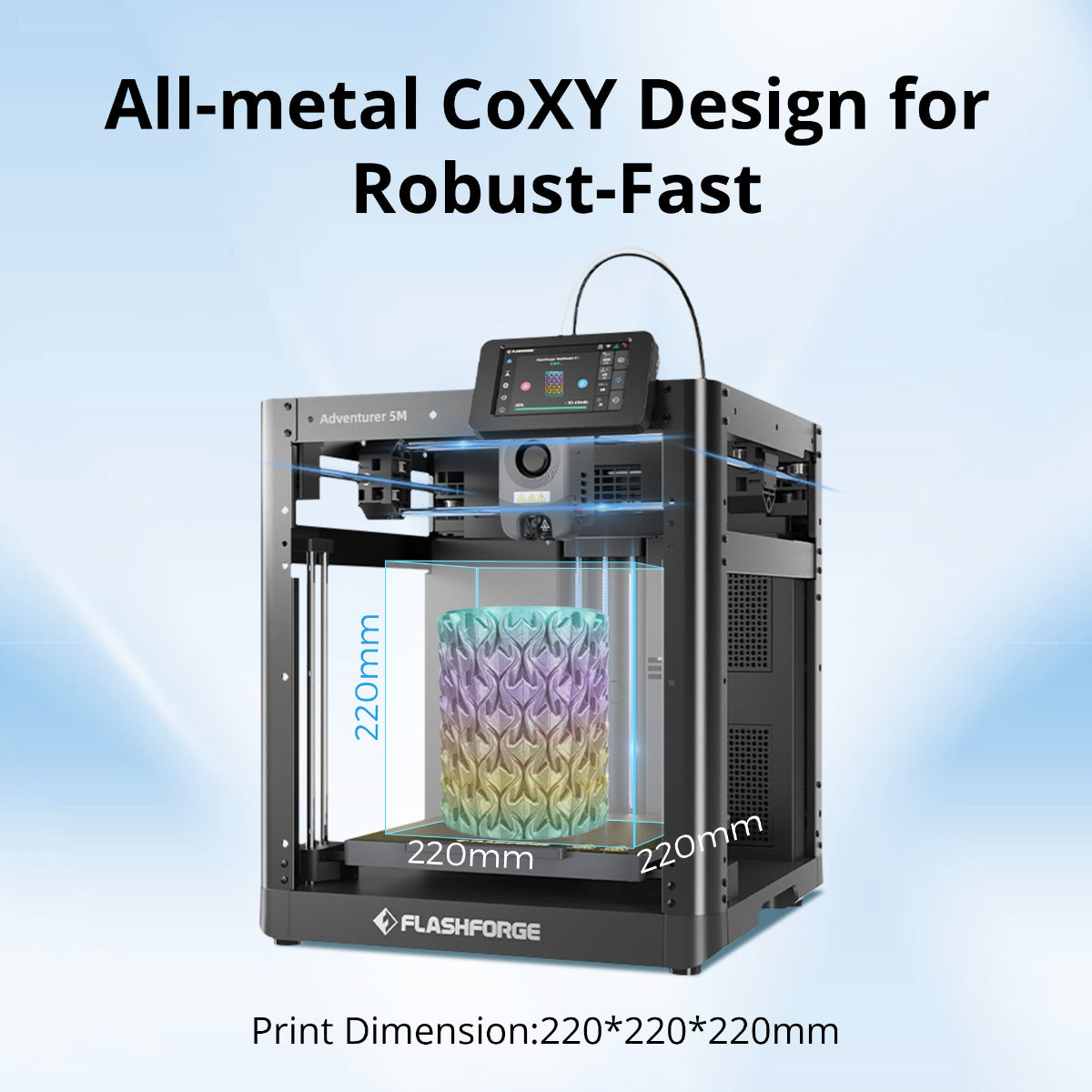

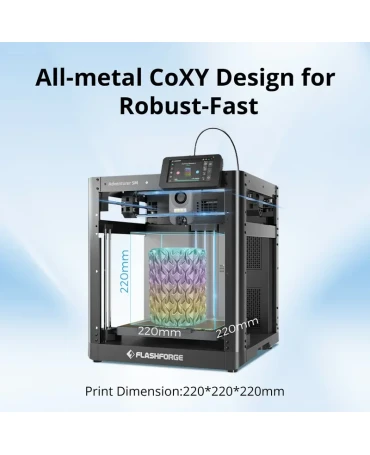

The FlashForge Adventurer 5M uses a CoreXY motion system with 8mm polished rods, ball bearing bushings, and GT2 6mm belts with spring-loaded tensioners on a stamped steel frame reinforced by M4-secured corners. The Z-axis runs on three T8 lead screws (8mm pitch) driven by one motor, with rear cylindrical guides for added stability.
XY-Axis: It uses a CoreXY system based on Bambu Lab’s layout, with FlashForge’s own design. Key features include:
Solid 8mm polished metal rods for rigidity
Ball bearing bushings for smooth motion
GT2 6mm belts with spring-loaded tensioners for equal belt tension (confirmed by testing)
Serviceable pulley carriages with accessible screws
Z-Axis: The bed moves via three T8 lead screws (8mm pitch) and rear cylindrical guides for stability.
Front-View:

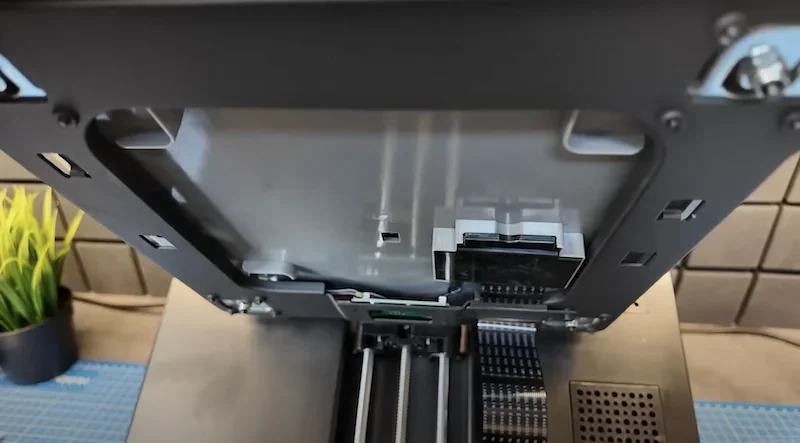

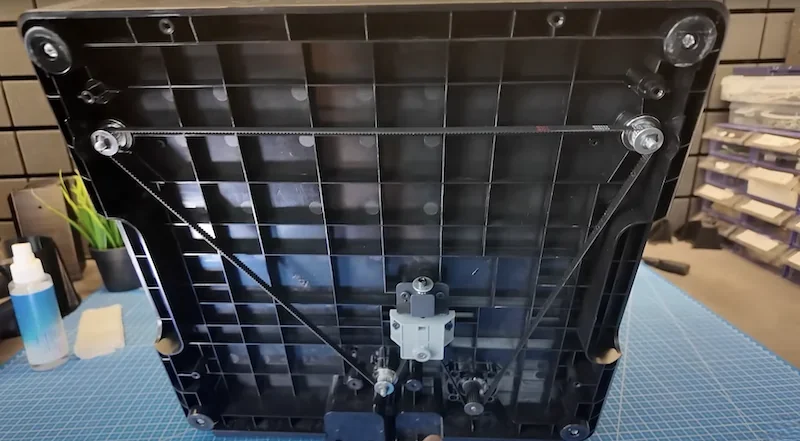

Bottom-Panel Removed, a single motor controls all the Z-Axis guides.
What are the build platform specifications of the Flashforge Adventurer 5M?

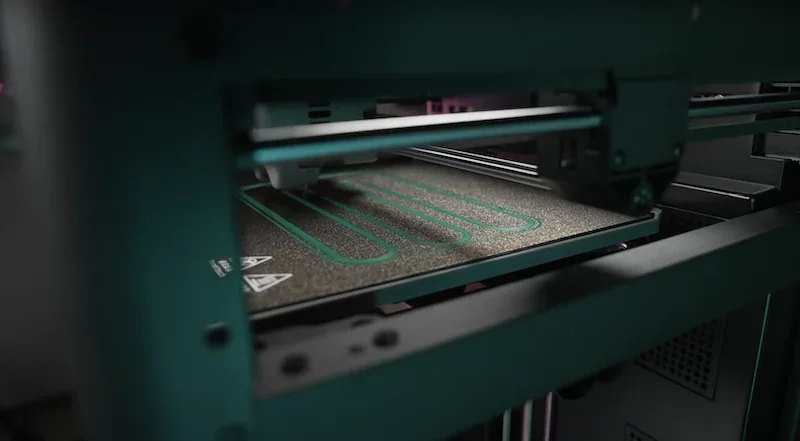

The 220×220×220 mm build platform has a plastic base with accessible screws for maintenance. It heats up to 110°C and includes:
Flexible magnetic PEI steel plate
Double-sided design with positioning stops
Plastic handle for safe removal
Four-point auto-leveling via strain gauges
The heated bed runs on 24V via a flexible ribbon cable, offering safer operation than mains voltage.
Flashforge Adventurer 3 & 4 owners will appreciate improved auto-leveling and filament loading — no manual adjustments needed.

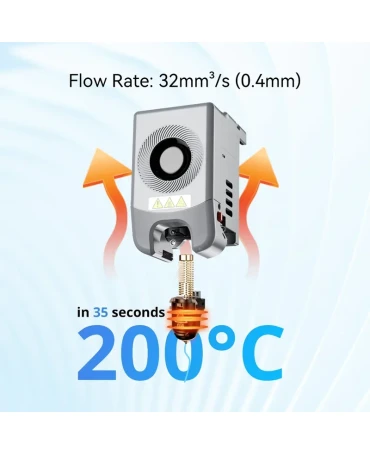

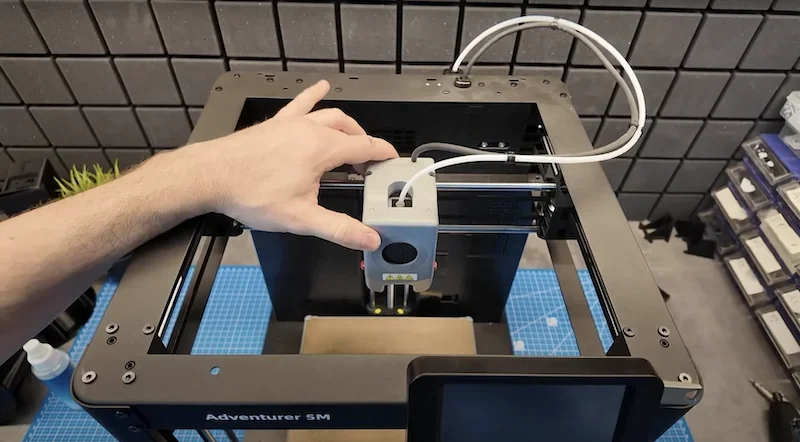

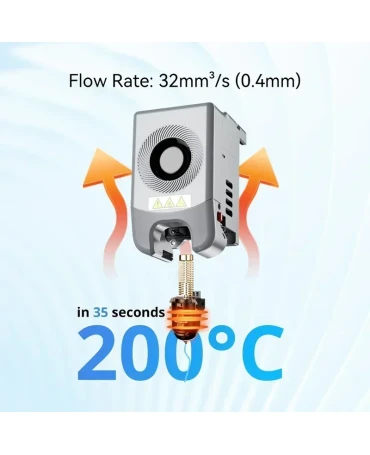

What is the hotend and extruder system of the Flashforge Adventurer 5M?

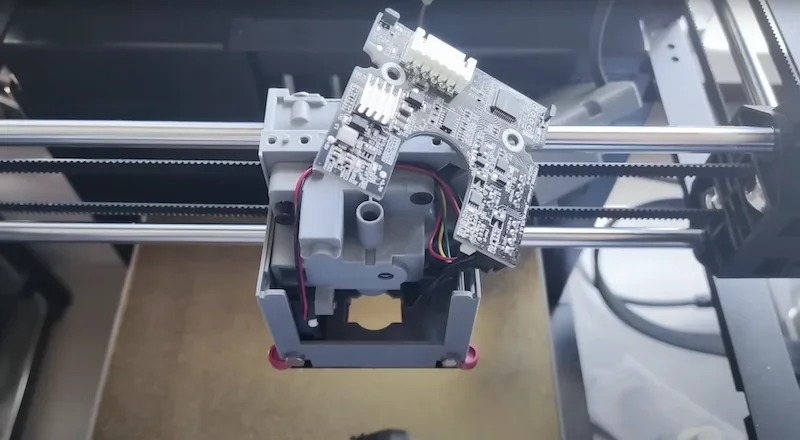

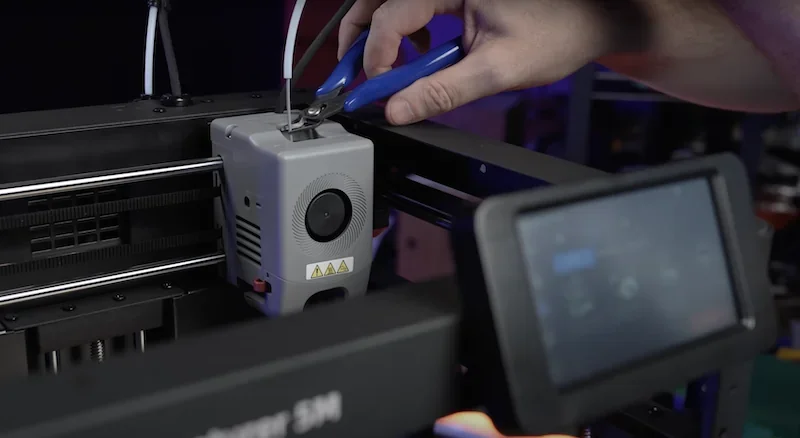

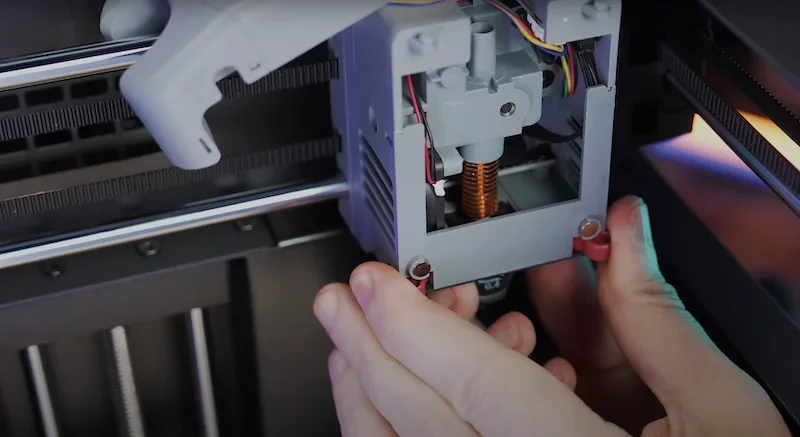

Hotend Design: The extruder uses a lightweight plastic housing that enables high-speed printing, outperforming Bambu Lab in some tests.

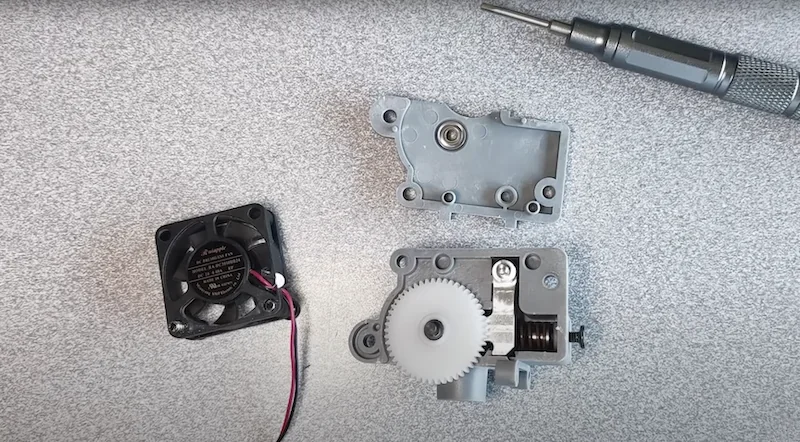

It features a dual-drive BMG-style setup with hardened steel gears, driven by a NEMA14 stepper motor for reduced weight.
Key Features:
Spring-loaded adjustable gear pressure
Four-wire cooling fan with failure detection
Integrated control board with built-in stepper driver
Single 4-conductor cable for minimal drag

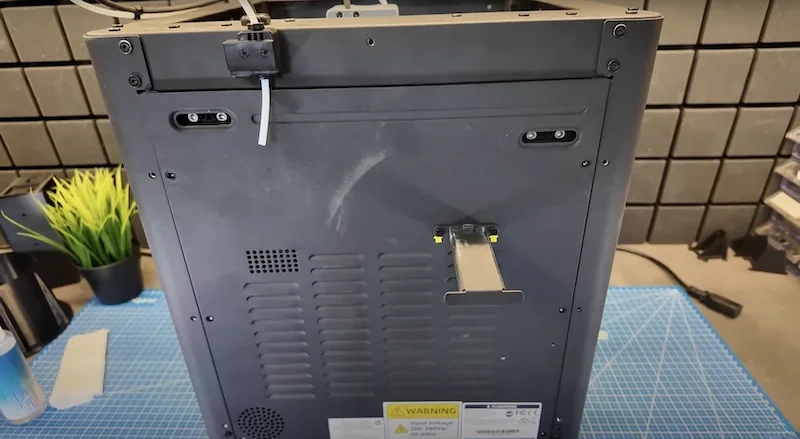

How does the Flashforge Adventurer 5M handle filament storage and feeding?

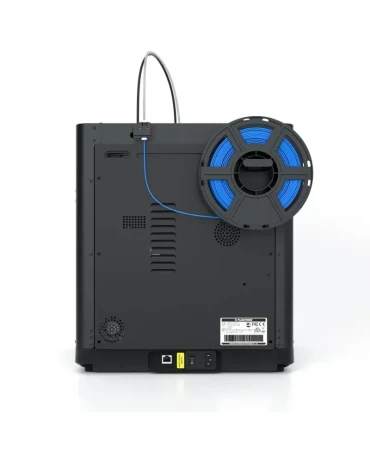

The rear-mounted spool holder supports standard 1kg spools, with a PTFE guide tube feeding filament to the extruder.

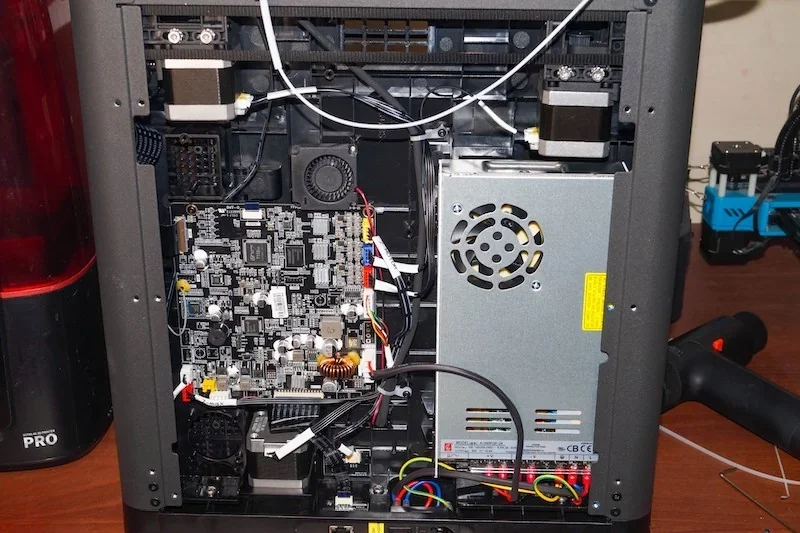

What is the mainboard of the Flashforge Adventurer 5M?
Processing Architecture: The Adventurer 5M uses a proprietary 2-in-1 board combining host and motion control.

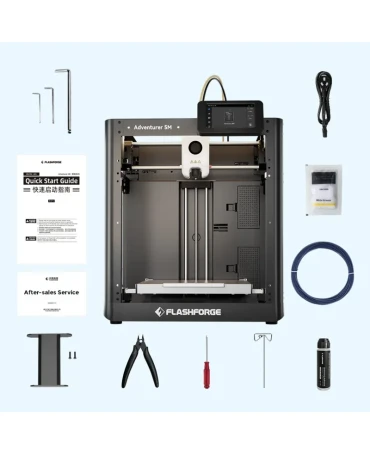

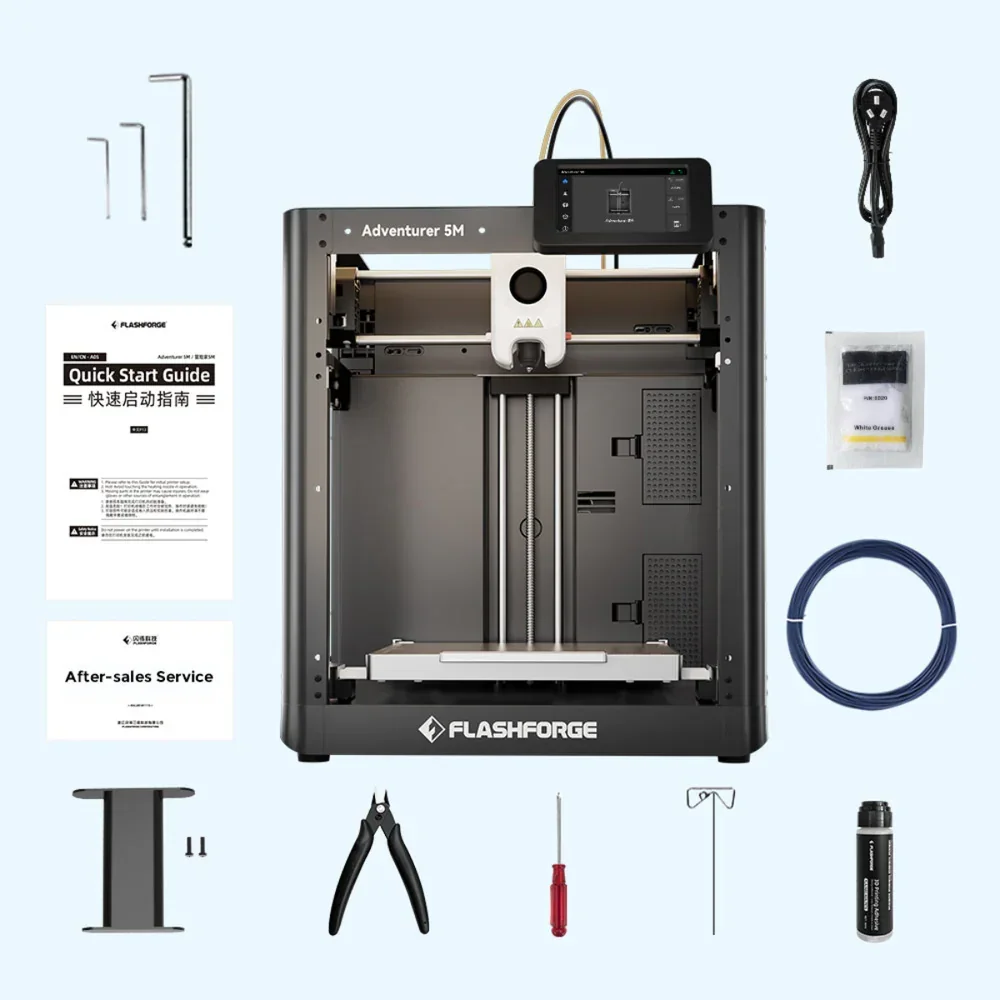

• 1x Set of Maintenance Tools (Allen wrenches, scraper)
• 1x Sample PLA Filament
• 1x Quick Start Guide
• 1x User Manual
The Adventurer 5M arrives 95% pre-assembled, needing only the screen and spool holder installed. Setup takes under 10 minutes with help from the quick start guide. It comes with a thumb drive with software and a few starter print files. Adventurer 5M includes maintenance tools, lubricant, and sample PLA for immediate test prints. The PEI-coated build plate comes pre-installed and ready to use.
Please Note: Package contents are determined by the manufacturer and may change without notice. To confirm the current items included with this product, please contact a sales representative before placing your order.
What upgrades and accessories are available for the Flashforge Adventurer 5M?
The Adventurer 5M supports 7 official accessories.
Accessory
Function
Ideal For
Price
Enclosure Kit
Stabilizes temperature for warp-prone materials
Users printing ABS/ASA
$35+
Camera Kit
Enables remote monitoring
Remote users / print verification
$35+
Nozzle Assembly Kit
Replaces or upgrades extruder
General maintenance or performance upgrades
$50+
Quick-Release Nozzles (0.25mm, 0.6mm, 0.8mm)
Improves resolution/speed (0.25mm, 0.6mm, 0.8mm)
Users needing detail or high speed
$35+
HEPA Air Filter Set
Filters odors and particulates
Health-conscious or enclosed environments
$20+
PEI Coating Platform
Restores build plate adhesion
Maintenance or material-specific upgrades
$20+
PEI/PC Sticker Sheets
Alternative build surfaces
Users printing with PC/ABS
$20+
Enclosure Kit

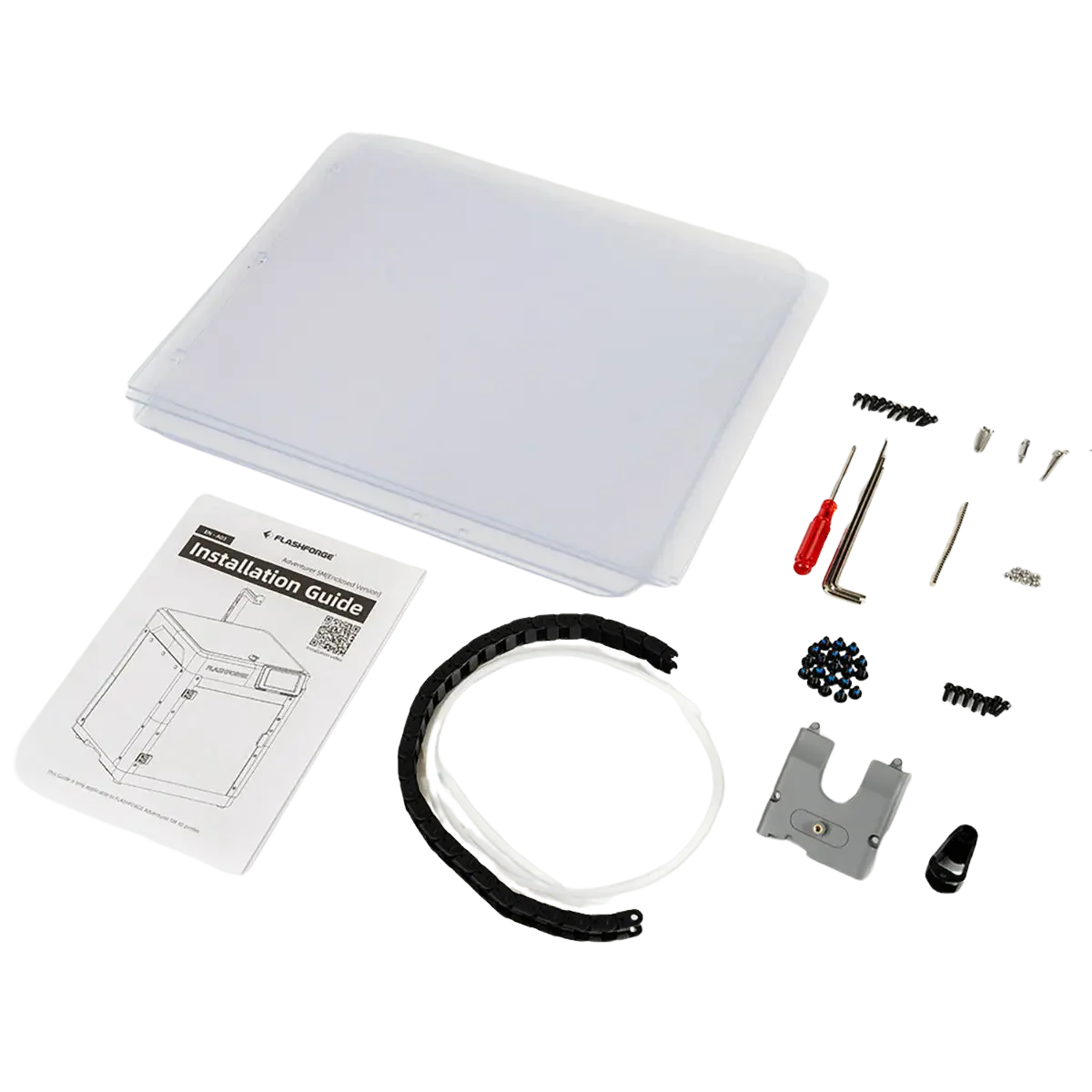

The Enclosure Kit converts the Adventurer 5M into a fully enclosed system. It stabilizes chamber temperature for better results with warp-prone filaments and enhances safety by enclosing hot and moving parts.

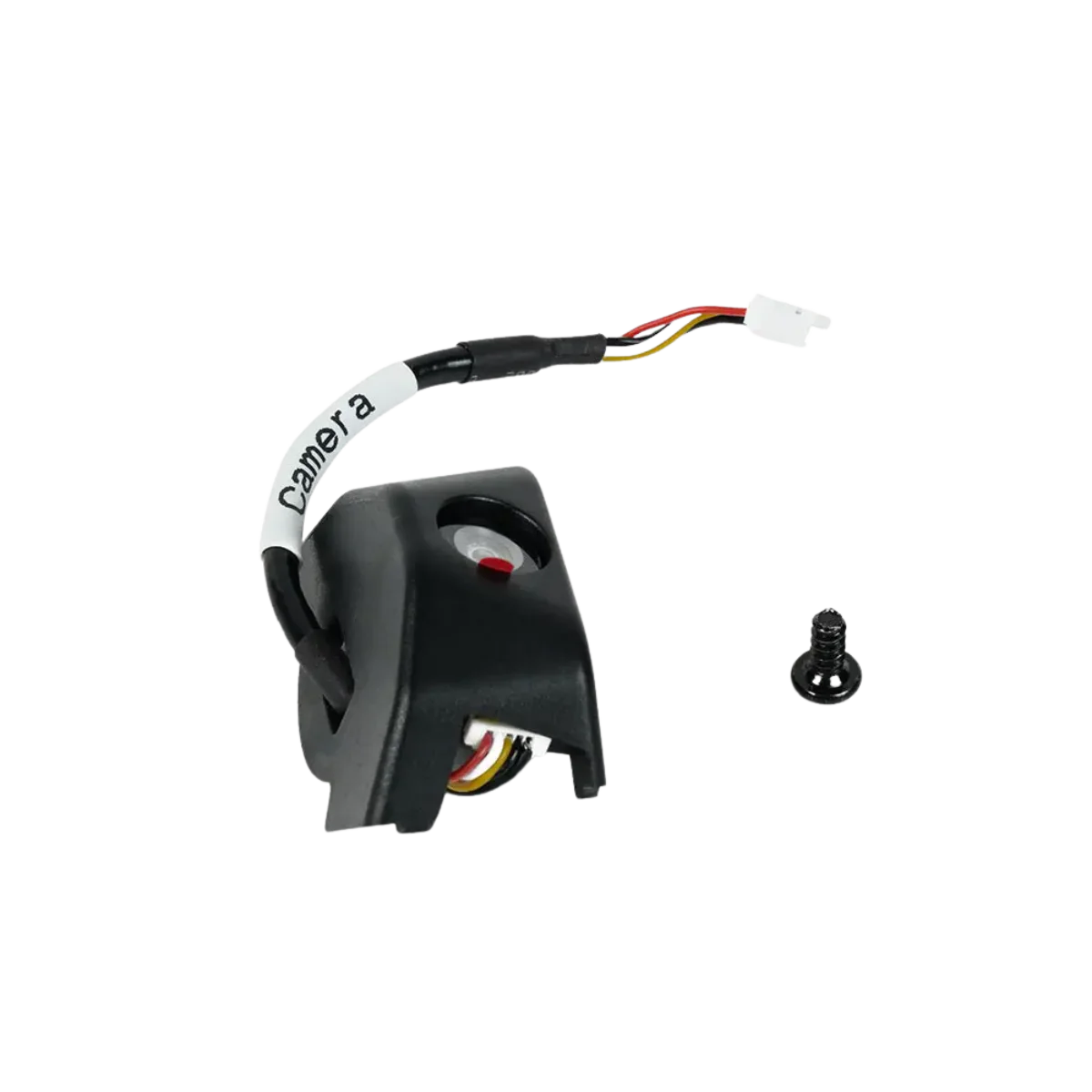

Camera Kit
The Camera Kit adds remote monitoring, allowing users to track print progress from any connected device. It's especially useful in educational settings for supervising multiple printers efficiently.

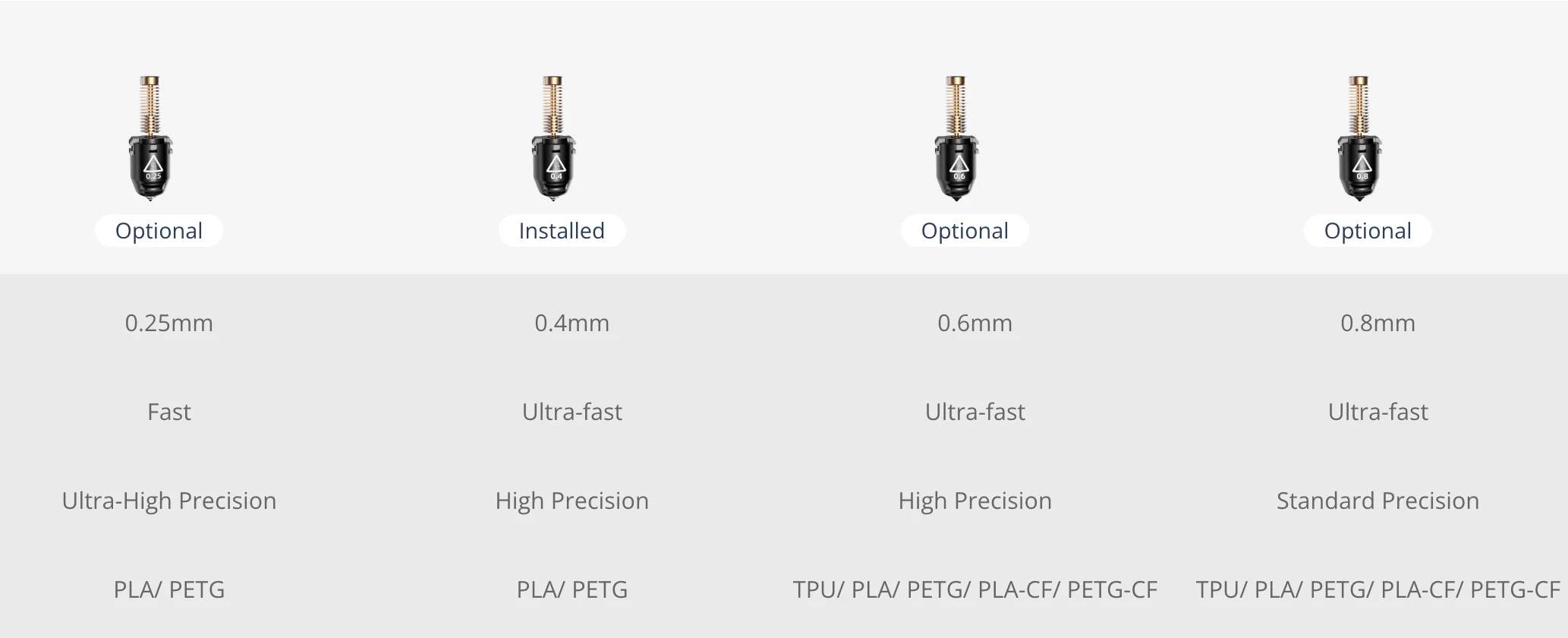

Quick-Release Nozzle

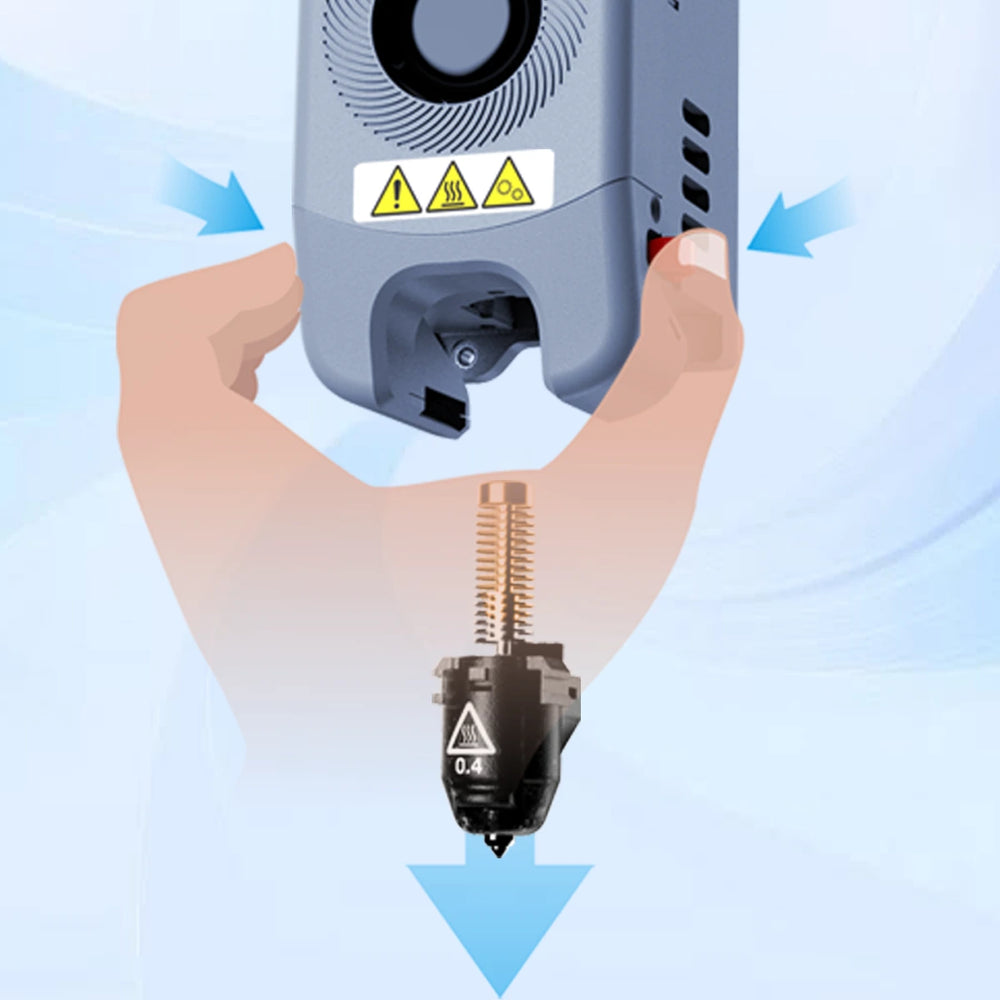

Quick-Release Nozzles expand material compatibility and print precision. The 0.25mm nozzle offers high detail, while 0.6mm and 0.8mm options reduce clogging with materials like TPU, PLA-CF, and PETG-CF. Tool-free installation allows fast swaps for different print needs.
How reliable is the Flashforge Adventurer 5M?
The Adventurer 5M showed strong reliability over extended use, with two units running 982 and 503 hours with minimal issues. Across 1,000+ hours of testing, only two nozzle clogs occurred, indicating consistent filament flow.
What maintenance is required for the Flashforge Adventurer 5M?
Guide Rails: Lubricate every 200 printing hours
Filter System: Replace cotton every 300 hours or when darkened
Build Plate: Clean with water after glue use; dish soap for oily residue; replace if warped
Nozzle: Use dedicated nozzles per material to avoid contamination; clean with loading cycles or pin tool; re-level after replacement
Chamber: Remove filament debris regularly
Belts: Spring tensioners maintain tension; adjust only if wear is observed
What support and warranty come with the Flashforge Adventurer 5M?
The Flashforge Adventurer 5M includes a 12-month limited warranty and a 3-month warranty for extruder parts, covering defects and failures under normal use. FlashForge provides free replacement parts during the warranty period.
Support is available via email (aftersales@flashforge.com), with engineers offering remote troubleshooting. FlashForge also offers lifelong free technical guidance.
Resources like firmware updates, manuals, and software are available through the FlashForge download center, with multilingual support. The FlashForge Wiki offers community-based troubleshooting. After the warranty, replacement parts remain available for purchase to extend the printer’s lifespan.
Link to the support guides: https://wiki.flashforge.com/en/adventurer-series
Full warranty terms: https://www.flashforge.com/pages/warranty-and-return-policy
How much does the Flashforge Adventurer 5M cost?
The Flashforge Adventurer 5M is available at $239.00, great value in the current 3D printing market. It is a great 3D printer for beginners, especially as a first printer. You get a 95% pre-assembled CoreXY frame, user-friendly 3D printing experience and responsive support. The Flashforge Adventurer 5M Pro (AD5M Pro) 3D printer costs 25% more being an enclosed printer. It offers superior print quality with ABS/ASA.
Nozzle type
Quick-detach Nozzles
Acceleration
20000mm/s²
Build plate
Flexible removable PEI steel plate
Connectivity
Wi-Fi; Ethernet; USB
Extruder
Direct drive
Leveling
Automatic Datum Management (ADM) system for real-time adjustments and auto-leveling
Manufacturer
Flashforge
Max. extruder temperature
280°C
Max. platform temperature
100ºC
Max. printing speed
600mm/s
Noise
/
Nozzle diameter
0.4mm/0.6mm/0.8mm/0.25mm

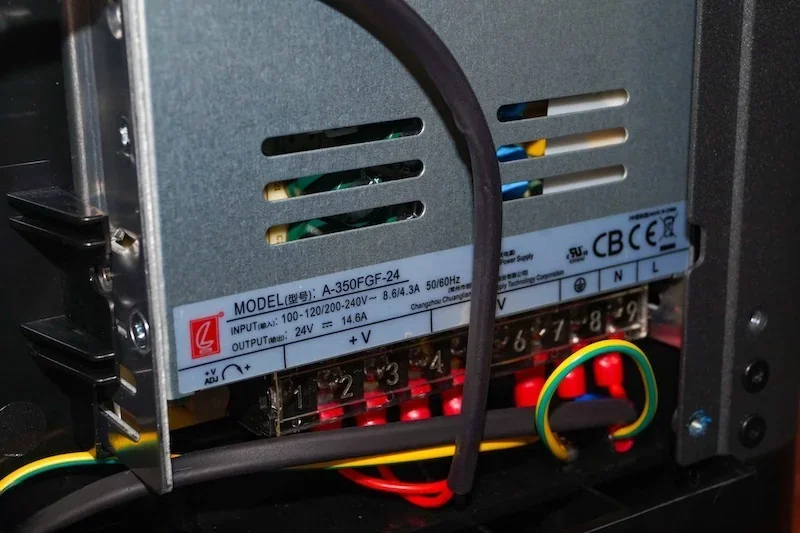

Power supply input
AC100~120/200~240V，50/60Hz，350W
Air Filtration
/
Build volume
220 × 220 × 220 mm
Compatible Slicing Software
FlashPrint 5/Orca-Flashforge/Orca Slicer
Device Size
363*376*413mm(excluding the display screenand spool holder)
Device Size with display
363*402*448mm (including the display screen,excluding the spool holder)
Flashforge Adventurer 5M 3D Printer, 600mm/s High Speed, Beginner-friendly
Return Policy
30-Day Return
Reviews
531 reviews
Shell
Open
Structure
CoXY All-metal structure
Vibration Compensation
Yes
Warranty
12-Month Warranty (1-year limited warranty for 3D printers and a 3-month warranty for extruder parts)
