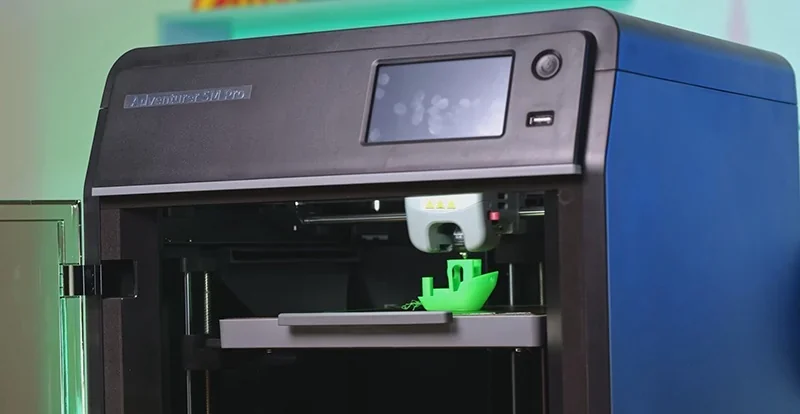

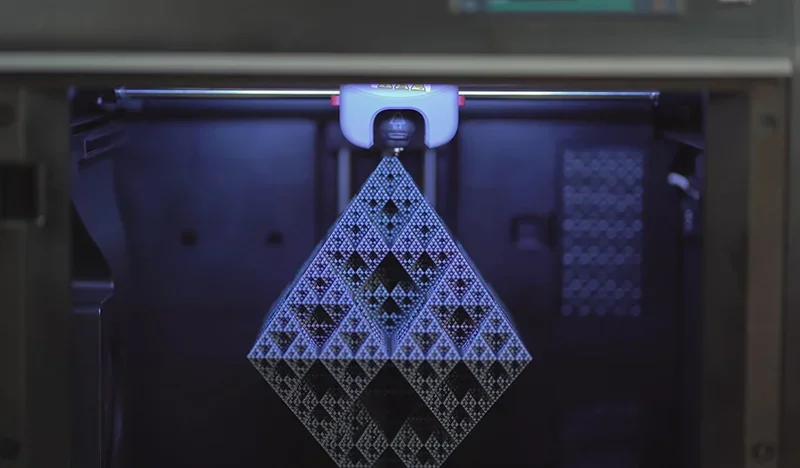

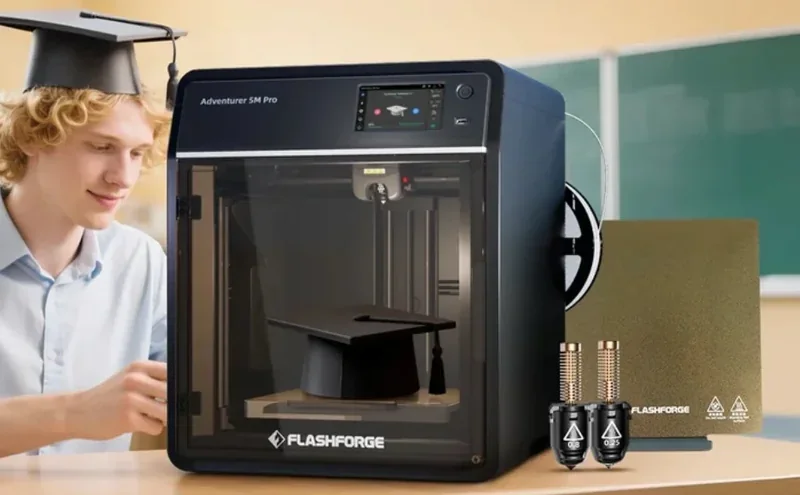

The Flashforge Adventurer 5M Pro is a high-speed, CoreXY 3D printer with a direct drive extruder, reaching speeds up to 600mm/s and 20,000mm/s² acceleration. Its enclosed metal frame ensures stable, pro-quality prints, while dual HEPA13 and activated carbon filters remove 99% of particles and VOCs. It offers internal circulation for ABS and external for PLA/PETG, plus a quick-change nozzle system and auto bed leveling. Designed for schools, prosumers, and makers, it sets up in under 10 minutes, with a 220 × 220 × 220mm build volume, built-in camera, and PEI steel plate for easy part removal. Filament run-out detection and power loss recovery add reliability.
The Adventurer 5M Pro’s CoreXY system achieves X/Y precision of 0.0125mm and Z precision of 0.0025mm. It supports 0.1–0.4mm layer heights, producing smooth prints with minimal layer lines.
The printer uses active vibration compensation to cancel vibrations and prevent ghosting on flat surfaces. In testing, it produced a smooth PLA sheet with accurate leveling and auto Z offset that peeled off cleanly without line separation.
The Flashforge Adventurer 5M Pro 3D printer reaches 600mm/s print speeds with 20,000mm/s² acceleration. Its direct drive extruder delivers a 32mm³/s flow rate for steady extrusion at high speeds. In testing, it printed a Benchy in 13 minutes with better quality than past Flashforge models.

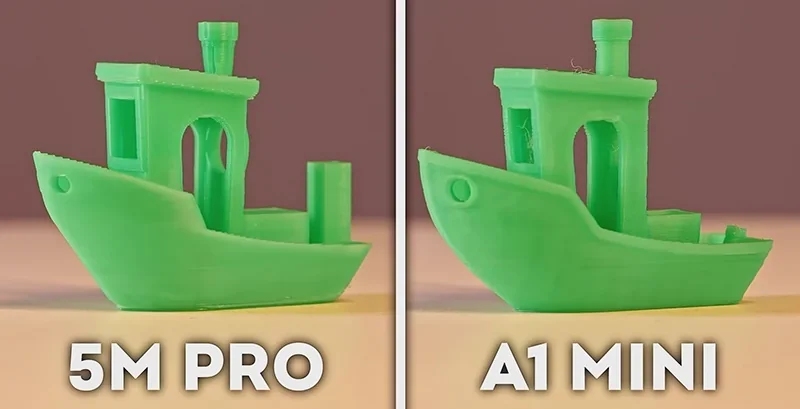

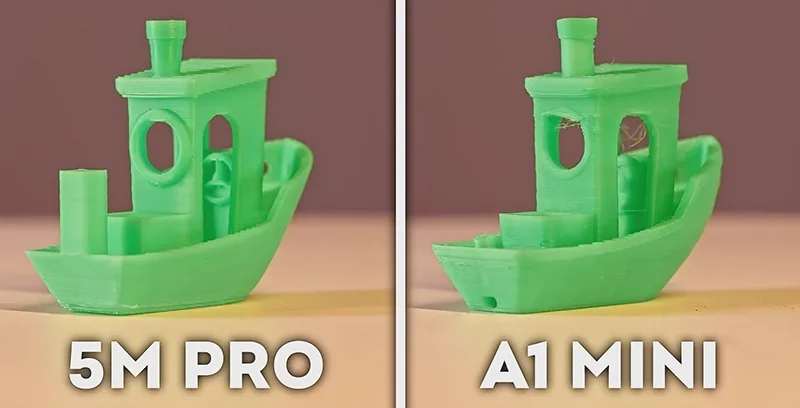

In testing, the Adventurer 5M Pro outperformed the Bambu Lab A1 Mini with better surface quality, accuracy, and cleaner details on a 14-minute Benchy. Its extended-zone hotend reduced stringing, while vibration compensation and CoreXY design minimized ringing around fine features.
The bed leveling system uses force sensors to ensure accurate first layers without manual tuning. The flexible PEI-coated steel plate gives strong adhesion during printing and easy part removal when flexed.

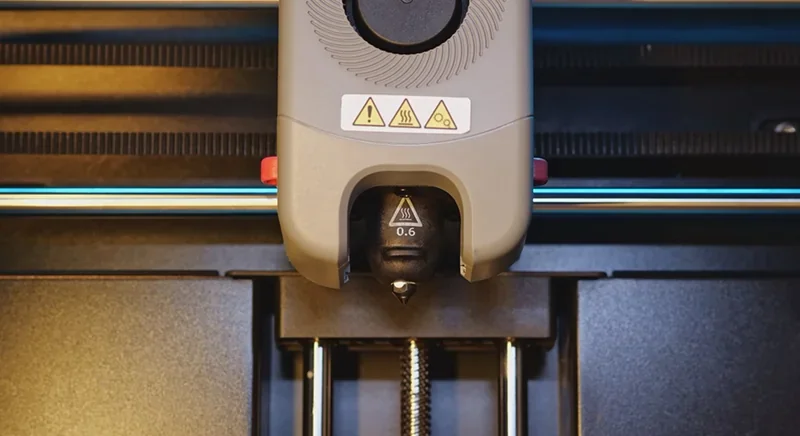

The Adventurer 5M Pro supports 0.25mm, 0.4mm, 0.6mm, and 0.8mm nozzles for different needs. Using a 0.6mm nozzle cut print time on a 7–8cm model from nearly 7 hours to just over 4 hours compared to a 0.4mm nozzle.

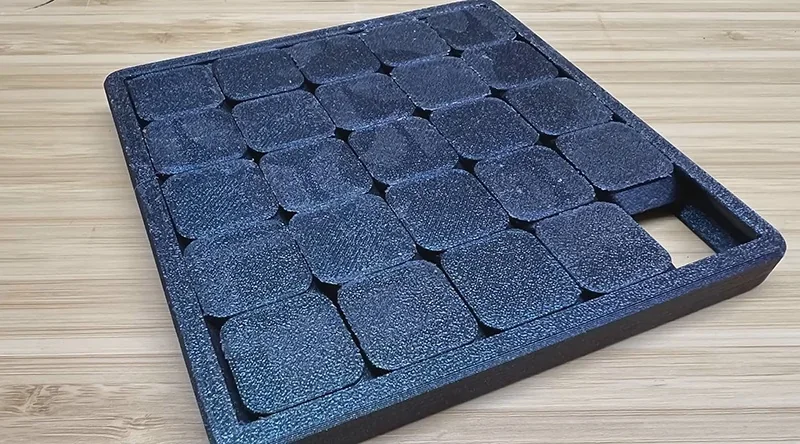

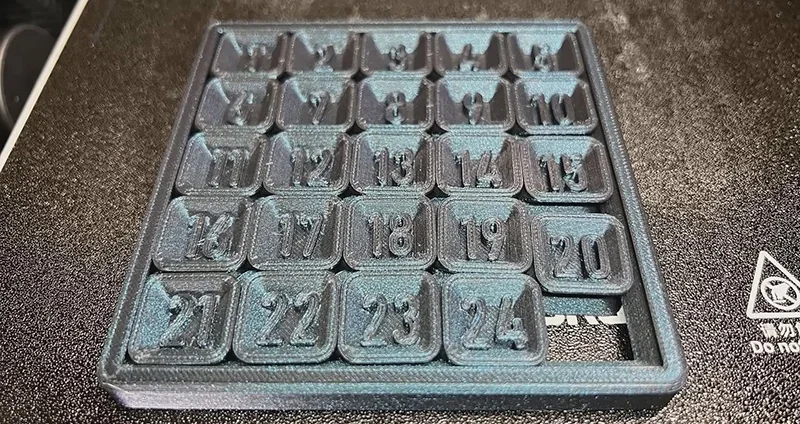

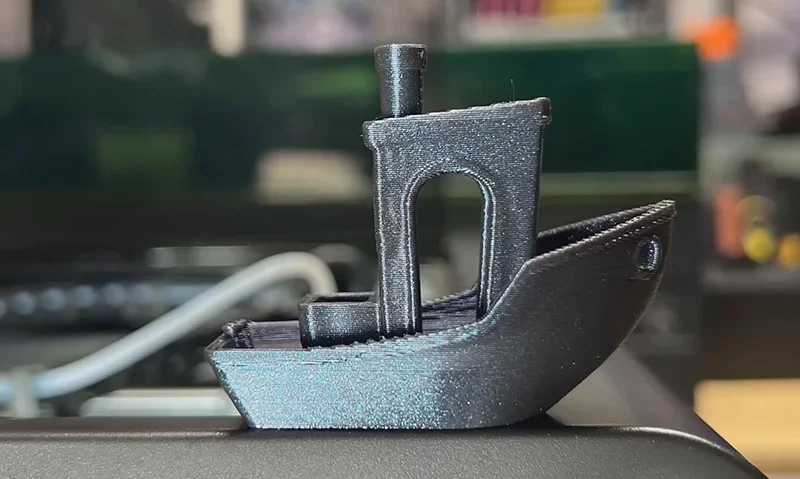

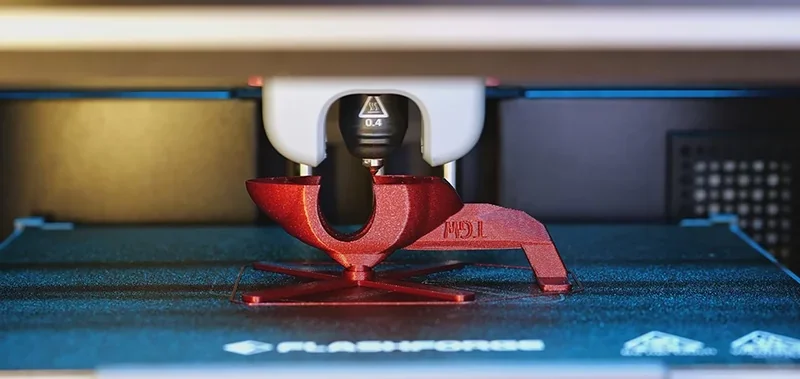

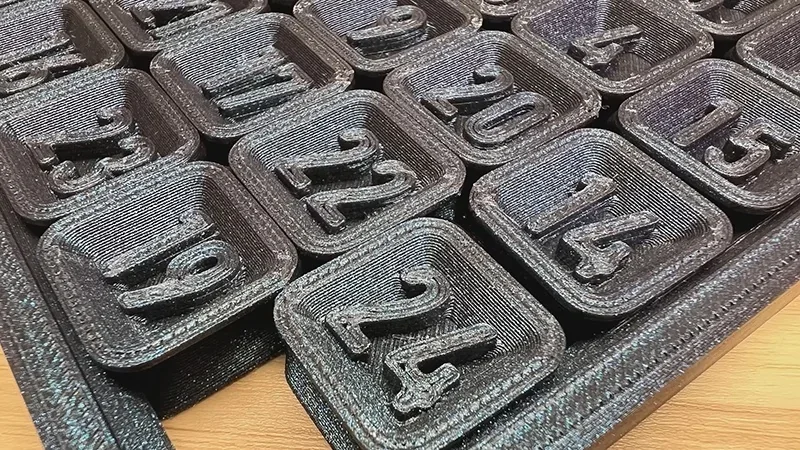

The Adventurer 5M Pro handles bridges, overhangs, and smooth surfaces well. In tests with a snap-fit number slider, it delivered molded-quality texture and precise dimensions.

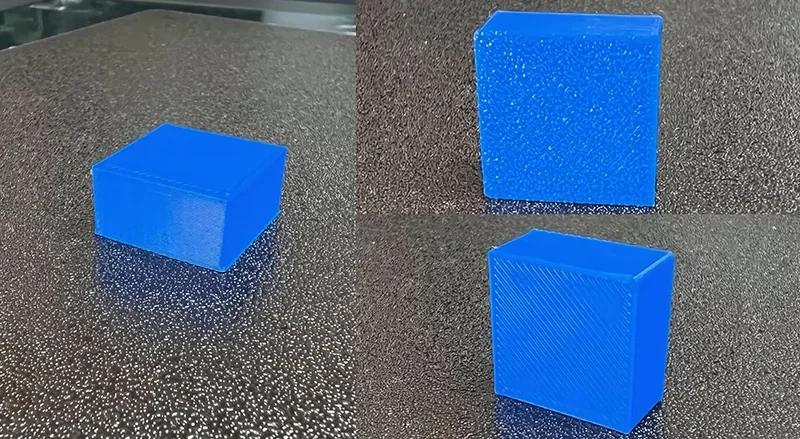

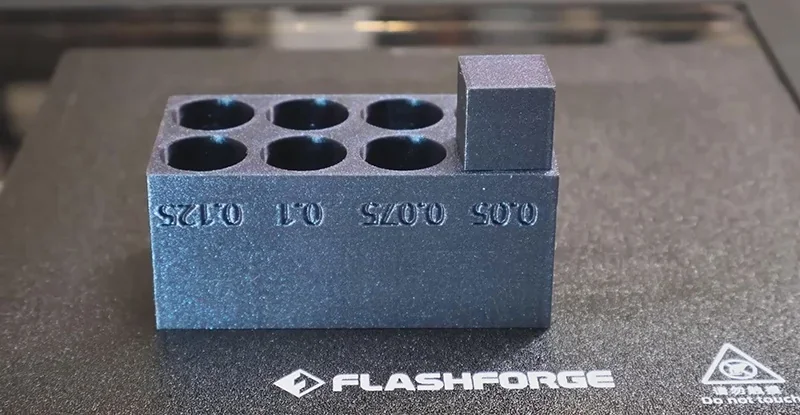

In a tolerance test, the Adventurer 5M Pro printed a cube-and-cylinder assembly in 1h 47min. The parts fit together with 0.05mm clearance, proving its dimensional accuracy and precise extrusion control.
The Flashforge Adventurer 5M Pro FDM 3D printer supports over seven filament types including PLA, PETG, TPU (best with a 0.6mm nozzle), ABS, ASA, PLA-CF, and PETG-CF, with nozzle sizes of 0.4mm for standard filaments and 0.6 or 0.8mm for high-temp composite materials.

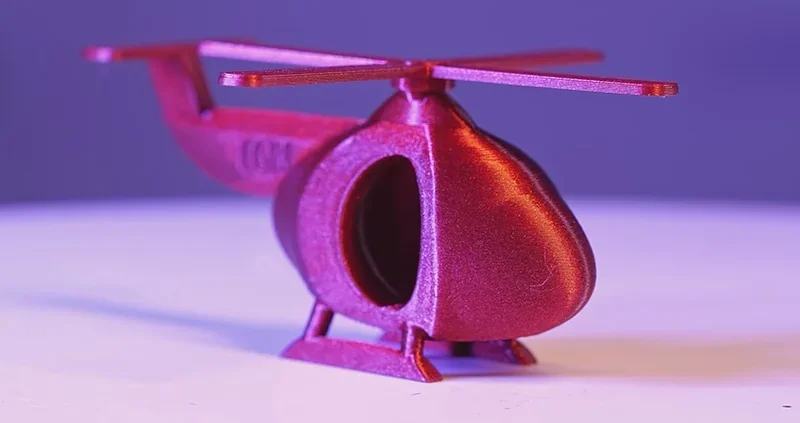

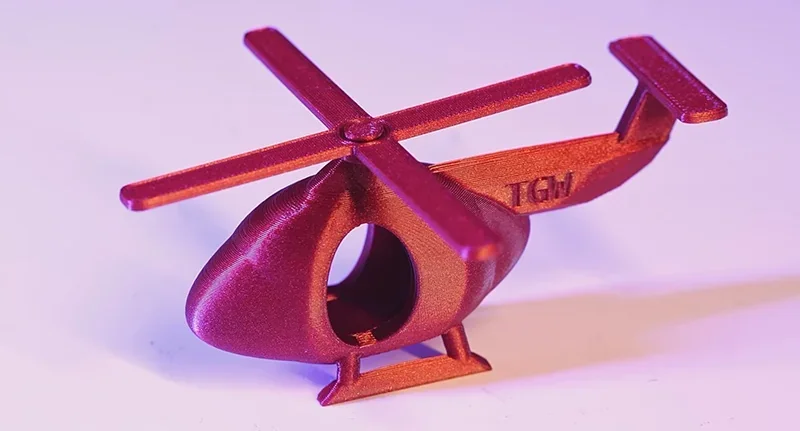

PLA Sample: A support-free helicopter with large overhangs and bridges was printed at 100–250mm/s in Galaxy PLA on a 57°C bed. Results were near-perfect, with only slight sagging on the landing skids.
The Adventurer 5M Pro works with third-party filaments, with its direct drive extruder handling both rigid and flexible materials. TPU prints best with a 0.6mm nozzle, and proper filament changeover is required to avoid jams when switching materials.

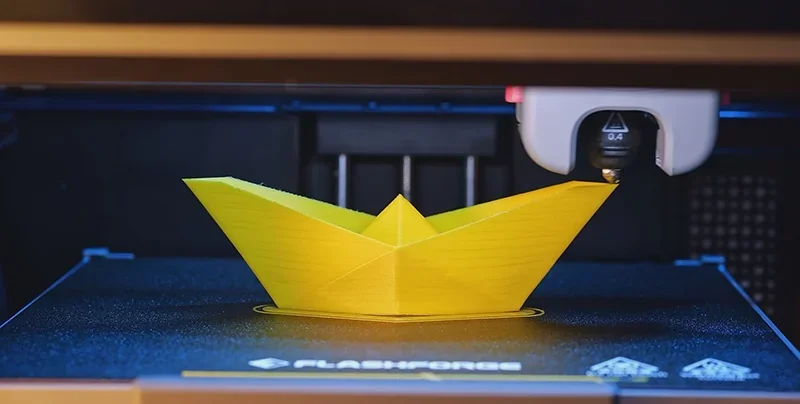

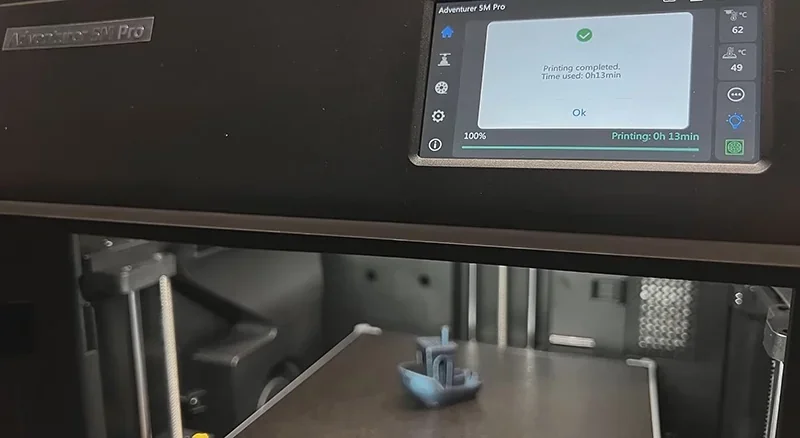

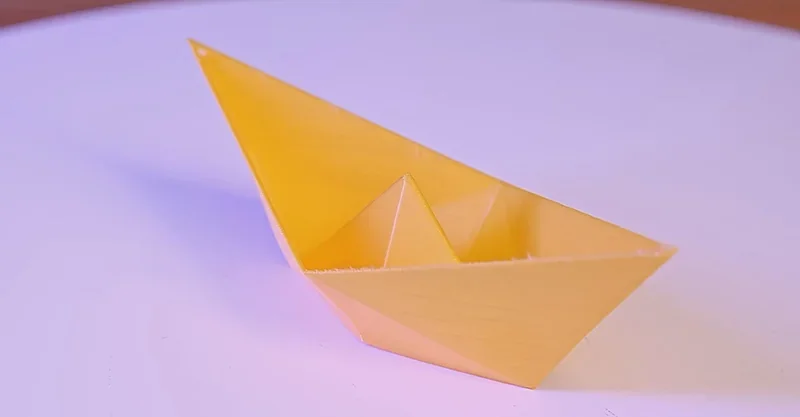

TPU Sample: A thin-walled paper boat in 95A TPU printed at 100–150mm/s showed good adhesion and feeding, with only slight base compression from too much cooling.
With 0.6 or 0.8mm nozzles, the Adventurer 5M Pro can print ABS, ASA, PLA-CF, and PETG-CF. Its 280°C nozzle and 110°C heated bed support these high-temp materials.

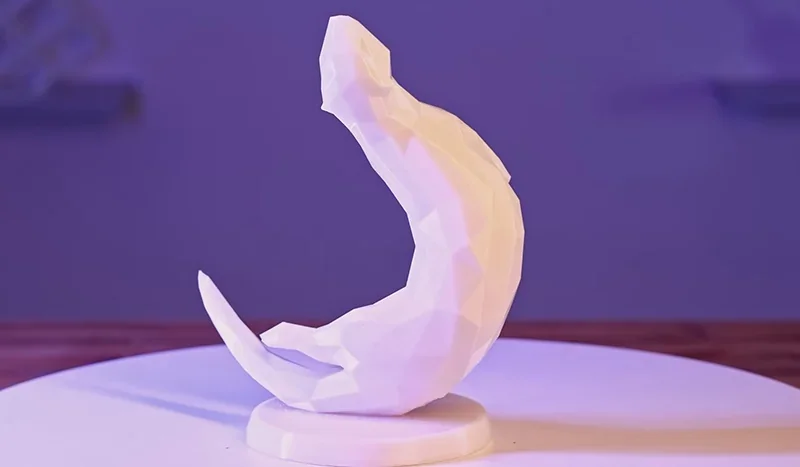

ABS 3D Print Sample: A near full-height otter model printed in 4 hours with budget ABS and tree supports. The enclosed 46–47°C chamber prevented warping or cracks, maintaining accuracy and adhesion.

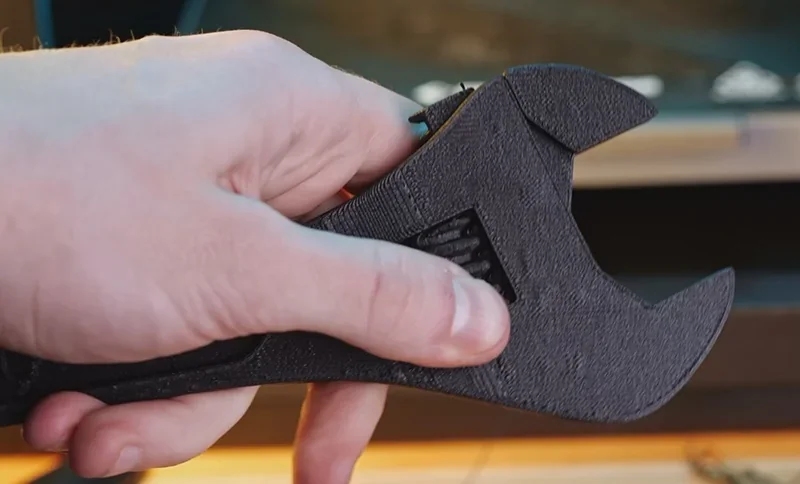

PETG-GF 3D Print Sample: A full-size adjustable wrench printed on the first try with the composite hotend showed excellent adhesion and smooth, functional moving parts, proving the printer’s capability with composite PETG.

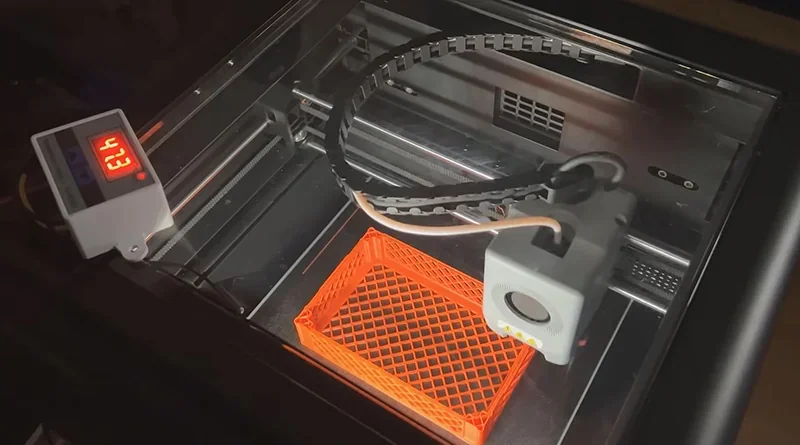

The Adventurer 5M Pro’s enclosed design uses dual filtration. In internal circulation mode, it maintains chamber temperature for ABS or ASA while HEPA and carbon filters remove 99% of particles and VOCs.
For PLA and PETG, external circulation brings in fresh air while filtering fumes, balancing cooling and filtration.
The Adventurer 5M Pro’s build volume suits most desktop projects and can handle segmented models for larger prints. It maintains detail at high speeds, as shown by a 200mm Octahedroflake printed in one piece with a 0.4mm nozzle in 20h 33m.

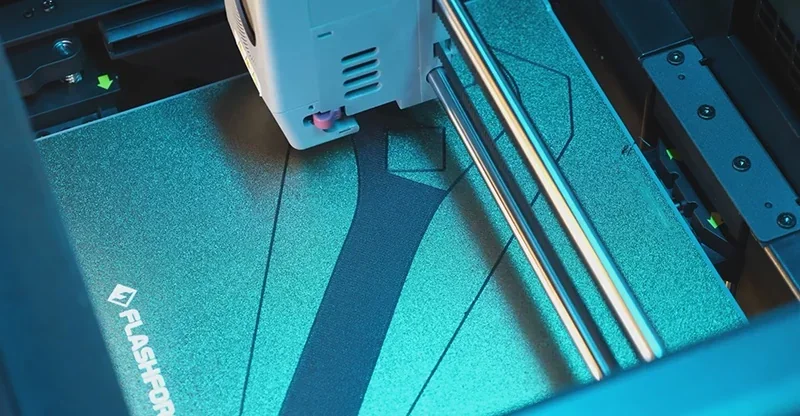

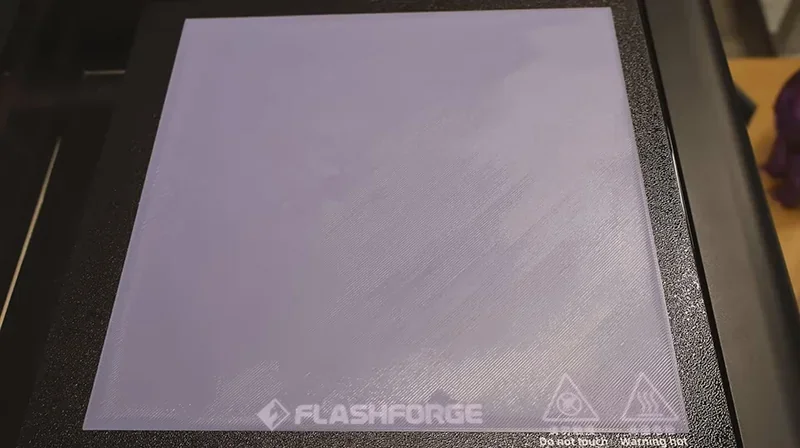

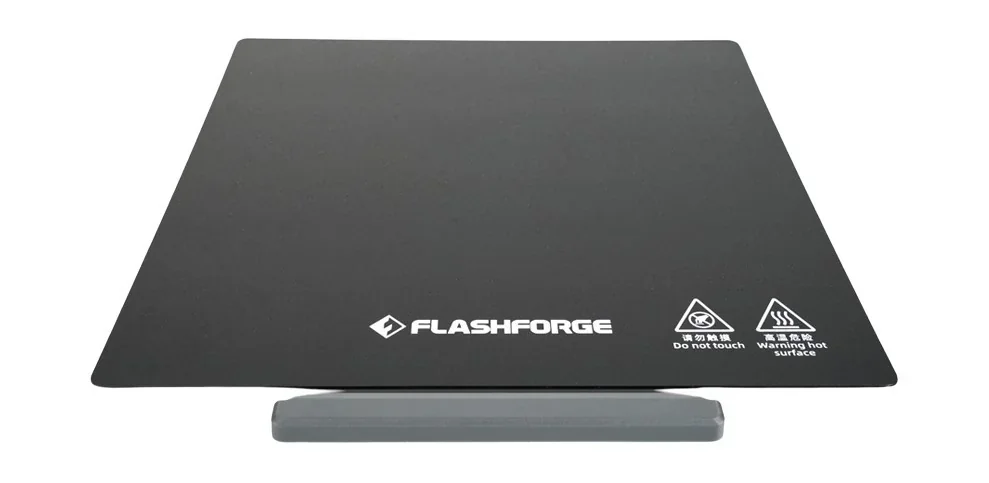

The PEI-coated flexible steel platform provides strong adhesion during printing and easy part removal after cooling.
The enclosed chamber with dual filtration maintains stable temperatures across the build volume, preventing warping in large prints.

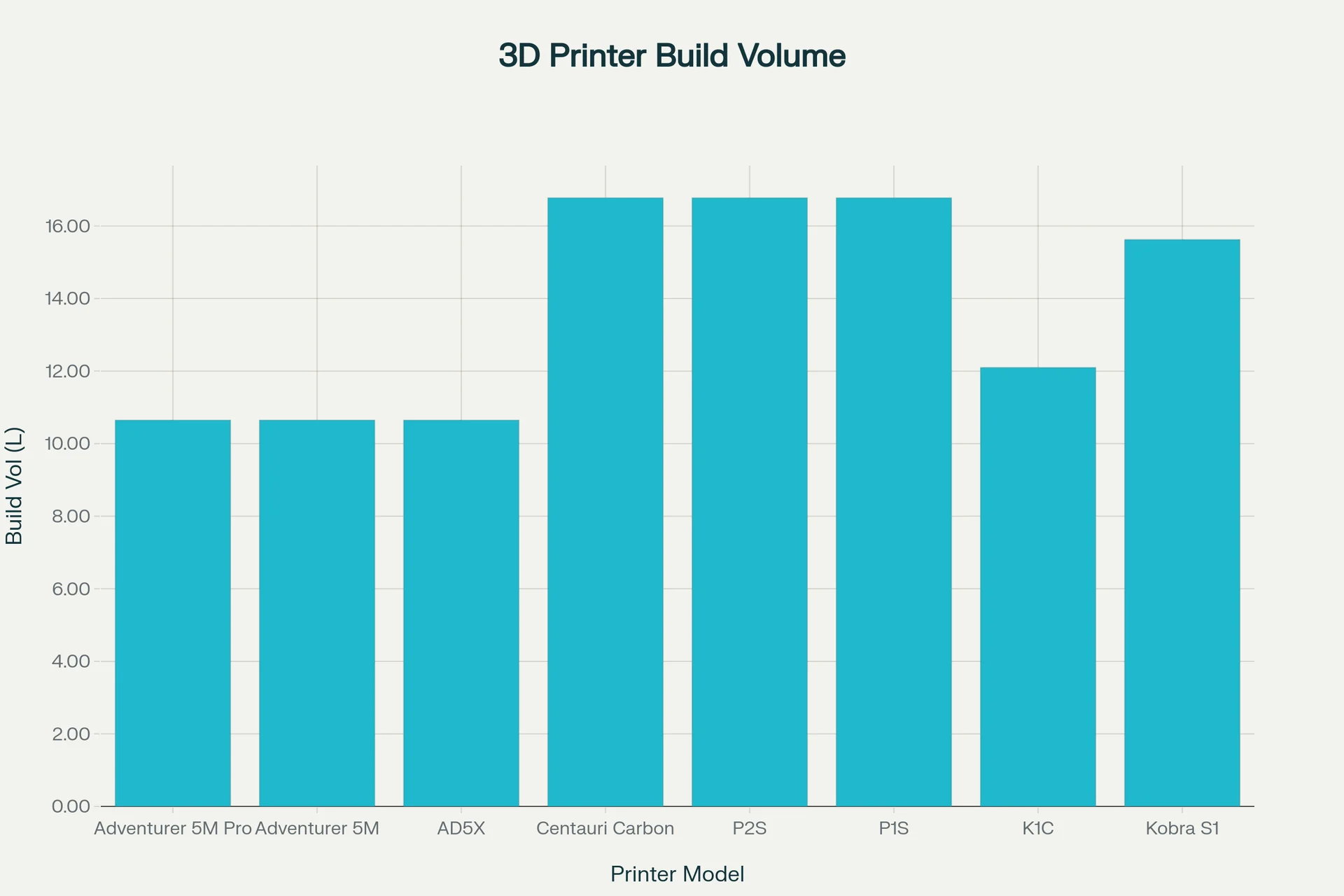

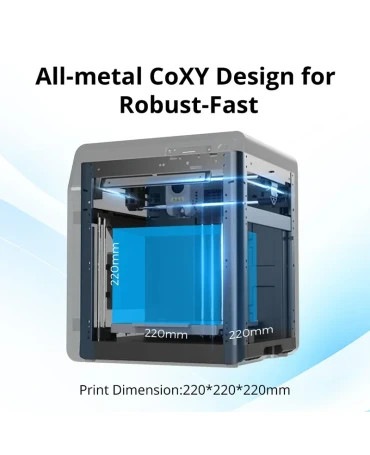

The Adventurer 5M Pro enclosed printer offers a 220 × 220 × 220mm build volume. Though mid-range in size, the CoreXY system maximizes efficient use of space.
Flashforge Adventurer 5M Pro — Enclosed CoreXY at $449 with 220×220×220 mm build volume, 32 mm/s² hotend flow rate, 110 °C bed, full-auto one-click leveling, remote camera, broad materials (PLA → ABS/ASA with larger nozzles), and rare USB/Wi-Fi/Ethernet connectivity.
In contrast:
| Specification ↓ / Model → | Flashforge Adventurer 5M Pro | Flashforge Adventurer 5M | Flashforge AD5X | Elegoo Centauri Carbon | Bambu Lab P2S | Bambu Lab P1S | Creality K1C | Anycubic Kobra S1 |
|---|---|---|---|---|---|---|---|---|
| Price (USD), from | 449 | 299 | 399 | 299 | 799 | 549 | 469 | 399 |
| Build volume (mm) | 220×220×220 | 220×220×220 | 220×220×220 | 256×256×256 | 256×256×256 | 256×256×256 | 220×220×250 | 250×250×250 |
| Max speed (mm/s) | 300 | 300 | 300 | ≤500 (rec. 250) | 600 | 500 | ≤600 | rec. 300 (max 600) |
| Max accel (mm/s²) | 20,000 | 20,000 | 20,000 | 10,000 (max 20,000) | 20,000 | 20,000 | ≤20,000 | 10,000 (max 20,000) |
| Hotend flow (mm³/s) | 32 | 32 | 32 | 32 | 40 | 32 | 32 | 35 |
| Hotend / Bed (°C) | 280 / 110 | 280 / 110 | 280 / 110 | 320 / 110 | 300 / 110 | 300 / 100 | ≤300 / ≤100 | 320 / 120 |
| Enclosure | Enclosed | Open / optional | Open / optional | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Leveling | Full-auto | Full-auto | Full-auto | 121-point auto | Auto mesh/routines | Auto mesh/routines | Full-auto | LeviQ 3.0 + Z-offset |
| Camera / AI | Camera (remote) | Optional | Optional | Timelapse | 1080p + AI spaghetti/object | 720p (low fps) | AI monitoring | 480p + AI spaghetti |
| Connectivity | USB / Wi-Fi / Ethernet | USB / Wi-Fi / Ethernet | USB / Wi-Fi / Ethernet | USB / Wi-Fi | Dual-band Wi-Fi | Wi-Fi, Bluetooth | USB / Wi-Fi | USB (print), App |
Bottom-Line:

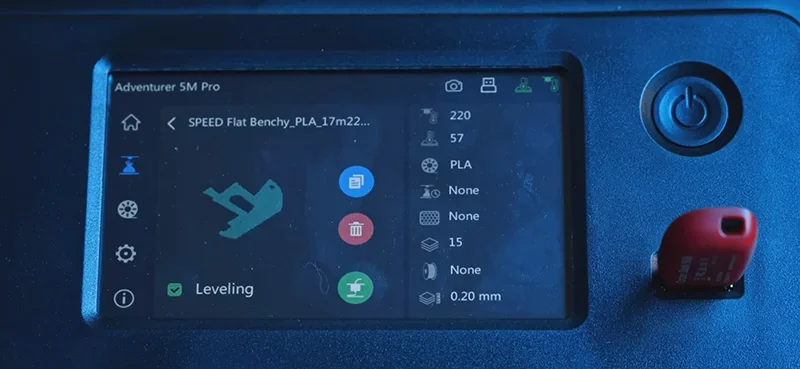

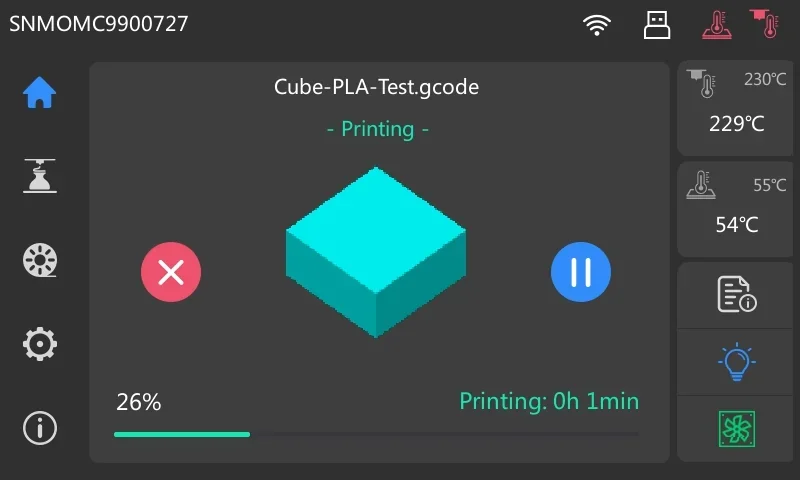

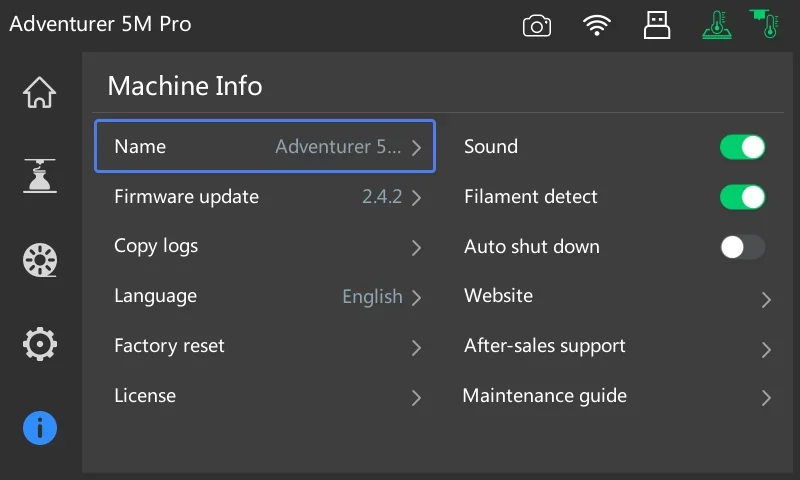

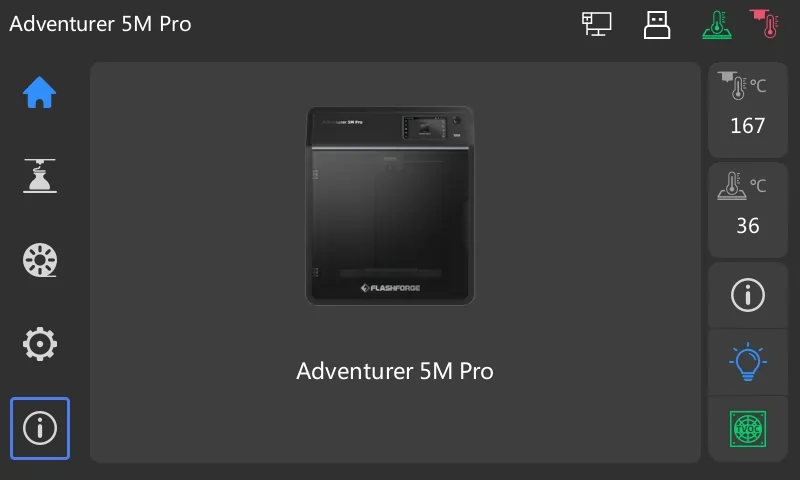

The Flashforge Adventurer 5M Pro provides seven printer controls accessible via its touchscreen and mobile apps, including filament loading/unloading, temperature adjustments, chamber lighting, print start/pause/cancel, air filtration mode switching, camera control, and customizable auto-shutdown timing.
Primary Control Interface
Touchscreen Controls (4):
Advanced Control Features
Environmental & System Controls (3):
Control Access Methods
The dual-core Cortex-A7 MCU with 8GB storage powers features like auto-shutdown, pressure and vibration compensation, and auto-leveling. Temperatures can be adjusted mid-print, while lighting and filtration operate independently of print status.
The Adventurer 5M Pro supports Wi-Fi, Ethernet, and USB. Users can send files wirelessly, via USB storage, or through the rear Ethernet port for stable, high-speed transfers.

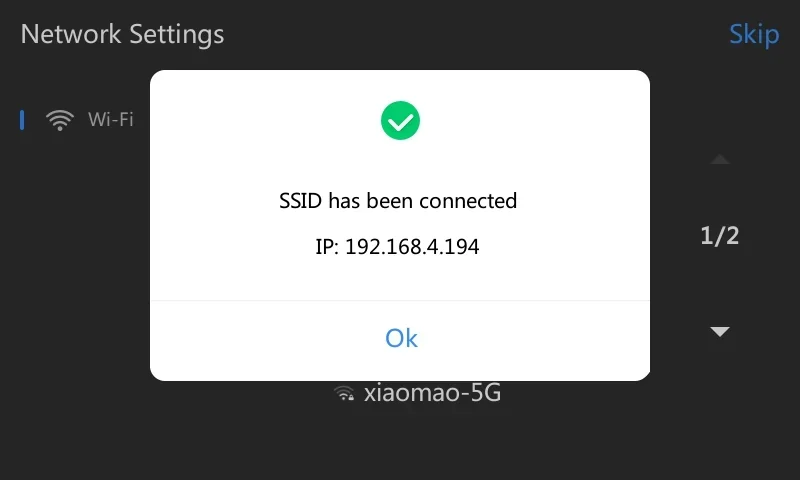

The 5M Pro connects to 2.4GHz Wi-Fi, enabling remote control through compatible software.

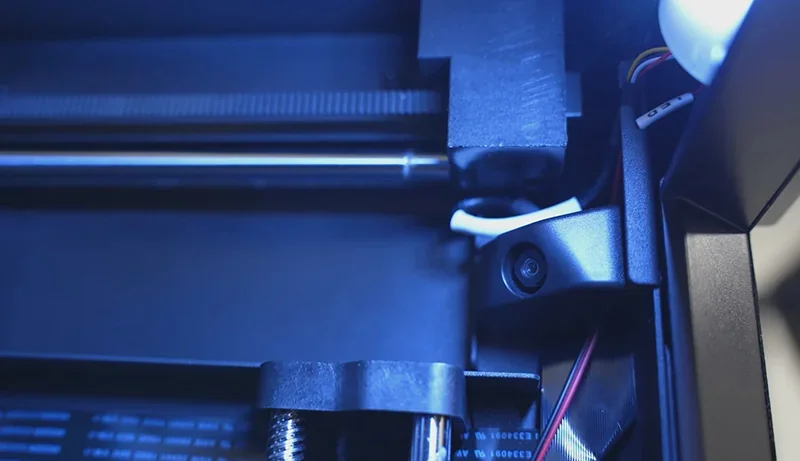

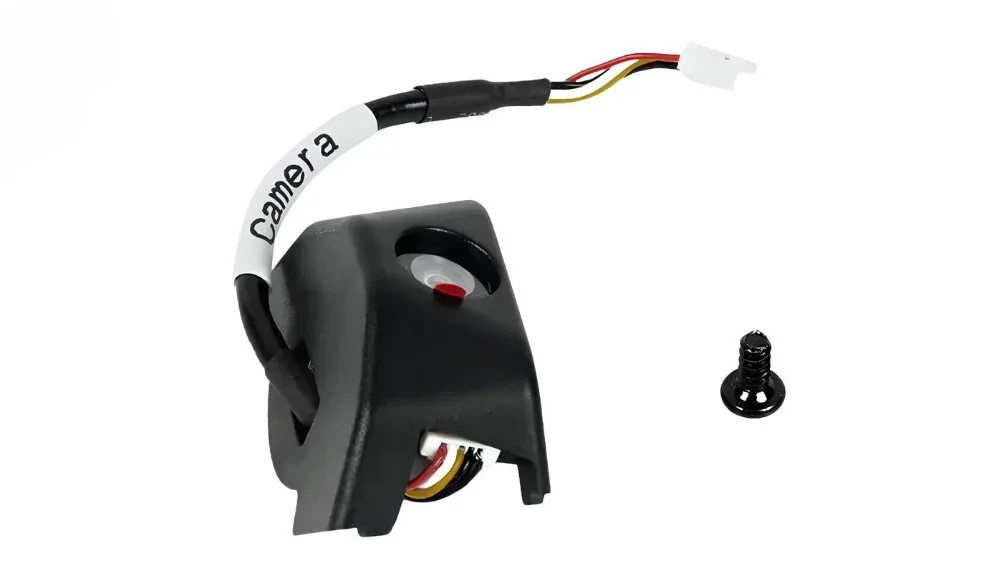

The Adventurer 5M Pro has a built-in camera for remote monitoring and time-lapse recording.

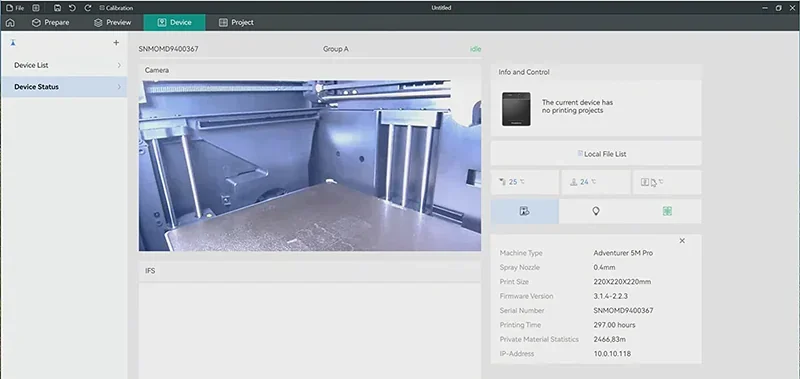

Over Wi-Fi, users can track prints in real time via FlashMaker app or desktop software, view the 640×480 camera feed, and record time-lapse videos.
The Adventurer 5M Pro supports Windows 7/8/10/11, Linux (Ubuntu 20.04+), and macOS 10.9+. It accepts file formats like 3MF, STL, OBJ, FPP, BMP, PNG, JPG, and JPEG for flexible design transfer.

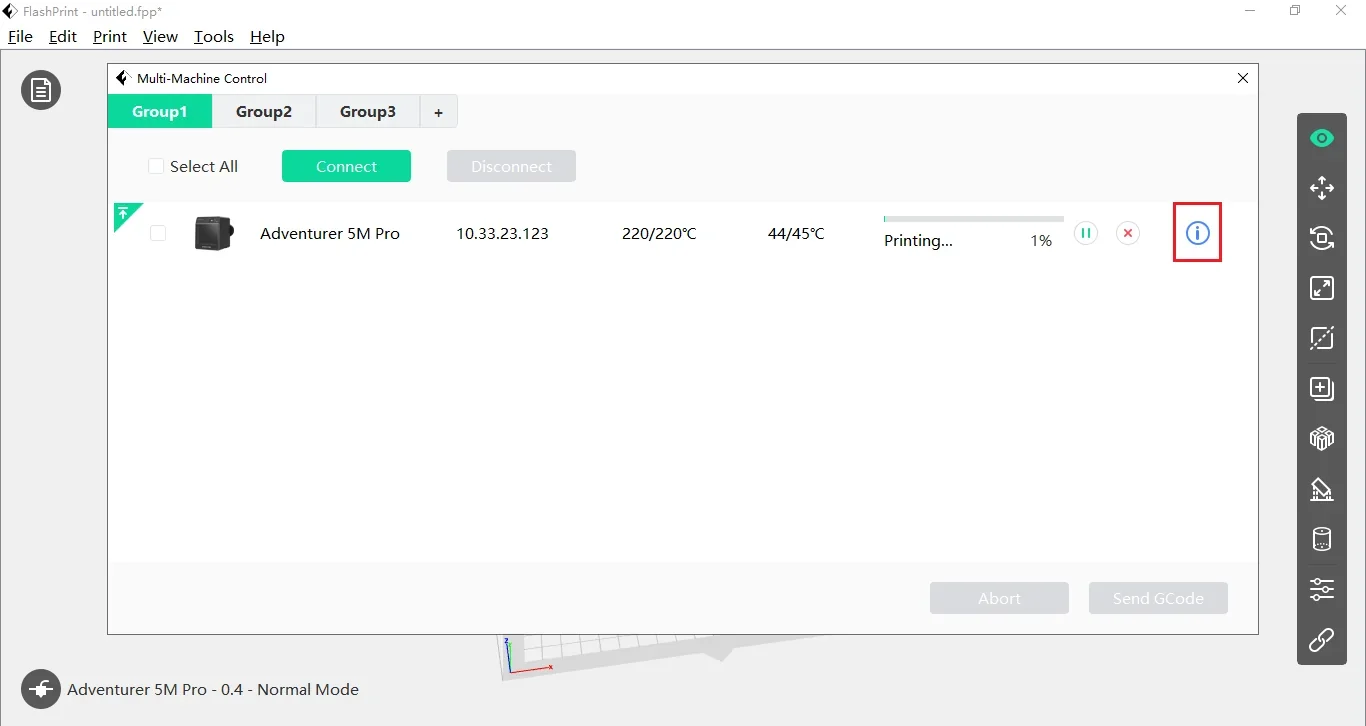

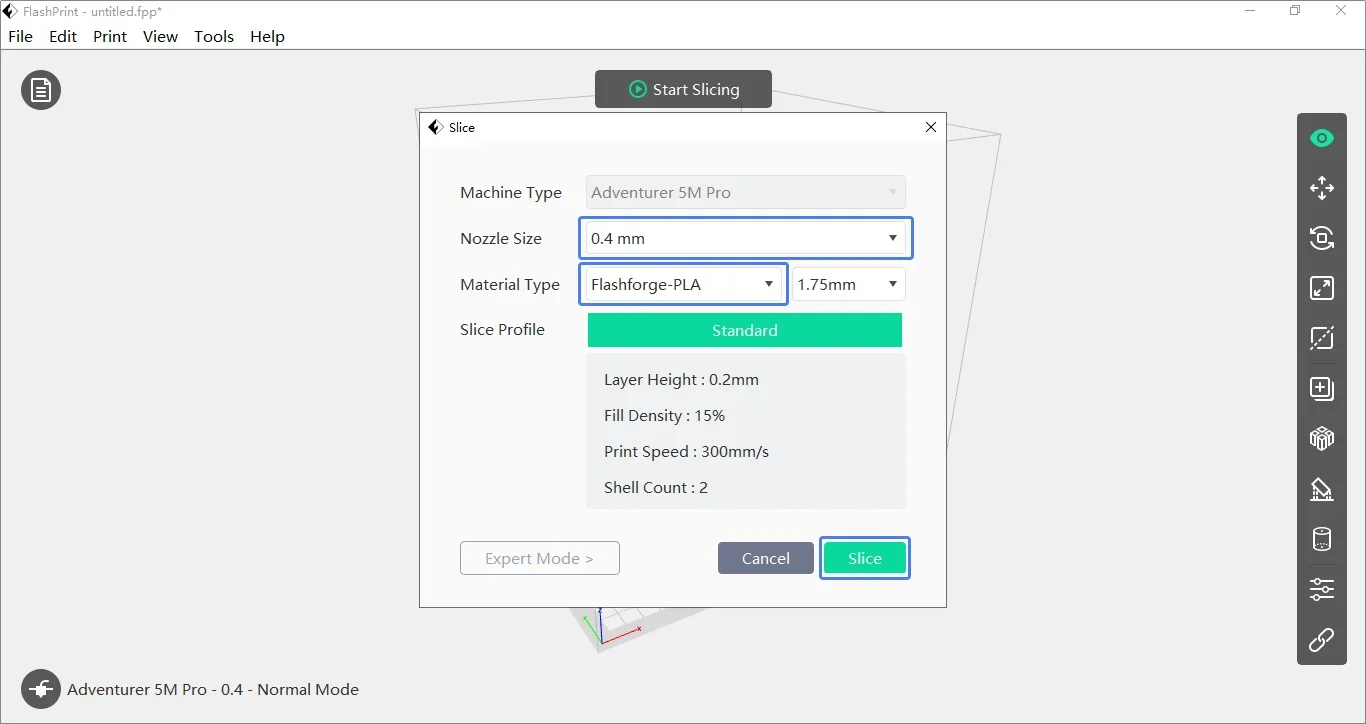

The Adventurer 5M Pro works with FlashPrint 5, Orca-Flashforge, and OrcaSlicer. FlashPrint 5, Flashforge’s own software, has a clean interface with Dark Mode and supports uploading, editing, generating supports, and slicing STL, OBJ, and 3MF files.
Learn more about FlashPrint on the manufacturer's official website: https://wiki.flashforge.com/en/flashprint
Orca-Flashforge is a version of Orca Slicer optimized for Flashforge printers, with advanced print customization features. Both slicing apps support Wi-Fi file transfer and remote monitoring via the printer's built-in camera.

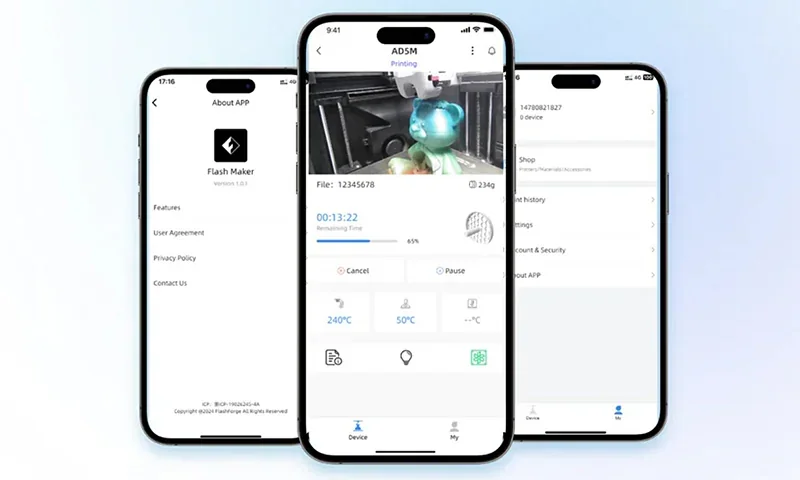

The FlashMaker app offers full printer control on mobile devices. Users can manage multiple printers, start remote prints, access job history for reprints, and monitor progress in real-time via the built-in camera.
Flashforge provides regular firmware updates via its download center to improve performance and features. All software supports Windows, macOS, and Linux for cross-platform use.

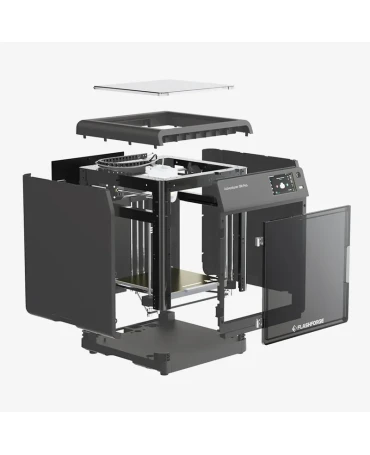

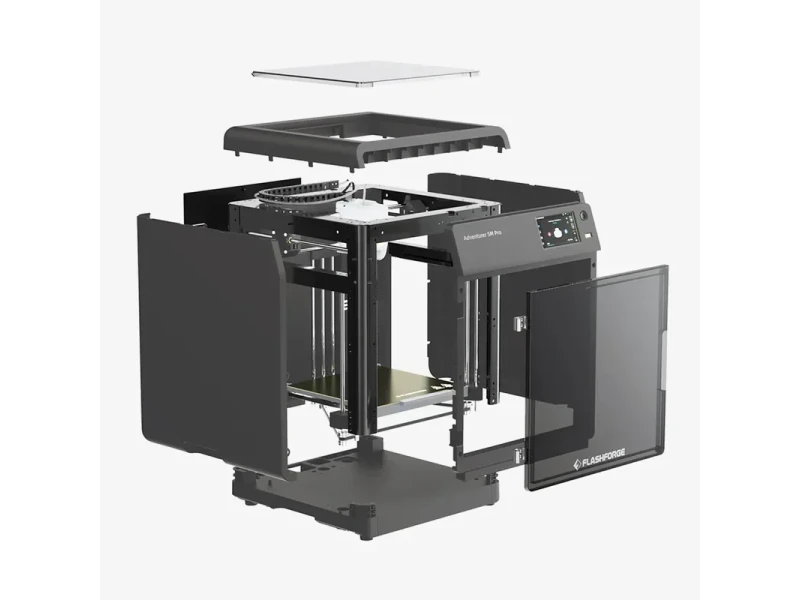

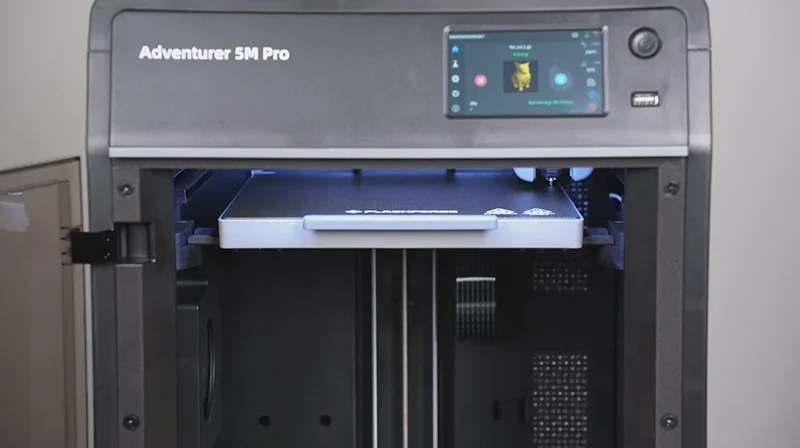

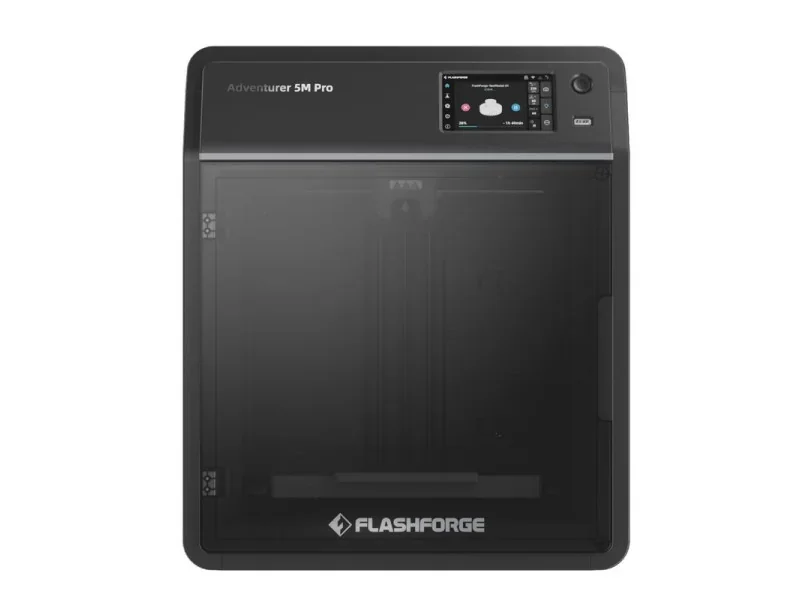

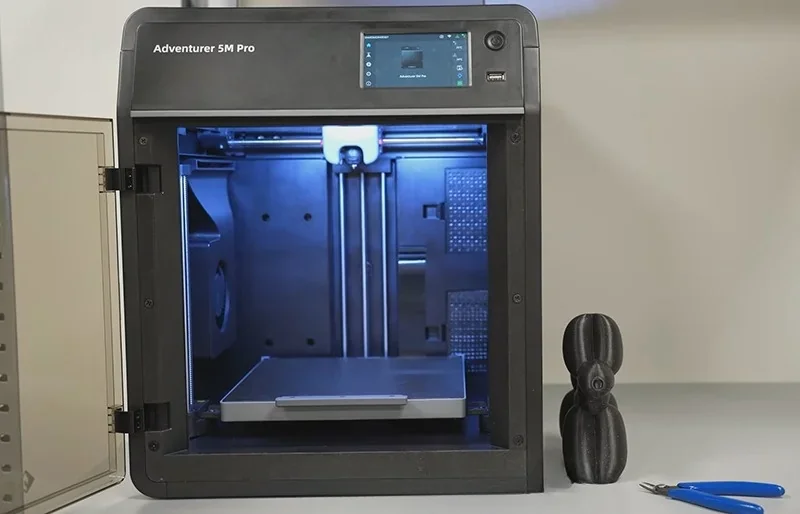

The Flashforge Adventurer 5M Pro features a fully enclosed cuboid design with professional aesthetics, measuring 380 x 400 x 453mm, weighing 14.6kg, and offering a 220 x 220 x 220mm print volume with a 4.3-inch color touchscreen and hinged chamber access.
Physical specs:
The enclosure uses a hinged top cover and front door for chamber access while keeping temperatures stable. Its metal frame includes integrated mounting points for components.

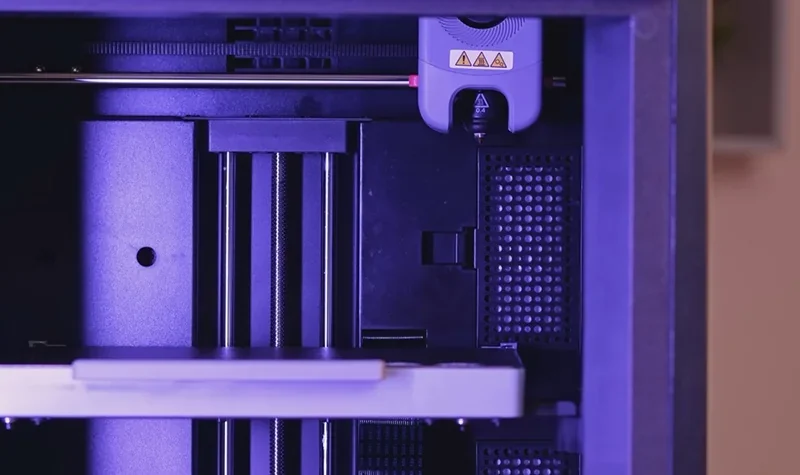

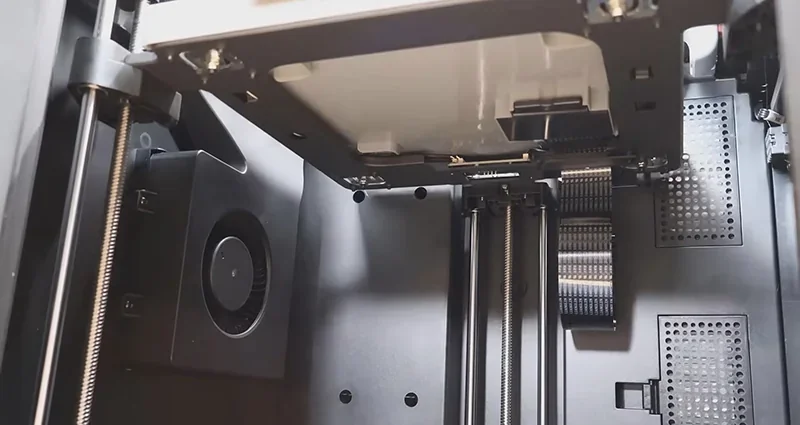

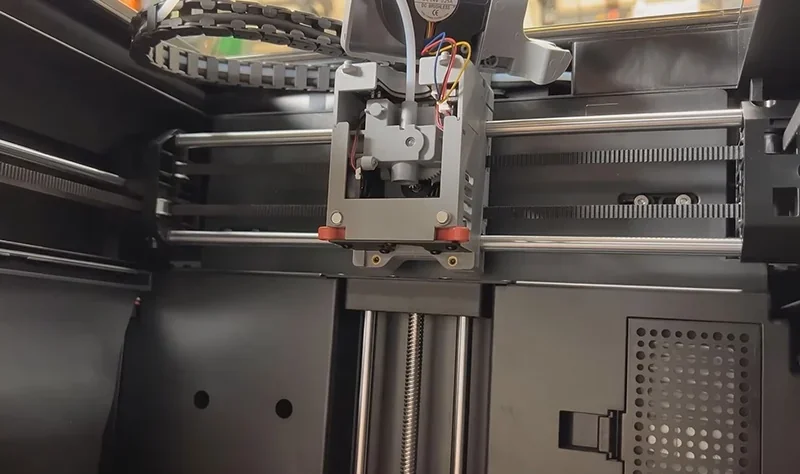

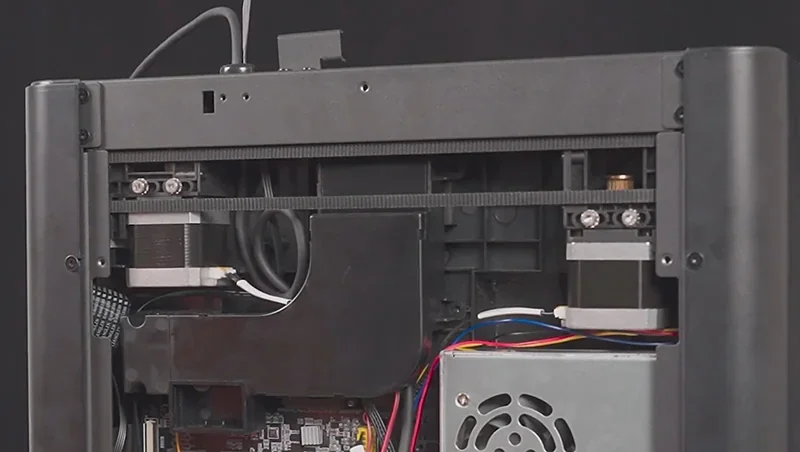

The Adventurer 5M Pro uses a CoreXY motion system for high speed and precise control.
Motion components:
The motion system uses lightweight stepper motors on the print head for direct drive, with the CoreXY design reducing moving mass for faster speeds and accurate prints.

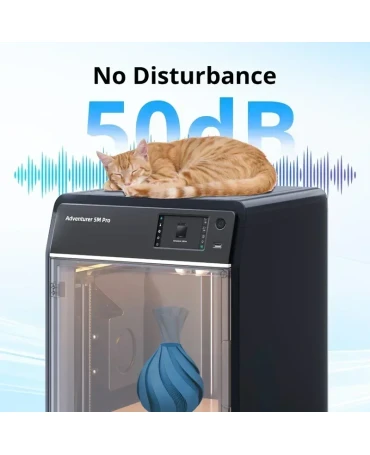

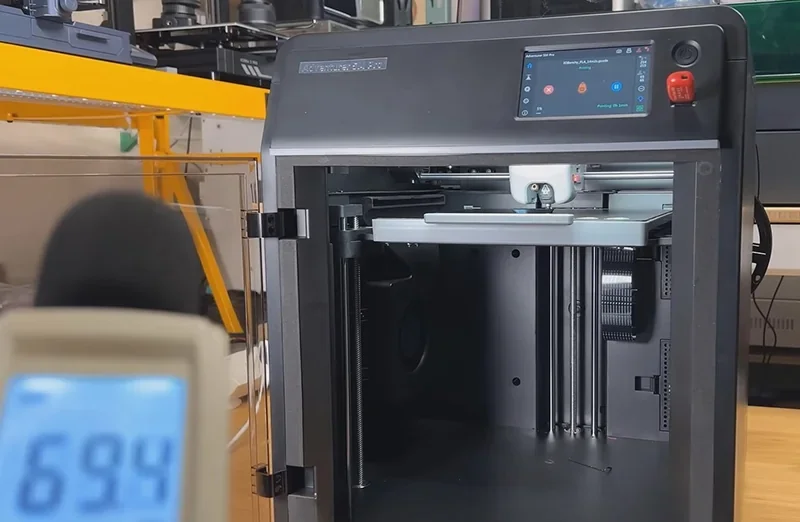

The Flashforge Adventurer 5M Pro operates at mid–high 50s decibels when enclosed and produces high 60s to low 70s dB noise levels during high-speed printing measured 6 inches away, with the main noise from the auxiliary cooling fan and reduced sound when doors are closed.
Noise performance:

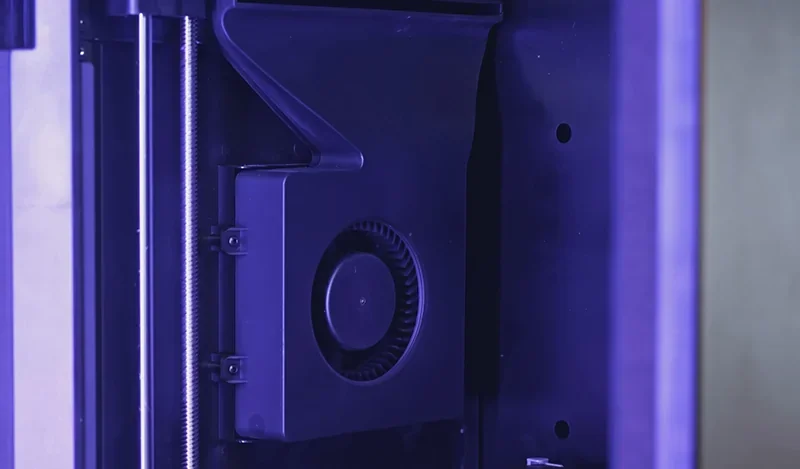

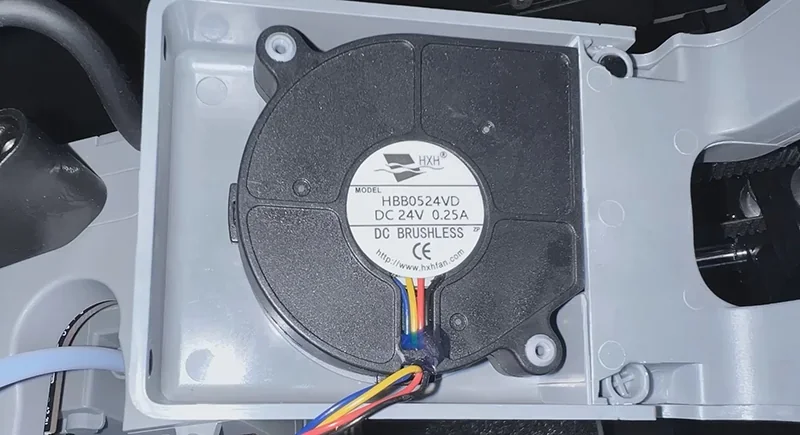

The enclosed design reduces noise compared to open-frame printers. The auxiliary side fan is the loudest component, similar to other new-generation models with large cooling fans.
The Flashforge Adventurer 5M Pro features a heated build platform with a maximum temperature of 110°C, a double-sided PEI textured magnetic flexible steel plate, four strain gauges for precise leveling, 25-point nozzle-based auto-leveling, and automatic height calibration (Auto-Z offset).
Platform features:
The bed leveling system uses strain gauges beneath the platform for precision, with the nozzle acting as the probe during the 25-point leveling process.

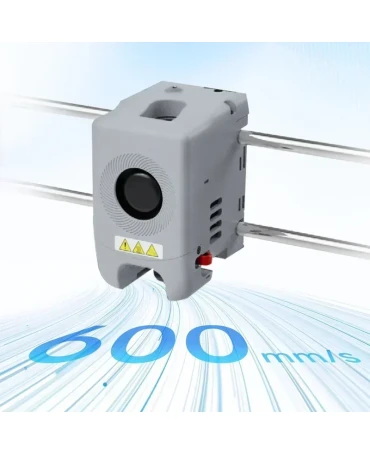

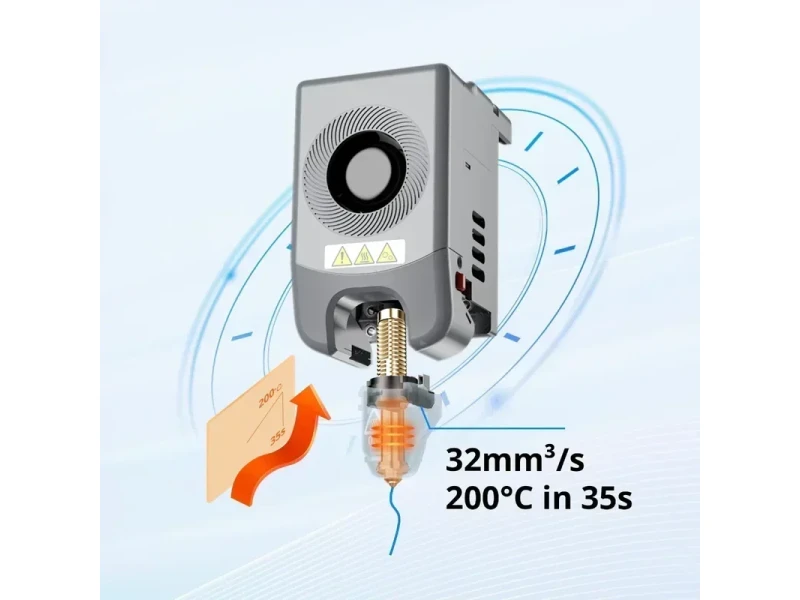

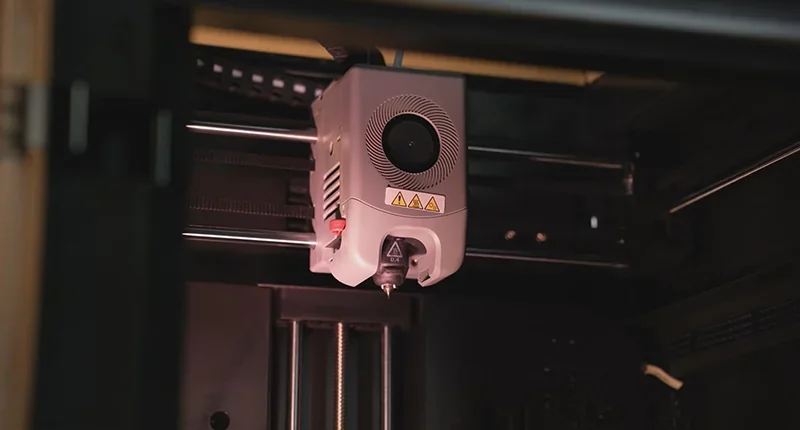

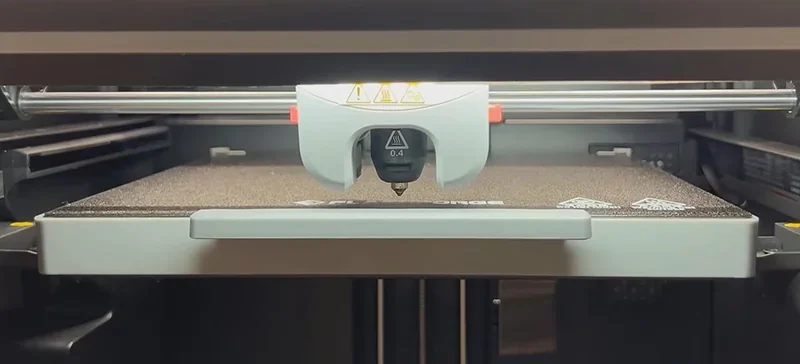

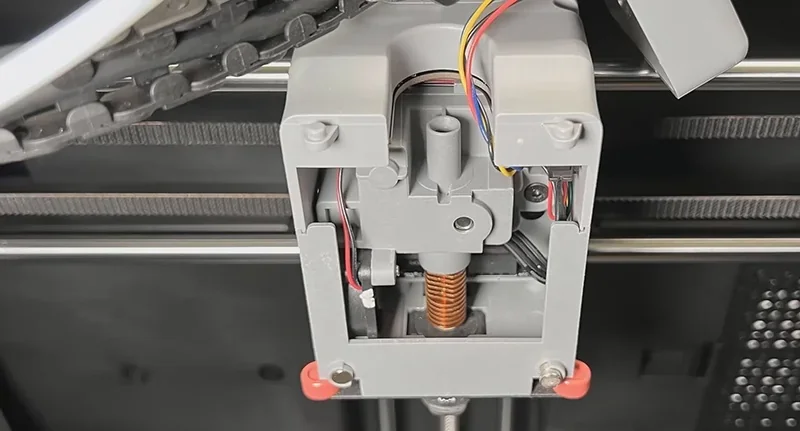

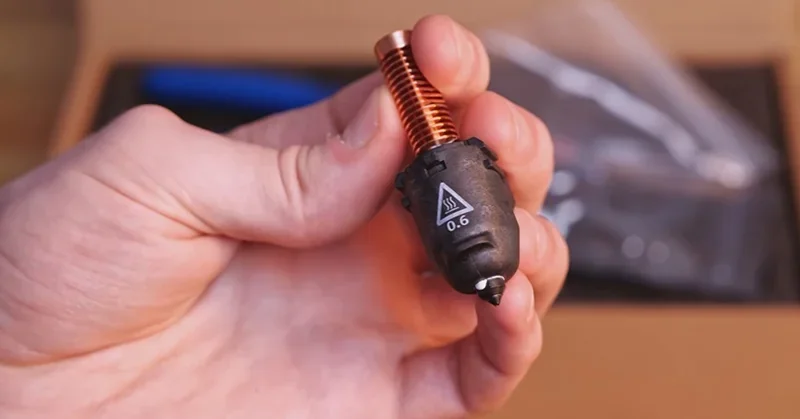

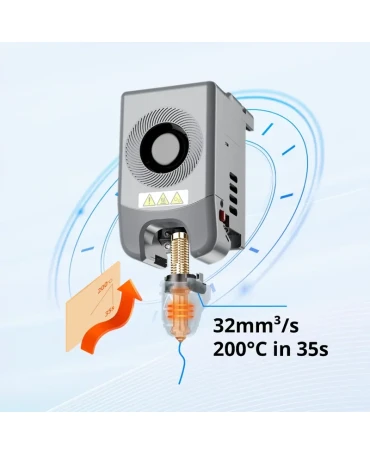

The direct drive extruder offers precise filament control and a quick-swap hotend with tool-free nozzle replacement.
Hotend & Extruder Features:
The hotend has a magnetic cover for tool-free access. Its quick-swap design lets users press side buttons to remove the assembly easily.

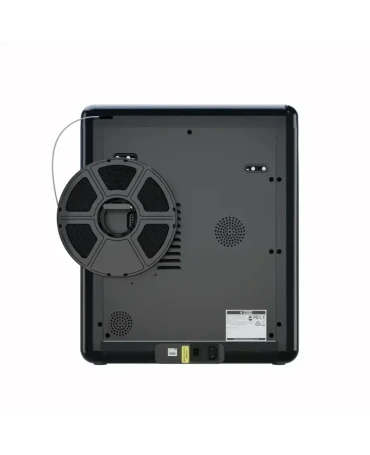

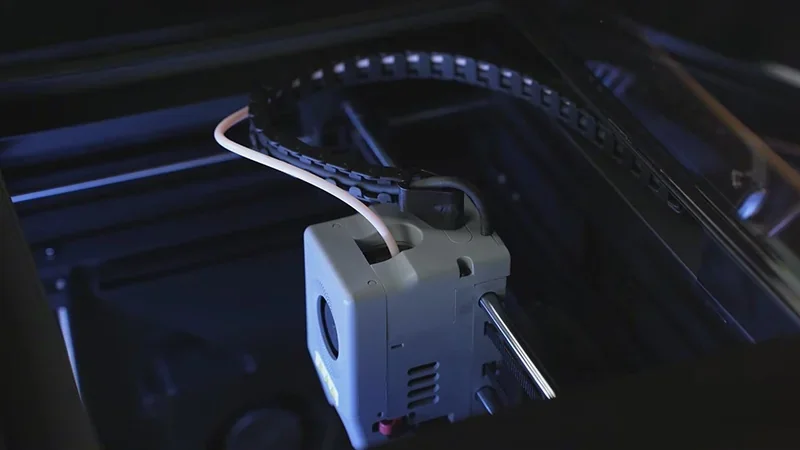

The Flashforge Adventurer 5M Pro manages filament with a rear-mounted holder, built-in run-out sensor, smooth twist-free feeding path, automated loading during setup, and auto power-off after print completion.
Filament handling components:
The filament sensor detects run-out and works with the feeding system, which loads filament smoothly without twisting or bending.

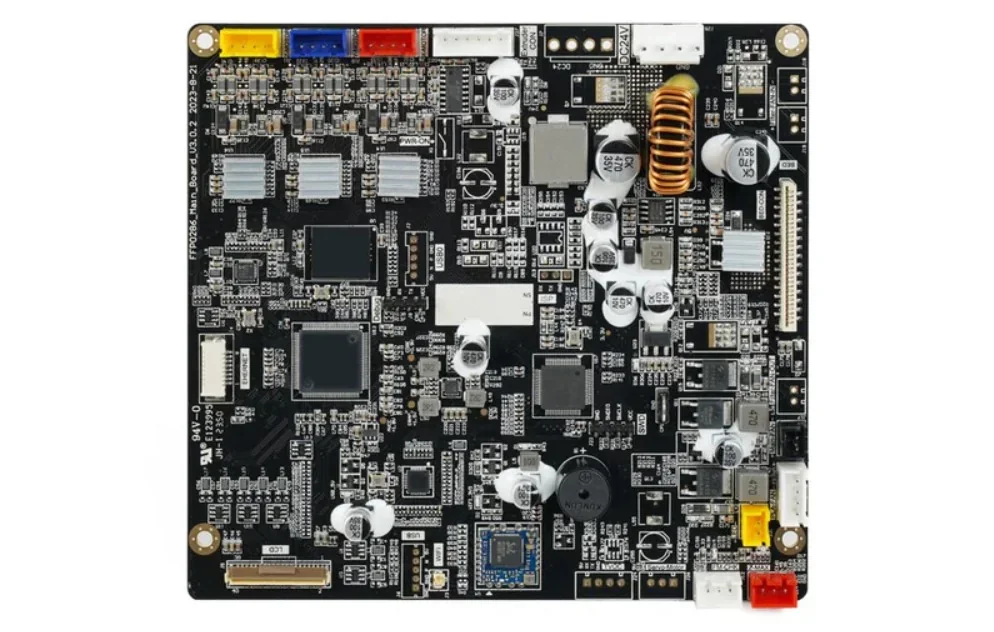

Mainboard Specs:
The mainboard supports Wi-Fi, cloud printing, and USB drives, with advanced features like pressure compensation and automatic calibration.

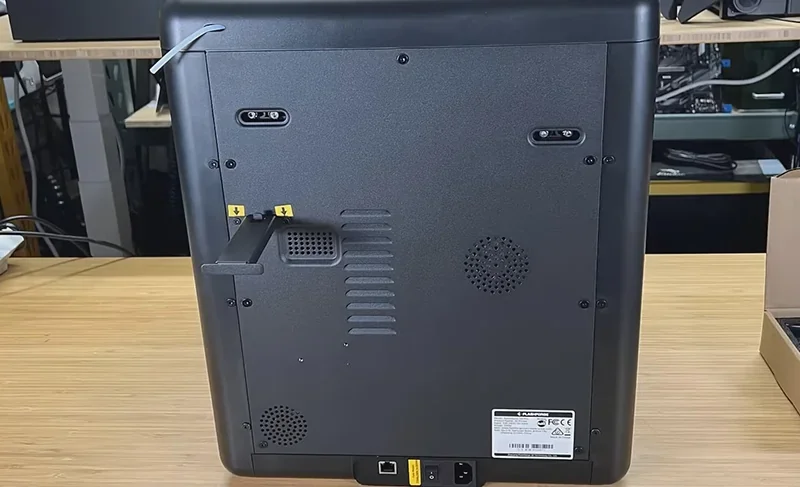

Power Supply:
The universal voltage design allows operation worldwide without needing a converter.
Space requirements:
The hinged top cover needs extra vertical clearance for access, and the rear filament holder extends the printer’s depth beyond its base size.

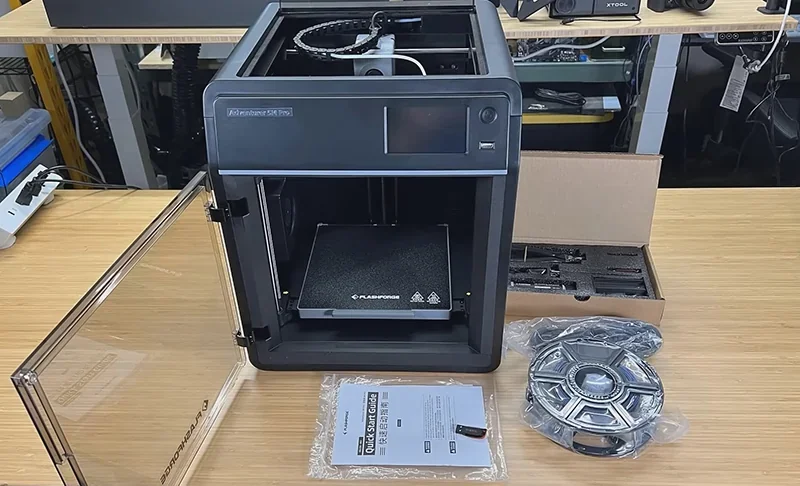

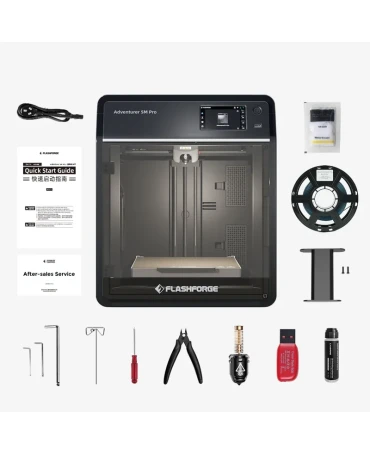

The Adventurer 5M Pro comes 95% pre-assembled, needing only the display and filament holder installed. Setup takes under 10 minutes with automatic calibration on startup. It includes 0.4mm and 0.6mm nozzles for versatility, a flexible PEI-coated steel plate for strong adhesion and easy removal, and a USB drive with slicing software for Windows, macOS, and Linux.
Note: Package contents may vary and are subject to change. For the most up-to-date information, please contact a Top3DShop sales representative before ordering.
Flashforge offers 7 accessories and replacement parts.
| Accessory | Function | Price (USD) | Image |
|---|---|---|---|
| GROUP: Extrusion and Filament Handling | |||
| Nozzle Assembly for Flashforge Adventurer 5M Series | Replacement nozzle assembly for Flashforge Adventurer 5M series. Used to replace a worn, clogged, or damaged nozzle assembly to restore consistent extrusion, layer bonding, and surface finish. | $42.99 |  |
| Extruder Assembly for Flashforge Adventurer 5M Series | Replacement extruder assembly for Flashforge Adventurer 5M series. Replaces the filament drive mechanism to restore reliable filament grip and feeding, reducing under-extrusion and feed errors caused by worn components. | $114.99 |  |
| GROUP: Electronics and User Interface | |||
| Touch Screen Assembly for Flashforge Adventurer 5M | Replacement touch-screen control panel for Flashforge Adventurer 5M. Restores the local user interface for starting prints, changing settings, and monitoring printer status at the machine. | $60.99 |  |
| GROUP: Extrusion and Filament Handling | |||
| Filament Feeding Assembly for Flashforge Adventurer 5M Series | Replacement filament feeding assembly for Flashforge Adventurer 5M series. Guides filament along the feed path into the drive system and maintains a stable filament path to reduce friction, snagging, and feed interruptions. | $24.99 |  |
| GROUP: Lighting and Visibility (AD5X / AD5M Series) | |||
| LED Strip for Flashforge AD5X and AD5M Series | High-intensity LED strip for Flashforge AD5X and AD5M series. Brightens the build area for clear print visibility so you can spot issues earlier and reduce failed prints. Original part for reliable fit and stable performance. | $18.99 |  |
| GROUP: Extrusion and Filament Handling (AD5X) | |||
| Flashforge AD5X Extruder Assembly | Replacement extruder assembly for Flashforge AD5X. Restores the filament drive mechanism for consistent feeding and stable extrusion performance. | $119.99 |  |
The Flashforge Adventurer 5M Pro requires regular maintenance including lubrication of linear components every 200 hours, comprehensive linear guide cleaning every 500–1000 hours, monthly HEPA filter replacement when printing high-temp materials, build plate cleaning every 1–3 months, nozzle cleaning after each print, routine chamber cleaning, belt tension checks, and periodic firmware updates and component inspections.
Every 200 Hours
Lubrication of Linear Components
Lubricate linear components. Clean X, Y, and Z guide rods and screws with a dust-free cloth, then apply silicone or lithium grease. Clean and lubricate the Z lead screw, then manually slide components to spread lubricant.
Every 500-1000 Hours
Comprehensive Linear Guide Maintenance
Perform full linear guide maintenance. Remove extruder covers with a 2.0mm Allen wrench, clean sleeves and guide rails, slide the extruder back and forth, then apply lubricant with a dust-free cloth.
Monthly Maintenance (Every 1-3 Months)
HEPA Filter Replacement

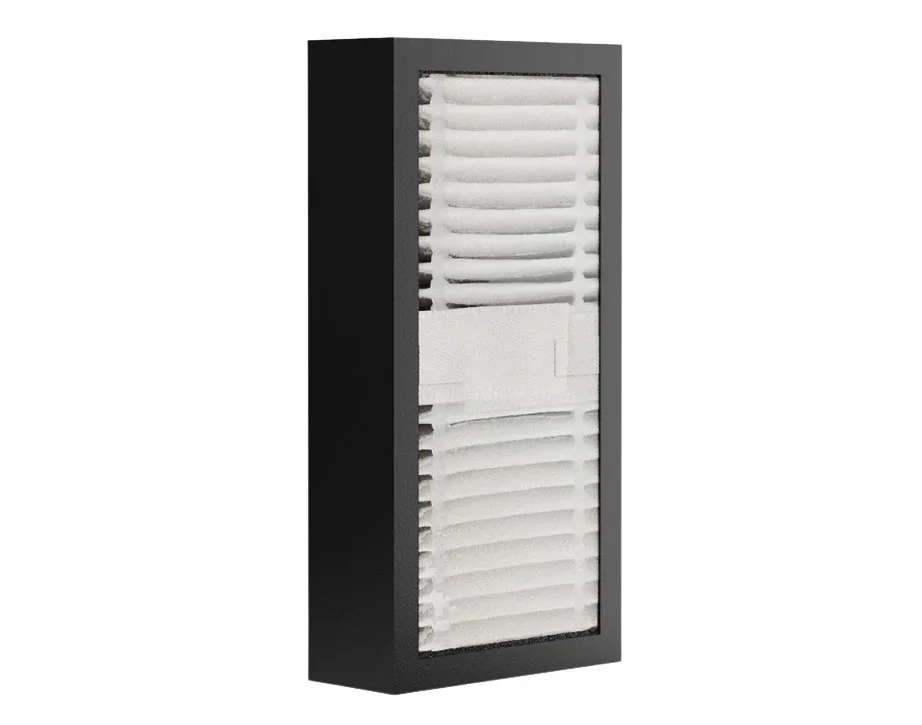

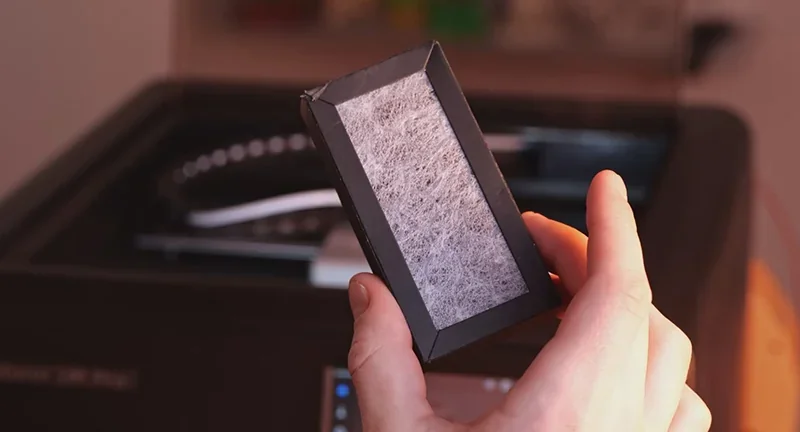

Replace HEPA13 and carbon filters monthly when printing ABS/ASA, or every 3 months with standard materials.
Build Plate Cleaning
Clean PEI plate by washing with detergent and water, or wiping with isopropyl alcohol. Remove plate for thorough cleaning.
As-Needed Maintenance
Nozzle Maintenance
After each print, clean with a brass brush while hot. For clogs, reheat and reload filament, use unclogging pin, or replace nozzle.
Chamber Cleaning
Remove debris with a soft brush and tweezers.
Belt Tension Inspection
Check X, Y, and Z belt tension; spring-loaded mounts adjust automatically.
Extended Maintenance
Firmware Updates
Update via Wi-Fi (OTA or manual) for improvements and fixes.
Component Inspections
Tighten frame screws, check fans, and replace if noisy or worn.
The full list of maintenance procedures with tutorials can be found on the manufacturer's website (https://wiki.flashforge.com/en/adventurer-series/maintenance) and YouTube channel.
The Adventurer 5M Pro includes a 12-month warranty on the printer and 3 months on extruder parts, starting from shipping or invoice date. Flashforge repairs or replaces defective parts with new or reconditioned ones, and replaced parts carry the printer’s remaining warranty.
Purchasing through Top3DShop includes local technical support via email or chat, with 93% customer satisfaction. Flashforge support is available at support@flashforge.com (technical) and customer@flashforge.com (orders), with an average response time of 12 hours.
The Flashforge Adventurer 5M Pro is supported by online resources including firmware, manuals, quick start guides, and troubleshooting docs. The Flashforge download center provides regular updates to improve functionality. Technical issues can be resolved through remote diagnosis from Flashforge engineers, with warranty claims handled by authorized resellers or Flashforge support depending on purchase origin.
Link to the support guides: https://wiki.flashforge.com/en/adventurer-series
Full up-to-date warranty terms are available on the manufacturer's website: https://www.flashforge.com/pages/warranty-and-return-policy
The Flashforge Adventurer 5M Pro is available at $379.00. The package includes 0.4mm and 0.6mm nozzles, a flexible PEI-coated build plate, dual air filtration, and an integrated camera. It comes with a 12-month limited warranty on the printer and 3-month warranty on extruder components. For bulk purchases, educational institutions and businesses can request customized quotations with volume discounts and support packages.
