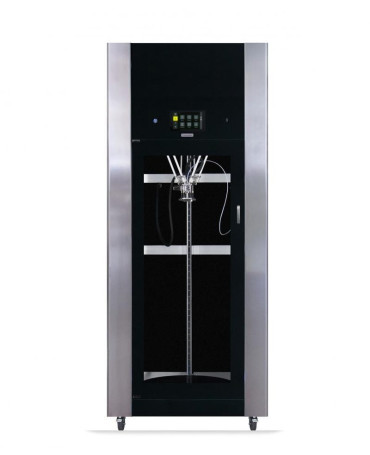

The Mass Portal D1200 is a delta-type, FDM professional 3D printer. This fully enclosed device comes already assembled and ready to print. The heatable chamber and print bed alongside an all-metal extruder system make it able to print high-temperature materials with ease. The printer can be configured according to your specific needs. Indeed, it is compatible with two different hotend types and supports a variety of extra features, including compressed air part cooling and chamber port for external fume extractors. It is available in two different print sizes: ⌀600 mm x 1000 mm or ⌀350 mm x 1200 mm. The printing chamber includes air filtration and circulation system which makes the machine suitable for rooms with poor ventilation. Made of all-metal, precision components, the printer delivers high-resolution, accurate prints. It’s successfully used in prototyping and small-scale manufacturing for the in-house production of functional and spare parts. Let’s review its specs.
For example, it can be used for classic car restoration. Indeed, it allows replacing worn accessories with 3D printed ones in minutes saving money and time. The wide material compatibility lets you create objects with mechanical properties that mimic original parts.
It is also widely used in medical environments to 3D print orthopedic products, including this ergonomic back brace fitted on the patient.
The Mass Portal D1200 is an industrial-grade, FDM 3D printer. Its precision design lets it print layers at 50 microns. This way you can produce parts with smooth exterior surfaces. The sturdy structure and the quality extrusion system along with performance heatable components ensure top-grade, reliable results.
The Mass Portal D1200 can be configured either with a Direct Pro extruder or a Direct HT one.
This is a delta-type 3D printer with high print speed. Since there is minimal vibration of the print bed, the print quality is high.
Mass Portal 1200 prints with ABS, ASA, BVOH, CPE, HIPS, PA (Nylon), PC, PEI, PEEK, PET, PETG, PLA, PMMA, POM, PP, PPSU, PVA, PVB, TPE, TPU, and other materials.
You can choose between two types of Direct Drive extruders, Direct Pro and Direct HT. The Direct HT adopts a single nozzle, direct-drive, liquid-cooled hotend that can reach up to 475°C. The Direct Pro employs a single nozzle that can heat up to 300°C. It comes with a fan for cooling the 3D model. You’ll only have to pick the best extruder that suits your design needs.
The cooling system has been designed to reduce warping and stringing. It generally makes for higher quality prints.
Unlike many FDM printers, the Mass Portal D1200 has a heated print bed and closed print chamber, which means it can reliably print with ABS-type materials.
The extruder has a maximum working temperature of 887 °F (475 °C), which means it can print high-temperature materials like PEEK, ABS/PC, PEI, carbon fiber and glass fiber.
The Mass Portal D1200 prints with a standard 1.75 mm filament, providing you with a wide choice of materials.
The printer is available in two different sizes. You can choose between a build area of ⌀ 23.6 x 39.3 inches or ⌀ 13.8 x 47.3 inches (600 x 1000 mm, 350 x 1200 mm). Both configurations offer high volume capacity, giving you the possibility to print large models up to 1200mm height.
The printer has a plethora of connectivity choices and a fitted built-in touchscreen for standalone printing. This means you can easily control the machine either online and offline. The printer is closely integrated with FabControl Additive Manufacturing Platform, giving you extensive control and monitoring capabilities.
You are free to print your 3D models from a wired computer or remotely via Wi-Fi. After launching a print, you can constantly keep an eye on the progress through the high-definition, integrated camera.
The printer comes with a free license of Simplify3D software. The slicer is easy-to-use and extremely versatile. It supports the main common 3D file formats. It runs on Windows, Mac OS, and Linux.
For some items, package content may change. In case of any questions, please get in touch.
Mass Portal D1200 shows a stylish gray and black look that makes it ideal for industrial applications.
The printer dimensions are 28 x 28.7 x 71.3 inches (710 x 730 x 1810 mm). The spool holder is mounted inside.
To learn the current price of the 3D printer, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
