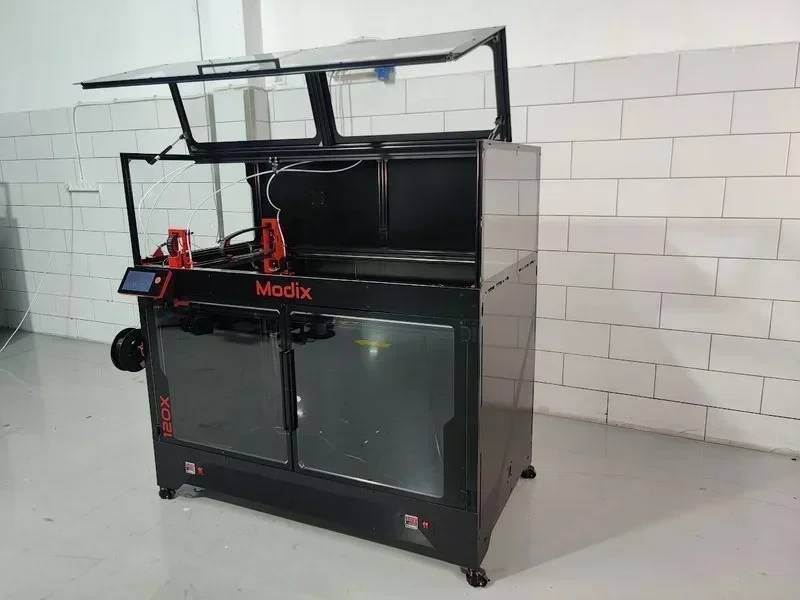

Modix Big 120X V4 3D Printer

In Stock
Extra-large modular 3D printer
  • Massive print area: 1200 x 600 x 640 mm
  • Robust and stable construction
  • Accelerated print speed
  • Affordable price
When purchasing with us you get:
  • $1050 Delivery
  • 1 Year Warranty
  • Local U.S. Support
  • Up to 20% Filament Discount
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This 3D printer comes with:
  • Essential parts required for operation
  • 7-inch touchscreen
  • Spare nozzles
  • All the necessary tools
Price: $7,500.00
The estimate lead time is mid-February, 2023

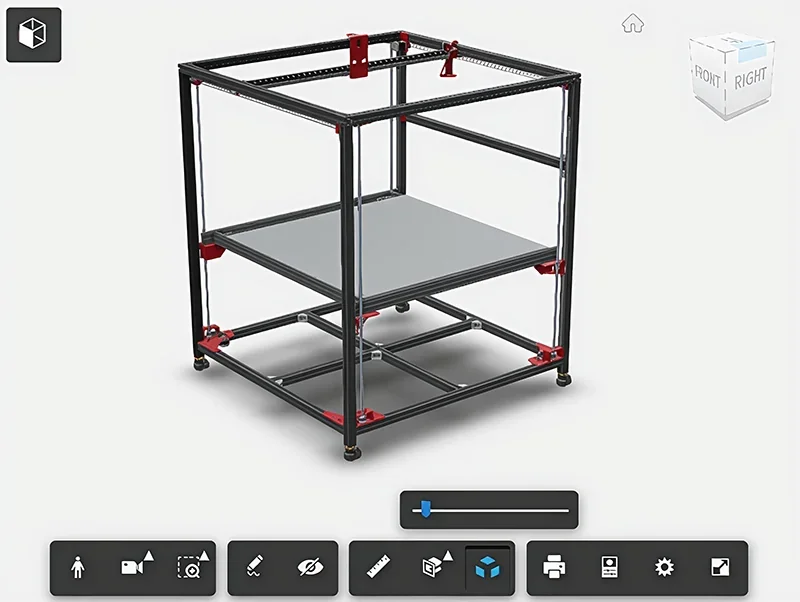

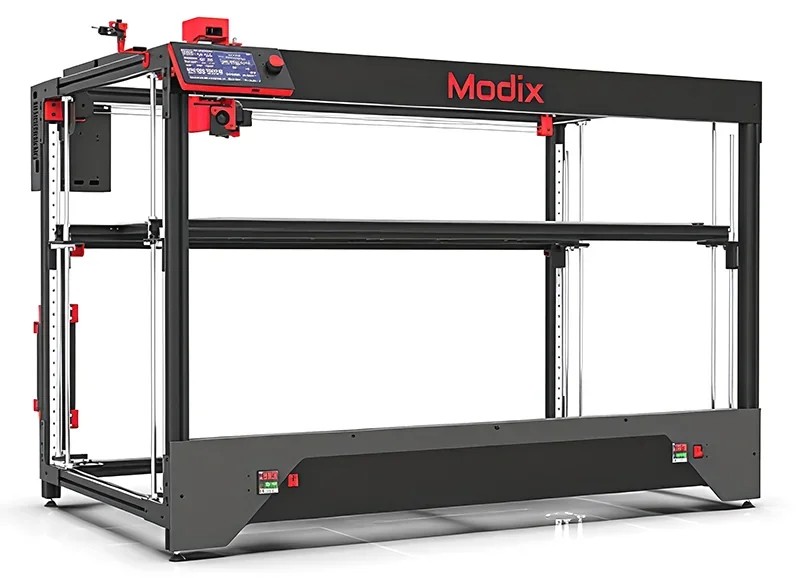

The Modix BIG-120X V4 is the latest iteration of the company’s large-format FDM professional 3D printer, a supersized version of the BIG-60 model, featuring double the volume of its counterpart. As a kit, it comes flatpack with all the necessary parts and tools. The modularized design composed of T-slot aluminum profiles and standardized parts lets you assemble the device stress-free. Also, it allows for ongoing upgrades. Considering its enormous build volume and rock-solid structure, it offers a really good value for money.

Targeted to professional users, the printer is designed to ensure high performance and precision. Like a part of the Generation 4, the BIG-120X model comes with an improved feature-set, fresh design tweaks, and advanced mechanics.

The machine introduces a bunch of redesigned key components and high-grade premium parts, namely the electronic expansion board Duex 5 enabling completely automated calibration, stronger Nema-23 motors and CNC machined brackets for much faster and more stable printing, optical end-stop switches for higher accuracy and repeatability, improved PTFE tube and wires management for smooth and convenient maintenance, built-in crash detector for additional safety, and an integrated emergency stop button ensuring immediate response. In addition, all the Generation 4 models boast updated design features, such as a pneumatic top lid, rear maintenance opening hatch, sturdy door hinges, door and lid sealing strips, and improved internal LED lighting. It also benefits from a filament sensor, which keeps track of potential clogging, and Wi-Fi connectivity for remote control. Moreover, the company has released a brand new IDEX add-on, which opens up new possibilities for printing with independent dual extruder and water-soluble filaments.

The printer also supports a range of upgrades and add-ons, including a renovated enclosure for enhanced temperature control and stability, high-precision HIWIN linear rails, magnetic print bed, etc. With the right upgrades, you will get an industrial workhorse at a good price. The V4 can be successfully used in prototyping, mold making, research and development, restoration for printing functional prototypes, end-use products, top-quality spare parts, art models, and more. Scroll down for further info.

Ratio Product Lab realized this custom stool using the BIG-120X V3. Printed with a 0.8 nozzle at 0.6 mm layer height, it took 48 hours of print time.

a black model printed on the Modix BIG-120X V4

Credit: @ratioproductlab / Instagram

One user 3D printed an end tank for his Hyundai i30n. The part in the picture looks extremely smooth and accurate.

a end tank for hyundai printed on the Modix BIG-120X V4

Credit: @richy1991 / Instagram



Print quality

The Modix BIG-120X is a large-scale FDM 3D printer that can print layers at 40 microns. This way you can produce parts with smooth exterior surfaces.

a print quality on the Modix BIG-120X V4

The Z-axis of the printer has been upgraded, featuring strong Nema-23 motors and reliable CNC machined brackets that hold the bed firmly and add to the overall level of print accuracy.

a Nema-23 motors on the Modix BIG-120X V4

Due to the better motors on the X axis (compared to NEMA-17 motors for the V3), the BIG-120X V4 provides much faster printing than before. The machine boasts the accelerated travel speed of up to 350 mm/s and printing of up to 250 mm/s.

a motors on the Modix BIG-120X V4

Starting with the Generation 4, the Modix devices come with the electronic expansion board Duex 5, with a dedicated stepper motor driver allocated for each Z and X axis motor. Thanks to this important improvement, the printer now offers a full set of automated calibration routines, including automated bed tilt, bed leveling, gantry alignment, and Z offset calibration making for enhanced printing precision.

a electronic expansion bord Duex 5 on the Modix BIG-120X V4

Another major improvement is the new Griffin printhead. Previously it was just an optional upgrade and now it comes as the default component on all the company’s V4 printers. It consists of a custom extruder made by Bondtech and a new hotend designed by Modix. The upgrade offers smart and compact design, high flow rate, increased reliability, easy swap, and great resistance to high printing temperatures, leading to overall improved user experience.

a Griffin printhead on the Modix BIG-120X V4

As for the upgraded optical end-stop switches, they provide more accuracy and higher level of repeatability over time, which is particularly important for printing recovery after power outages.

a optical end-stop switches on the Modix BIG-120X V4

These are just some of the noteworthy upgrades featured by the new version.

The Modix BIG-120X V4 comes stock with 0.4, 0.6, and 0.8 mm nozzles. It is also compatible with a broader selection of tools ranging from 0.4 to 1.2 mm in diameter. You will be able to choose the best nozzle for your printing needs. The printer can be also equipped with the IDEX add-on for multi-material printing of complex internal geometries.

a nozzle on the Modix BIG-120X V4

Credit: @ecostruder / Instagram

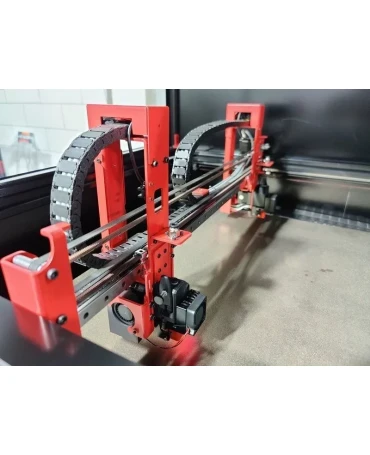

The print head runs on HIWIN linear rails, which makes printing reliable, fast, and precise. The motion rails along with the upgraded Trinamic TMC2660 make for extremely quiet operation and higher accuracy.

a print head on the Modix BIG-120X V4

Credit: @hwangjoonha_ / Instagram



Materials

The engineering-grade extruder allows processing a wide variety of filaments, including PLA, PETG, PVA, ABS, ASA, PC, Nylon, TPU, Woodfill, Carbon composite, and other specialty materials.

a materials on the Modix BIG-120X V4

Credit: @ecostruder / Instagram

The optional IDEX add-on includes a secondary printing subsystem, consisting of a Griffin print head, clog detector, PTFE, and spool mount. It enables high-quality multi-color and soluble material printing.

Modix BIG-120X V4

The printer has a heated bed for printing with ABS-type materials.

a black spider printed on the Modix BIG-120X V4

Credit: @akson_zed / Instagram

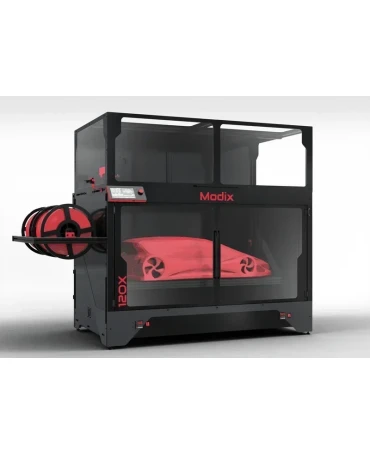

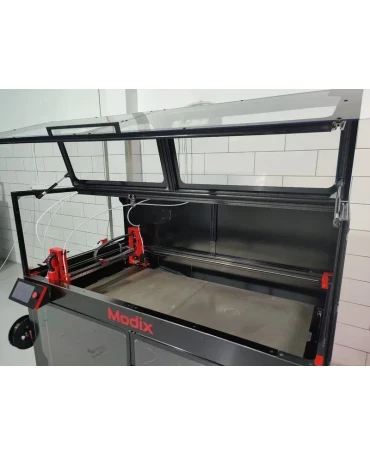

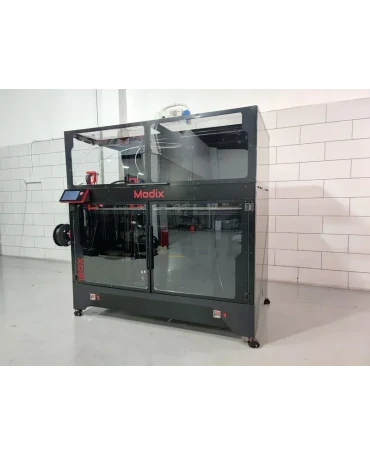

The BIG-120X V4 supports an additional enclosure composed of aluminum composite panels. Installing the enclosure results in better heat and noise insulation.

Modix BIG-120X V4

The V4 comes with a default clog detector that can easily detect filament run-out, under-extrusion, and hotend clogs, which allows the user to quickly fix the problem and avoid negative impact on the quality of the printed items.

Modix BIG-120X V4

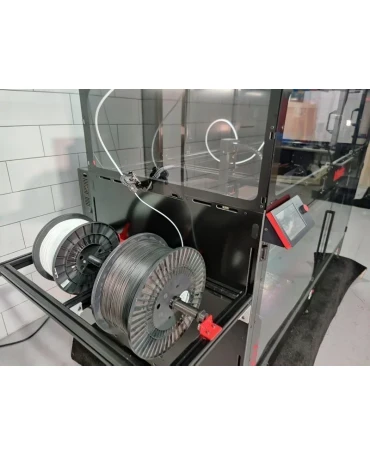

Moreover, the 8 kg spool shelf add-on (purchased separately) can carry up more rolls compared to the default one (up to 3 kg). This handy expansion also helps the extruders to easily pull filament and is great for large-scale projects.

Modix BIG-120X V4

The Modix BIG-120X V4 features an open material system. This means you can print with any third-party 1.75 mm filament.



Build volume

a build volume on the Modix BIG-120X V4

The build area of 47 x 23.6 x 26 inches (1200 x 600 x 640 mm) lets you print large-sized parts and models in one piece.

a black model printed on the Modix BIG-120X V4

Credit: @ratioproductlab / Instagram



Printer controls

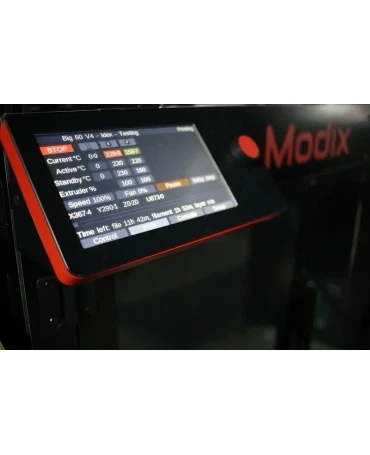

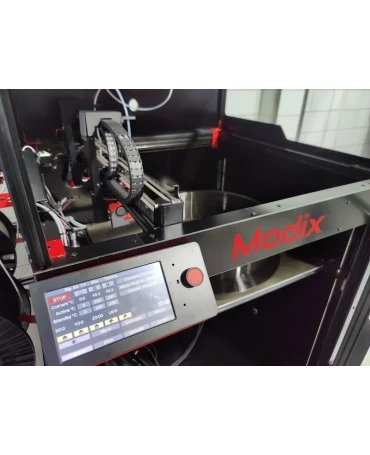

The Modix BIG-120X V4 3D printer can be operated via a 7-inch touchscreen with emergency stop button for smooth real-time interaction. It also features a Wi-Fi module with easy web-access interface for remote manipulation as well as USB and SD card slots for standalone operation.

a printer controls on the Modix BIG-120X V4

You can easily transfer your 3D models from a computer via a USB cable or an SD card. You might also share them over Wi-Fi using a PC or a mobile phone.

a software on the Modix BIG-120X V4

The printer is compatible with the major 3D file formats. Thus, it can work with almost any 3D printing slicing software, including Cura, Slic3r, Simplify3D, Printerface, and many others.



What’s in the box

Modix BIG-120X V4 kit

The printer comes in several boxes that include:

  • All parts required to assemble the Modix BIG-120X V4 3D printer
  • Powder-coated aluminum components
  • Hex and screwdriver sets
  • Cable and wire sets
  • SD card
  • Spare parts
  • Huge aluminum print bed
  • 7-inch touch screen
  • Spool holder
  • Power cords
  • Power supply
  • IDEX add-on (optional)
  • Enclosure (optional)
  • Casters (optional)
  • Magnetic bed (optional)
  • Super Volcano heat-block (optional)
  • Spare Griffin hotend (optional)
  • Griffin high-resolution hotend (optional)

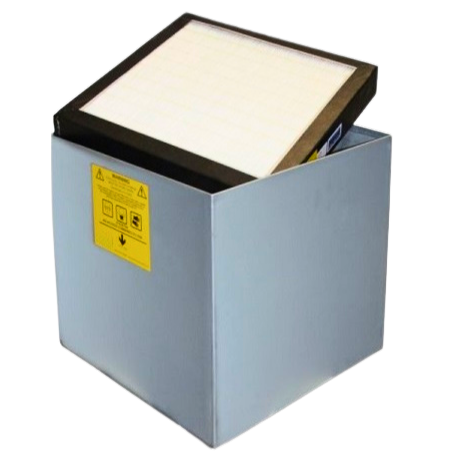

  • Three-phase air filter (optional)
  • Power Distribution Unit (PDU) (optional)
  • 8 kg spool shelf (optional)
  • Tilt screen, emergency button, and frontal power switch set (optional)

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

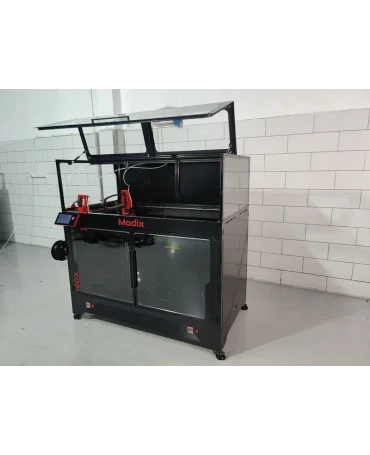

Modix BIG-120X V4

The Modix BIG-120X V4 is available in black with gray and red joints. Its stylish look and massive build volume make it ideal for professional and hobbyist applications.

The printer dimensions are 61.3 x 41.7 x 56.3 in (1556 x 1060 x 1430 mm). The spool holder is mounted on the left side of the machine.



Price

The price for the Modix BIG-120X V4 3D printer is $7,500.00, which is reasonable considering its functionality, high performance, and impressive bed size.
