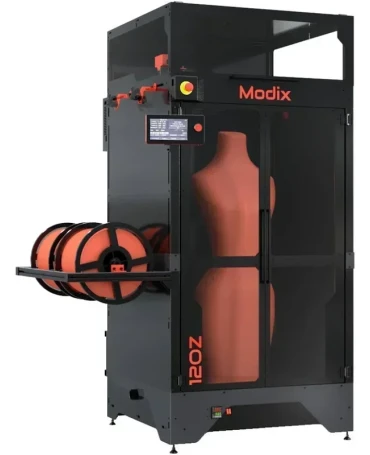

Modix Big-120Z V4 3D Printer

In Stock
Large-format printer for super-tall parts
  • Huge build area: 600 x 600 x 1200 mm
  • Highly competitive price
  • Modular yet rock-solid design
  • High-precision outputs
When purchasing with us you get:
  • $1050 Delivery
  • 1 Year Warranty
  • Local U.S. Support
  • Up to 20% Filament Discount
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This 3D printer comes with:
  • Essential parts required for operation
  • 7-inch touchscreen
  • Spare nozzles
  • All the necessary tools
Price $7,500.00
Lead time is 7-10 business days

The Modix BIG-120Z V4 is the latest iteration of the company’s extra-tall self-assembly FDM 3D printer kit. Targeted to the professional market, this large-format modular 3D printer stands out for its capability of printing super-tall objects in one piece. Indeed, it boasts a huge print volume in combination with highly upgradable structure. Priced-to-please, its modularity leaves room for a wide range of add-ons to amplify the user’s printing opportunities.

As a part of the Generation 4 of the popular Modix Big Series, the 120Z model comes with an improved feature-set, fresh design tweaks, and advanced mechanics. The machine introduces a bunch of redesigned key components and high-grade premium parts, namely the electronic expansion board Duex 5 enabling completely automated calibration, stronger Nema-23 motors and CNC machined brackets for much faster and more stable printing, optical end-stop switches for higher accuracy and repeatability, improved PTFE tube and wires management for smooth and convenient maintenance, built-in crash detector for additional safety, and an integrated emergency stop button ensuring immediate response. In addition, all the Generation 4 models boast updated design features, such as a pneumatic top lid, rear maintenance opening hatch, sturdy door hinges, door and lid sealing strips, and improved internal LED lighting. It also benefits from a filament sensor, which keeps track of potential clogging, and Wi-Fi connectivity for remote control. Moreover, the company has released a brand new IDEX add-on, which opens up new possibilities for printing with independent dual extruder and water-soluble filaments.

The BIG-120Z V4 can be successfully used in a number of engineering and artistic industries, such as automotive, construction, manufacturing of consumer products, education, etc. It serves as a reliable tool for  producing art models, functional prototypes, end-use products, top-quality spare parts, decorating displays, and more. Scroll down for further info.

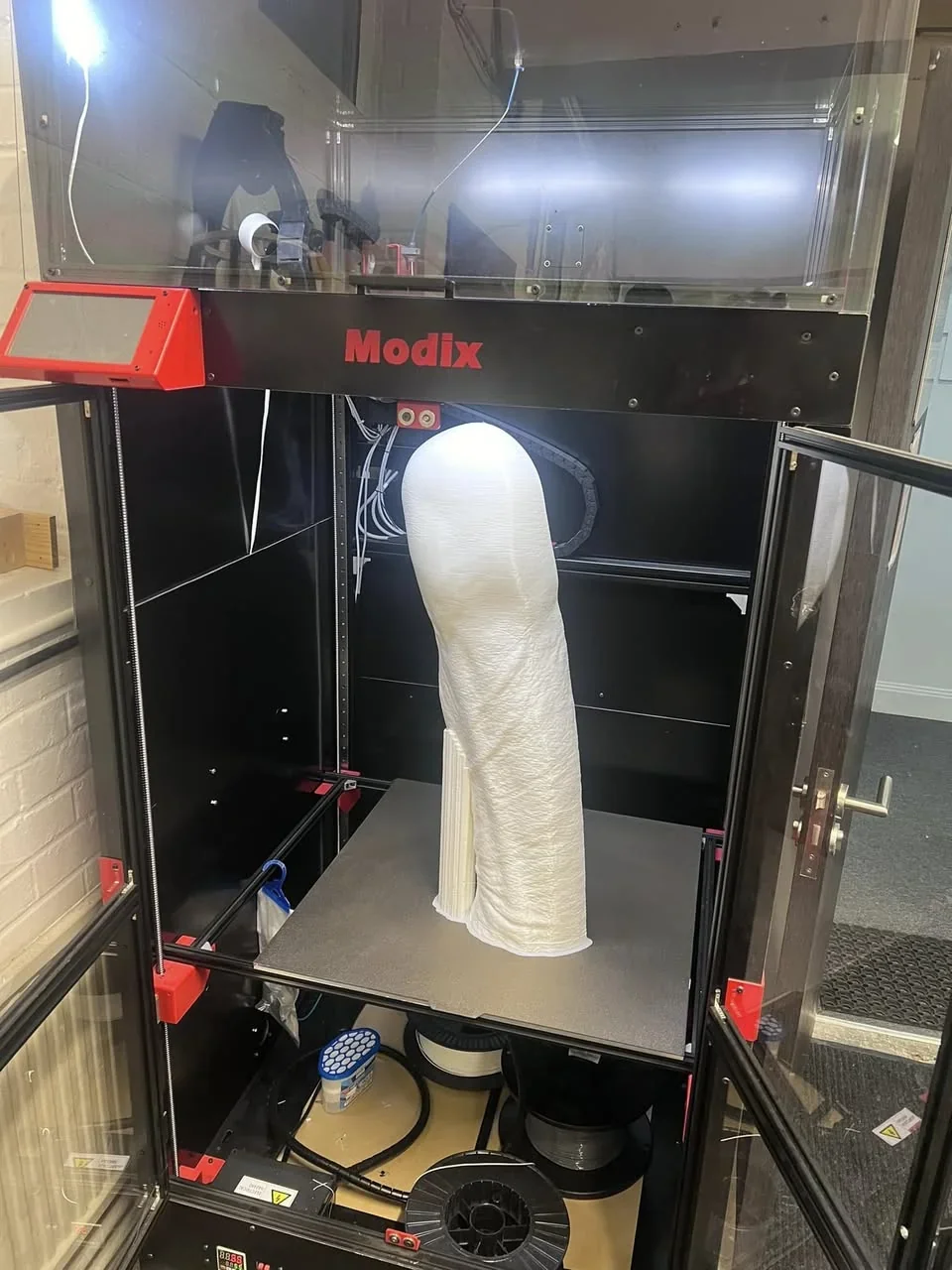

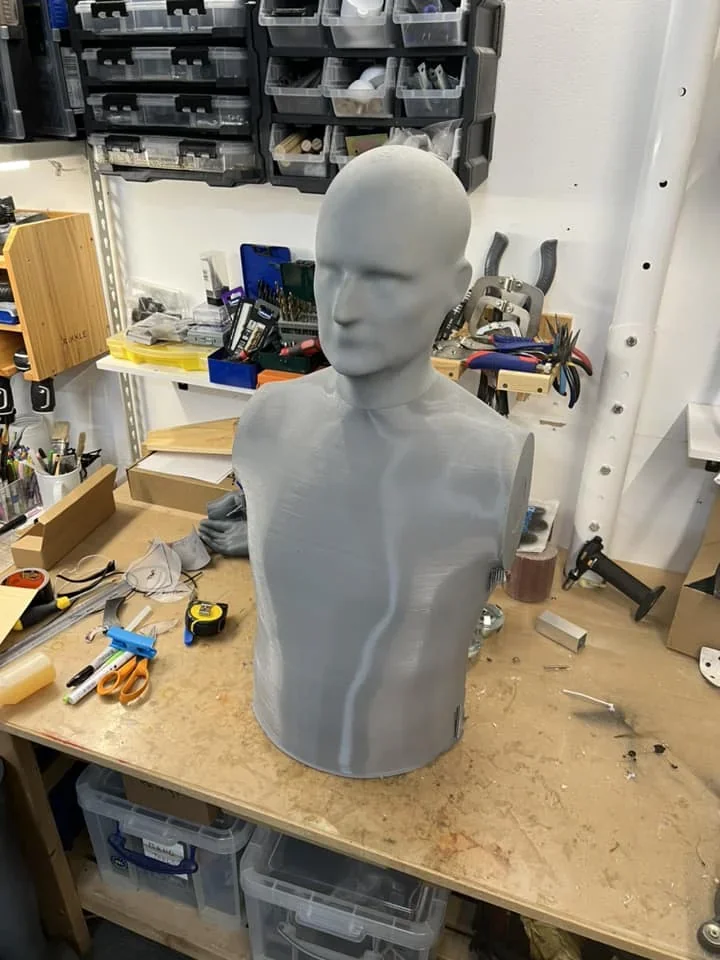

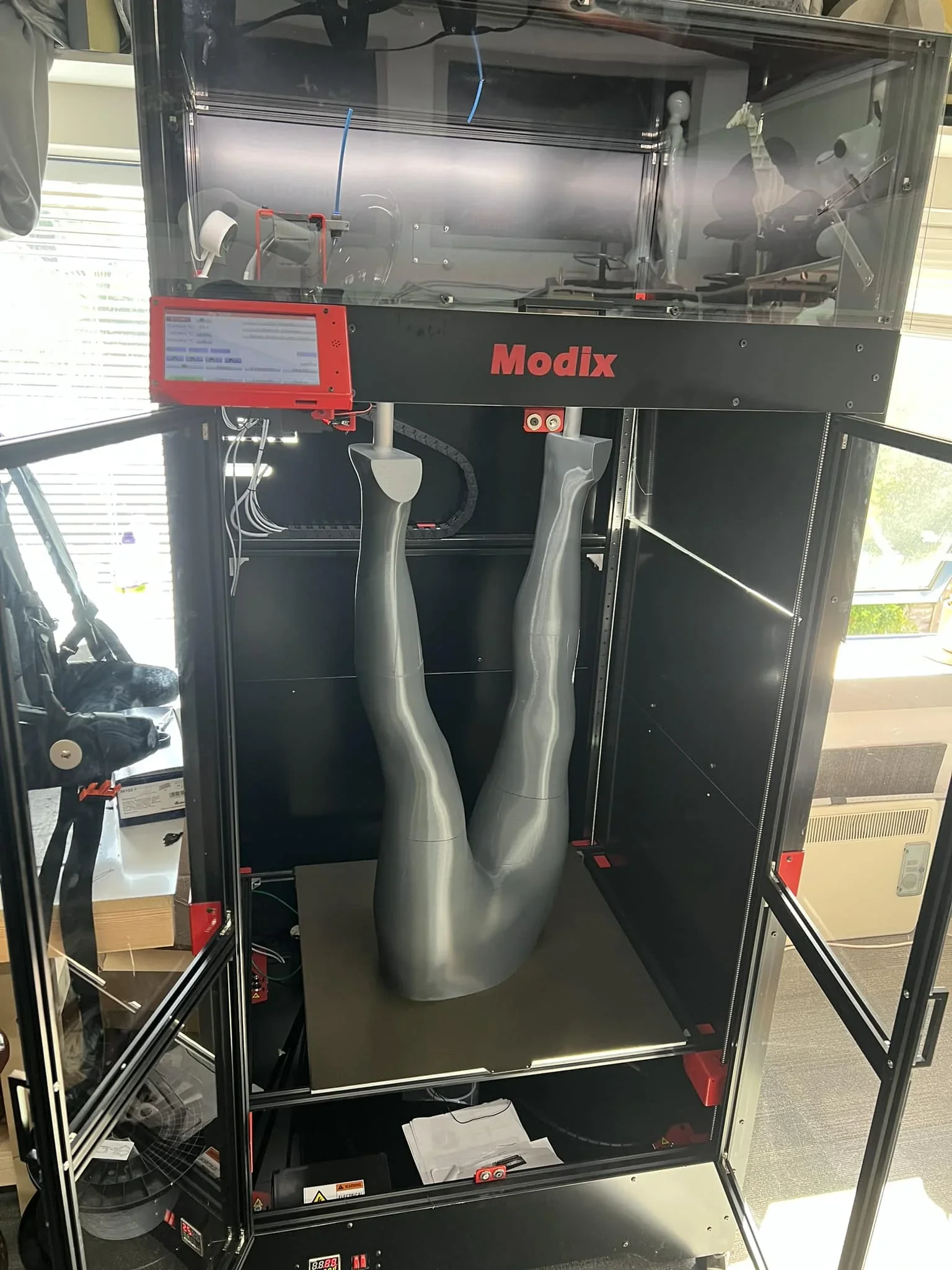

As you can see from the picture below, the BIG-120Z can even print a real-scale person.

a white model printed on the Modix BIG-120Z V4



Print quality

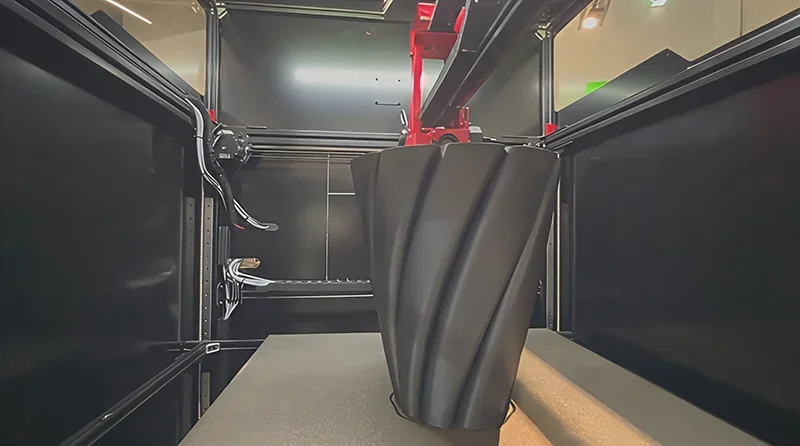

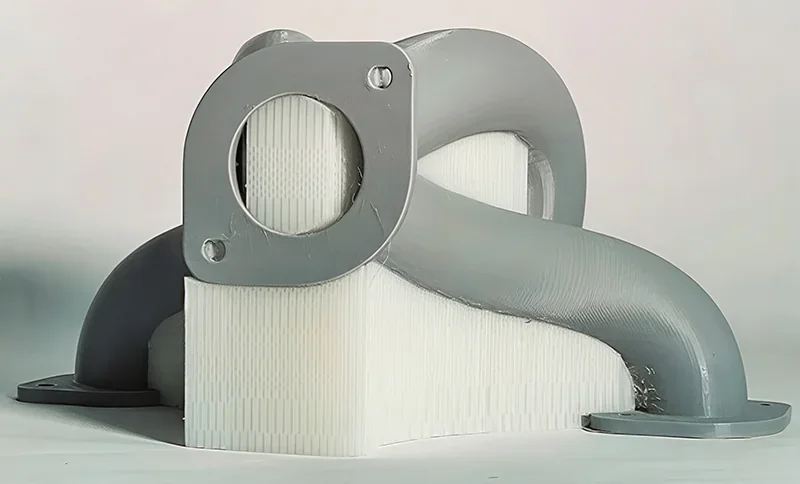

The Modix BIG-120Z is a large-format professional 3D printer that can print parts with an accuracy of 40 microns and smooth exterior surfaces.

a print quality on the Modix BIG-120Z V4

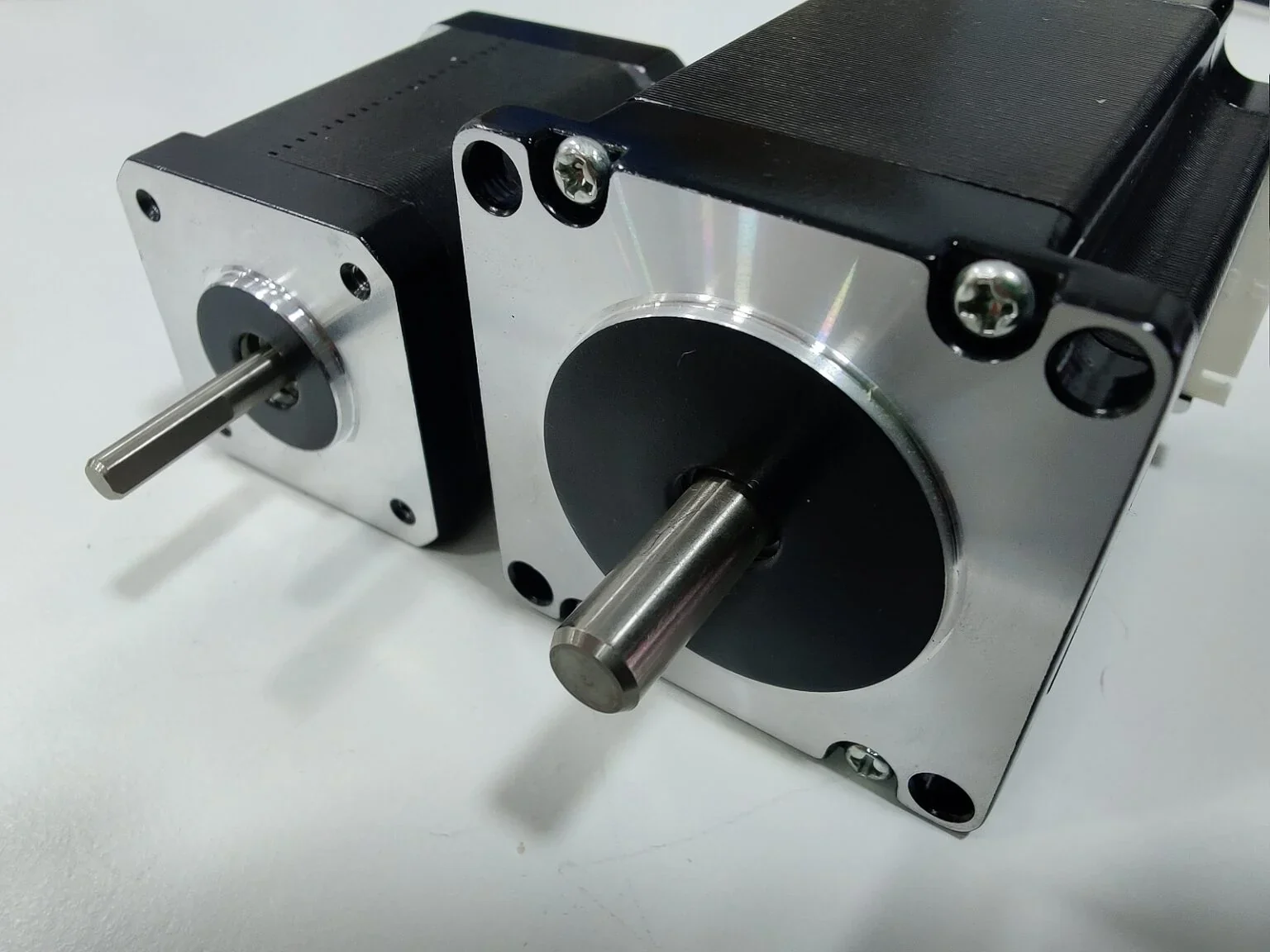

The Z-axis of the printer has been upgraded, featuring strong Nema-23 motors and reliable CNC machined brackets that hold the bed firmly and add to the overall level of print accuracy.

a Nema-23 motors on the Modix BIG-120Z V4

Due to the better motors on the X axis (compared to NEMA-17 motors for the V3), the BIG-120Z V4 provides much faster printing than before. The machine boasts the accelerated travel speed of up to 350 mm/s and printing of up to 250 mm/s.

a motors on the Modix BIG-120Z V4

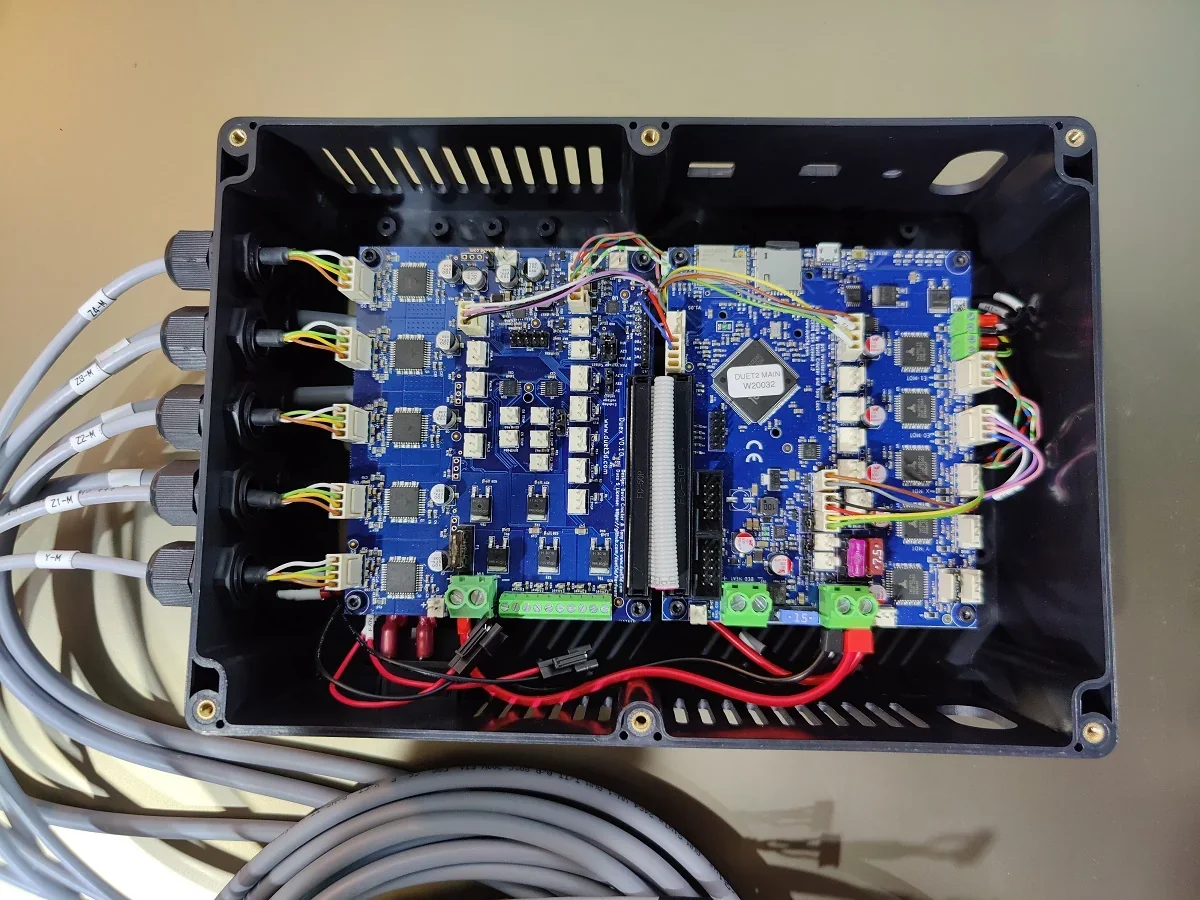

Starting with the Generation 4, the Modix devices come with the electronic expansion board Duex 5, with a dedicated stepper motor driver allocated for each Z and X axis motor. Thanks to this important improvement, the printer now offers a full set of automated calibration routines, including automated bed tilt, bed leveling, gantry alignment, and Z offset calibration making for enhanced printing precision.

a electronic expansion board Deux 5 on the Modix BIG-120Z V4

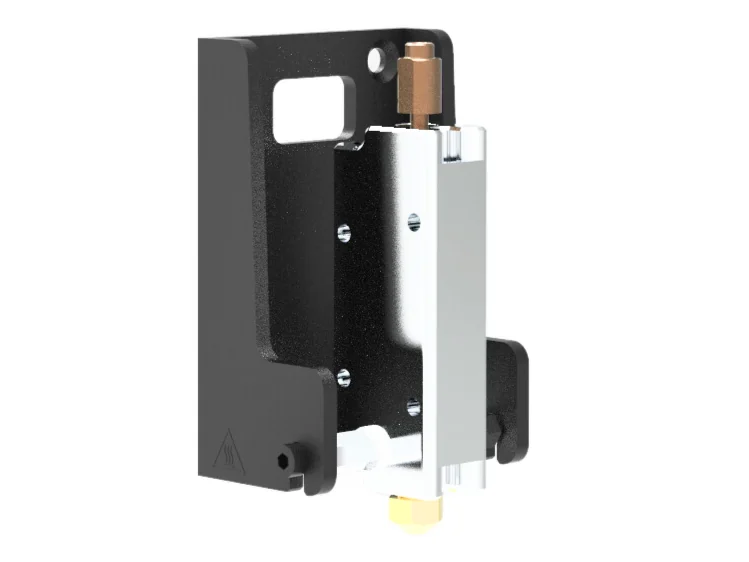

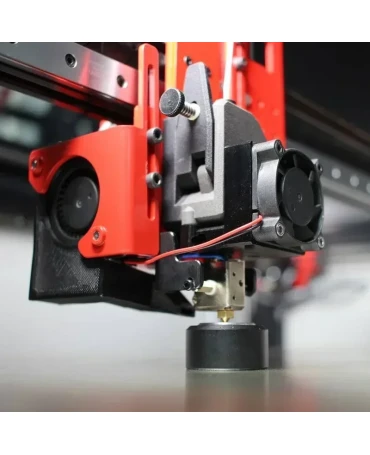

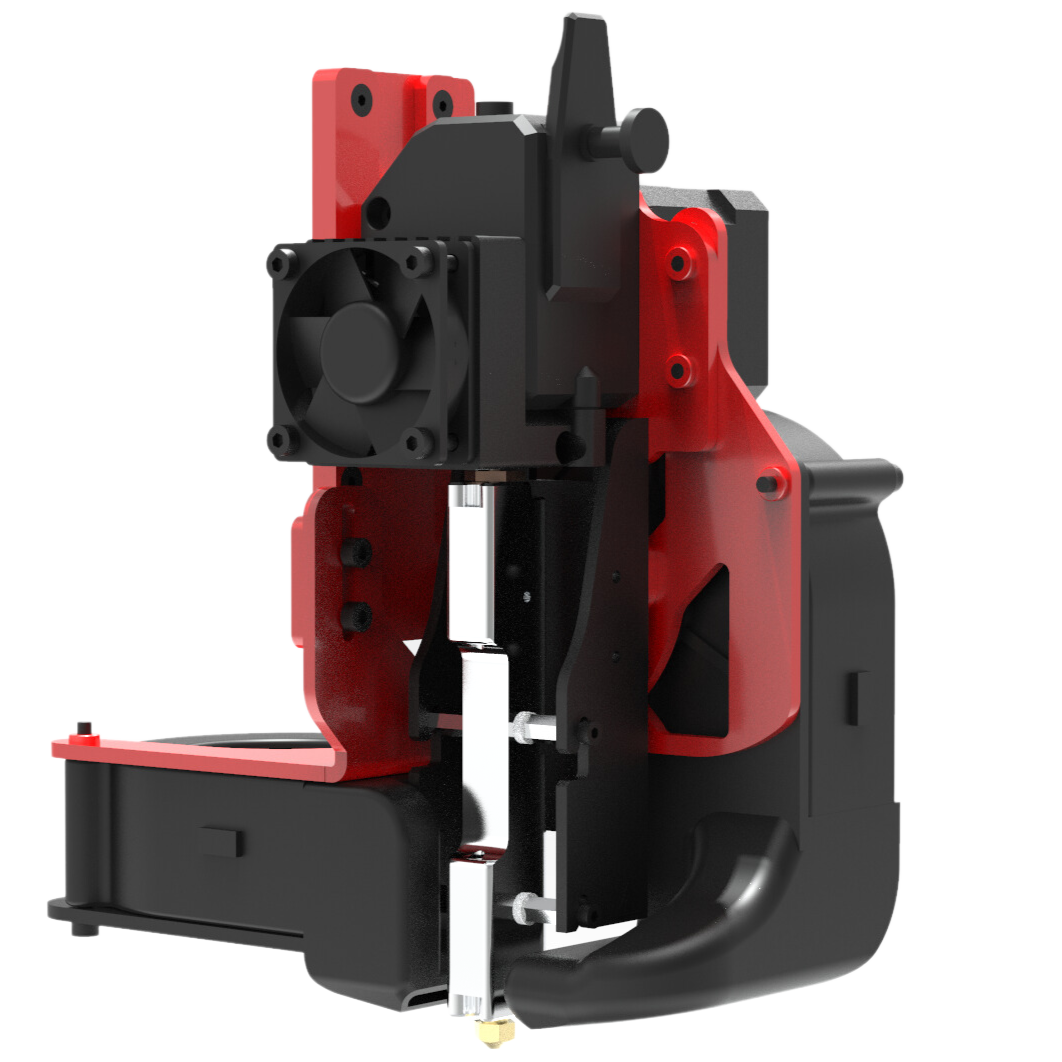

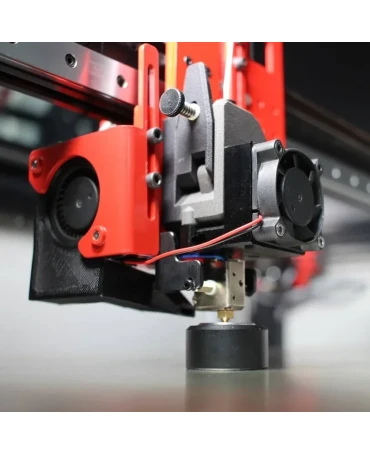

Another major improvement is the new Griffin printhead. Previously it was just an optional upgrade and now it comes as the default component on all the company’s V4 printers. It consists of a custom extruder made by Bondtech and a new hotend designed by Modix. The upgrade offers smart and compact design, high flow rate, increased reliability, easy swap, and great resistance to high printing temperatures, leading to overall improved user experience.

a Griffin printhead on the Modix BIG-120Z V4

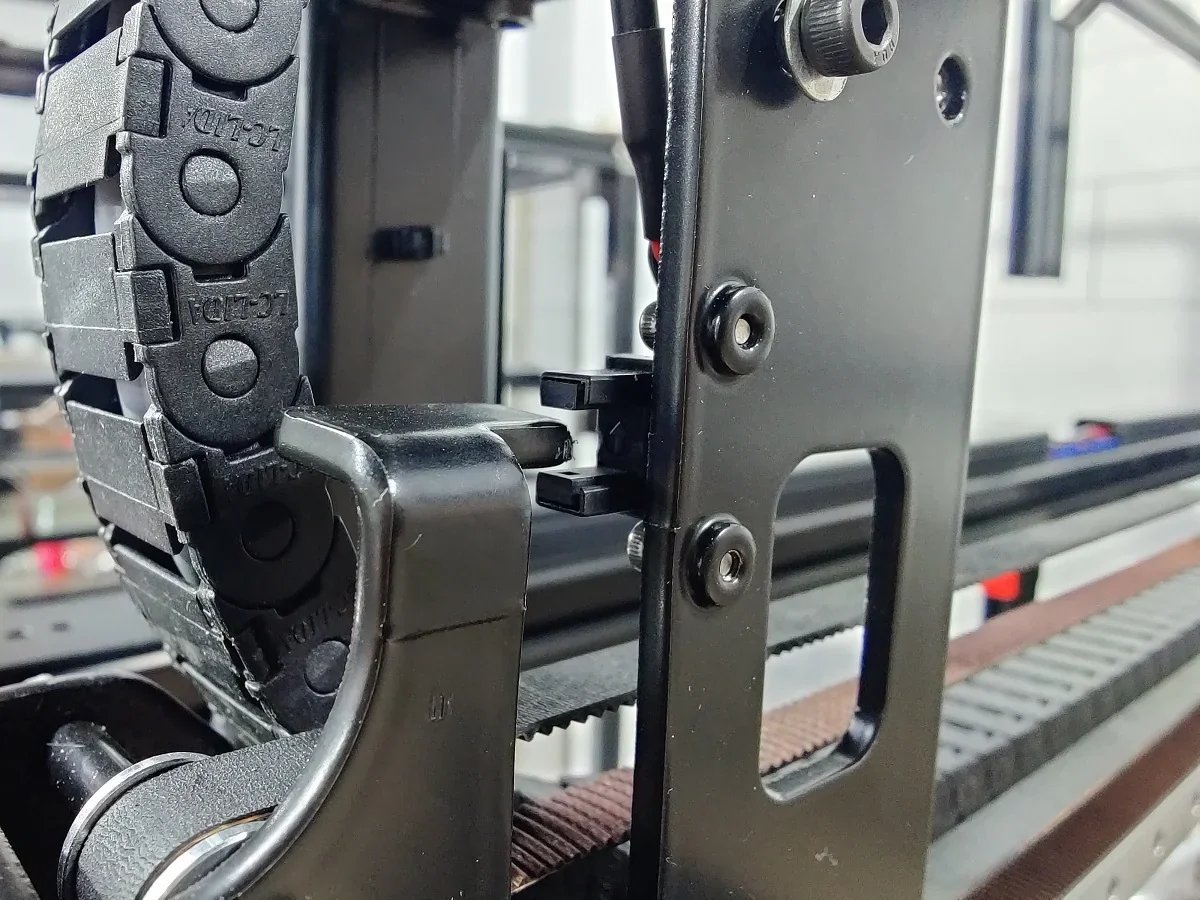

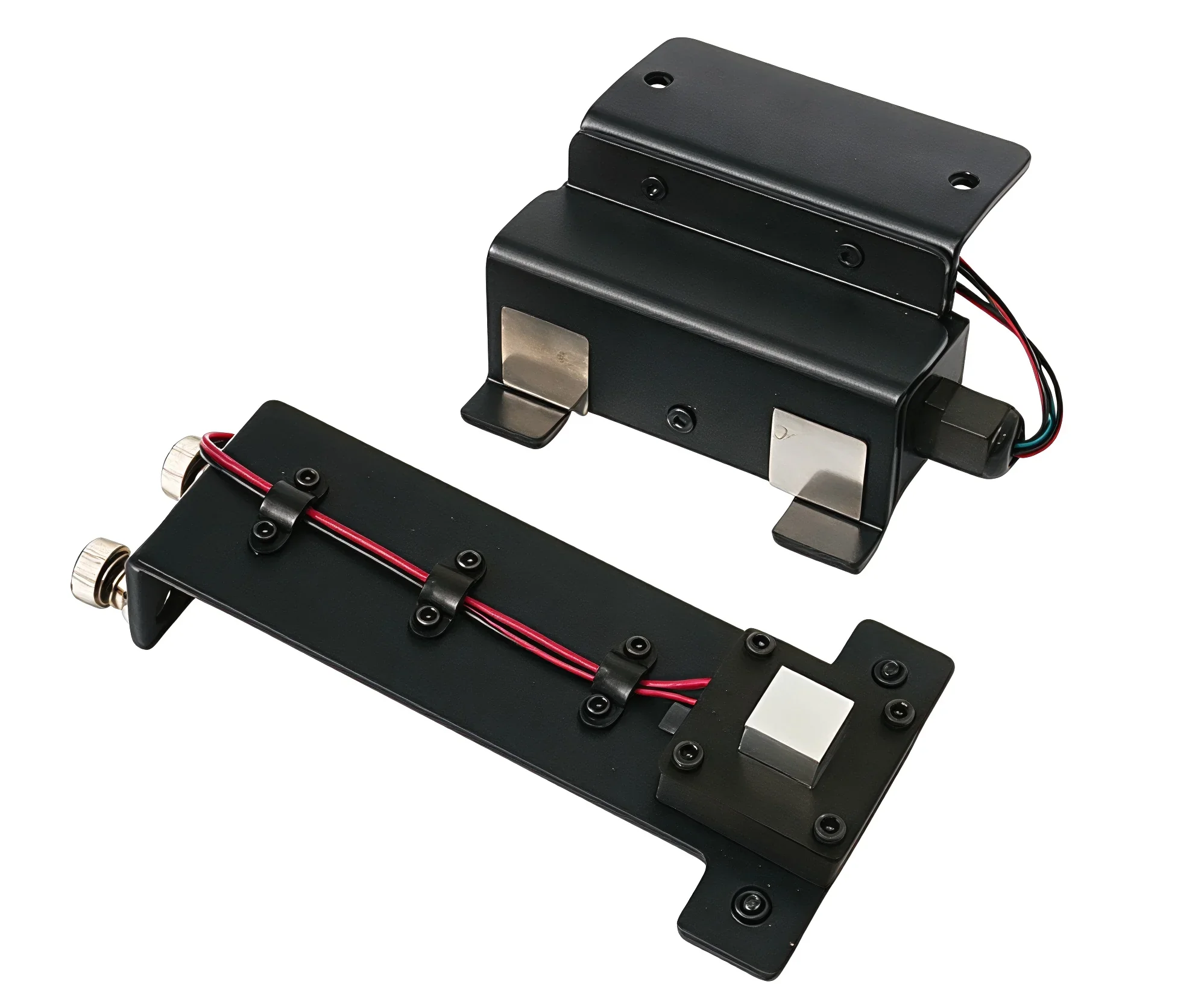

As for the upgraded optical end-stop switches, they provide more accuracy and higher level of repeatability over time, which is particularly important for printing recovery after power outages.

a optical end-stop switches on the Modix BIG-120Z V4

These are just some of the noteworthy upgrades featured by the new version.

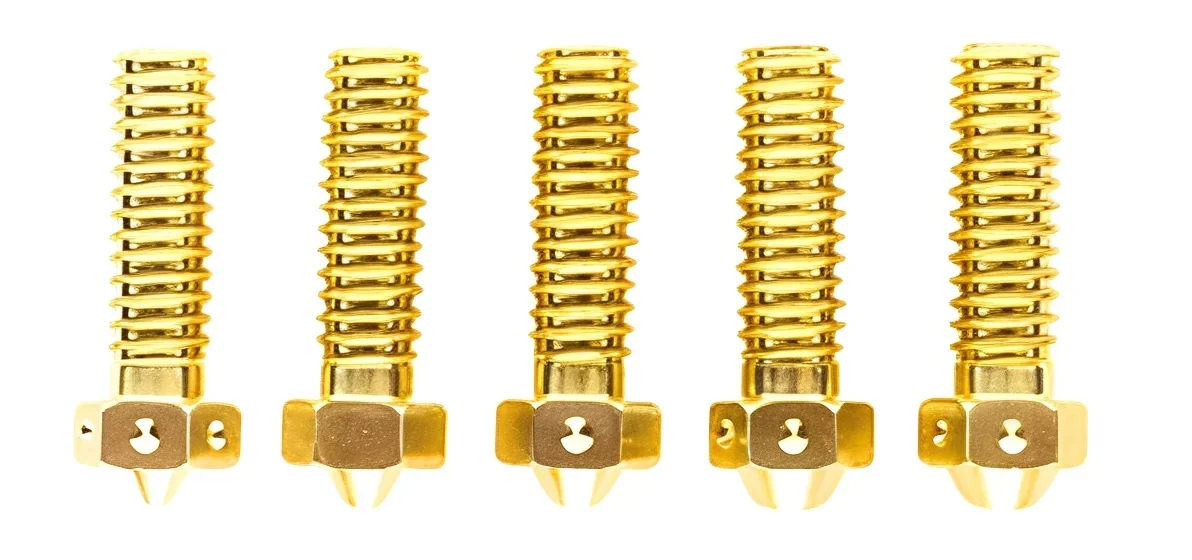

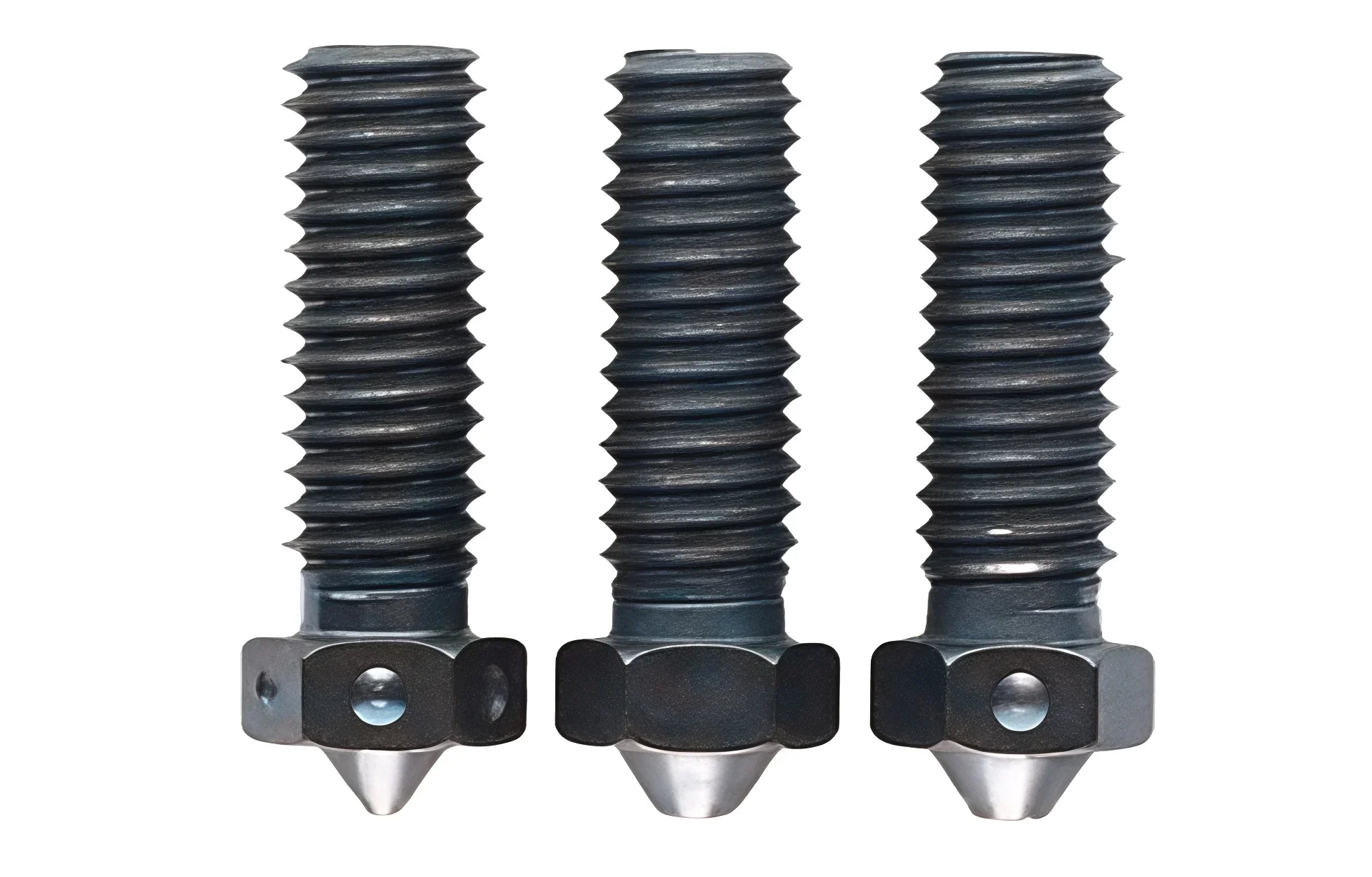

The Modix BIG-120Z comes stock with 0.4, 0.6, and 0.8 mm nozzles. It also supports any compatible nozzles of up to 1.2 mm in diameter. Depending on your printing requirements, you are free to choose the nozzle size you prefer. The printer can be also equipped with the IDEX add-on for multi-material printing of complex internal geometries.

a nozzle on the Modix BIG-120Z V4

Credit: @ecostruder / Instagram

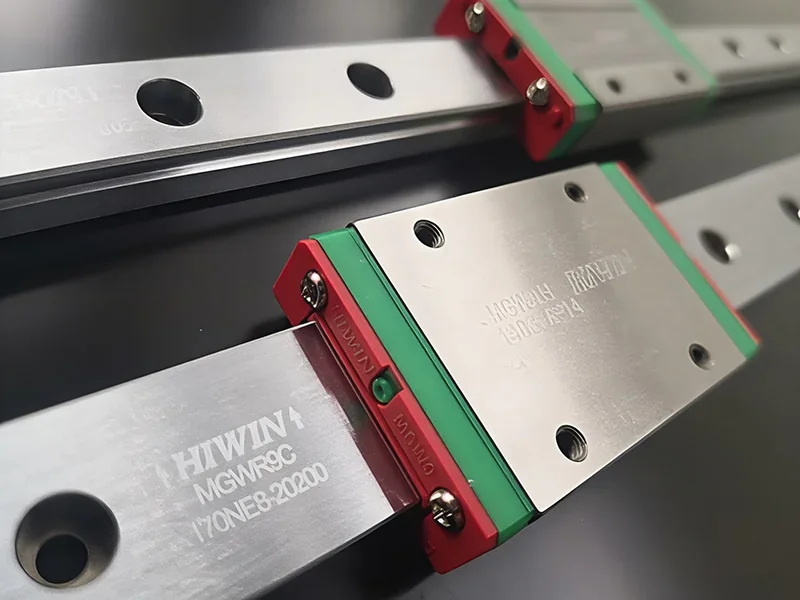

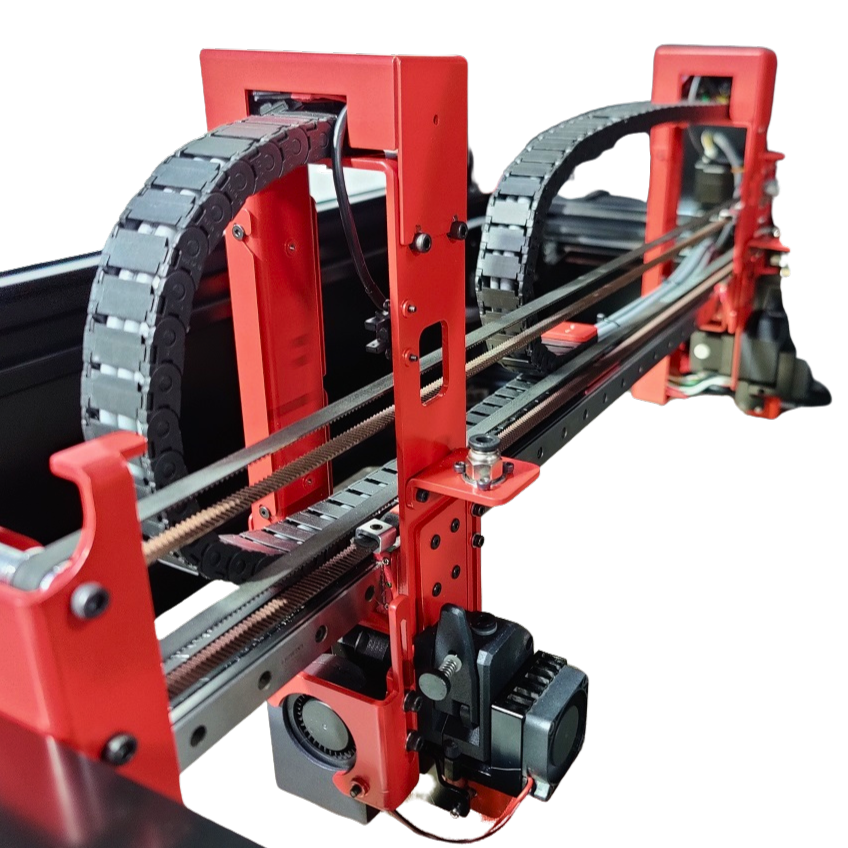

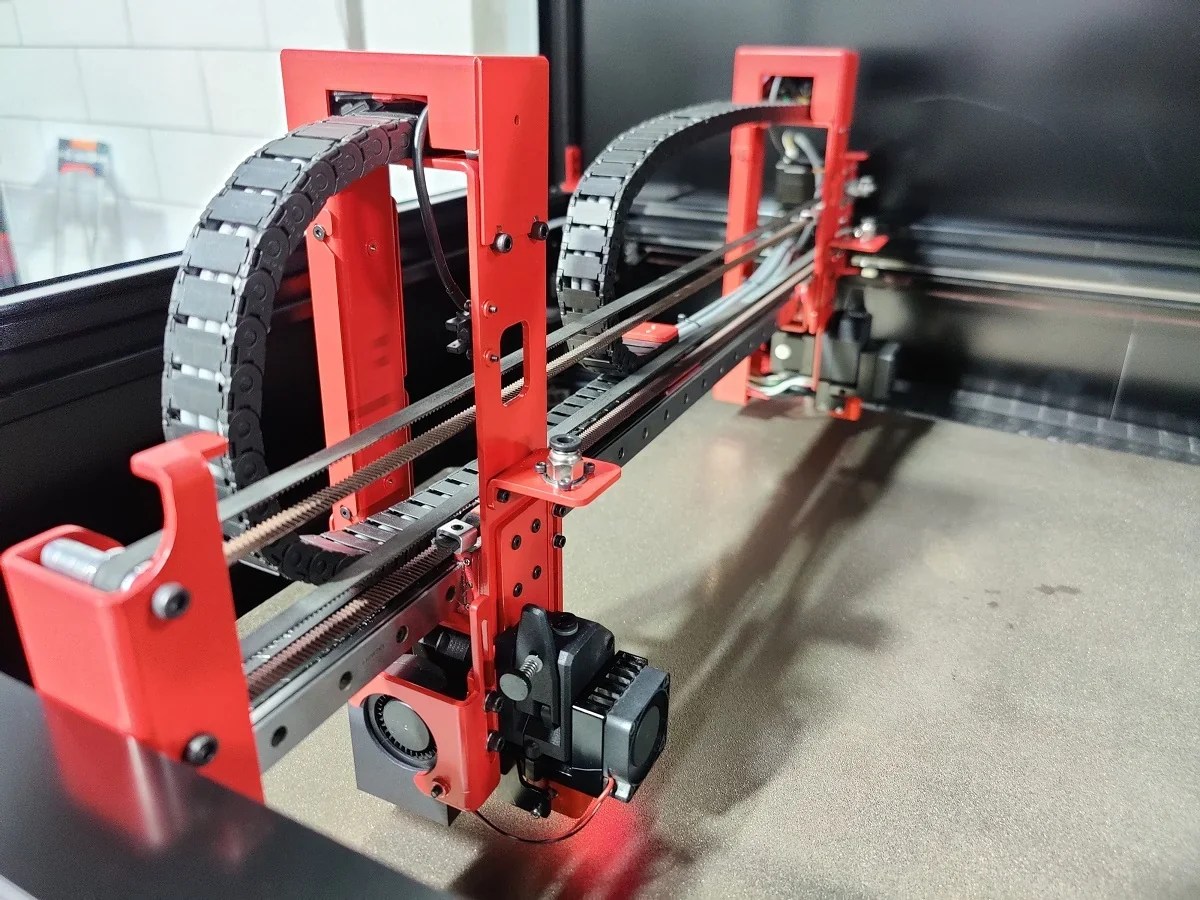

The print head runs on HIWIN motion rails, which makes printing reliable, fast, and precise.

a HIWIN motion rails on the Modix BIG-120Z V4



Materials

The engineering-grade extruder allows processing a wide variety of filaments, including PLA, PETG, PVA, ABS, ASA, PC, Nylon, TPU, Woodfill, Carbon composite, and other exotic materials.

Modix BIG-120Z V4

The optional IDEX add-on includes a secondary printing subsystem, consisting of a Griffin print head, clog detector, PTFE, and spool mount. It enables high-quality multi-color and soluble material printing.

a optional IDEX add-on on the Modix BIG-120Z V4

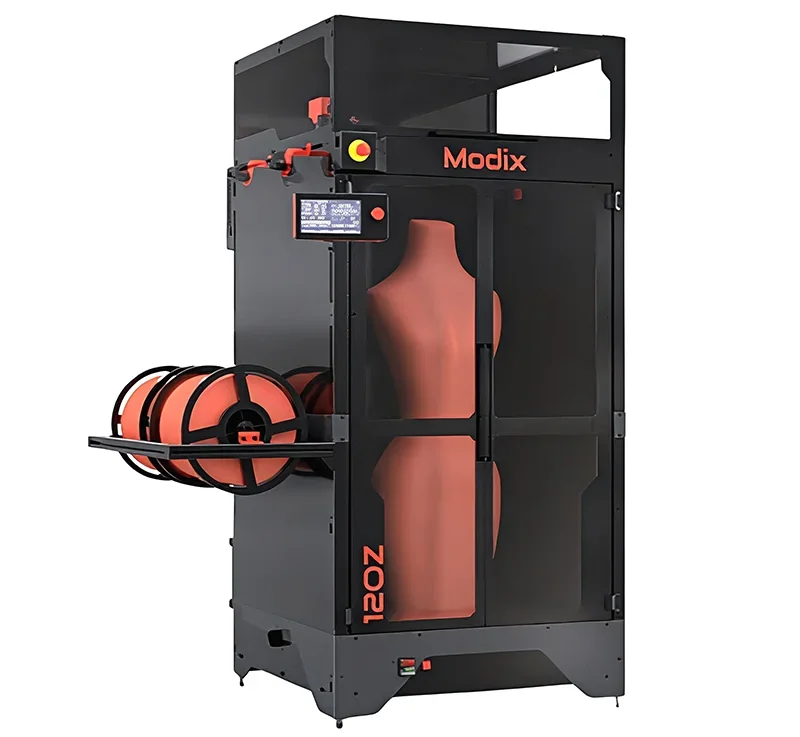

The BIG-120Z V4 supports an additional enclosure composed of aluminum composite panels. Installing the enclosure results in better heat and noise insulation.

Modix BIG-120Z V4

The V4 comes with a default clog detector that can easily detect filament run-out, under-extrusion, and hotend clogs, which allows the user to quickly fix the problem and avoid negative impact on the quality of the printed items.

Modix BIG-120Z V4

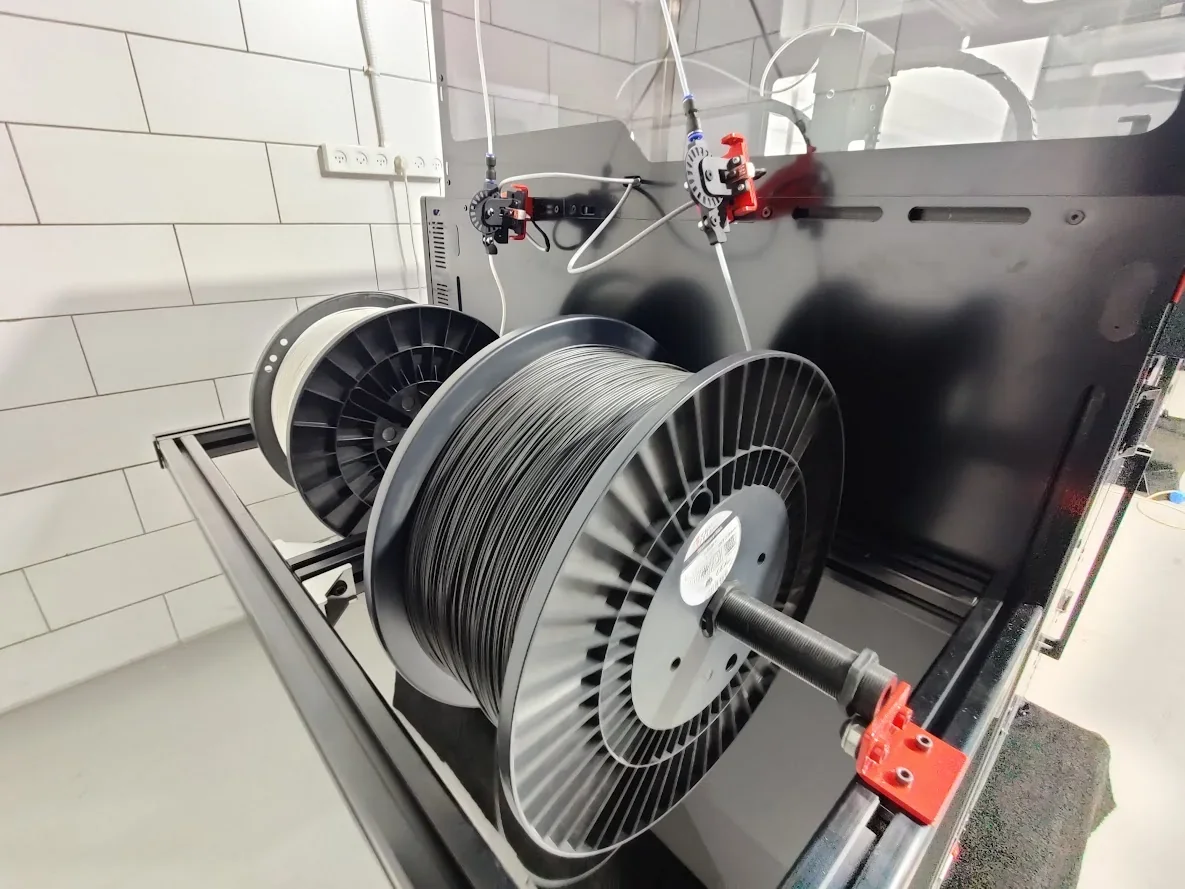

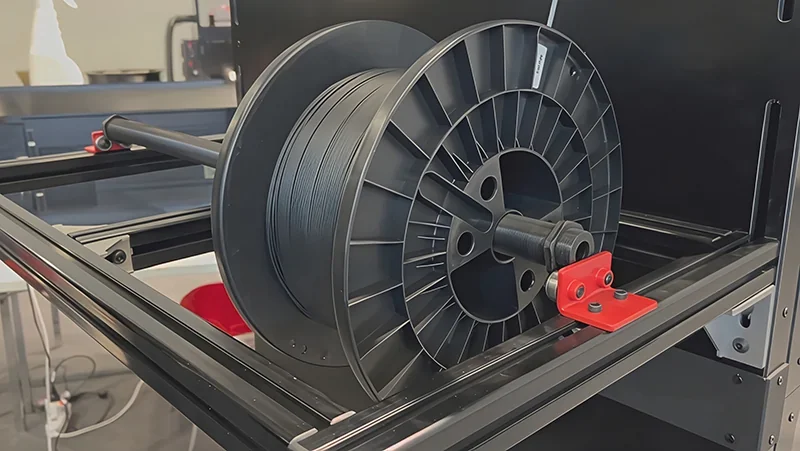

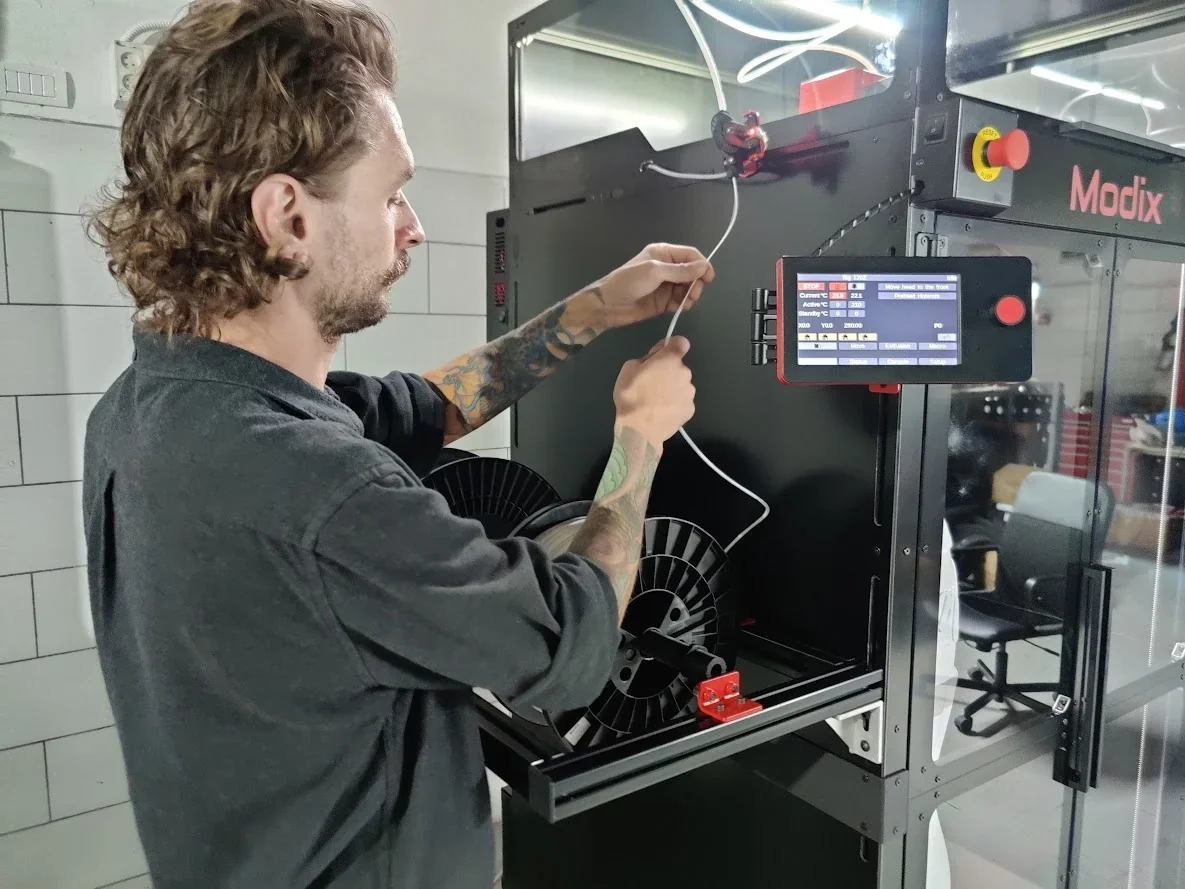

Moreover, the 8 kg spool shelf add-on (purchased separately) can carry up more rolls compared to the default one (up to 3 kg). This handy expansion also helps the extruders to easily pull filament and is great for seamless printing in case of large-scale projects.

a open materials system on the Modix BIG-120Z V4

The Modix BIG-120Z V4 features an open material system. This means you can print with any third-party 1.75 mm filament. Also, it seems that some users modded the device to successfully work with 2.85 mm materials.

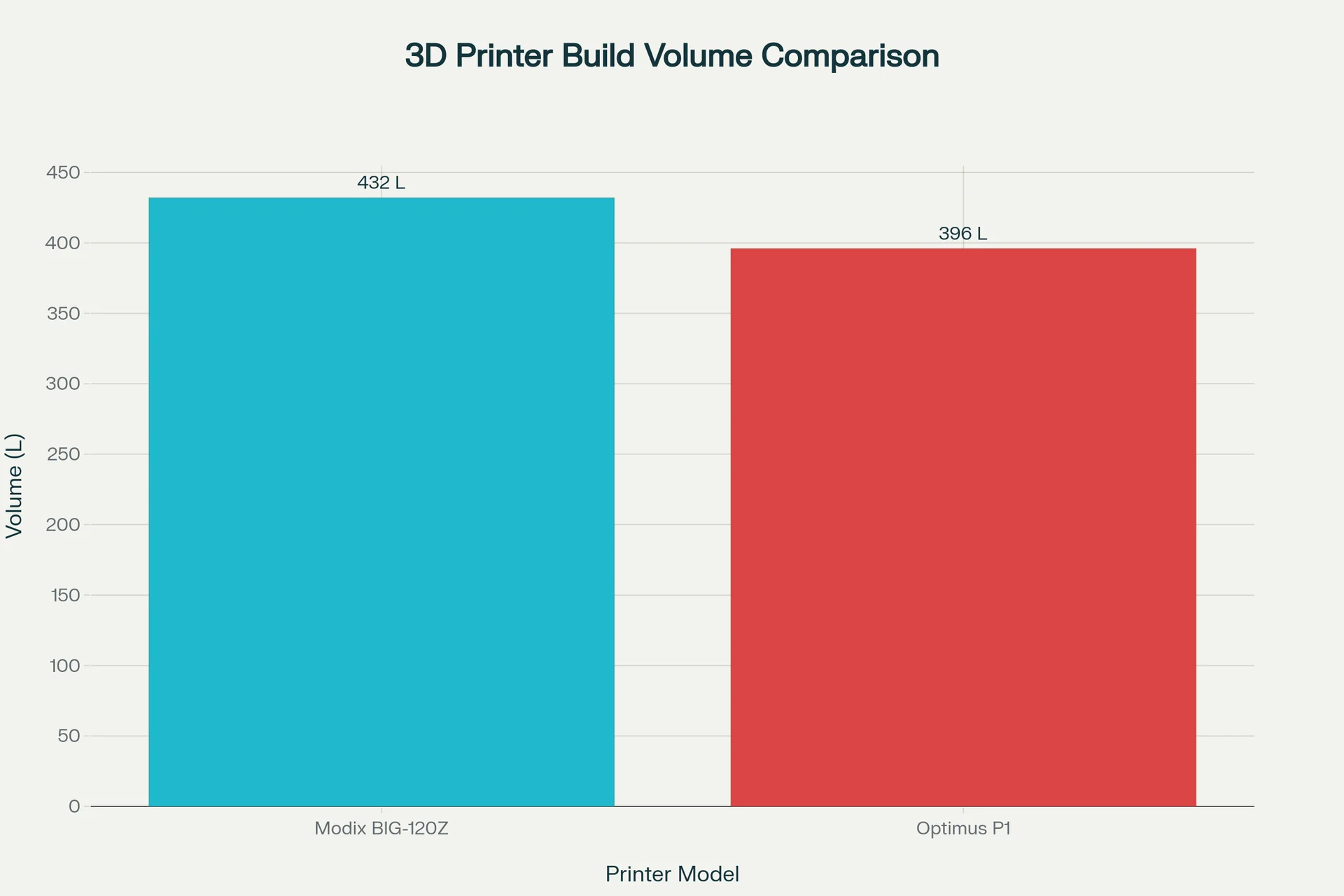

Build volume

a build volume on the Modix BIG-120Z V4

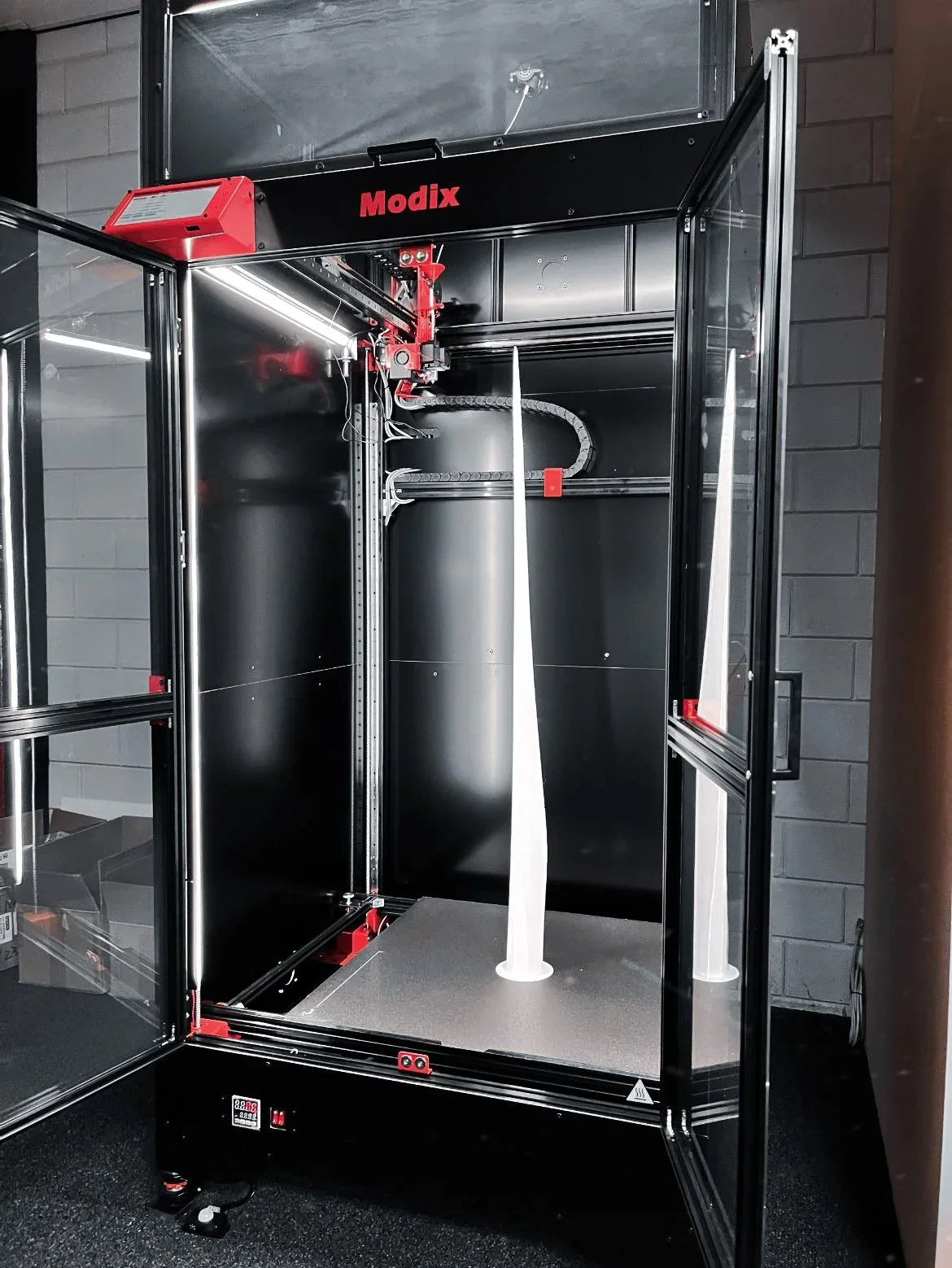

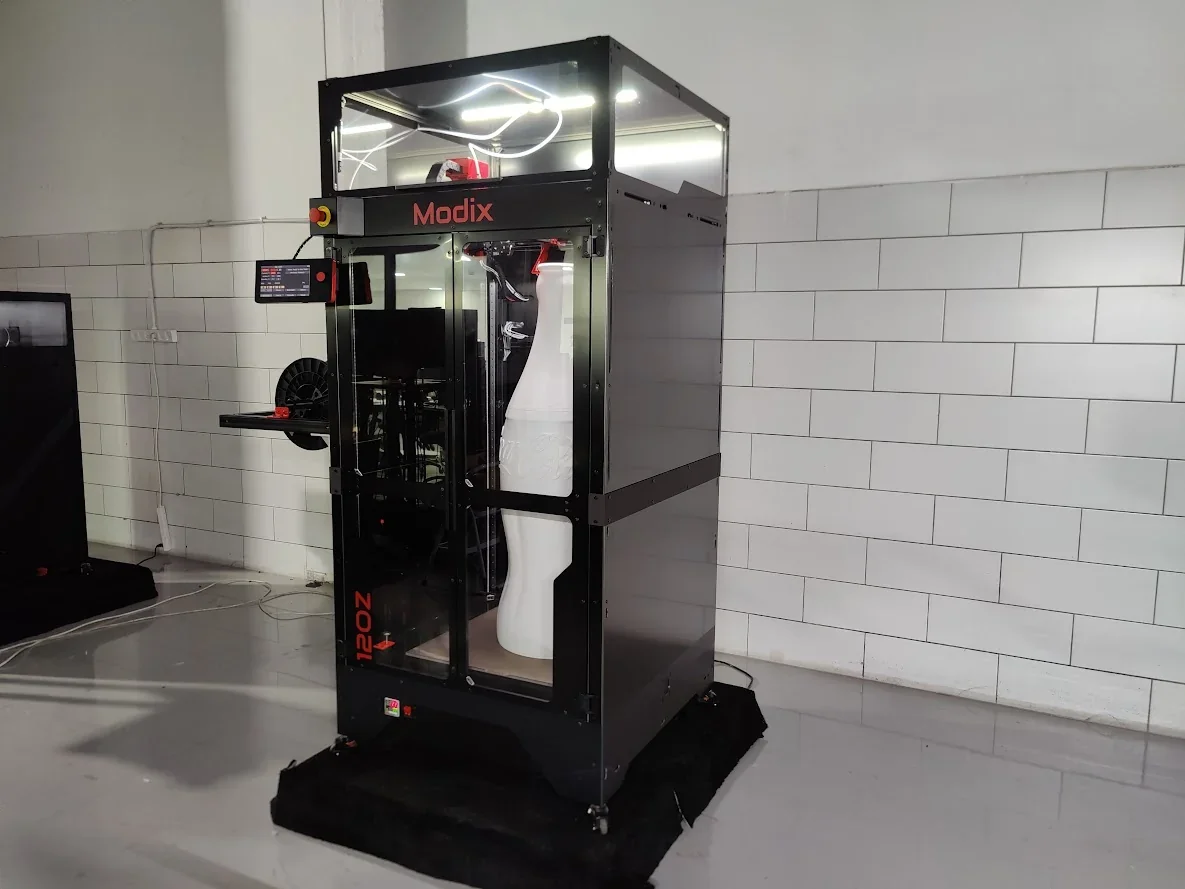

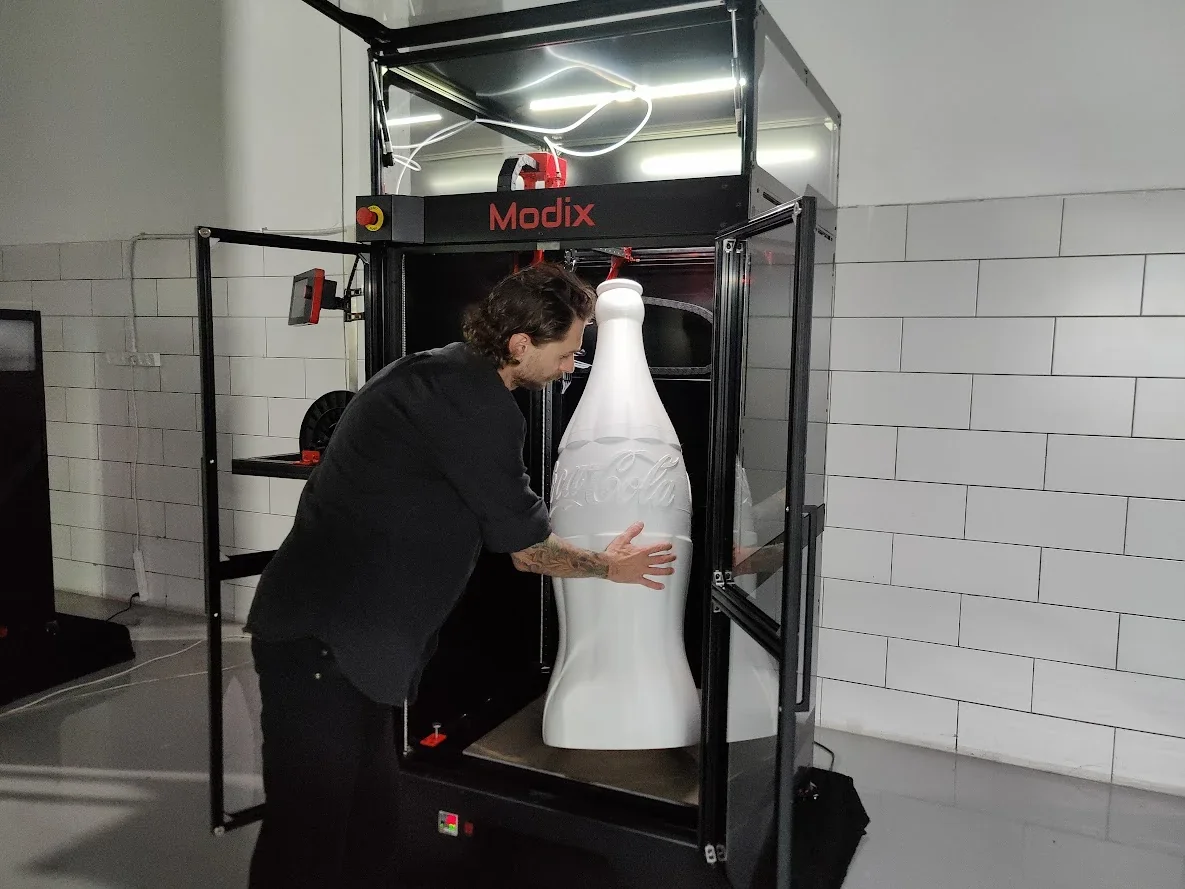

The build area of 23.6 x 23.6 x 47.2 inches (600 x 600 x 1200 mm) lets you print very tall models in one piece, just like this 1.2-meter-tall Coca-Cola bottle.



Printer controls

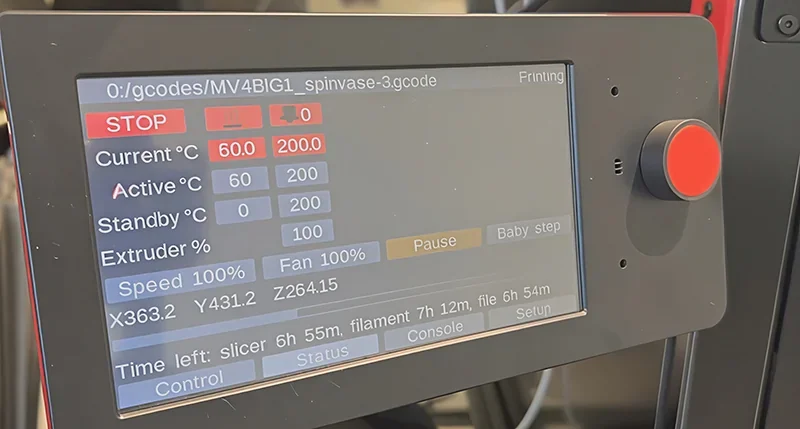

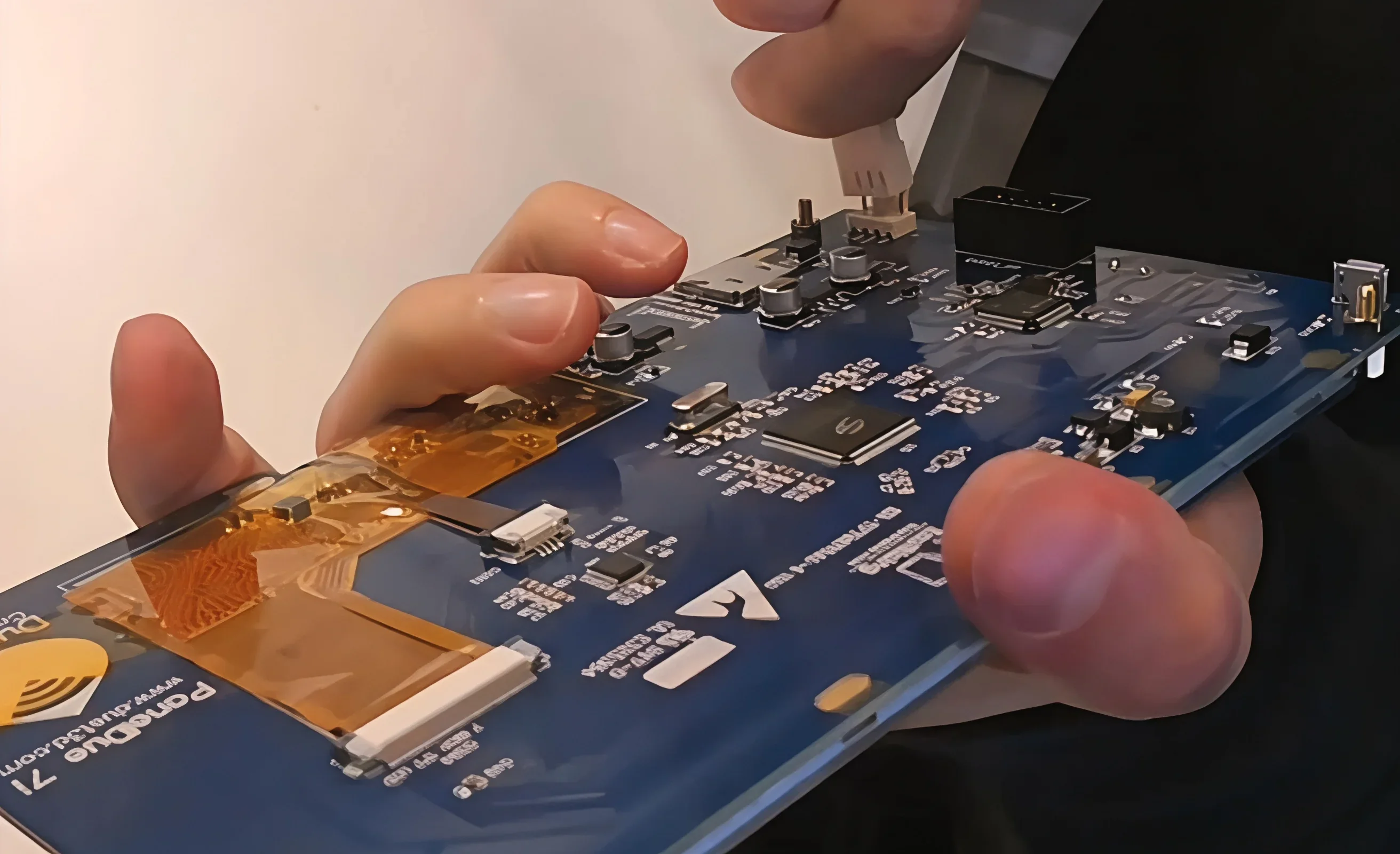

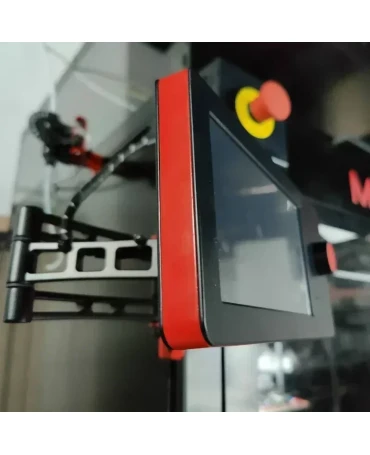

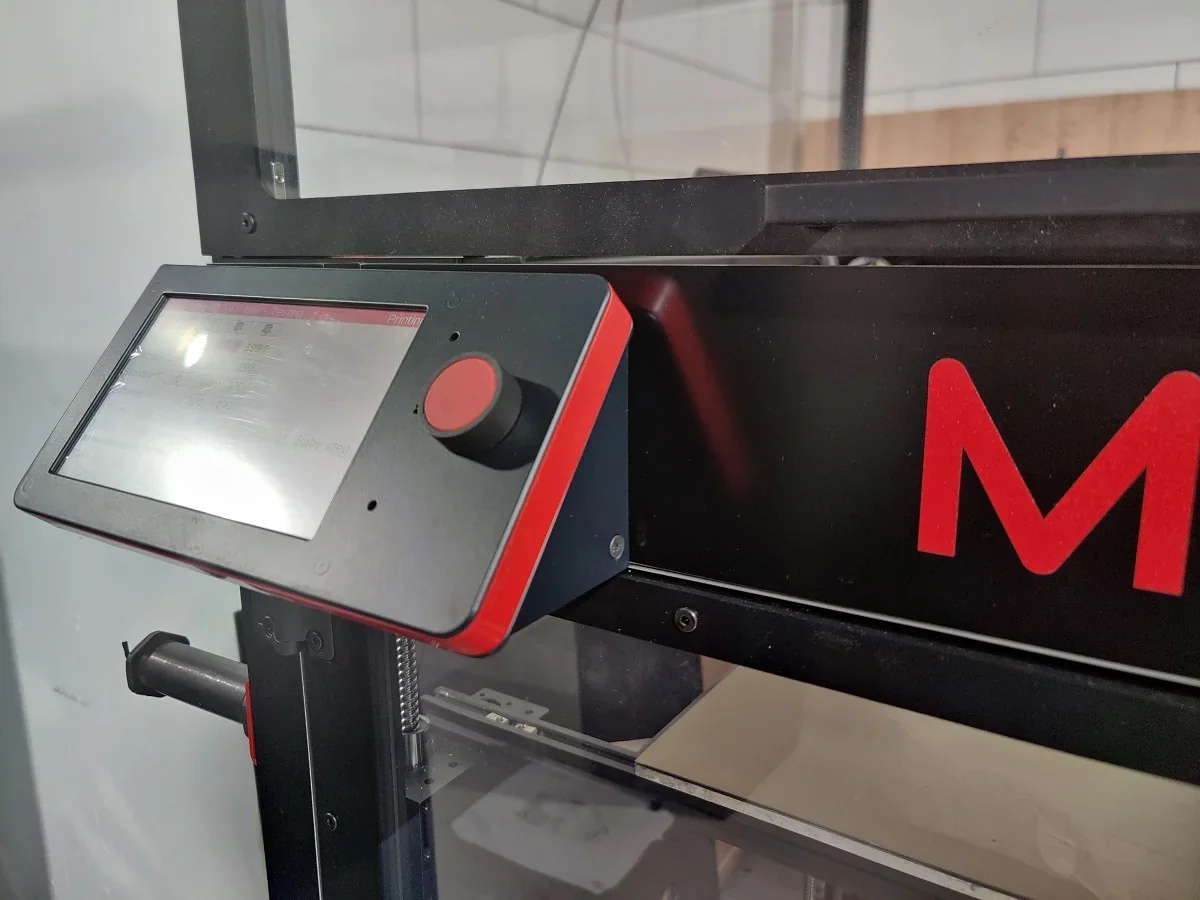

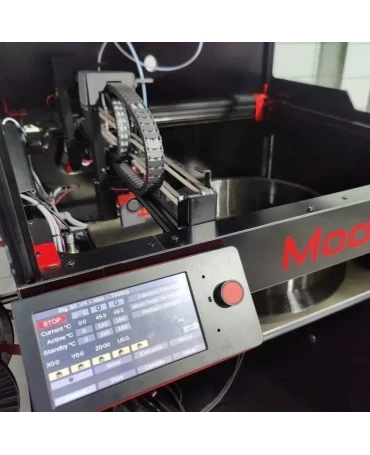

The Modix BIG-120Z V4 includes a convenient tilted 7" touchscreen, large secondary emergency button, and a frontal power switch by default. You can operate the printer either via a USB-tethered computer or directly via the touchscreen.

a printer controls on the Modix BIG-120Z V4

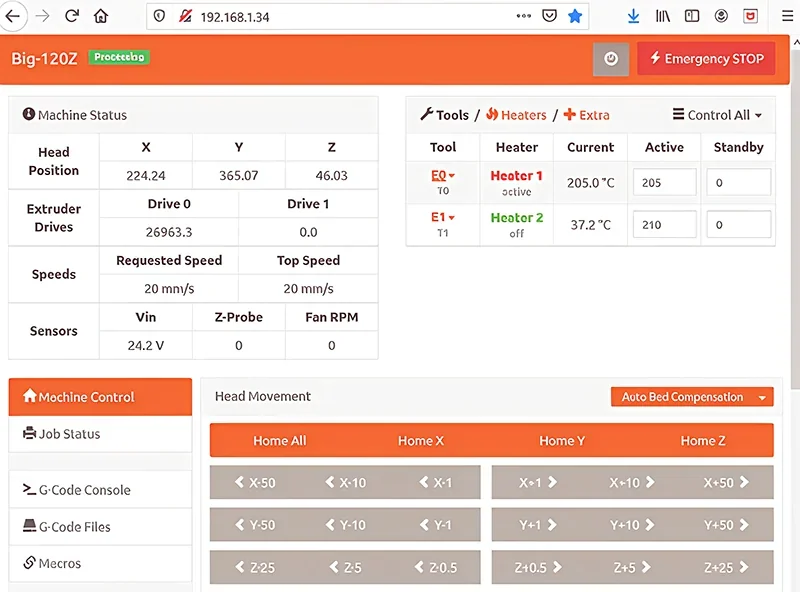

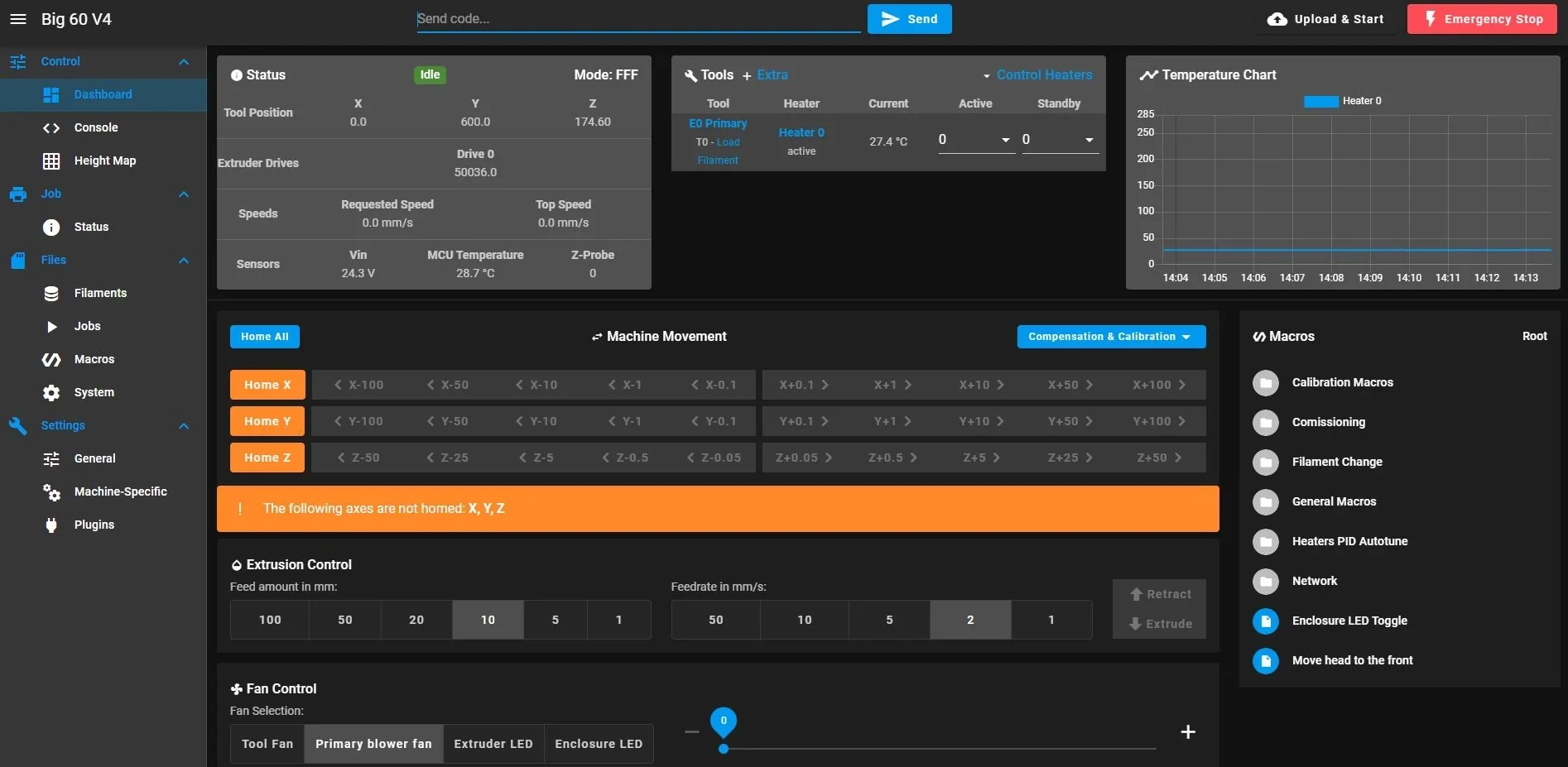

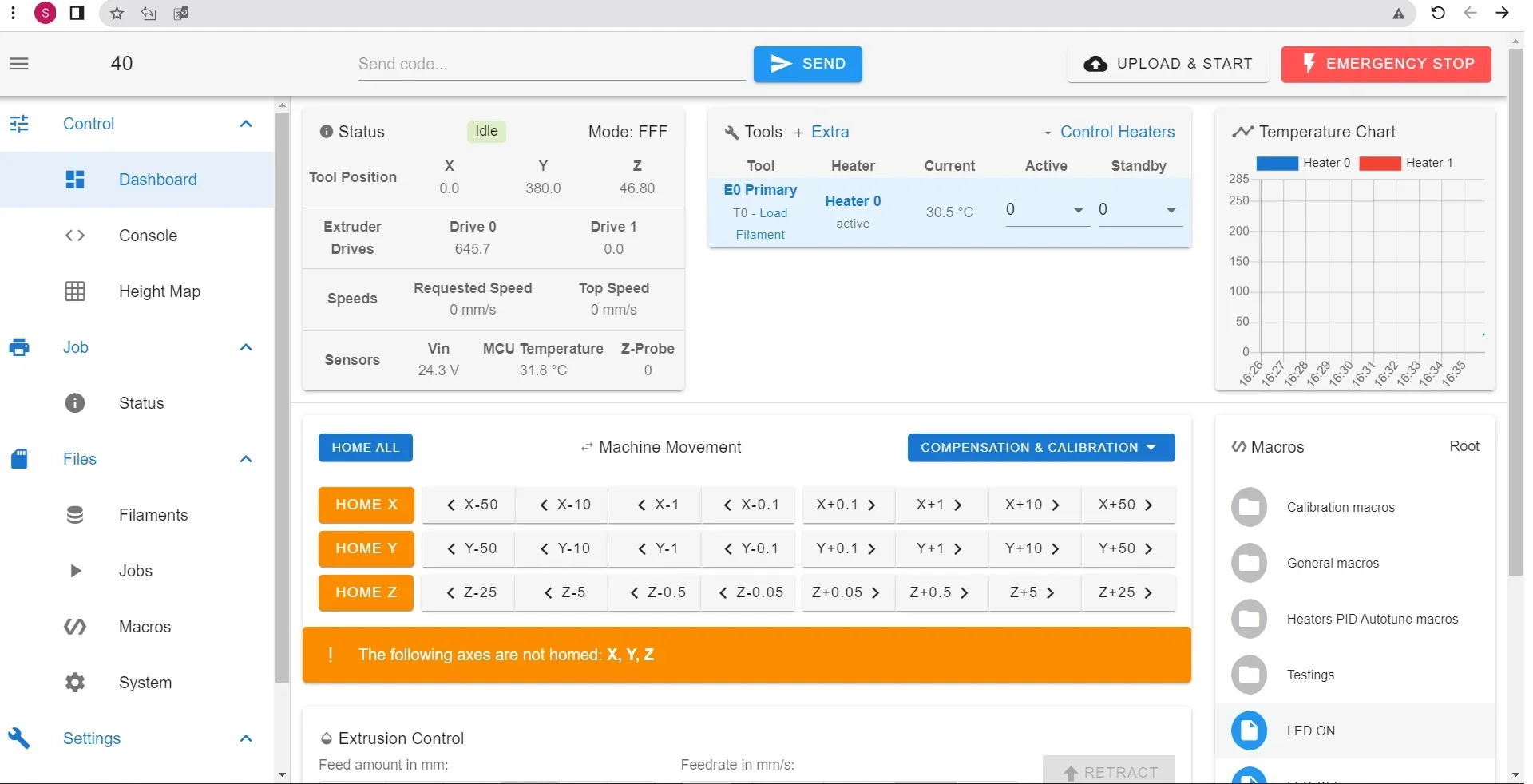

You can easily transfer your 3D models from a computer via USB cable or via an external SD card. You might also share them over Wi-Fi using a PC or a mobile phone.

a software on the Modix BIG-120Z V4

The printer is compatible with the major 3D file formats. Thus, it can work with almost any 3D printing slicing software, including Cura, Slic3r, Simplify3D, Printerface, and many others.



What’s in the box

Modix BIG-120Z V4 kit

The printer comes in several boxes that include:

  • All parts required to assemble the Modix BIG-120Z V4 3D printer
  • Powder-coated aluminum components
  • Hex and screwdriver sets
  • Cable and wire sets
  • SD card
  • Spare parts

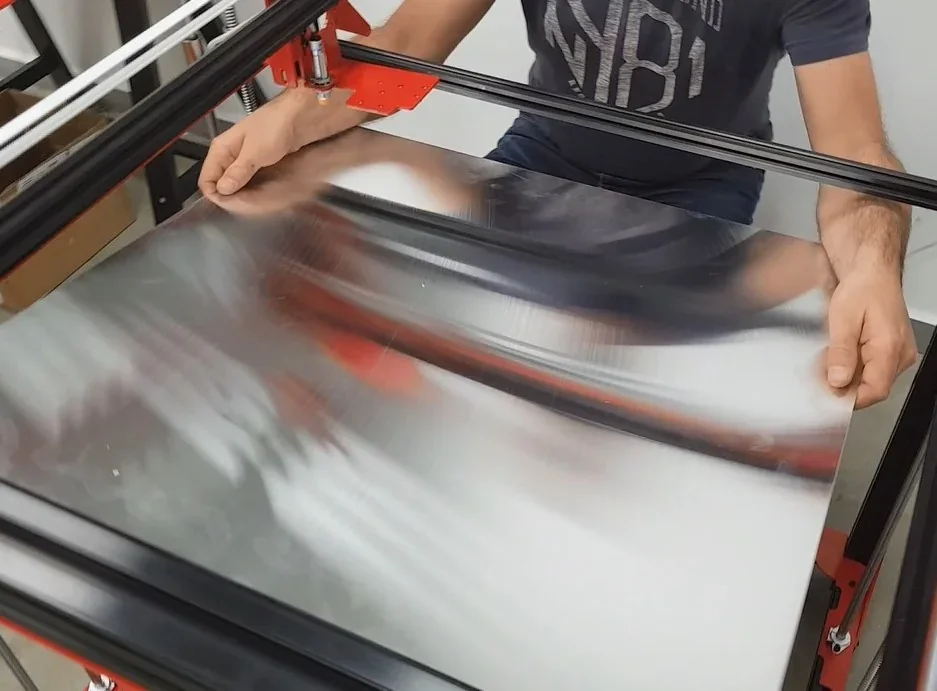

  • Huge aluminum print bed
  • LCD touch screen
  • Spool holder
  • Power cords
  • Power supply
  • Leveling caster
  • Tilt screen, emergency button, and frontal power switch set
  • IDEX add-on (optional)
  • Enclosure (optional)
  • Casters (optional)

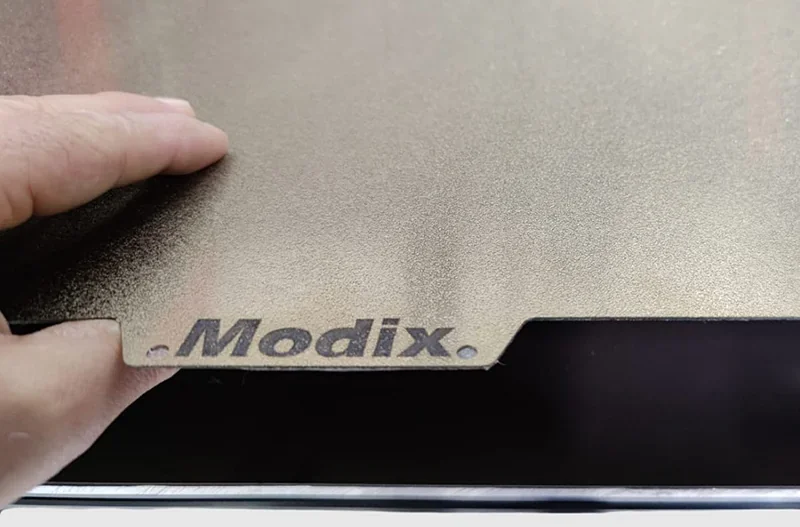

  • Magnetic bed (optional)
  • Super Volcano heat-block (optional)
  • Spare Griffin hotend (optional)
  • Griffin high-resolution hotend (optional)

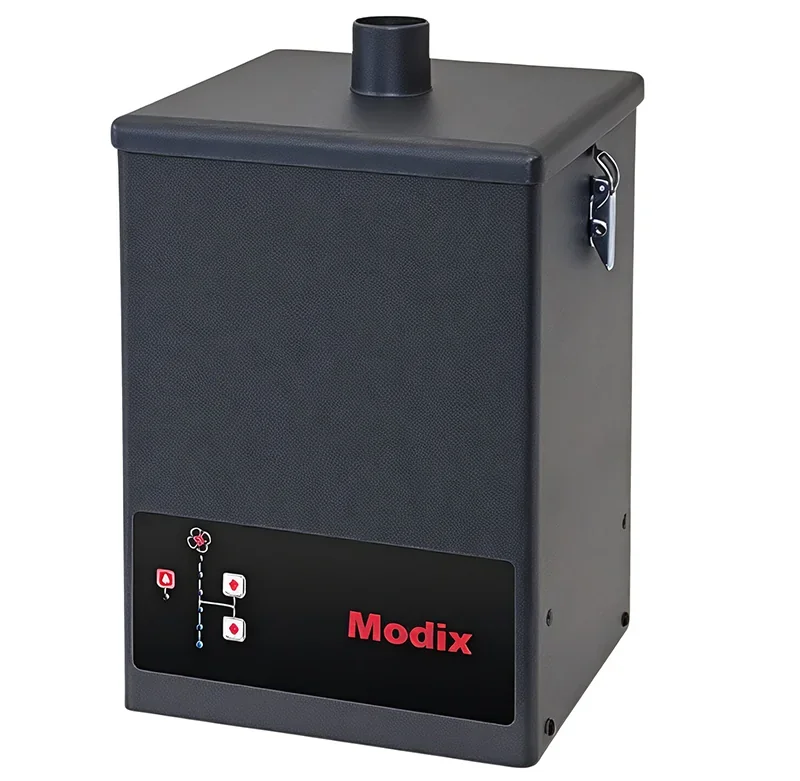

  • Three-phase air filter (optional)

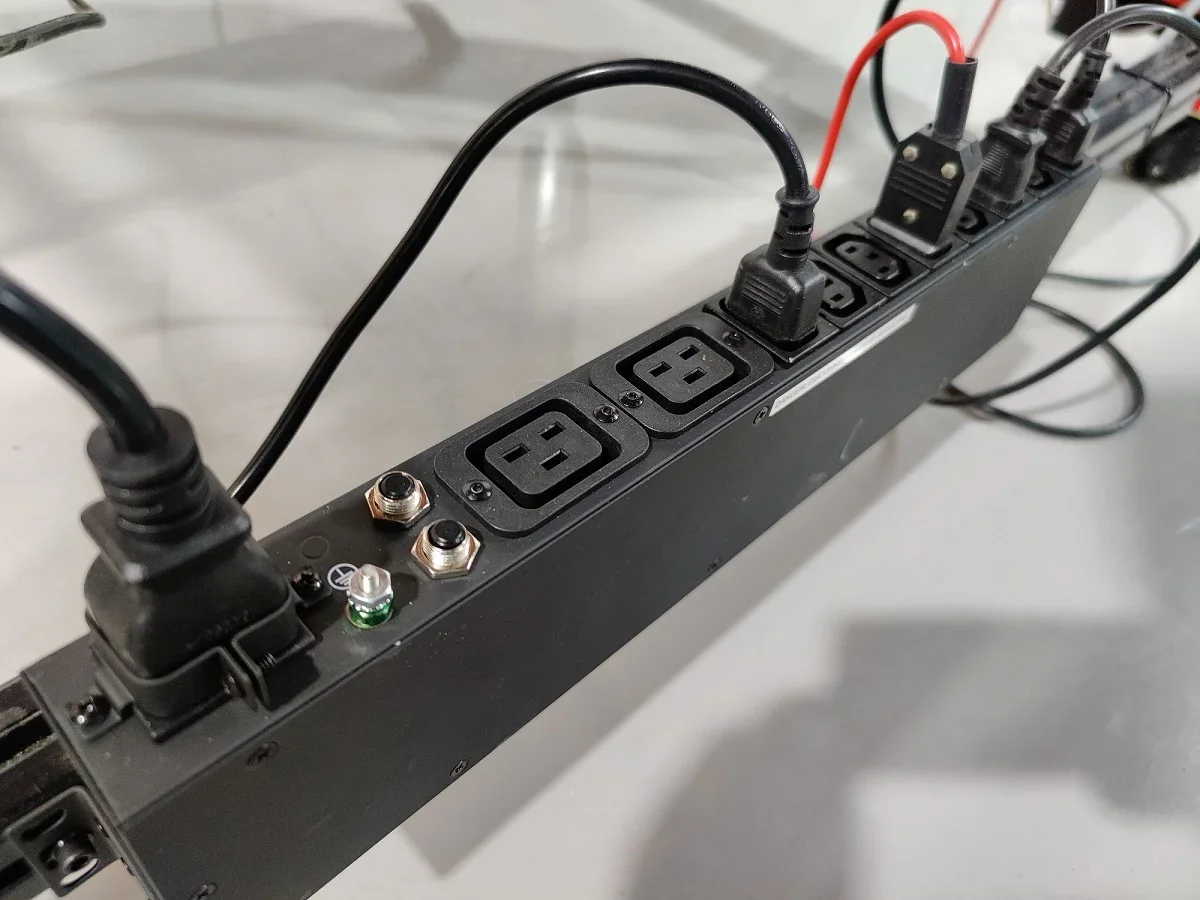

  • Power Distribution Unit (PDU) (optional)
  • 8 kg spool shelf (optional)

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

Modix BIG-120Z V4

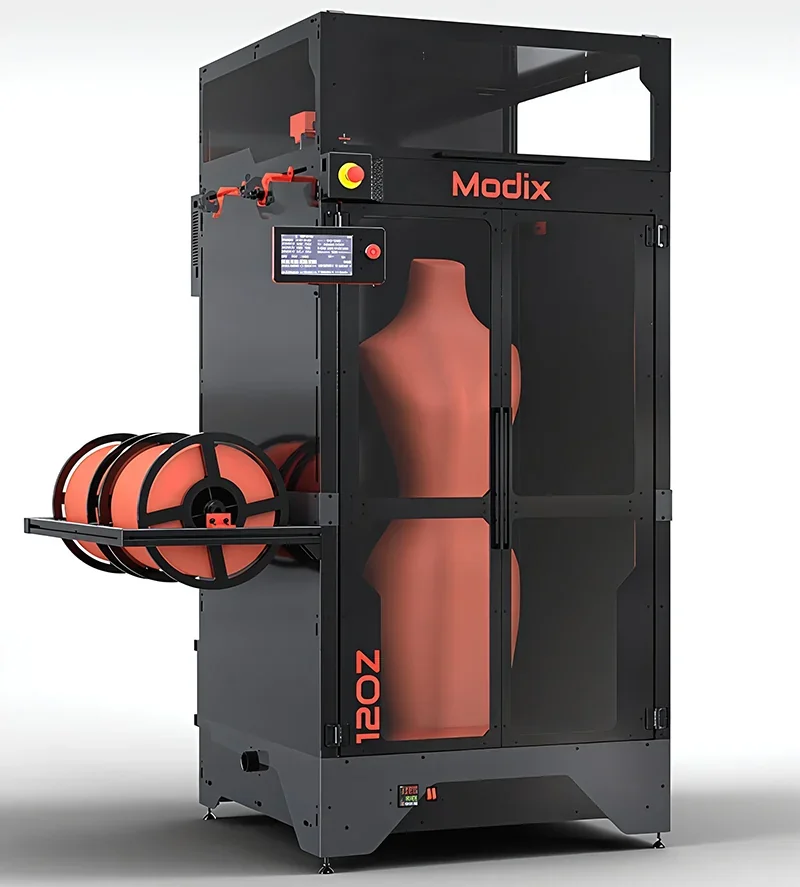

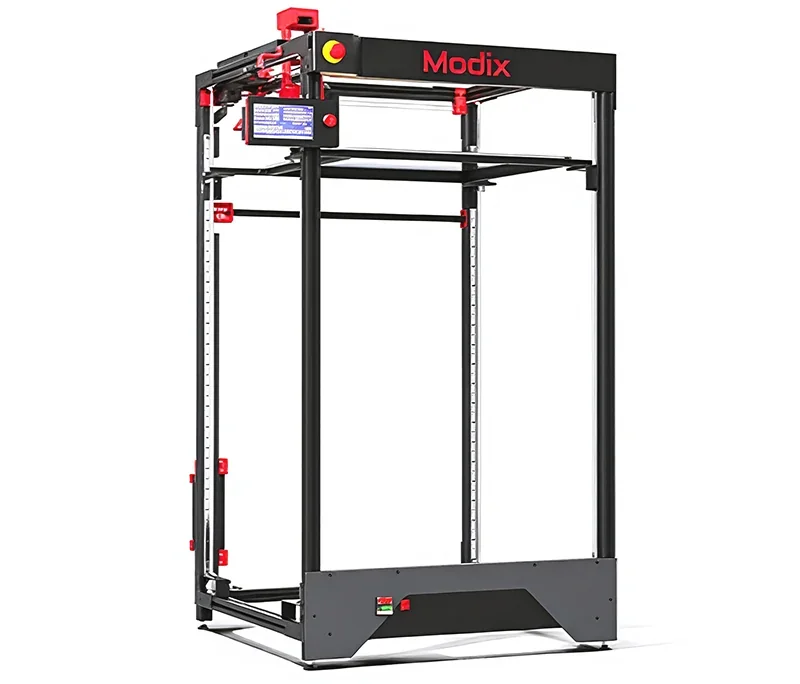

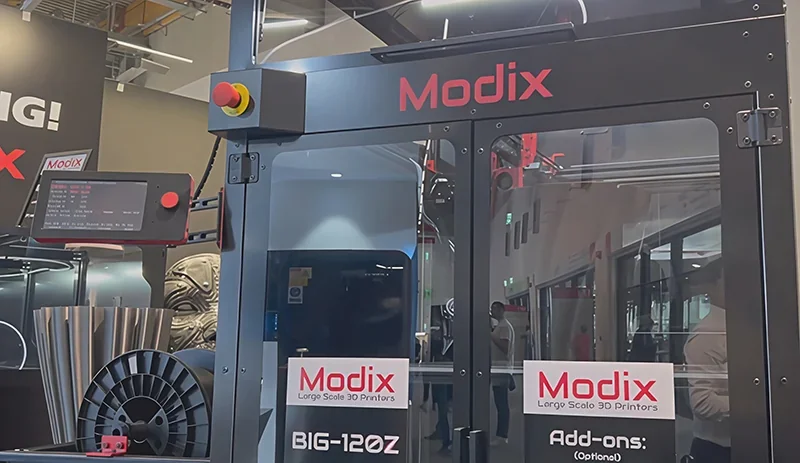

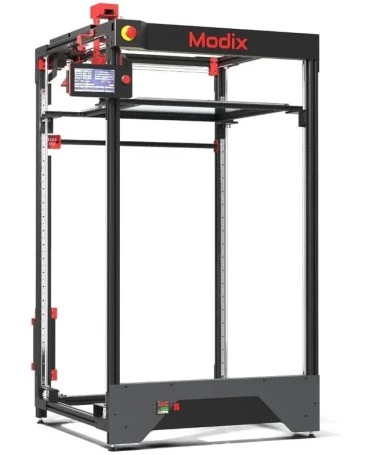

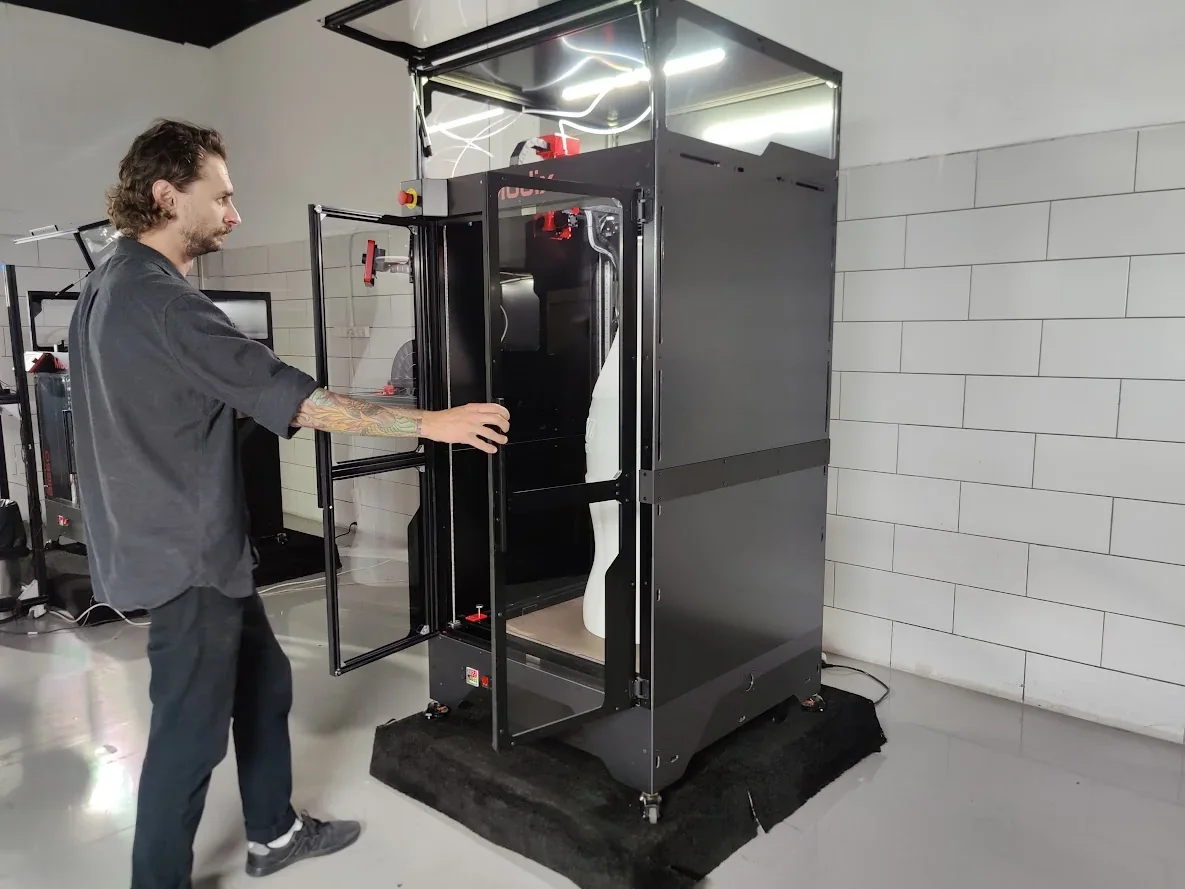

The Modix BIG-120Z V4comes with a black metal frame and an optional closed enclosure made of aluminum composite panels. Its stylish look and huge volume make it ideal for professional-grade applications in a variety of industries.

The printer dimensions are 35.7 x 41.7 x 78.7 inches (906 x 1060 x 2000 mm). The spool holder is mounted on the left side of the machine.



Price

The price for the Modix BIG-120Z V4 3D printer is $7,500.00, which is reasonable considering its functionality, massive build area, and quality outputs.

Warranty

The Modix warranty policy is available at the link below:

https://www.modix3d.com/modix-general-terms-and-conditions-of-online-sale/
