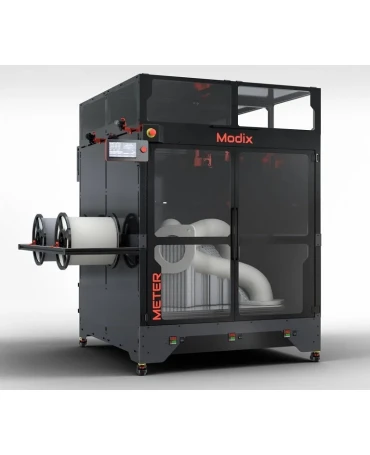

The Modix BIG-Meter V4 is a self-assembly, industrial-grade FDM printer with a massive 1,010 x 1,010 x 1,010 mm build volume, designed for full-scale prototypes, tooling, and end-use parts in a single print. It offers 10-micron X/Y and 0.5-micron Z-axis precision, a 500°C-capable Griffin print head, and automatic calibration tools including: bed tilt calibration, bed leveling, gantry alignment and Z offset calibration for consistent quality. Built for demanding industries like automotive and film, it supports a wide range of materials and features a modular design with upgrade options like IDEX dual extrusion, a high-flow hotend, and an active air filter.

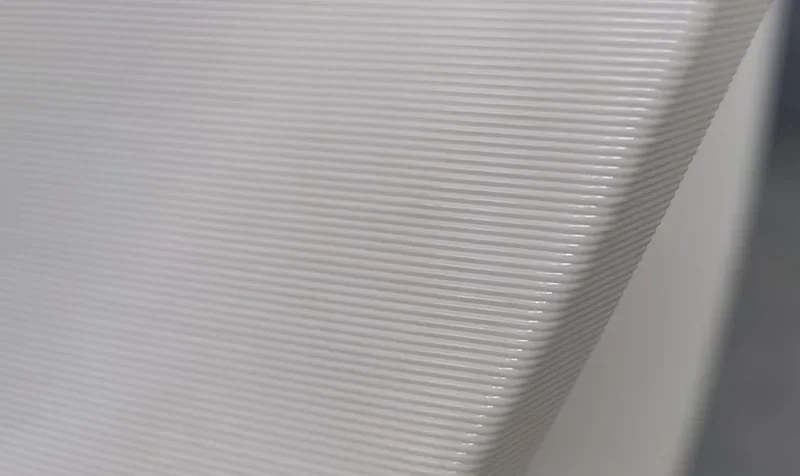

The Modix BIG-Meter V4 offers professional-grade print quality with a minimum layer height of 40 microns and smooth surface finish. It achieves 10-micron motion accuracy on the X/Y axes and 0.5 microns motion accuracy on the Z axis, ensuring precision across the print volume.

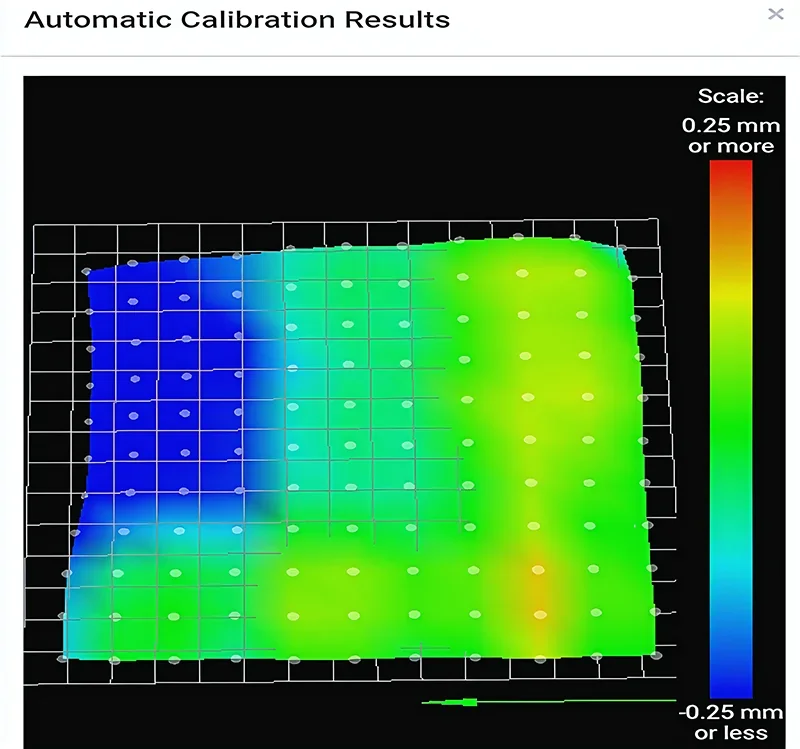

Precision is maintained with a 100-point automatic bed leveling system that creates a detailed surface mesh for consistent first layer adhesion.
The Modix BIG-Meter features a robust motion system with Hiwin MGW9W rails and Trinamic TMC2660 stepper drivers for fast, precise movements up to 250 mm/s. The Z-axis uses four individually controlled ball screws for improved stability, eliminating wobble during tall prints. Each extruder has dedicated cooling fans to prevent stringing and warping, especially with PLA.
The productivity of the Modix 3D printer depends on the extruder, with Griffin variants ranging from ~46.9 g/h (High-Resolution) to over 500 g/h (Ultra), driven by differences in hotend length, melt path design, and heater power.
| Feature / Spec | Griffin (Standard) | Griffin High-Resolution | Griffin High-Flow | Griffin Ultra |
|---|---|---|---|---|
| Use Case | All-purpose printing | Ultra-fine detail | High-speed, large prints | Maximum throughput, industrial use |
| Design | Standard hotend | 50% shorter for precision | Double-length for more melt volume | Extended dual-zone melt path (4× standard) |
| Flow Rate | ~30 mm³/s | ~15 mm³/s | ~45–60 mm³/s | ~160 mm³/s |
| Extrusion Rate | ~93.8 g/h | ~46.9 g/h | ~140.6–187.5 g/h | >500 g/h |
| Nozzles | Volcano-compatible; 0.4, 0.6, 0.8mm | Volcano-compatible; 0.4mm | Volcano-compatible; 1.0mm | Volcano-compatible; 1.6mm |
| Heater | 50W standard | 50W standard | 80W upgraded | Dual heaters (>80W) |
| Cooling | Standard fan | Standard fan | Standard fan | Dual XXL blowers |
| Max Temp | Tested to 340°C, supports up to 500°C | Tested to 340°C, supports up to 500°C | Tested to 340°C, supports up to 500°C | Tested to 340°C, supports up to 500°C |
| Build Volume Impact | None | None | None | Reduces X by 50mm; Y by 50mm (IDEX mode) |
The optional Griffin High-Resolution Extruder supports tight tolerances. For example, this video shows 50-micron layer height printing, producing two detailed 11.5mm bolt parts in 27 minutes. Printed in Glitter Gray PLA using a 0.4mm nozzle at 185°C, 55°C bed, 2.5mm retraction, 100% fan, 2 outer walls, and 7 top solid layers.
The optional Griffin Ultra hotend halves production time — a 1-meter statue printed in 21 hours vs. 47 with the standard Griffin Extruder.
Print quality is maintained during long jobs with features like the filament run-out sensor, clog detector, and crash detector, which identify issues before they impact prints.
The fully enclosed design with an optional active air filter maintains stable temperatures, reducing drafts and temperature fluctuations that could cause warping or layer separation. The PEI print surface ensures strong adhesion during printing and easy part removal after completion.
The following video demonstrates the Modix BIG-Meter's automated sequence printing performance across its 1,000 × 1,000 × 1,000mm build volume, showcasing the printer's ability to maintain consistent print quality while executing unattended batch production of multiple parts sequentially across different bed areas.
Case Study: A 1:400 scale model of Boston, spanning 750 sq ft, was 3D printed for public display using over 1 metric ton of PLA across 186 sections — mostly on Modix Big Meter and Big 180X printers. Completed between July and December, it had a 92% print success rate.
Image Credit: Mark Rothman

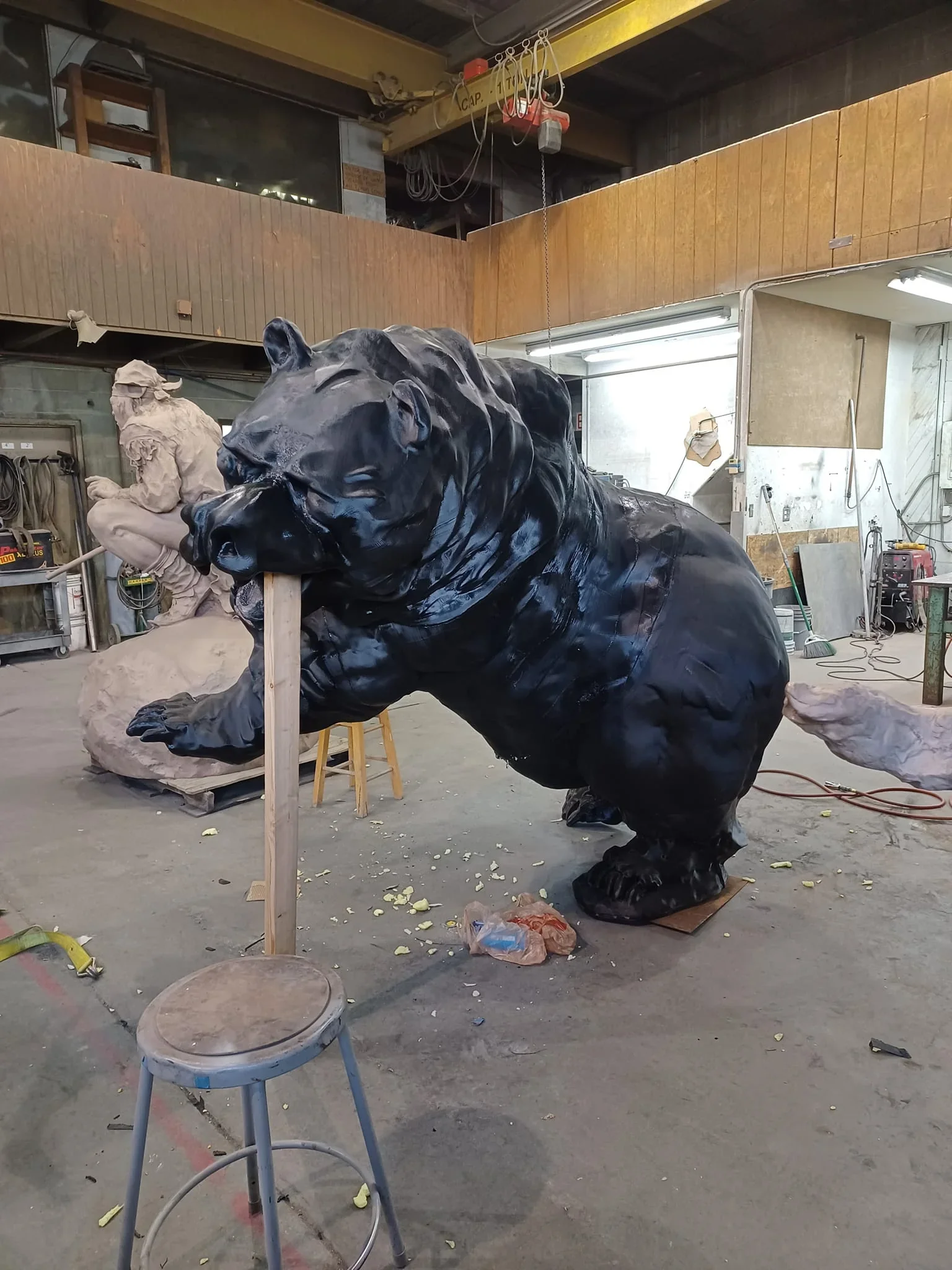

Case Study: A full-sized bear was 3D printed on a Modix BIG-Meter over 504 hours using 15 kg PLA spools, 2% infill, a 1.0 mm nozzle, 0.5 mm layers, and 100 mm/s speed, then coated in clay and molded for bronze casting.
Image Credit: Sussy Bacha

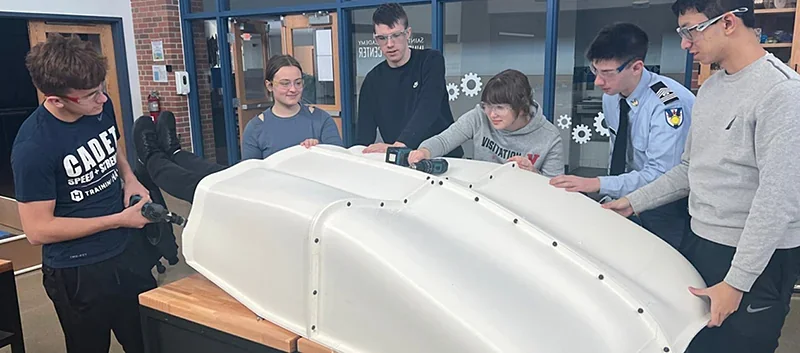

Case Study: The St. Thomas Academy Experimental Vehicle Team used the Modix BIG Meter to cost-effectively 3D print large, precise mold negatives for carbon fiber layups, helping them win first place in their Shell Eco-Marathon division.
The Modix BIG-Meter V4 supports over 15 filaments, including PLA, PETG, ABS, ASA, TPU, nylon, and composites like carbon fiber. Its Griffin print head reaches 450°C, and the heated bed hits 110°C, enabling reliable printing with engineering materials. Optional hardened steel nozzles (0.4/0.6/0.8mm) resist wear from abrasive filaments like carbon fiber and wood composites.

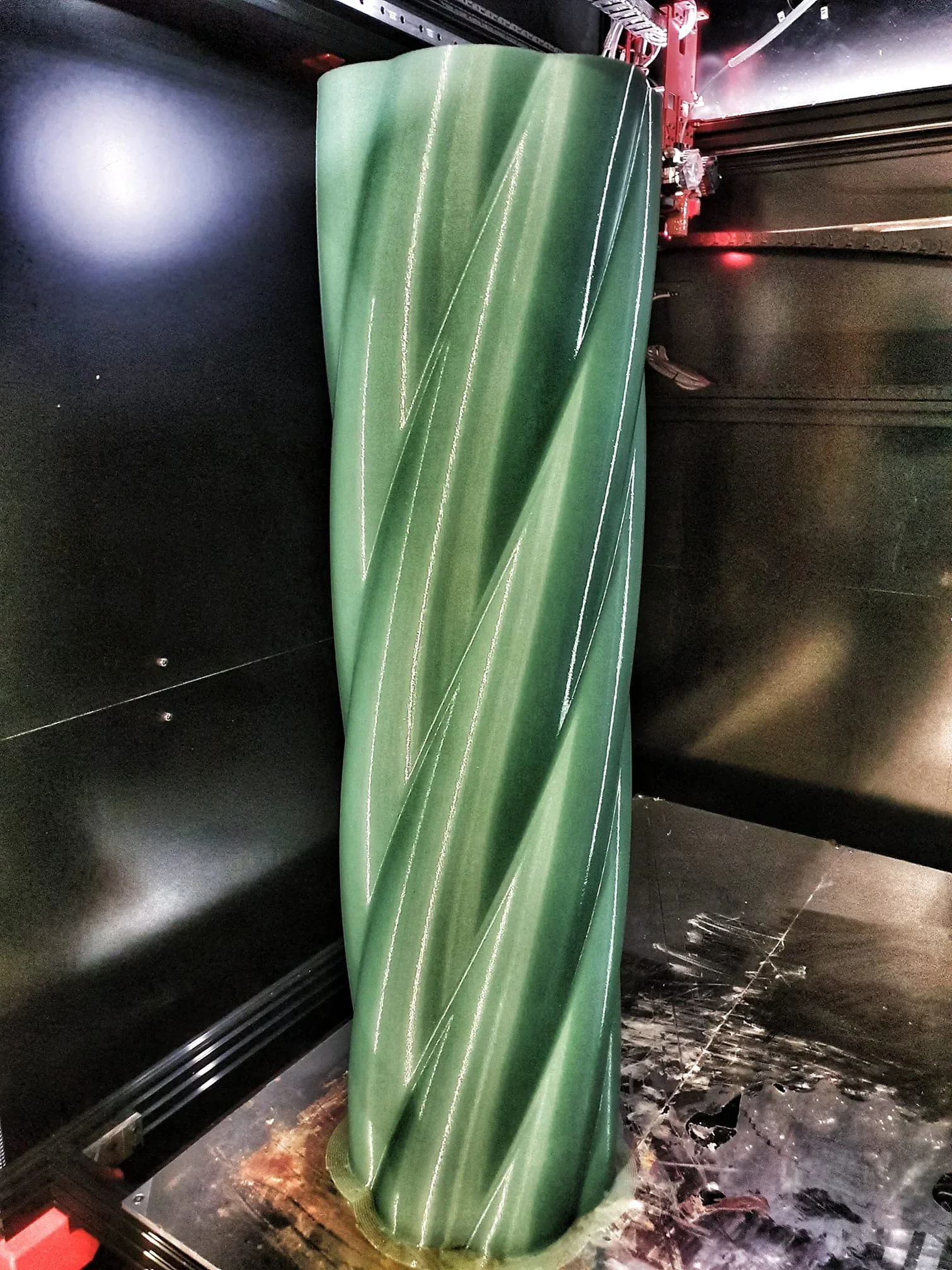

PLA 3D Print Sample:

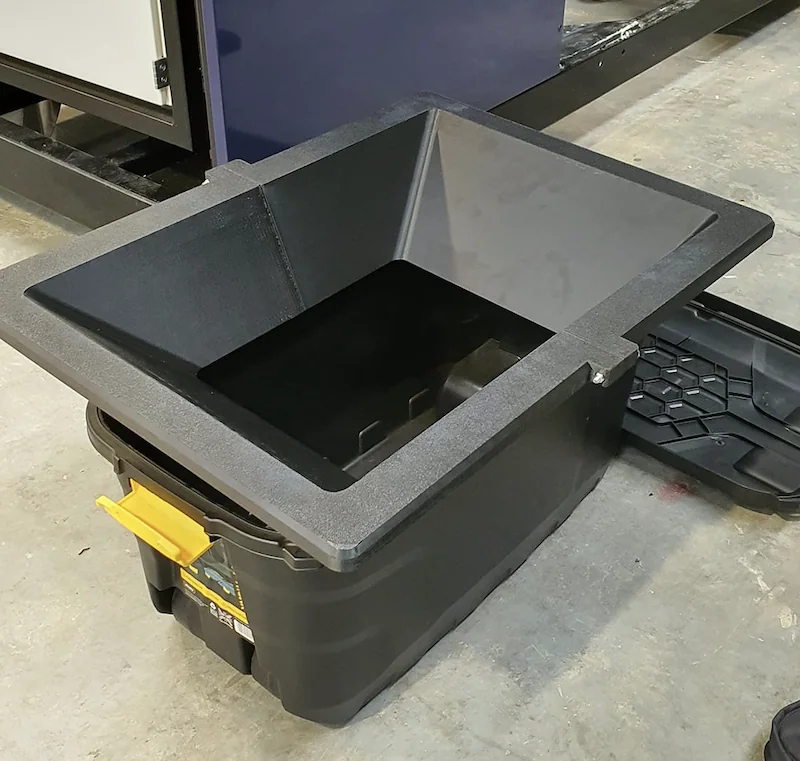

ABS-X Fan Intake Adapter: 250 × 250 × 415 mm, 43-hour print, 650 g.

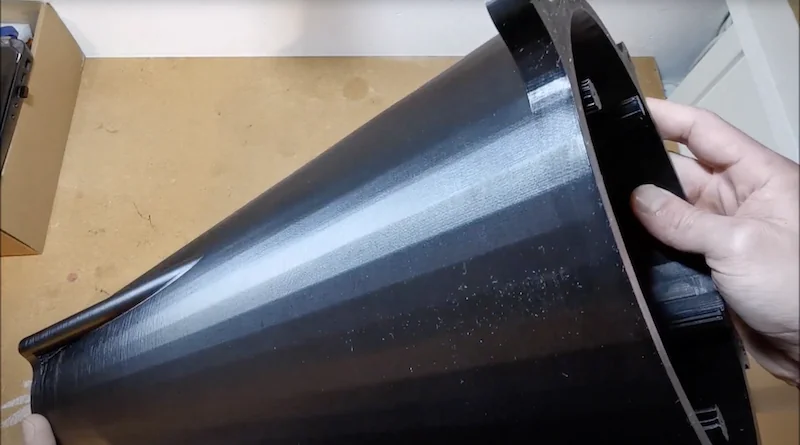

PETG 3D Print Sample:
Nylon 3D Print Sample:
Image Credit: Michael Hunt, Facebook Community Group
Carbon Fiber Filled 3D Print Sample for a NASA project:

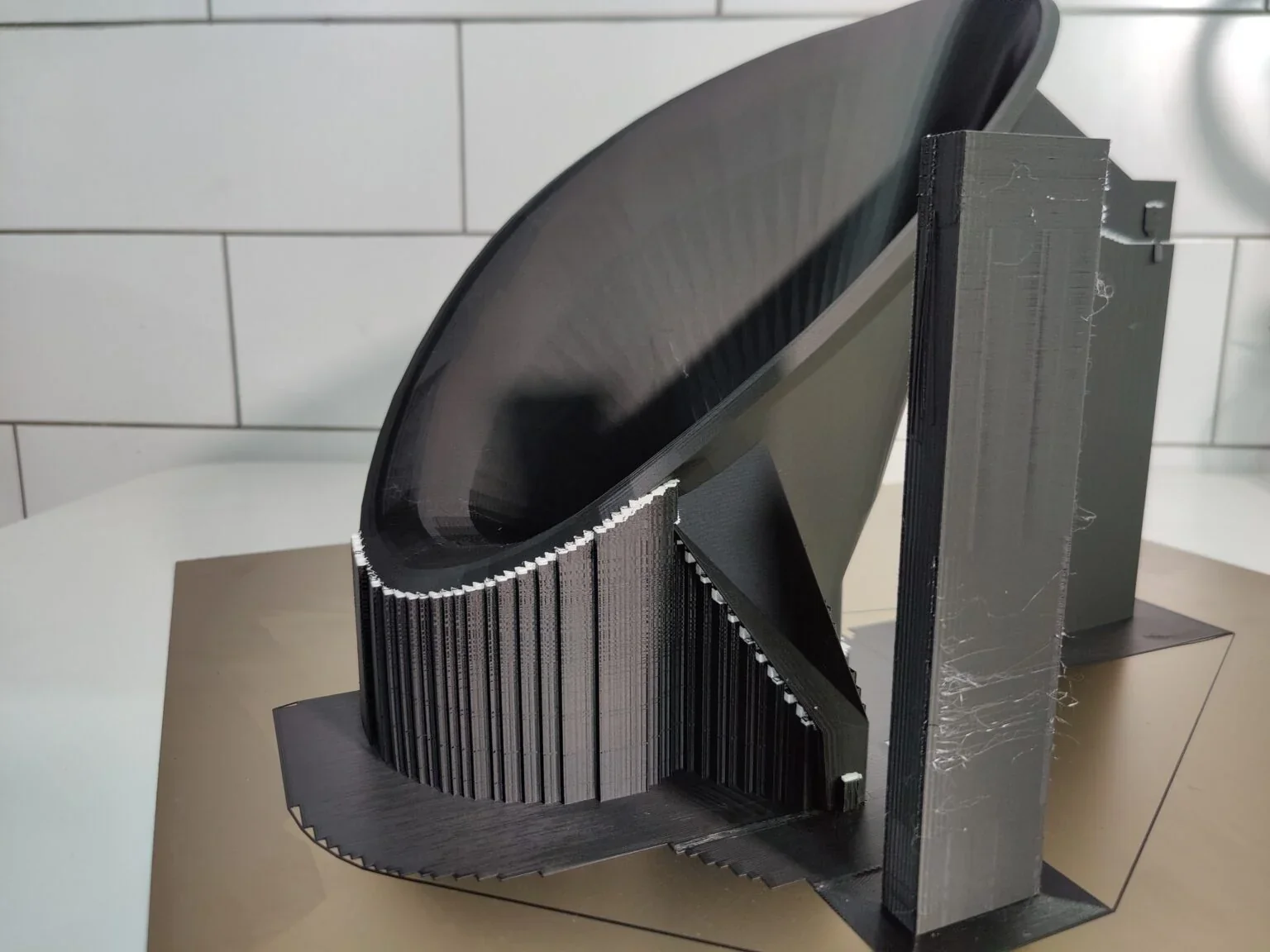

The optional IDEX system allows printing complex internal geometries with dedicated support materials, including soluble filament that dissolves in water with Modix’s solution, for complex prints requiring support structures.

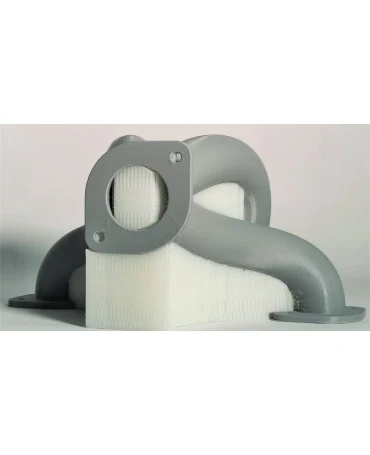

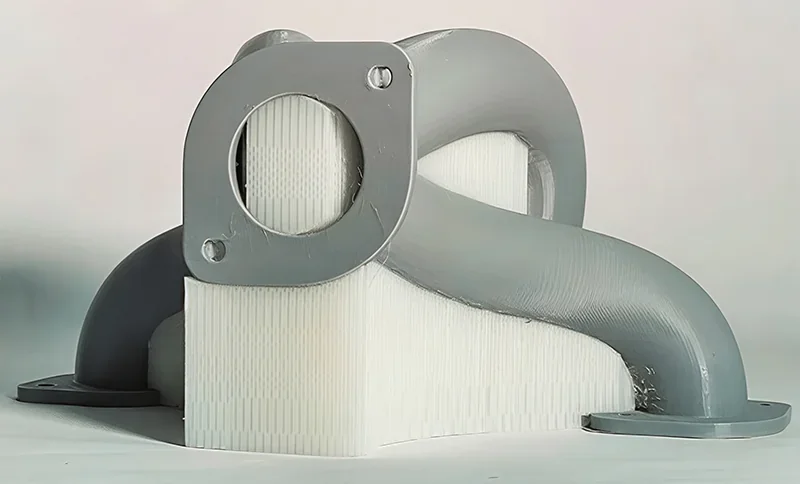

Printing with breakaway support filament
Printing with soluble support filament
The Modix BIG-Meter V4 offers a cubic build volume of 1,010 x 1,010 x 1,010 mm (40 x 40 x 40 inches), providing 1 cubic meter of printing space. This allows printing large objects in one piece, resulting in stronger products with less post-processing.
Modix Big-Meter — value pick in the 1-m³ class: $20,000+, full 1000×1000×1000 mm build, 110 °C bed, components rated 500 °C (tested 340 °C), optional IDEX, and the broadest hotend choices (~30 / 45–60 / 160 mm³/s; >500 g/h) — trade-offs are no active chamber and self-assembly.
In contrast:
| Specification | Modix Big-Meter | Mingda MD-1000D | Creatbot D1000 HS | BigRep ONE (ONE.5) |
|---|---|---|---|---|
| Price (USD) | $20,000+ | $32,999+ | $35,999+ | $49,900+ |
| Build volume (mm) | 1000 × 1000 × 1000 | 1000 × 1000 × 1000 | 1000 × 1000 × 1000 (Single); 940 × 1000 × 1000 (Dual) | 1005 × 1005 × 1005 |
| Enclosure / chamber | Enclosed; No active heated chamber. | Enclosed; No active heated chamber. | Enclosed, Active Heated chamber: 60 °C | Open frame; no heated chamber |
| Extruders / IDEX | Single; IDEX optional | Dual extruders, not IDEX | Dual, not IDEX | Single/Dual/Twin (IDEX) modes available |
| Max nozzle temp (°C) | Components rated 500 (tested to 340) | ≤ 350 (rec ≤ 320) | 420 | 280 |
| Max bed temp (°C) | 110 | 110 | 100 | 80 |
| Volumetric flow (mm³/s) | Std ~30; High-Flow 45–60; Ultra 160 | 40 | 90 | n/s |
| Rated output (g/h) | Std ~93.8; Ultra >500 | n/s | n/s | ~72 |
| Assembly | Self-assembly kit (assembly services available in the US/EU) | Assembled | Assembled | Assembled |
Bottom-Line:
The Modix Big-Meter V4 3D printer features 5 distinct printer control interfaces: touchscreen, remote web-access interface, emergency stop button (electronic controller reset), SD card interface, and USB cable connection.
1. 7-inch Touchscreen Interface

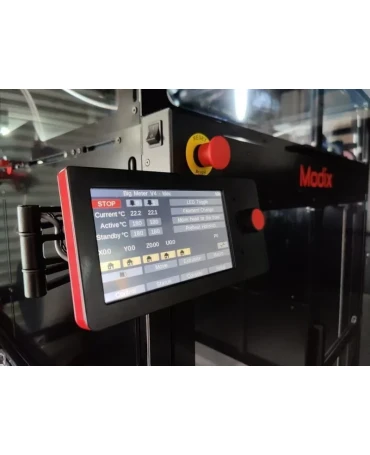

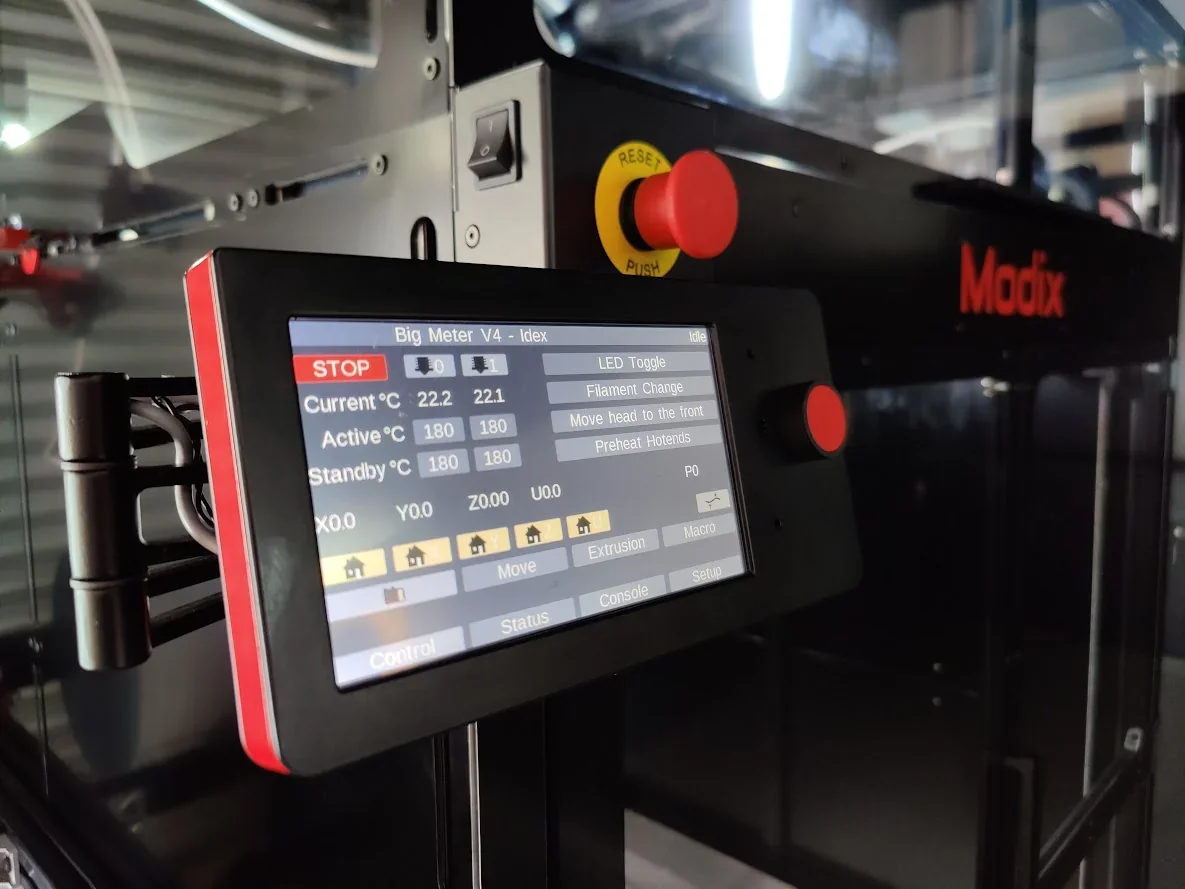

The machine features a 7-inch, 800 x 480 color touchscreen (PanelDue by Duet3D) integrated with the Duet2 3D printer electronic controller for direct physical control.
2. Remote Web Interface (Wi-Fi)

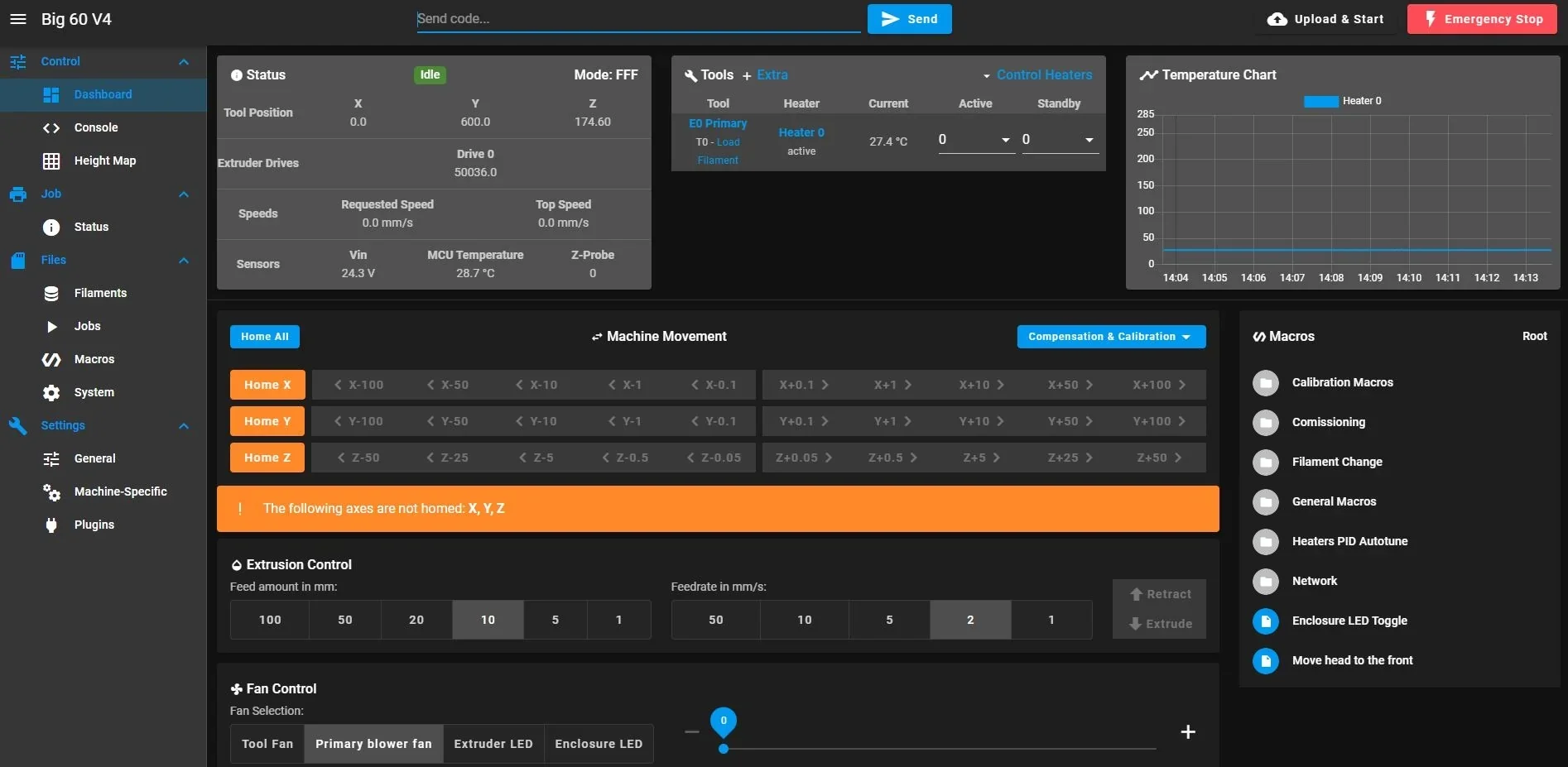

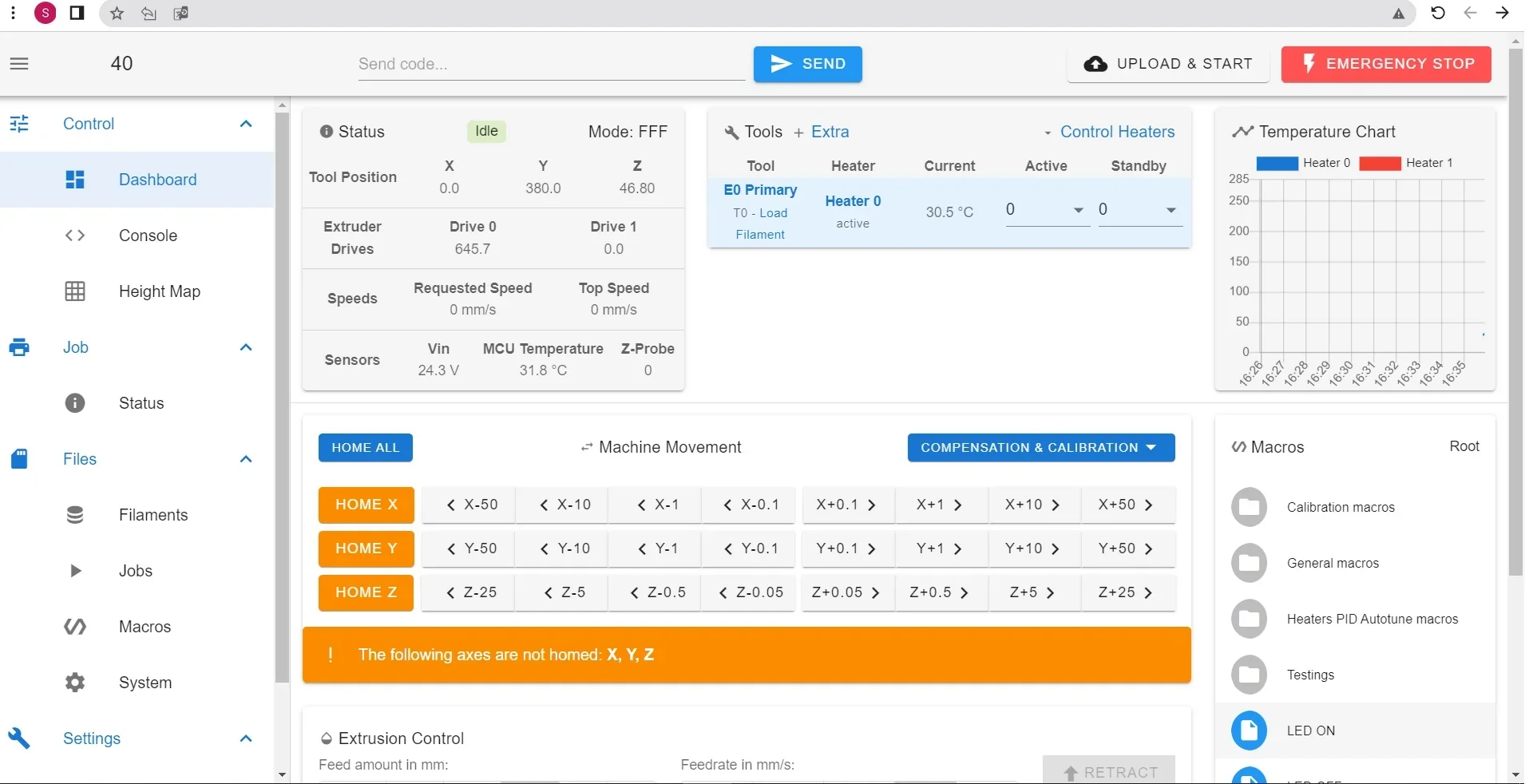

The Duet 2 WiFi controller allows full printer control via a web interface on PC, tablet, or smartphone. Users can upload G-code and monitor prints remotely.

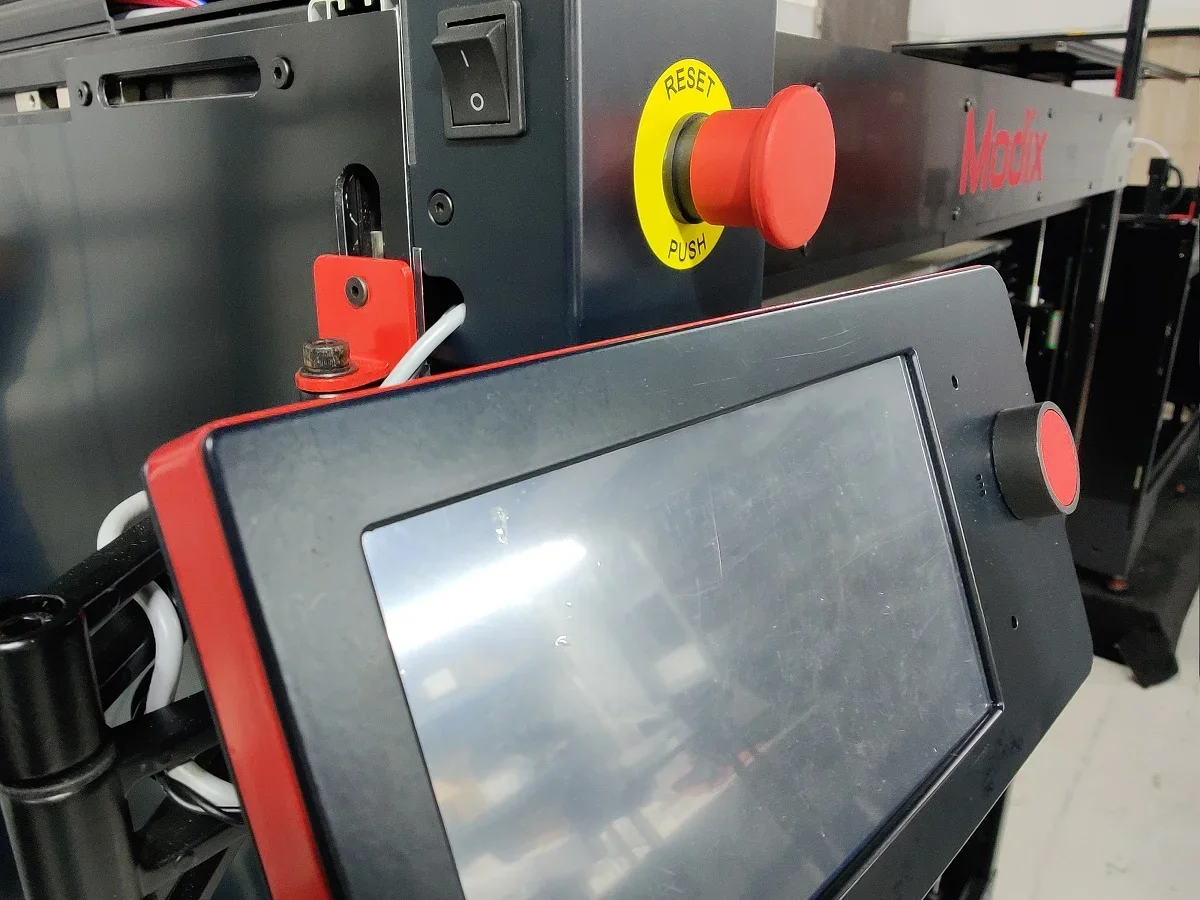

3. Emergency Stop Button
A dedicated emergency stop button allows immediate print termination for safety.
4. SD Card Interface
The printer supports direct printing via high-speed SD card slots built into the touchscreen.
5. USB Cable Connection
Direct USB connectivity enables file transfer and printer control.
Additional Control Features:
The Modix BIG-Meter V4 offers 3 connectivity options: SD card, USB, and Wi-Fi. It supports direct printing from SD cards, computer control via USB, and wireless file transfer and remote control through its Duet3D Wi-Fi controller. Operators can monitor and adjust settings remotely via web interface on computers, smartphones, or tablets.
Once connected to a network, the Modix BIG-Meter V4 can be accessed via its IP address displayed on the touchscreen. The web interface allows full control over print jobs, temperature, calibration, and maintenance. This networked setup is ideal for industrial use, enabling production teams to monitor large prints remotely and receive real-time updates on progress and issues.
For regulated environments where Wi-Fi connectivity is prohibited, the Duet3D Ethernet board can be ordered and installed as an alternative networking solution.

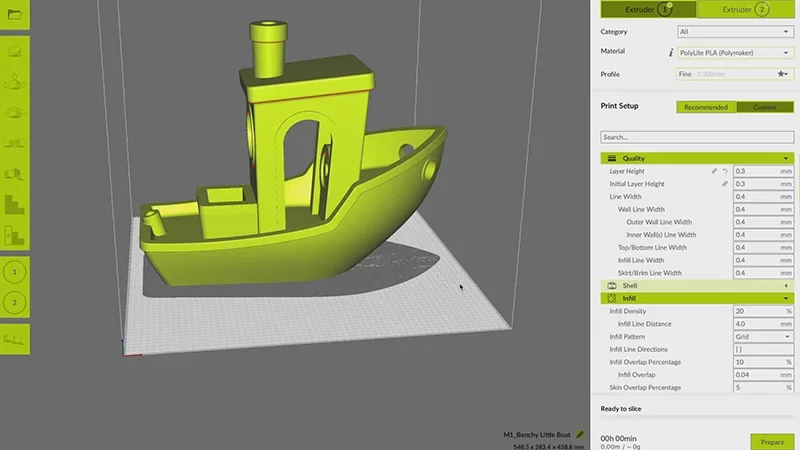

The Modix BIG-Meter V4 supports an open software ecosystem, compatible with slicing software solutions like Cura, Simplify3D and PrusaSlicer.
The printer runs on RepRap firmware, ensuring stable operation and easy updates via the web interface. Customers gain access to a dedicated Modix customer zone with an online assembly guide, user manuals, material-specific print profiles, and firmware downloads.
Remote control and monitoring are enabled via the Duet3D web interface, accessible through Wi-Fi or direct connection. This browser-based system allows full management of the printer, including job submission, temperature control, manual movement, and real-time print progress monitoring.

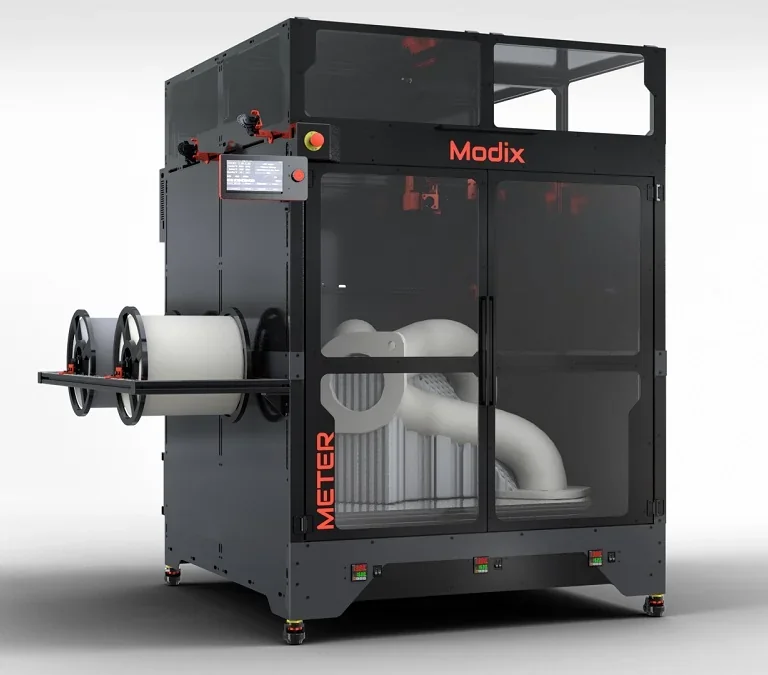

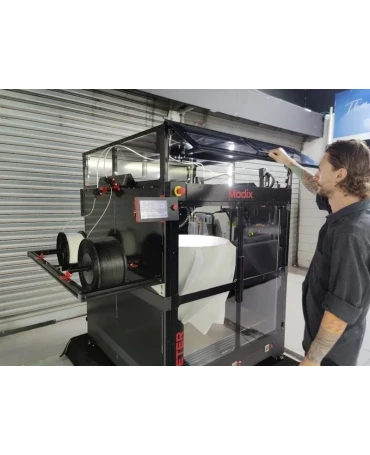

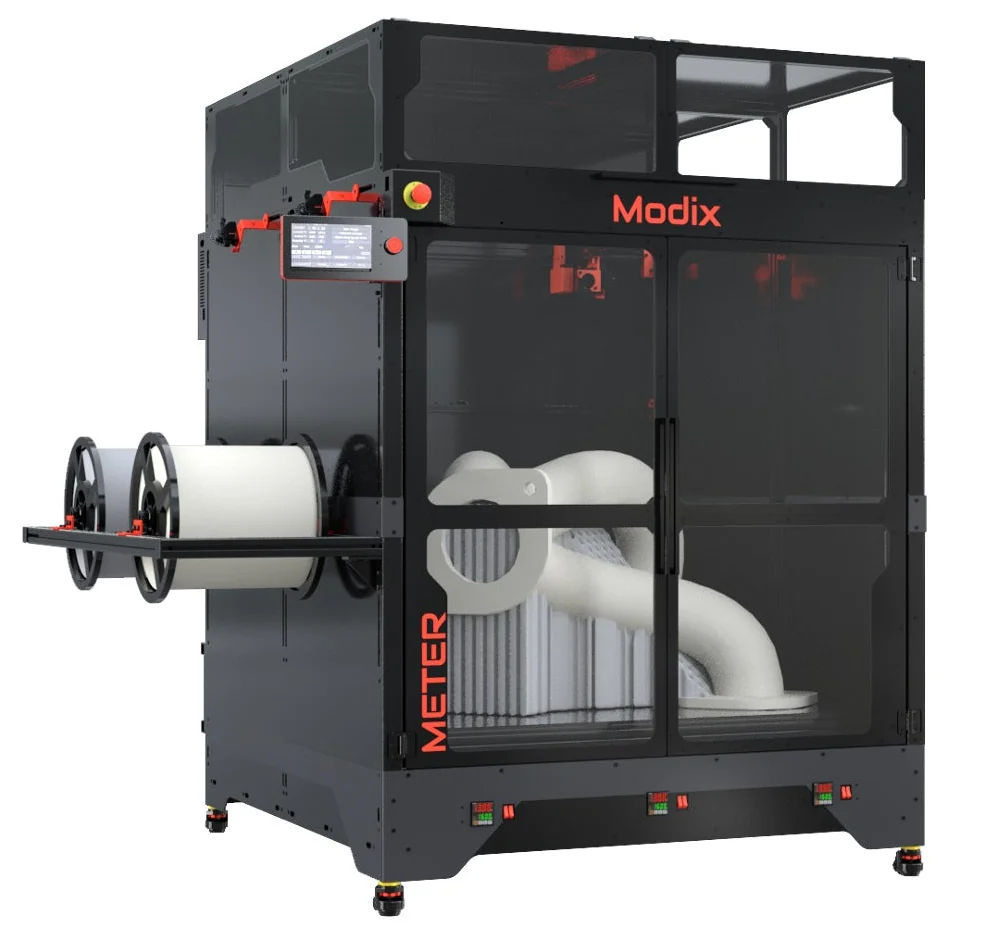

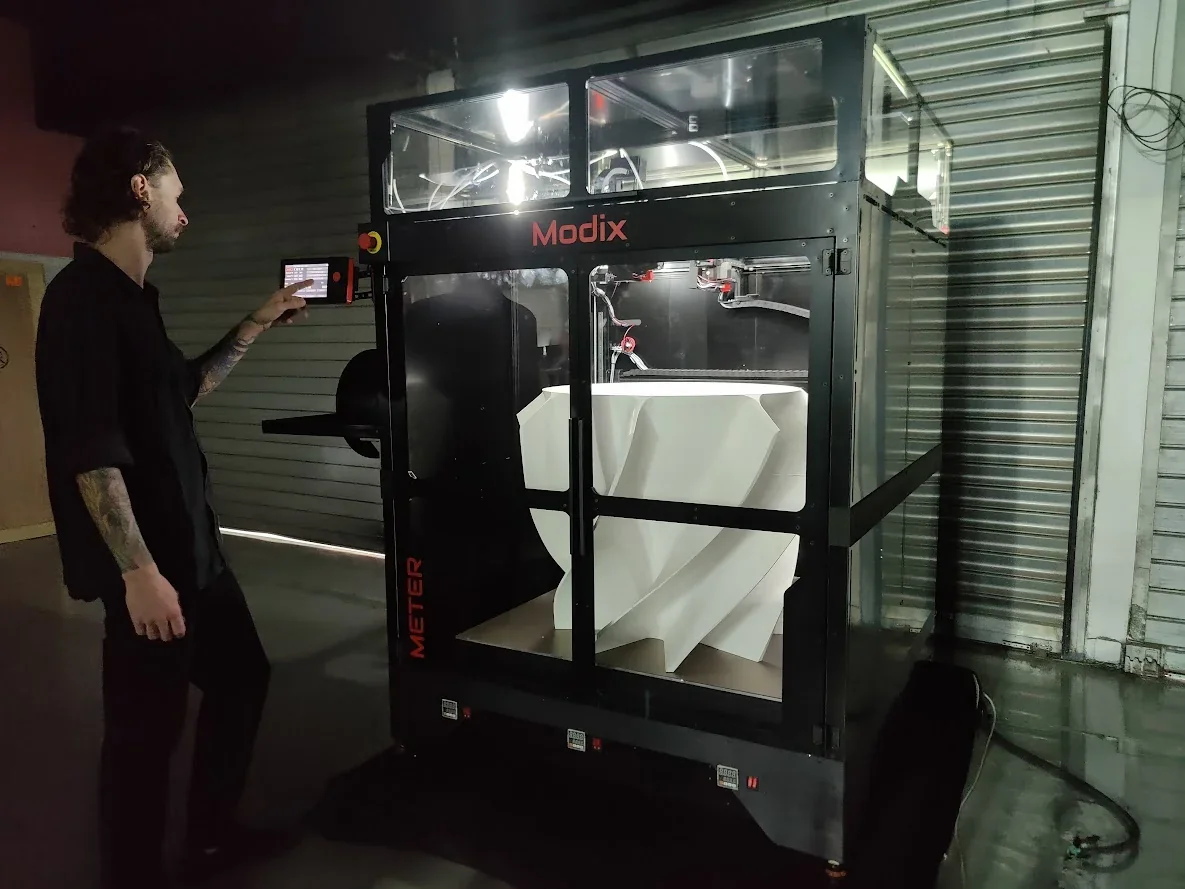

The Modix BIG-Meter V4 features an industrial cubic enclosure with a black aluminum composite frame and transparent polycarbonate panels. It measures 1,739 x 1,424 x 1,976 mm (WxDxH) with the enclosure and weighs 200 kg for shipping. The 3mm thick aluminum composite panels (ACP) form the main structure, with polycarbonate doors and top lid for visibility into the build area.

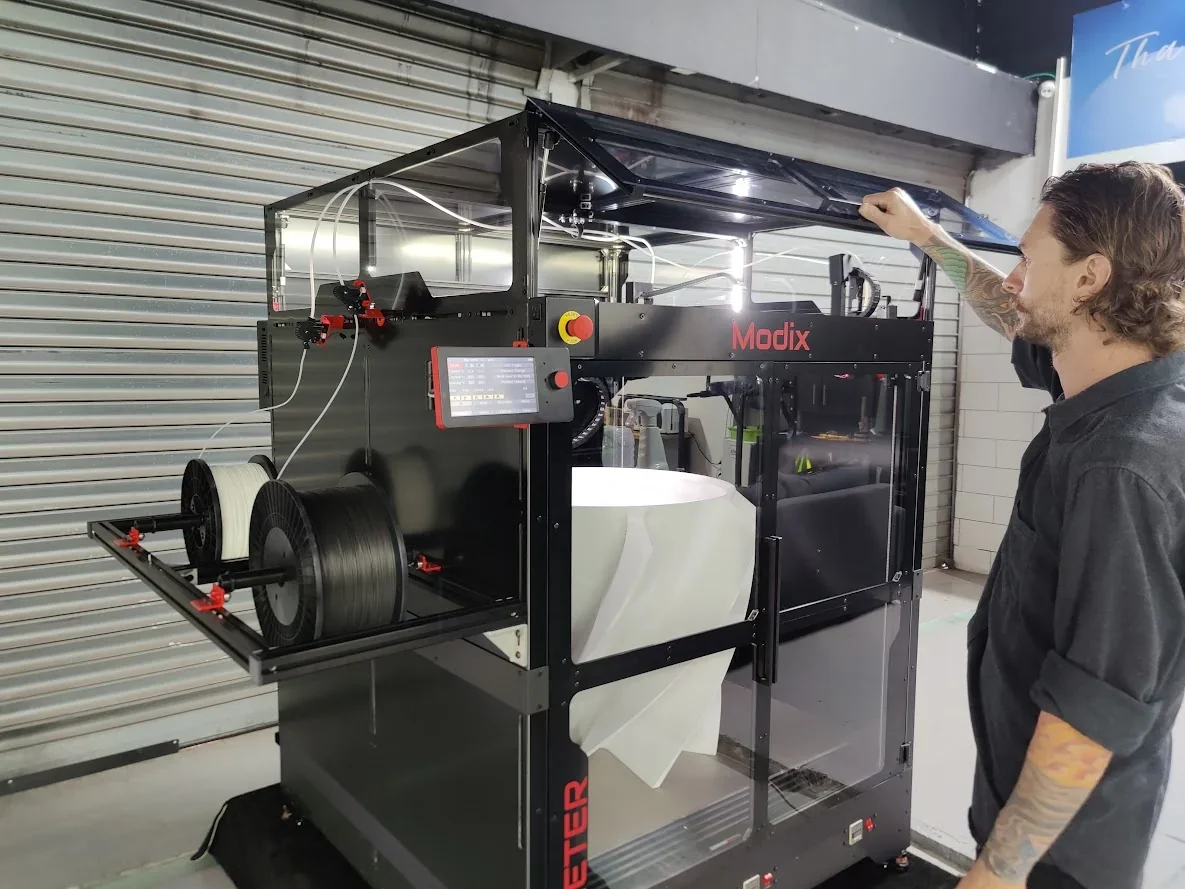

The BIG-Meter V4 features fourth-generation improvements, including a pneumatic top cover for easy access, a rear hatch, and reinforced hinges with elastic seals on all doors. The frame sits on articulated leveling feet with casters for mobility, and LED lighting illuminates the interior for better visibility.
The motion system uses HIWIN MGW9 linear guides for all axes. The X and Y axes are driven by Gates GT2 timing belts with 9mm width and fiberglass reinforcement, while the Z-axis uses SFU1204 ball screws with a 2:5 belt gear reduction for precise vertical movement.

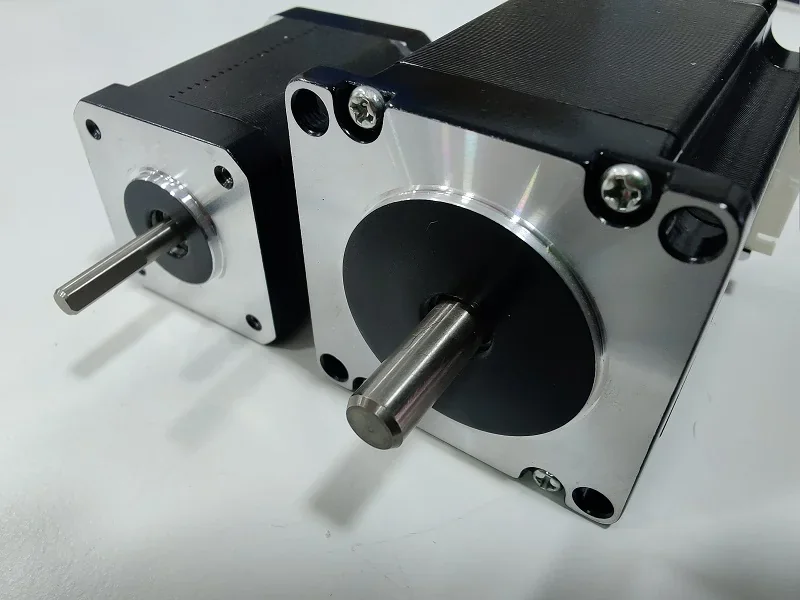

The motor configuration includes 2 NEMA-23 motors for the X-axis, 1 or 2 NEMA-17 motors for the Y-axis (depending on IDEX), and 4 NEMA-23 motors for the Z-axis.

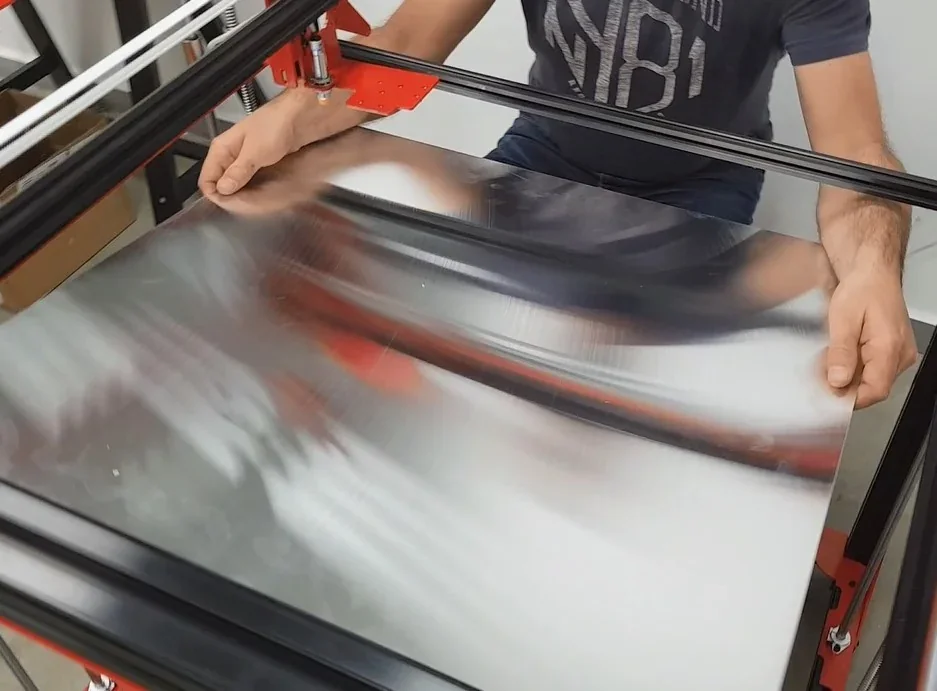

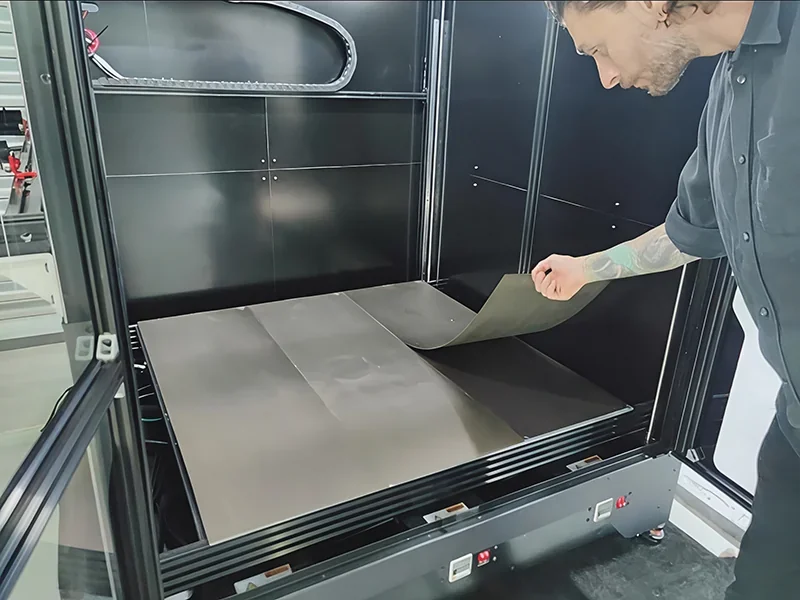

The build platform uses a 6.35mm thick Alcoa Mic-6 milled aluminum plate with 3 x 1,000W AC heaters controlled by Autonics TCN4 PID controllers. The maximum bed temperature is 120°C.
Automatic bed leveling is handled by a BL Touch probe measuring 100 points for shape mapping and tilt correction. The bed uses 4 ball-nut screws, each driven by a dedicated stepper motor with a belt gear reduction system. An optional magnetic bed with 3-piece PEI-coated spring steel allows easy part removal.

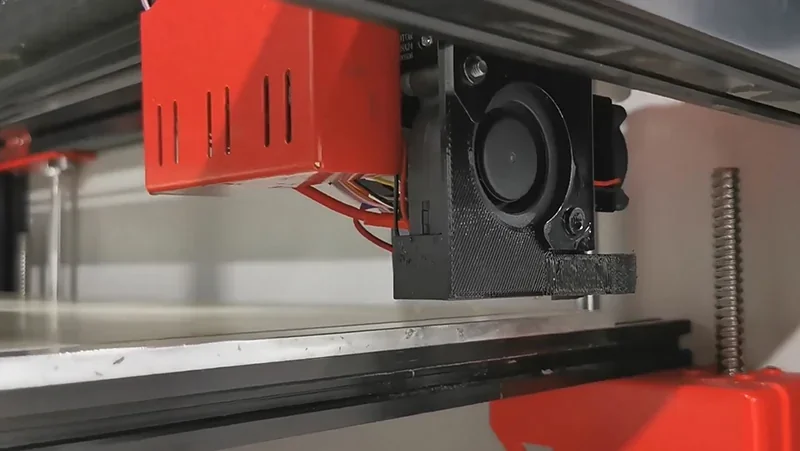

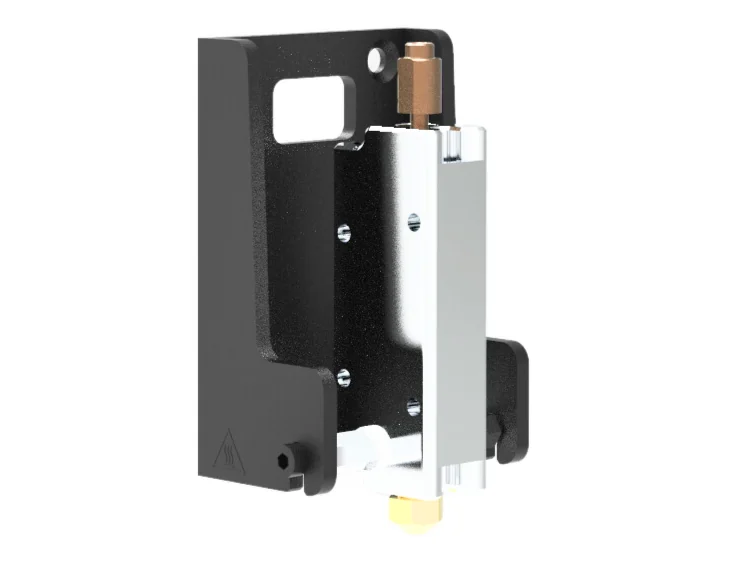

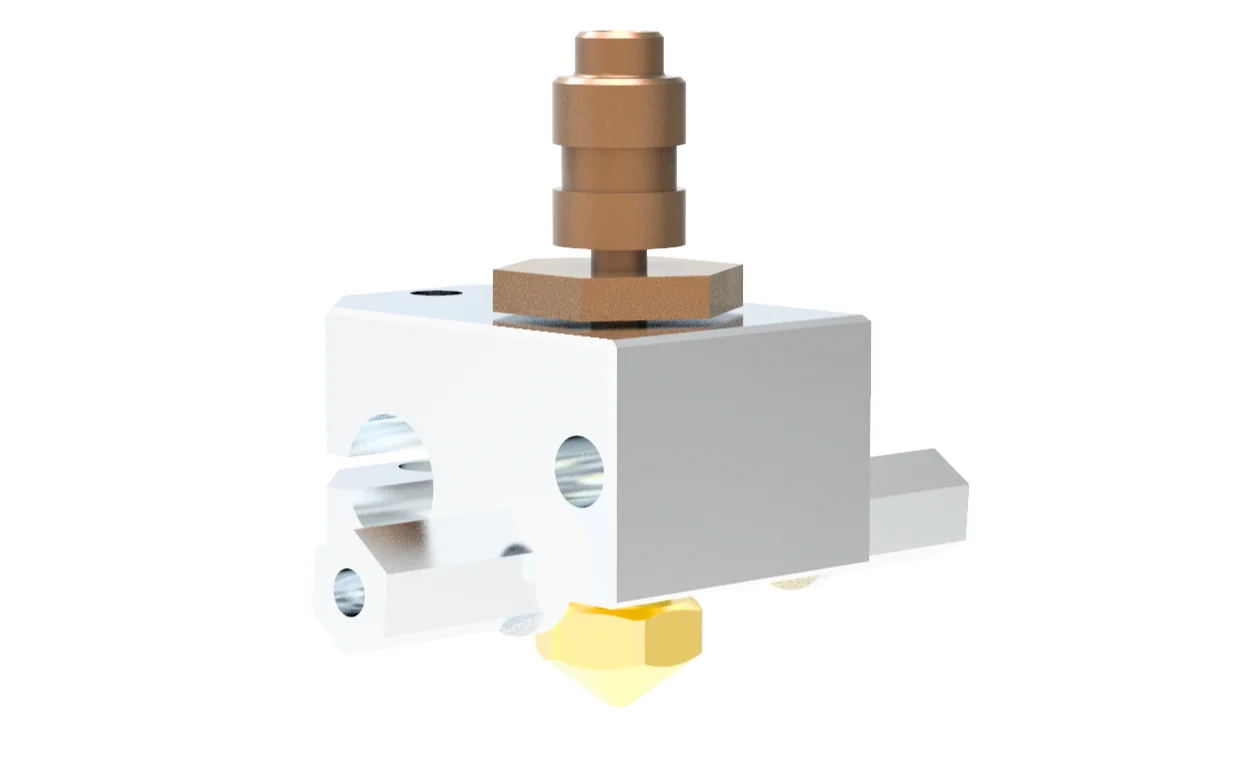

The BIG-Meter V4 comes with the Modix Griffin High Flow hotend, capable of up to 500°C (tested to 340°C). It uses Bondtech BMG direct drive extruders with 3:1 gear reduction, powered by Motech MT-1703HS168A motors. Standard nozzle sizes are 0.4mm, 0.6mm, and 0.8mm for the primary hotend, with a 0.4mm nozzle for the secondary IDEX hotend.
The filament sensor detects clogs, runout, and under-extrusion.

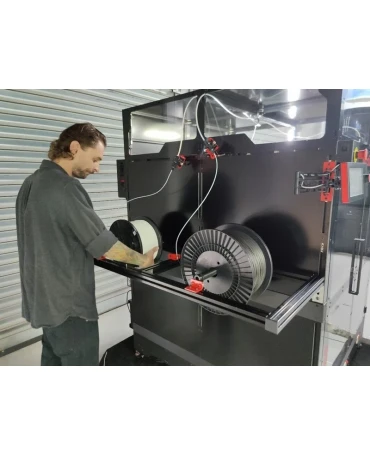

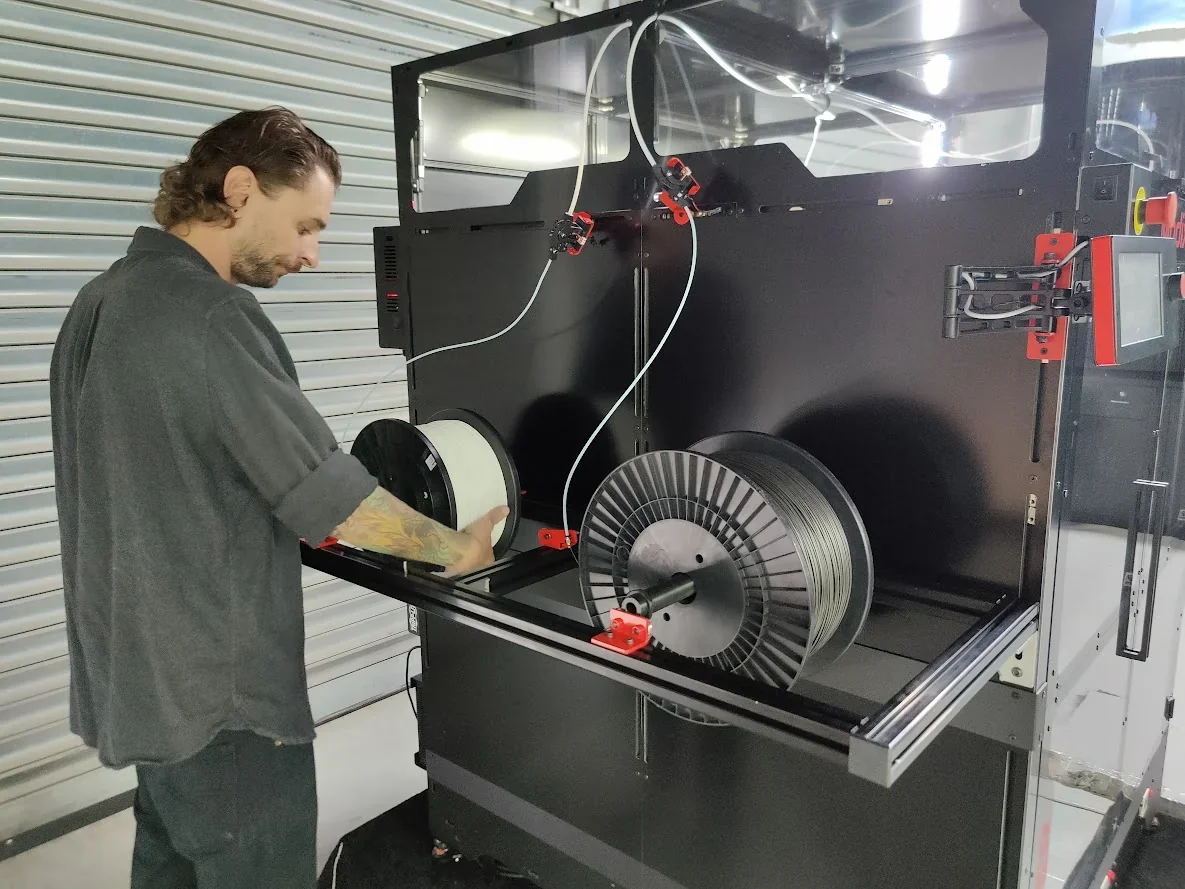

The BIG-Meter V4 uses 1.75mm filament with a spool mount outside the heated enclosure to prevent degradation. Fourth-generation models include upgraded filament feed sensors as standard, while previous generations offered them as an option. Filament management is handled by a dual-position spool-holder system mounted on the left side of the frame. The printer ships with two built-in holders, each rated for spools up to 8 kg, giving a combined on-board capacity of 16 kg for uninterrupted large-format printing.
The BIG-Meter V4 uses the Duet3D Duet2 WiFi board, with a second-generation 32-bit Duet controller and DueX5 expansion board for automated calibration. Local control is provided via a 7-inch PanelDue touchscreen.
The system uses a Meanwell 24V/280W power supply for electronics and motion, with a universal AC input (110–230V, 50/60Hz). The bed heater needs a separate 32A single-phase AC supply at 208–240V. North America uses NEMA L6-30P outlets; Europe, Australia, and the UK use IEC 309 32A Blue (2P+E). Separating the DC electronics from the high-current AC bed heater improves stability and reduces electromagnetic interference.
The Modix BIG-Meter V4 3D printing kit includes:

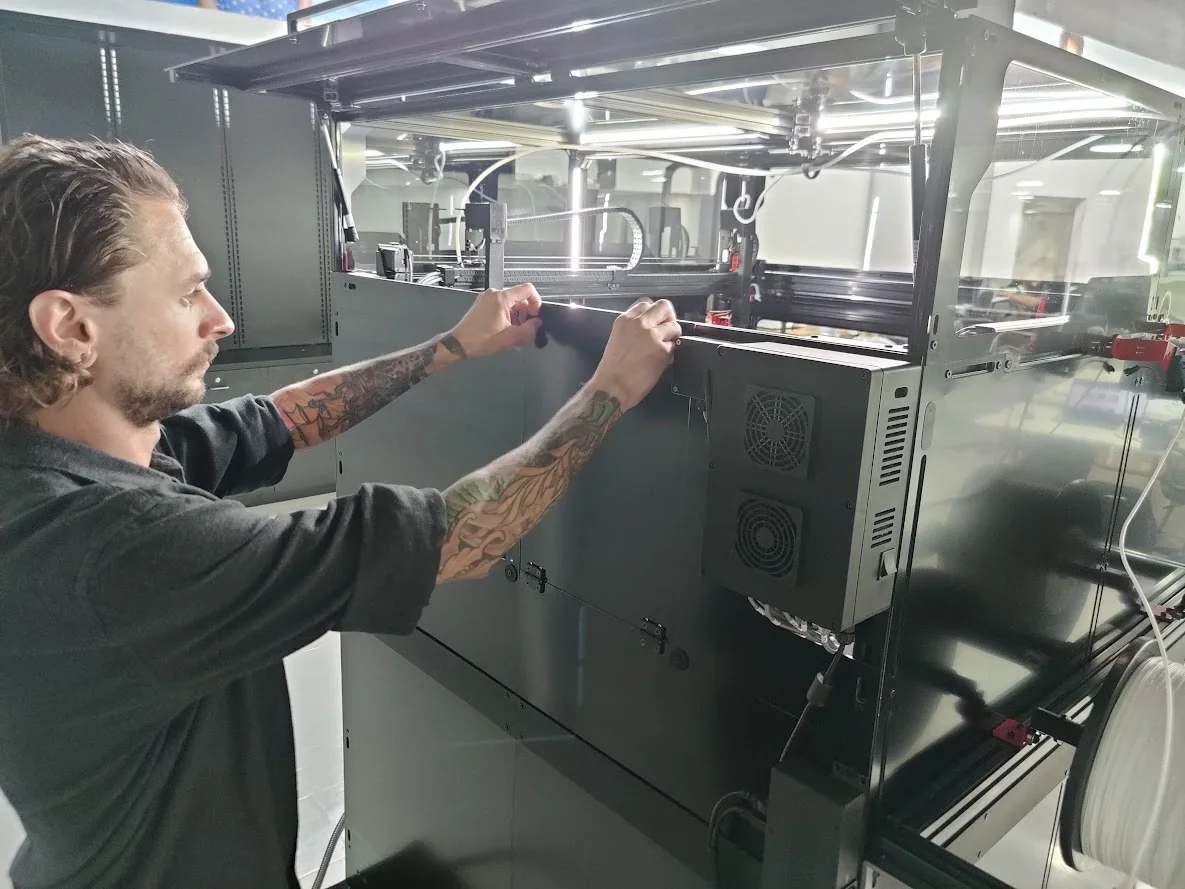

The Modix BIG-Meter V4 is a self-assembly large-format 3D printer kit, with components packaged for easy assembly using included tools. Detailed online guides with interactive 3D models are available in the Modix customer zone.
Please Note: Package contents are determined by the manufacturer and may change without notice. To confirm the current items included with this product, please contact a sales representative before placing your order.
The video of the Modix assembly process:
The Modix BIG-Meter V4 supports over 15 upgrades.
| Accessory | Function | MSRP (USD) | Image |
|---|---|---|---|
| Printhead & Hotend Upgrades | |||
| Griffin Ultra | High-flow hotend upgrade for very high extrusion rates (up to 500 g/hr). | $1,232.00 |  |

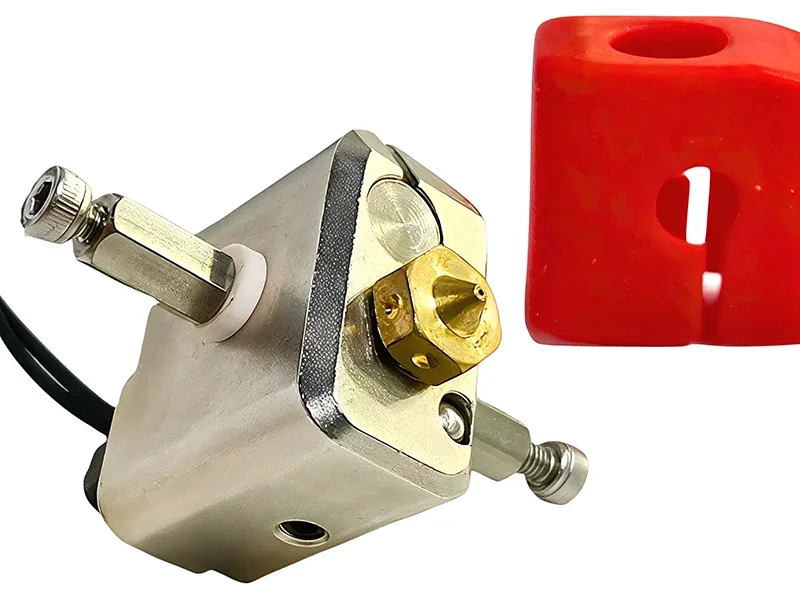

| Griffin High-Flow | High-flow hotend upgrade for faster large-object printing (includes heat-block, 80W heater, PT-1000 thermistor, and 1.0 mm nozzle). | $392.00 |  |
| Griffin High Resolution Hotend | High-resolution hotend upgrade for fine layer heights (down to 50 microns) and tight tolerances (includes heat block, heatbreak, PT1000, 40W heater, silicon sock, and 0.4 mm nozzle). | $145.60 |  |
| Spare Griffin Hotend | Spare Griffin hotend set for replacement (includes bi-metal heatbreak, Griffin heat block, 0.4 mm nozzle, 50W heater, PT-1000 thermistor, and silicon sock). | $201.60 |  |
| Dual Print-Head & Calibration Parts | |||

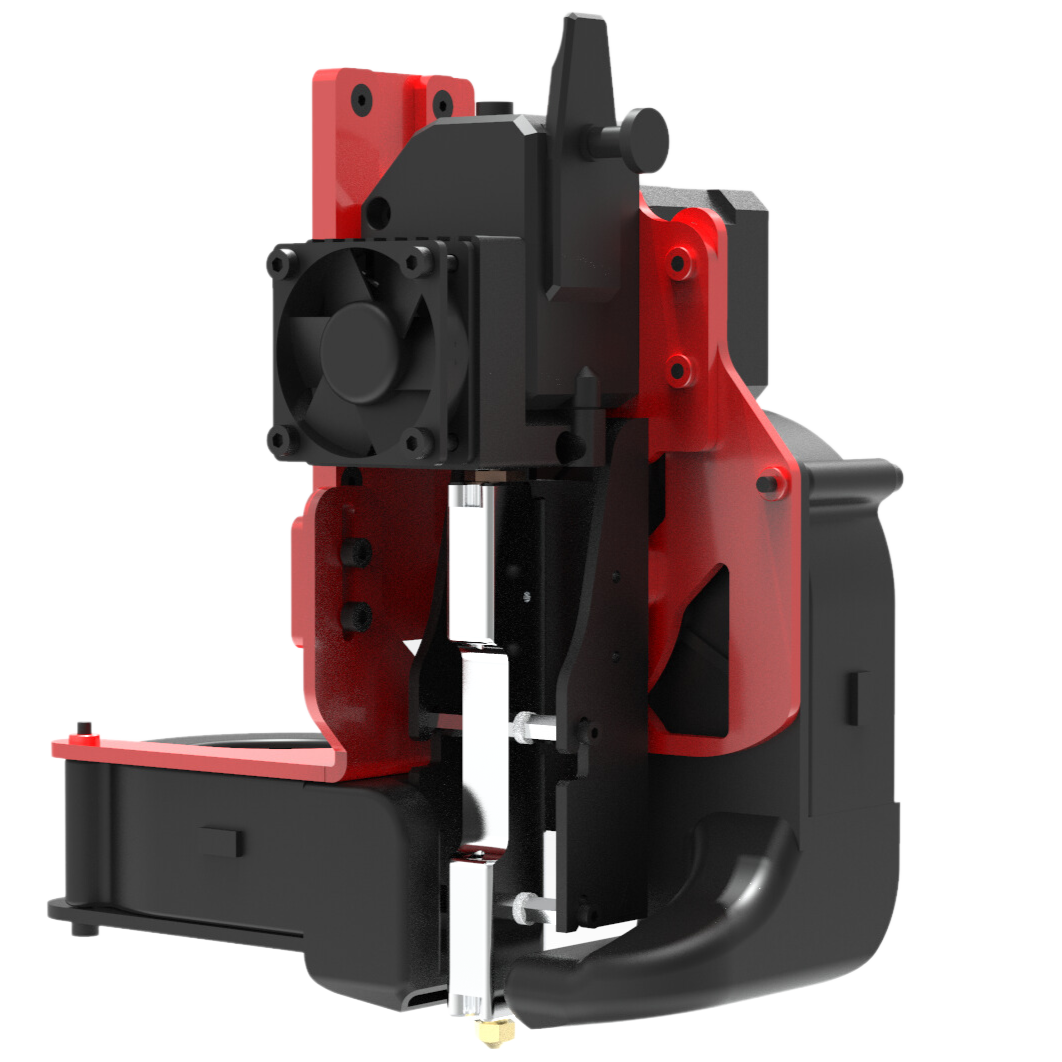

| IDEX Dual Print-head | Dual print-head upgrade for printing with dedicated support material; can also be used as an automatic filament changer. | $1,232.00 |  |
| IDEX Calibration Tool | Hands-free calibration tool to ensure optimal nozzle alignment. | $280.00 |  |
| Support Materials & Dissolution Supplies | |||
| Soluble solution – 1000g | Dissolution solution used with water to dissolve prints made with soluble filament. | $39.20 |  |
| Soluble filament – 500g | Soluble filament for printing supports/intricate designs; dissolves using water + soluble solution (solution purchased separately). | $112.00 |  |
| Filament Drying & Storage | |||

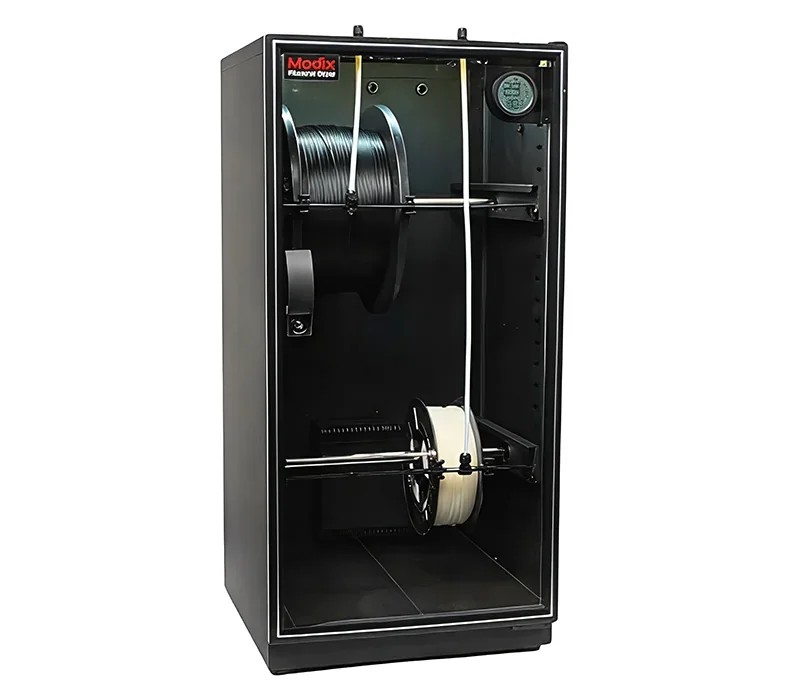

| Filament Dryer | Large-capacity filament dryer for moisture control; fits two 5 kg spools or one 8 kg spool, with added storage. | $1,792.00 |  |
| Nozzles | |||

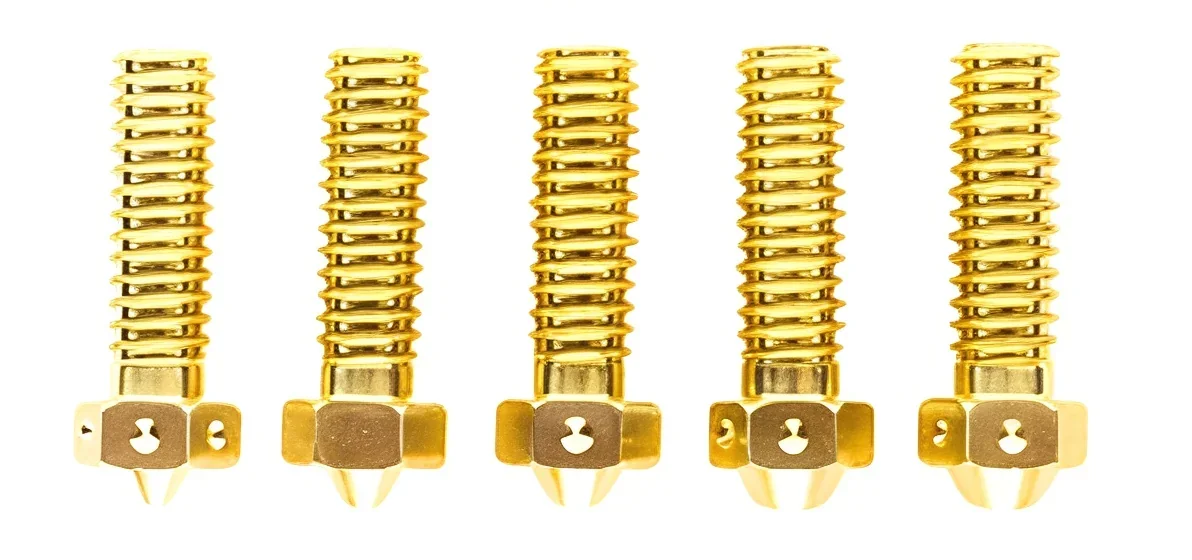

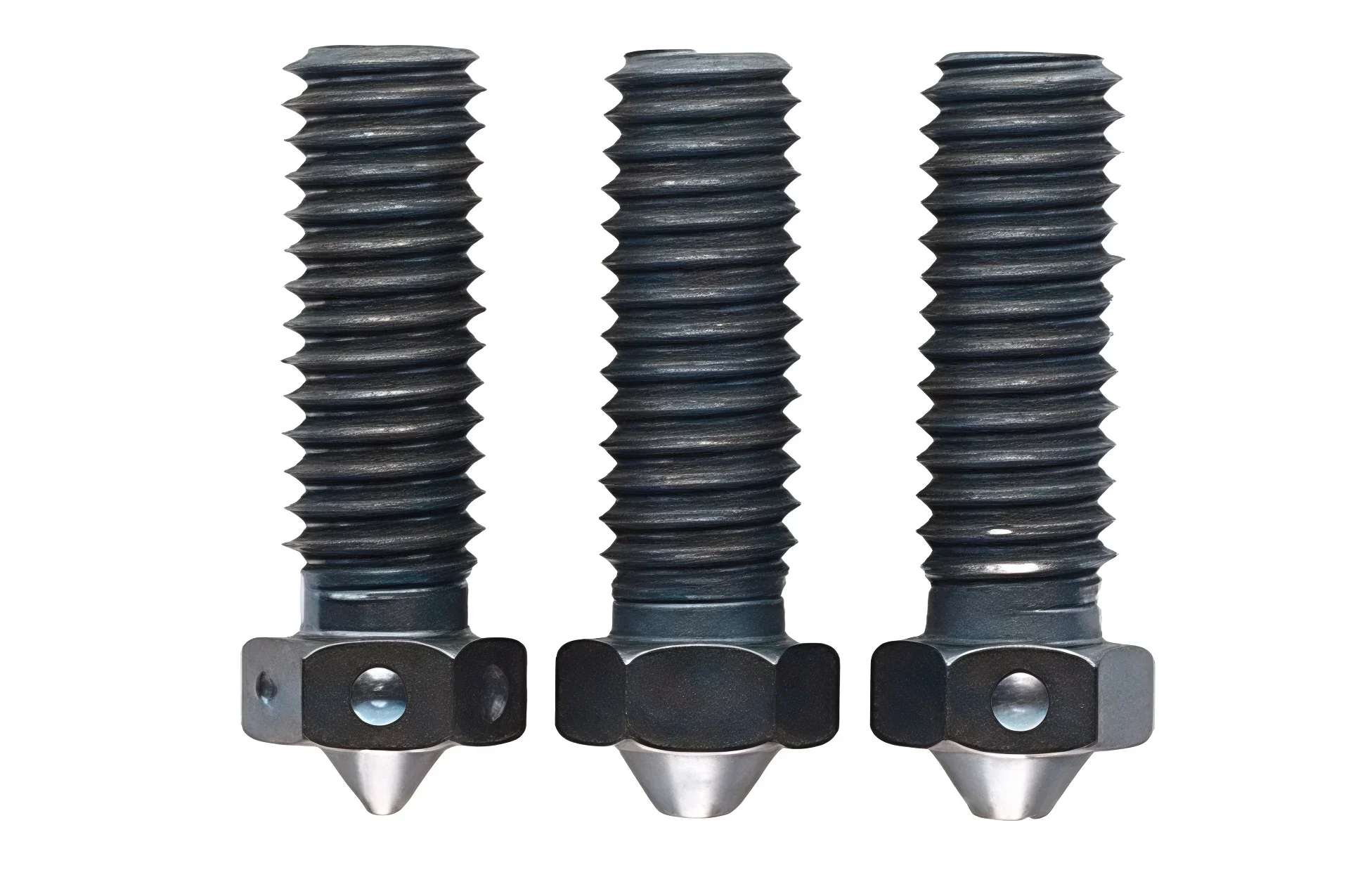

| Griffin Brass Nozzles | Brass nozzle pack (0.4 / 0.6 / 0.8 / 1.0 / 1.2 mm) for high-flow, fast printing; note: 0.4 / 0.6 / 0.8 mm already come with the printer by default. | $67.20 |  |
| Griffin Hardened Steel Nozzles Pack | Hardened steel nozzle pack (0.4 / 0.6 / 0.8 mm) for abrasive materials (carbon fiber-filled, glass fiber-filled, wood, glitter); rated up to 450°C. | $190.40 |  |
| Build Plate & Surface Parts | |||

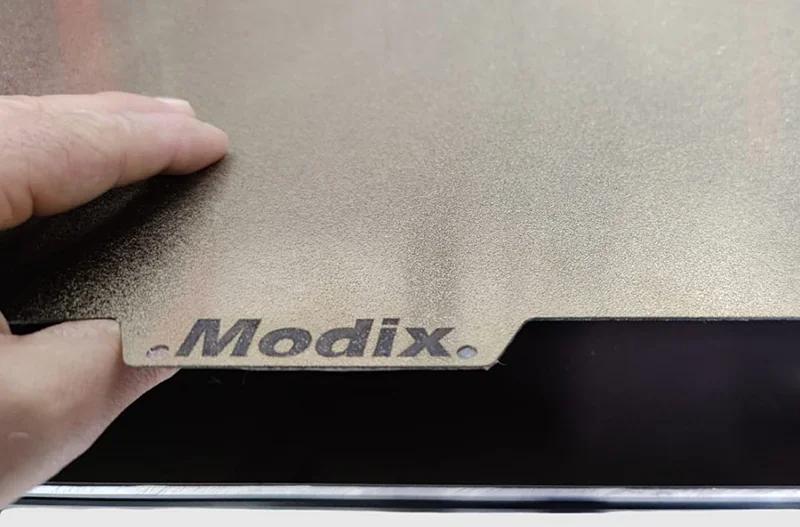

| Magnetic Bed | Full-bed magnetic build surface for easier part removal and easier bed maintenance (covers the entire bed). | $1,904.00 |  |
| Extra PEI Sheet | Spare PEI sheet (1075 × 355 mm) covering one-third of the BIG-Meter bed plate; not needed when purchasing the Magnetic Bed. | $168.00 |  |
| Air Filtration Parts | |||

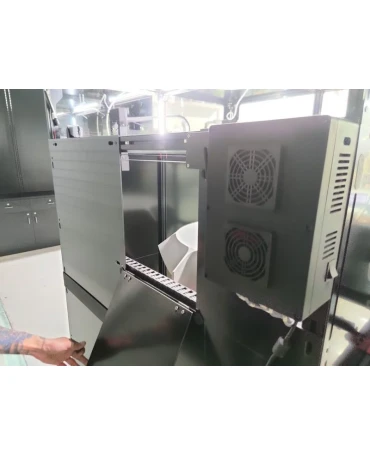

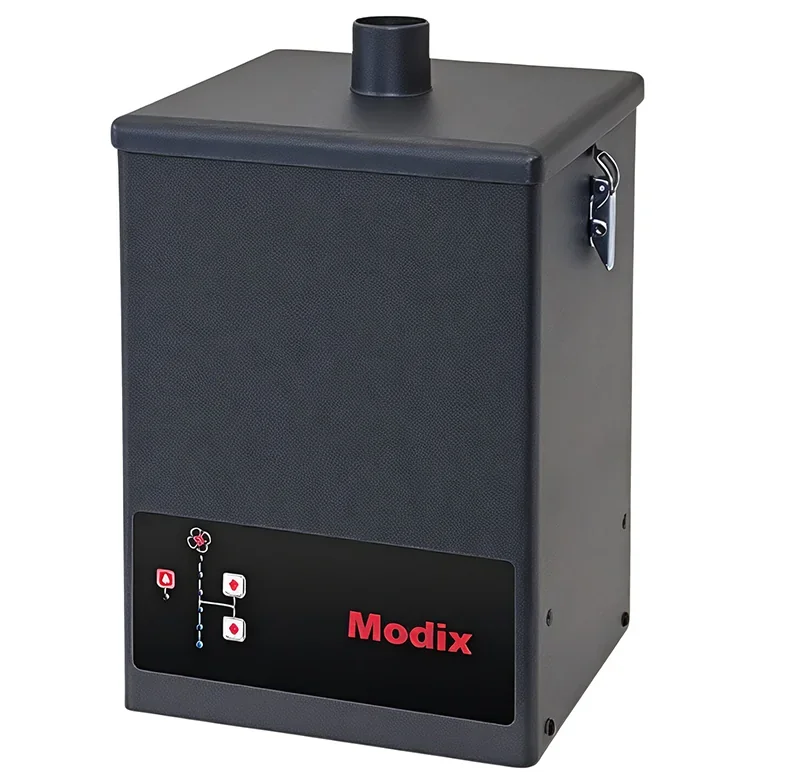

| Active Air Filter | Three-stage air filtration device: pre-filter (dust), HEPA (sub-micron particles), and active carbon filter (fumes). | $1,512.00 |  |
| Filter Spares Set | Replacement filter set (5× pre-filter, 1× HEPA/carbon combo). | $336.00 |  |
| Maintenance & Spare Parts Kits | |||
| Basic Maintenance Kit | Essential spare components for the print head and motion system to keep the printer running smoothly. | $336.00 |  |
| Advanced Maintenance Kit | Expanded spare parts kit (belts, pulleys, screws, bearings, motors, printhead parts, fasteners) designed to fit Modix printers V4. | $1,568.00 |  |
The Modix Big-Meter V4 requires 8+ maintenance procedures to maintain optimal print quality and prevent mechanical failures.
Daily / Pre-Print Procedures
Weekly Maintenance
Monthly Maintenance
Quarterly Maintenance
As-Needed Maintenance
Due to its large scale, the printer requires ongoing calibration of the motion system, bed leveling, and temperature controls to maintain consistent print quality across the full build volume.
The Modix BIG-Meter V4 includes a 12 month warranty covering non-consumable parts, excluding items like the PEI sheet and nozzles. Optional extensions of up to two years cover manufacturer defects, including electronics, offering added protection for production use.
Modix offers lifetime technical support via email Sunday–Thursday, 09:00–18:00 GMT+3, with video sessions available on request. Customers also get access to a dedicated support zone with manuals, print profiles, firmware, and interactive 3D assembly guides.

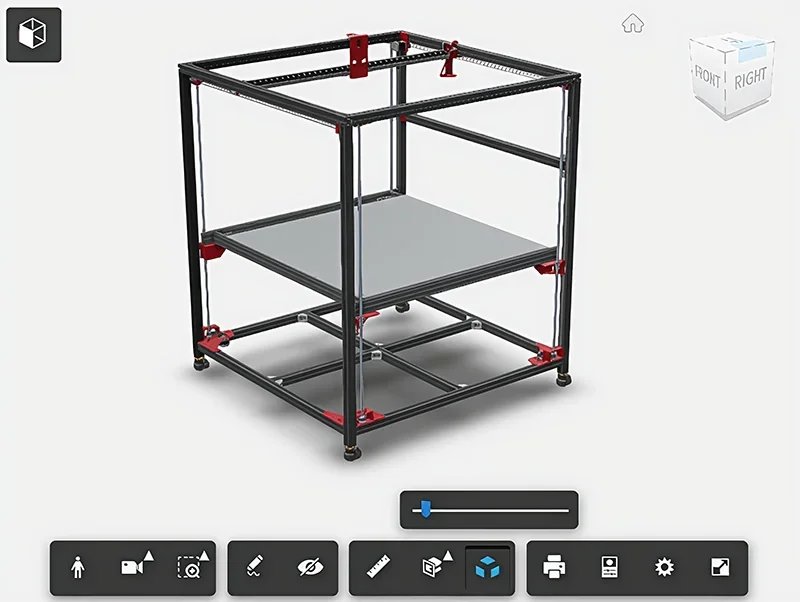

The Modix BIG-Meter V4 includes video-guided assembly instructions with interactive 3D models for visual clarity. For those who prefer not to self-assemble, professional assembly by Top3DShop is available as a paid service.
Full warranty terms: https://www.modix3d.com/terms
| Service Package | Description | Price (USD) |
|---|---|---|
| 3-Hour Call with Modix 3D Technicians | Remote optimization support for design, slicing settings, and material selection; includes 3 hours of video calls with Modix technicians. | 500 |
| 1-Year Warranty Extension | Extends Modix manufacturer warranty by 12 months beyond the standard warranty period. | 1000 |
| 2-Year Warranty Extension | Extends Modix manufacturer warranty by 24 months beyond the standard warranty period. | 2000 |
| Assembly Services by Top3DShop (Off-Site) | Off-site assembly of the Modix kit per official manual + calibration (bed compensation ≤2 mm corner-to-corner), IDEX XY calibration (if applicable), test prints (cube/mesh), photo/weekly progress reporting, and delivery of assembled unit (per agreement terms). | 14,000 |
| Assembly Services by Top3DShop (On-Site) | On-site assembly and commissioning at customer facility; includes the same assembly/calibration/test-print scope plus on-site handover/training and verification as described in the agreement. | 19,000 |
The Modix BIG-Meter V4, priced at $16,800.00, offers strong value for large-format 3d printing. The self-assembly kit includes a Griffin extruder, enclosure, casters, a 12-month warranty, and lifetime support. Optional upgrades include the IDEX system (+7%), Griffin Ultra hotend for faster output, and accessories like a magnetic bed or active air filter. Contact sales for a custom quote with configuration, shipping, and support options.
