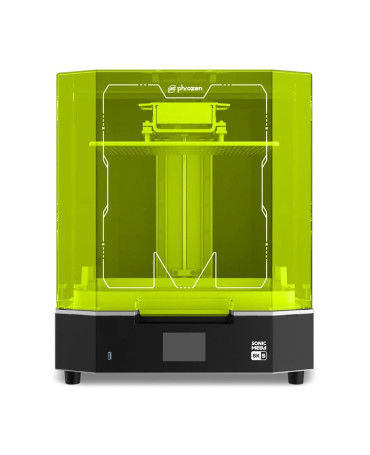

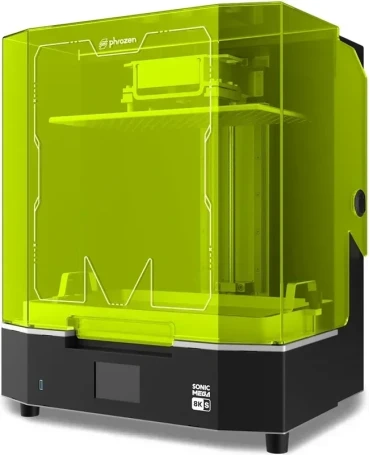

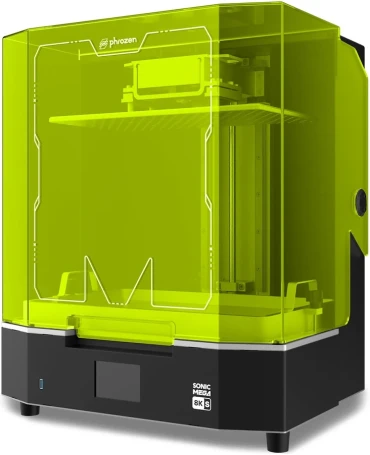

The Phrozen Sonic Mega 8K S is a large-format resin 3D printer featuring a 15-inch 8K monochrome LCD, 43-micron XY precision, and a 330 × 185 × 300 mm build volume, delivering high detail at scale. Designed for commercial use and print farms, it prints up to 80 miniatures per batch and over 900 layers per hour. Productivity features include a hinged lid, all-metal drip hanger, and a factory-calibrated perforated build plate for easy setup and clean removal, making it ideal for artists, prop makers, and businesses needing large, detailed prints without compromising quality.
What is the print quality and performance of the Phrozen Sonic MEGA 8K S LCD Resin 3D printer?
The Phrozen Sonic Mega 8K S features a 15-inch monochrome LCD with 43-micron resolution, producing detailed prints across a large area. Its 8K output delivers crisp surfaces and smooth textures on even large models without visible layer lines.
For example, the Sonic Mega 8K S can simultaneously print two large articulated snakes from Chilean mythology, showing sharp scales and skin textures that surpass FDM printers in resolution and detail.
The Sonic Mega 8K S is a high-speed system, printing 400 layers per hour under standard settings, and reaching 600–900 with certain resins. Its dual linear rail and ball screw system stabilize the Z-axis for large models, such as a giant mask by Zane Rogers printed in 6 hours with Phrozen Speed Plus Resin.
The factory-calibrated perforated 15-inch build plate ensures strong adhesion and lowers the LCD strain.

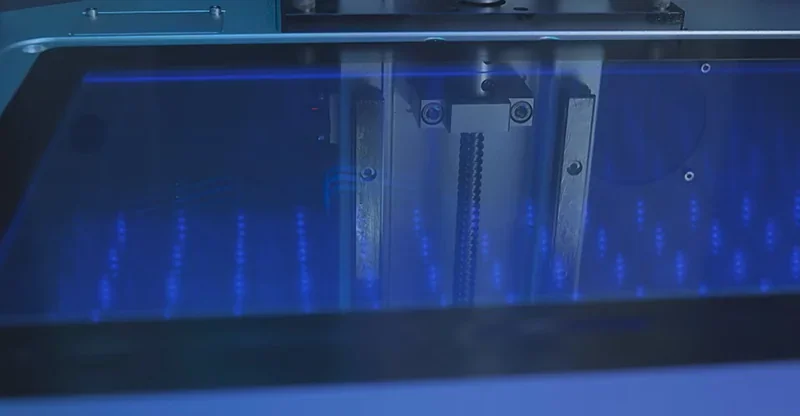

Phrozen’s 405nm ParaLED Matrix light source cures evenly across the build area, ensuring accurate, detailed prints.
Testing showed the Sonic Mega 8K S producing smooth, detailed prints, including a Wekster Rocket bust, a 450mm Skyrim dagger, and a 170mm Unicorn of Light in 38h 23m.
It batch-printed 39 mini Ohmus from Nausicaä of the Valley of the Wind in one plate, showing efficiency for mass production without detail loss.
What is the maintenance of the Phrozen Sonic Mega 8K S's perforated build plate?
To maintain the perforated build plate, scrape off residue with a plastic scraper, soak in 95% IPA for 15–60 minutes, then wipe dry and clear drainage holes to preserve adhesion.
Which resins can you use with the Phrozen Sonic MEGA 8K LCD 3D printer?
The Sonic Mega 8K S supports standard 405nm UV resins from Phrozen and third parties, eg. Loctite, giving users flexibility to choose materials for different projects without being limited to proprietary options.
Download the latest resin profiles here: https://phrozen3d.com/pages/resin-sonic-mega-8k-s

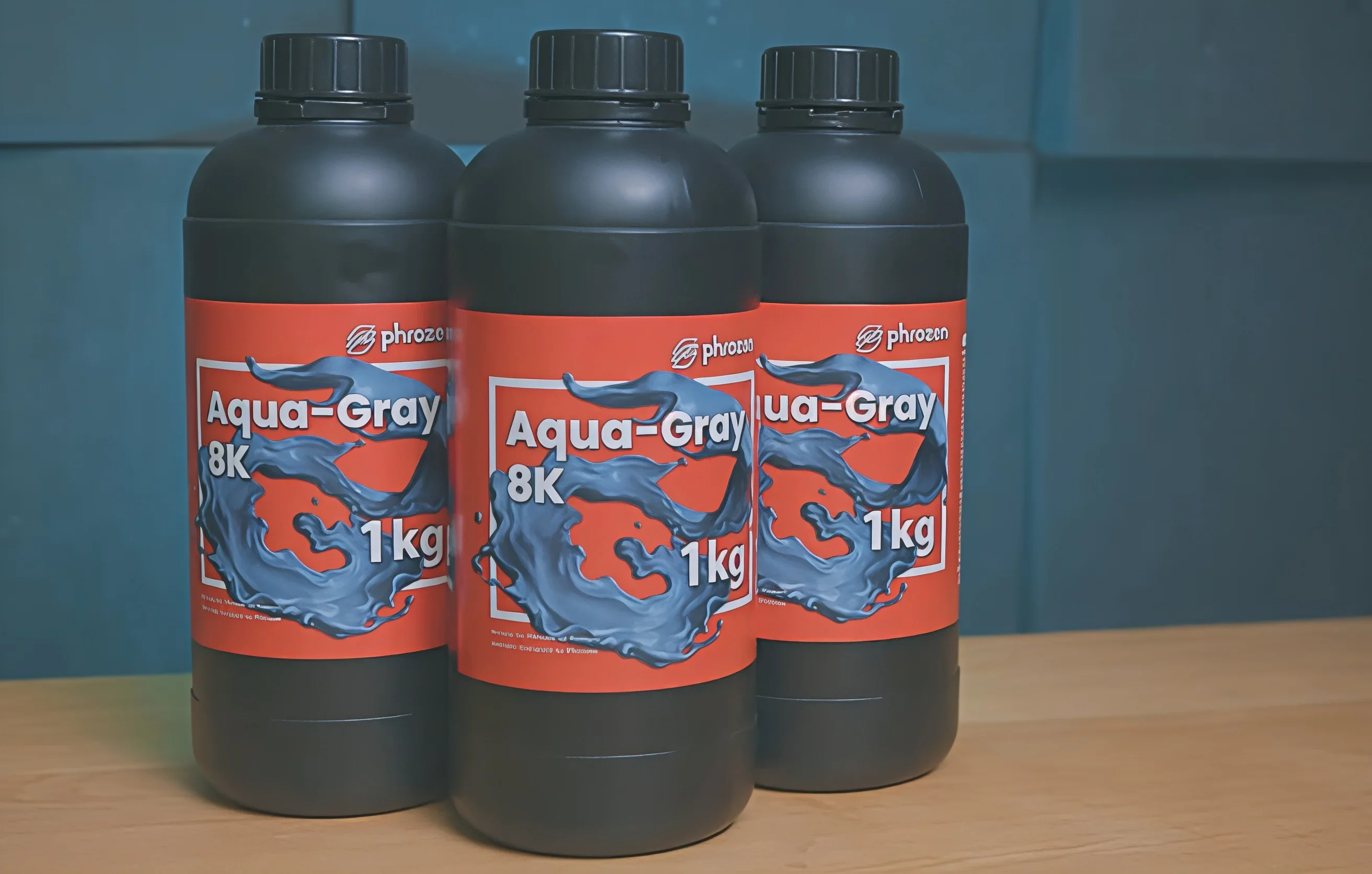

Phrozen provides 8+ resins for the Sonic Mega 8K S, including Aqua 8K, 4K, and Hyperfine for high detail, castable resins for jewelry, standard Aqua and ABS-like lines, and engineering-grade options like TR300 Ultra-High Temp (156°C) and EL400 Elastomer, plus other specialty formulations.

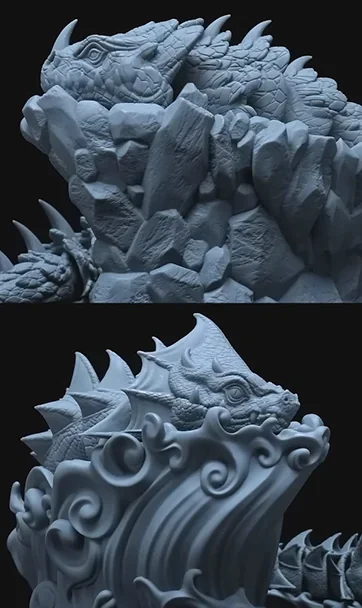

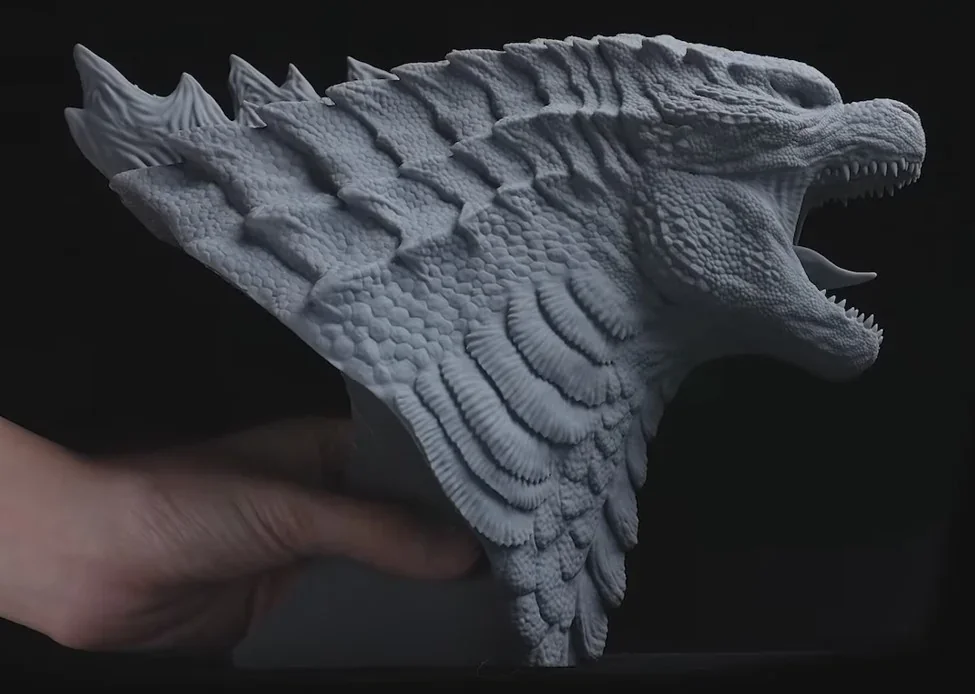

Phrozen Aqua 8K sample: a detailed dragon miniature with defined muscles and church elements, printed at 8K to showcase precise surface textures.
Phrozen Aqua Hyperfine Resin 3D Print Sample: a miniature printed at 22 µm resolution, demonstrating enhanced detail and dimensional accuracy.
Speed Plus Resin 3D Print Sample: a large black katana replica, post-processed with dry-brush weathering, optimized for fast 8K printing.
Aqua Hyperfine Graphite/Aqua Clear Plus Resin 3D Print Sample: a fantasy king figure with an opaque graphite body and transparent clear chest, showcasing mixed-material effects.
Phrozen Standard Series Resin Neon-Peach 3D Print Sample: a dragon-themed bookend miniature in bright peach, designed for functional library use.
Phrozen recommends TR300 resin for high-speed printing on the Sonic Mega 8K S, reaching up to 10× faster than mid-size printers. For example, a complex bust by ETmodelstudio printed in 5 hours instead of 32.
The printer works with many resins, but Phrozen’s are recommended for best results and to prevent paint surface damage.
What is the build volume of the Phrozen Sonic MEGA 8K S?

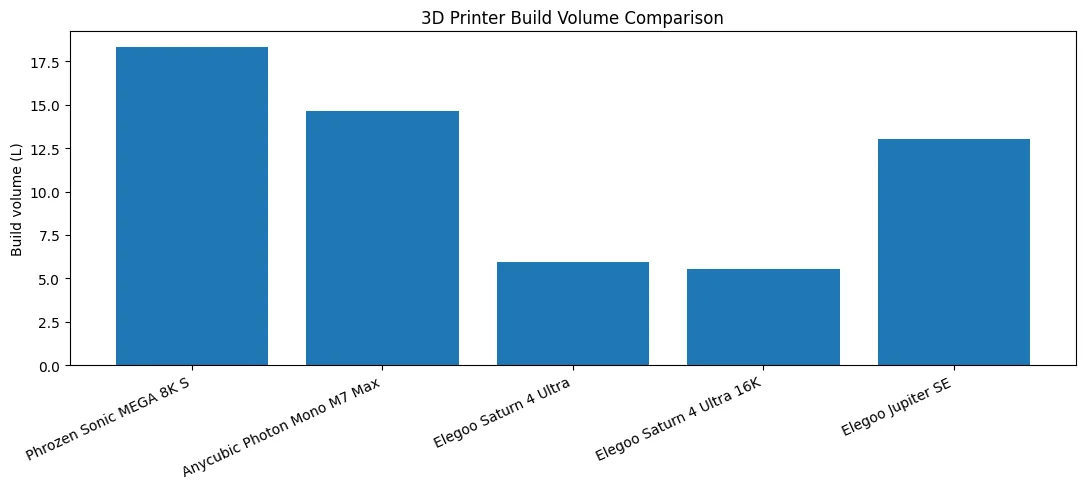

The Sonic Mega 8K S has a 330 × 185 × 300 mm printing area, among the largest in desktop resin printing, allowing batch miniature runs or large one-piece models. Its 15-inch perforated build plate can produce up to 80 miniature 1/32 soldiers in 1.5 hours.
What is the difference between the Phrozen Sonic MEGA 8K S, Anycubic Photon Mono M7 Max, Elegoo Saturn 4 Ultra, Elegoo Saturn 4 Ultra 16K, Elegoo Jupiter SE?
Phrozen Sonic MEGA 8K S — offers the largest build area (330×185×300 mm; 18.3 L) with a 15″ mono-LCD, 43 µm XY, high-throughput (~400 layers/hr), pre-calibrated plate, lift-up lid + drip hanger, and optional Pump & Fill integration for production-scale resin workflows.
In contrast:
Anycubic Photon Mono M7 Max — wins on connectivity (USB/Wi-Fi/LAN), app control, dynamic temperature-controlled vat, and built-in auto-fill; loses on build volume (14.7 L vs 18.3 L), coarser XY (46 µm vs 43 µm), and no factory pre-calibrated plate.
Elegoo Jupiter SE — wins on automated resin feed & recycling, stable motion and efficient cooling, and a large format for the price (277.8×156.3×300 mm; 13.0 L); loses on speed (max 70 mm/h), XY precision (51 µm vs 43 µm), 4-point manual leveling, and USB-only connectivity
Elegoo Saturn 4 Ultra — wins on price ($399), auto-leveling, AI camera, and headline speed (up to 150 mm/h); loses on build volume (≈5.9 L) despite a fine 12K panel (19×24 µm).
Elegoo Saturn 4 Ultra 16K — wins on the finest detail (16K; 14×19 µm) plus smart-heating tank and AI cam w/light; loses on build volume (≈5.5 L) relative to the MEGA 8K S.
Auto resin feed & recycling; efficient cooling; stable motion; laser-engraved plate; USB air purifier (in box)
Bottom-Line:
The Phrozen Sonic Mega 8KS, Anycubic Photon Mono M7 Max, and Elegoo Jupiter SE present three pricing tiers where the more you pay, the larger build volume you get. So choose depending on your build volume needs.
Buy Phrozen Sonic MEGA 8K S for the largest build volume.
Buy Anycubic Photon Mono M7 Max for the best price / performance ratio, and smart features such as auto-fill + dynamic temp-controlled vat, even though the build volume and resolution are lower.
Choose Elegoo Jupiter SE, if you need a large format machine, but are restricted on budget.
Budget Choices:
Buy Elegoo Saturn 4 Ultra — best budget choice with auto leveling and up to 150 mm/h in a compact ~5.9 L volume (12K, 19×24 µm).
Opt for Elegoo Saturn 4 Ultra 16K — finest detail (16K, 14×19 µm) plus smart heating tank & AI cam w/ light; similar compact ~5.5 L volume.

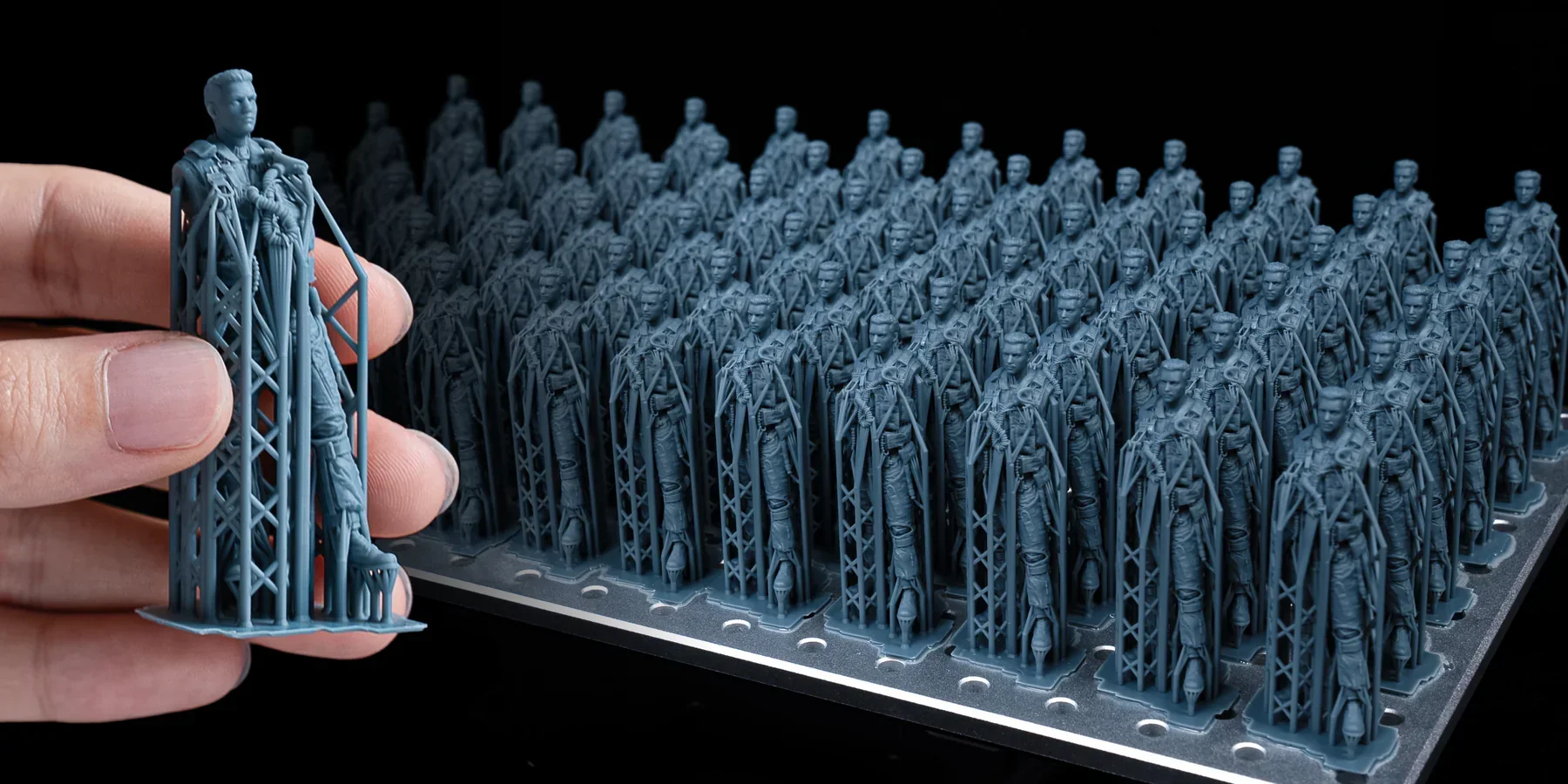

The Sonic Mega 8K S can print 164 Kreigsmen miniatures at once — over twice the Sonic Mighty 8K and five times the Sonic Mini 8K capacity.
It also handles large models efficiently, such as the Dragon of Balance by Printed Obsession, printed in Aqua 8K Red-Clay resin.
Ideal for print farms, the Sonic Mega 8K S uses dual linear rails and a ball screw Z-axis for stable large prints, plus a built-in drip hanger for clean resin drainage.
The space-saving hinged lid provides easy access, making the printer practical for high-volume, compact workspaces.
What printer controls are available on the Phrozen Sonic MEGA 8K S?

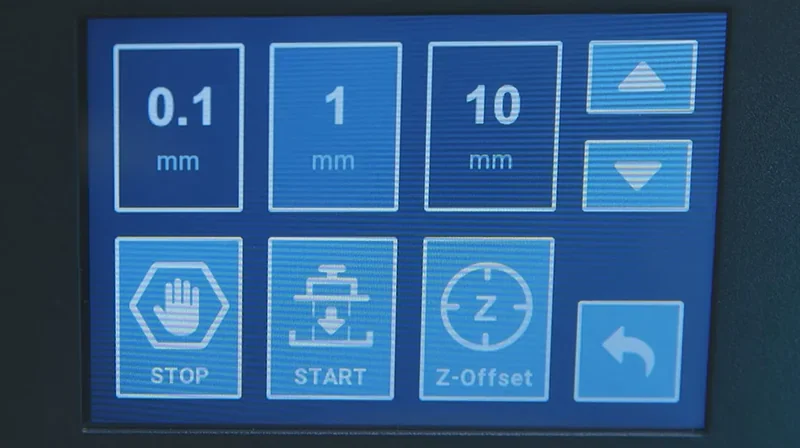

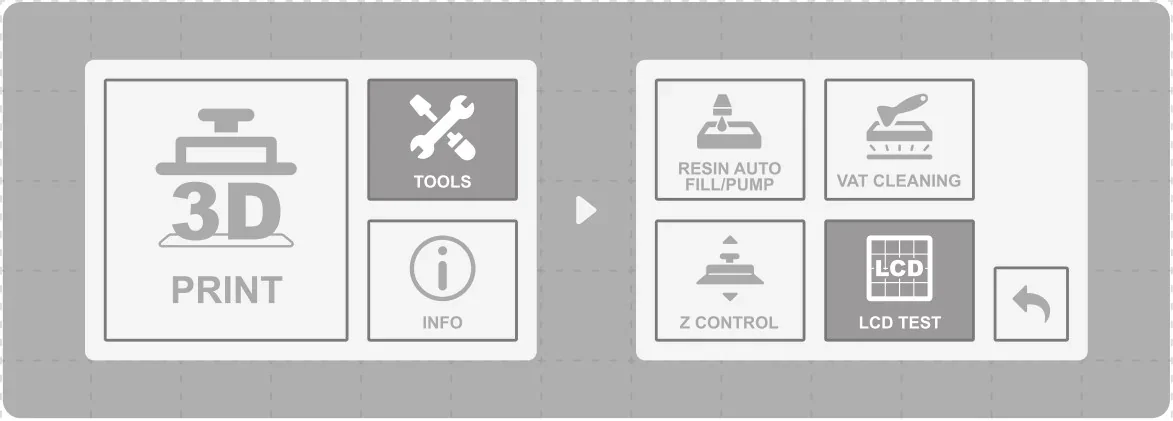

The Phrozen Sonic MEGA 8K S offers printer controls via a 3.5-inch touchscreen managing seven categories including print functions, manual Z-axis movement, vat cleaning, system settings, and automated resin feeding, with physical controls limited to a rear power switch and no wireless or remote options.

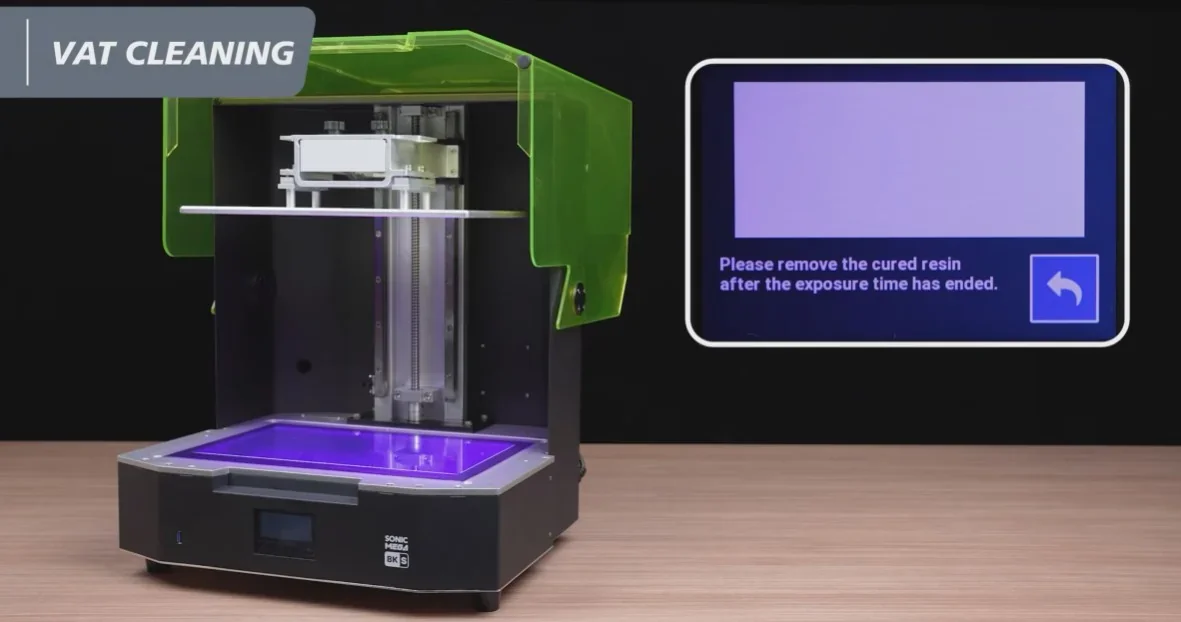

The Sonic Mega 8K S’s touchscreen menu handles printing, calibration, and maintenance, making it easy for both beginners and experienced users.
What connectivity options are available on the Phrozen Sonic MEGA 8K S?

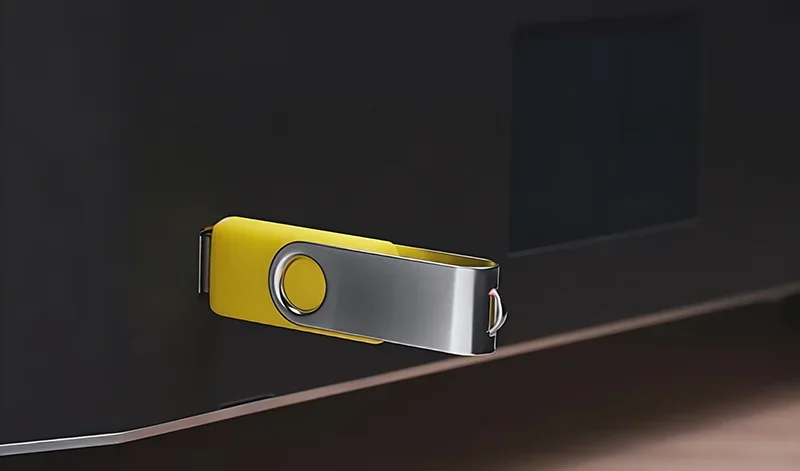

The Sonic Mega 8K S’s front USB port enables fast, stable file transfers, loading large models without interruptions.
Unlike the Mighty 8K and Mega 8K V2, the Sonic Mega 8K S has no wireless connectivity and runs through its 3.5-inch touchscreen with USB files. It supports CHITUBOX v1.9.6+ formats, requiring physical access to start prints but ensuring reliable production use.
What software is offered with the Phrozen Sonic MEGA 8K S?
The Sonic Mega 8K S supports CHITUBOX v1.9.6+, Lychee Slicer, and VoxelDance Tango, giving flexible workflow options. Phrozen focuses on broad compatibility instead of proprietary slicer software.
Phrozen recommends CHITUBOX for the Sonic Mega 8K S, with optimized resin profiles available online. The printer only reads CTB files from CHITUBOX or compatible slicers.
The Sonic Mega 8K S updates via USB by loading firmware, starting the update through the touchscreen, and rebooting. Phrozen releases regular updates to improve performance and fix issues, requiring no technical expertise.
What is the design and build quality of the Phrozen Sonic MEGA 8K S?
What is the design and form factor of the Phrozen Sonic MEGA 8K S?

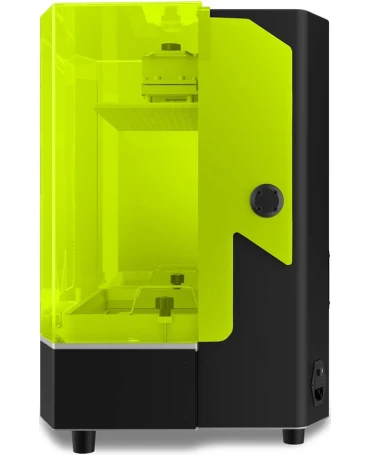

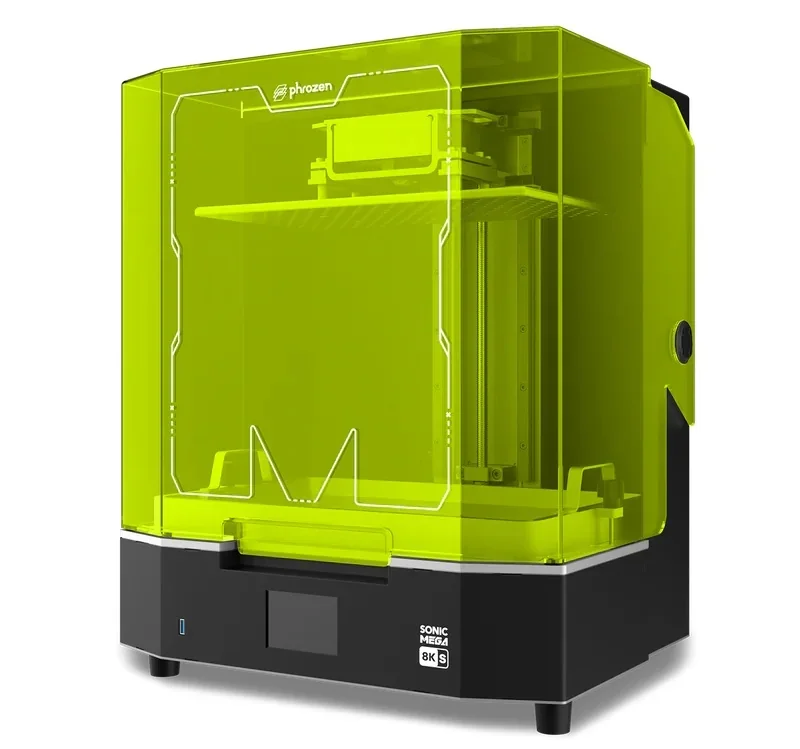

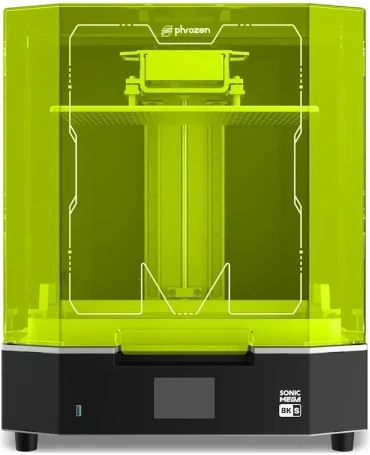

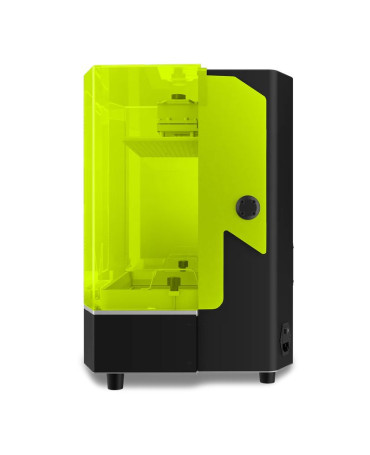

The Sonic Mega 8K S is a tabletop 3D printer, it has a black-and-green design, measuring 472 × 380 × 566 mm and weighing 26 kg. Its curved profile gives it a modern look compared to the boxier previous model.
Key design features:

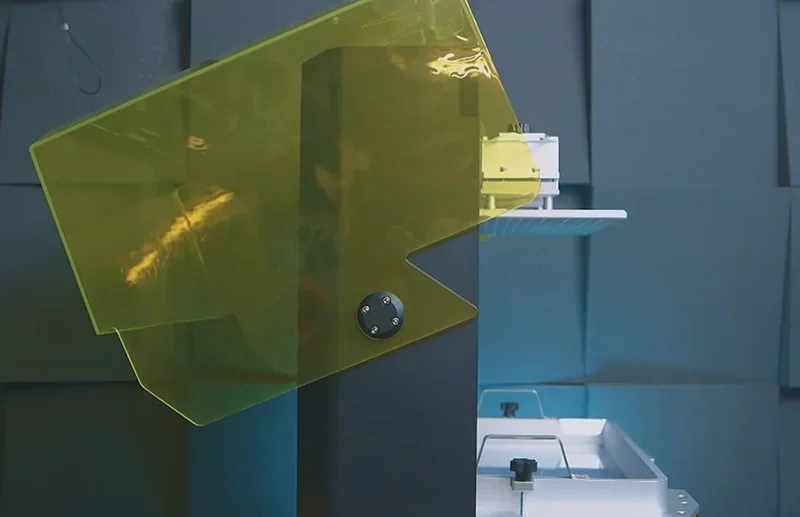

Lift-up acrylic lid replaces side-opening doors
Low hinge placement reduces height clearance
Strong hinges hold lid in place, prevent slamming

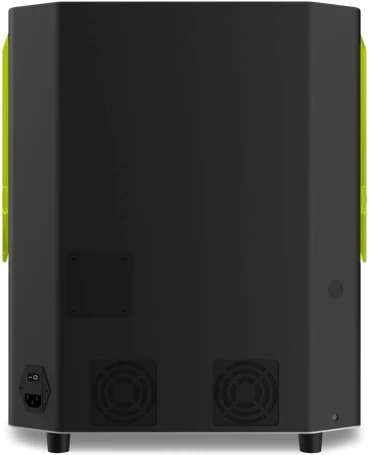

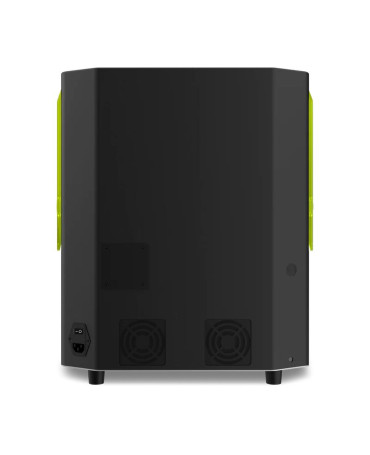

Rear exhaust ports support external air filtration systems
The Sonic Mega 8K S is a fully enclosed resin printer with rear exhaust ports for external filtration. Its flip-up lid saves horizontal space but requires rear clearance when opened.
What is the motion system of the Phrozen Sonic MEGA 8K S?

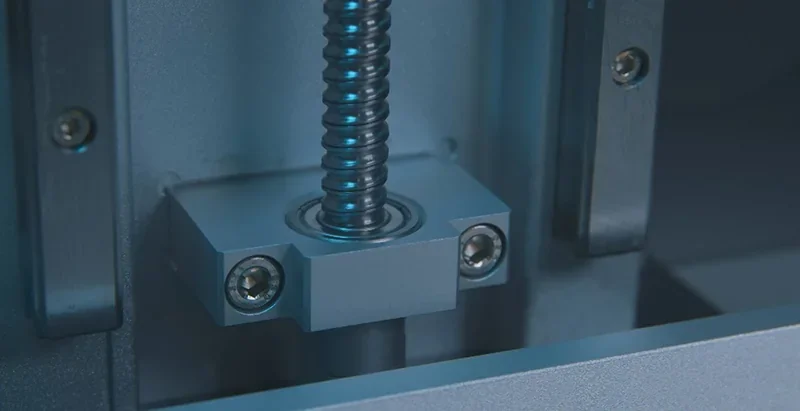

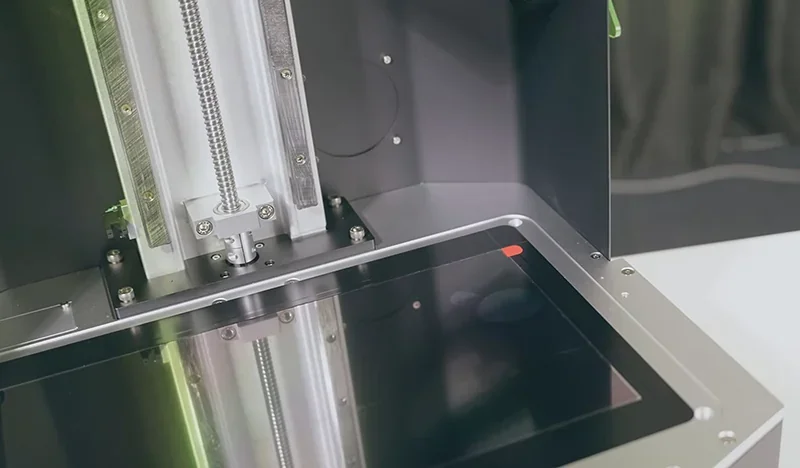

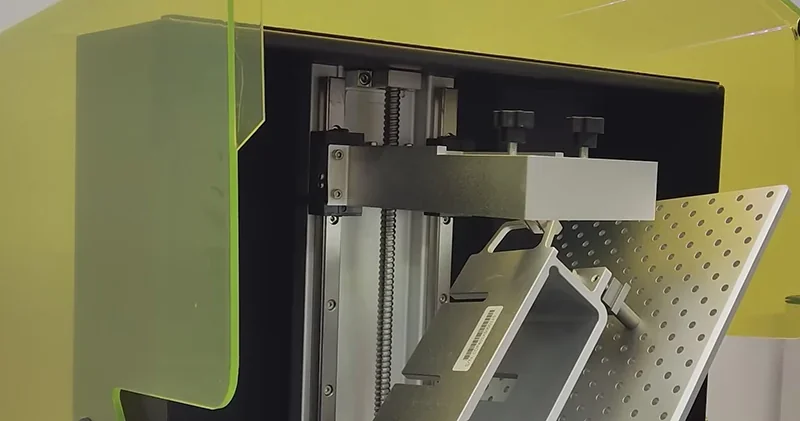

The Sonic Mega 8K S uses dual linear rails and a ball screw for Z-axis stability, preventing wobble on large prints. The rails match the original Mega 8K’s size and are greased for smooth operation.
The Sonic Mega 8K S’s ball screw Z-axis offers higher precision than threaded rods, supporting large builds and heavy plates. It enables print speeds up to 600 layers per hour, much faster than standard resin printers.
Testing shows the Sonic Mega 8K S has strong vertical stability with minimal wobble. Minor lateral movement is present but doesn’t affect large-format print quality.
What is the noise level of the Phrozen Sonic MEGA 8K S?

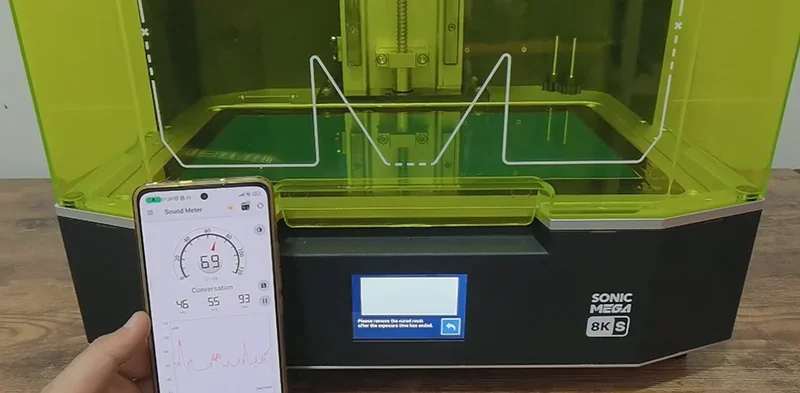

The Sonic Mega 8K S generates moderate fan and motor noise, fine for workshops but noticeable in quiet spaces. Cooling is managed by two large rear fans.
What are the build platform specifications of the Phrozen Sonic MEGA 8K S?

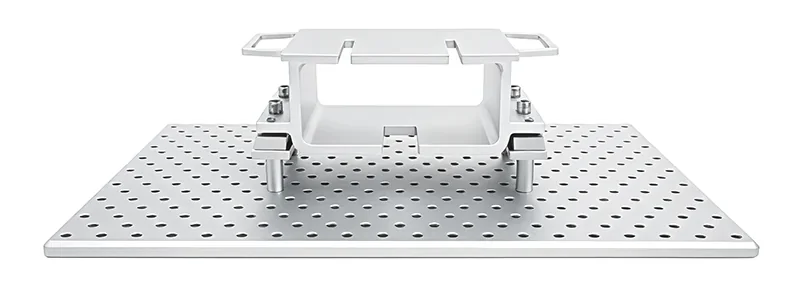

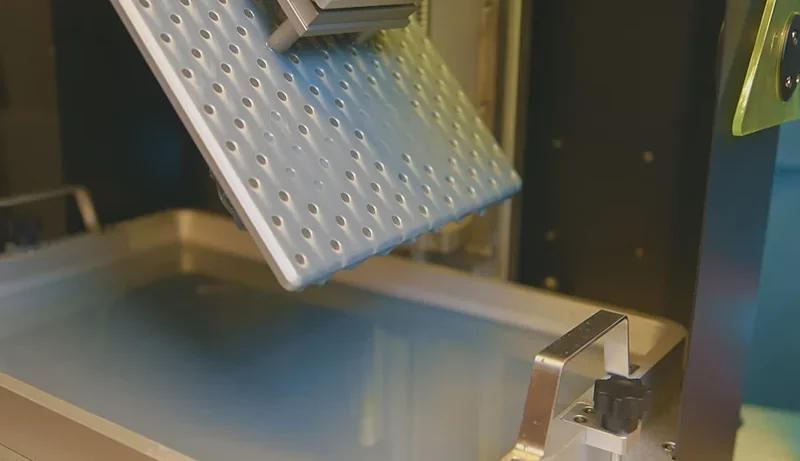

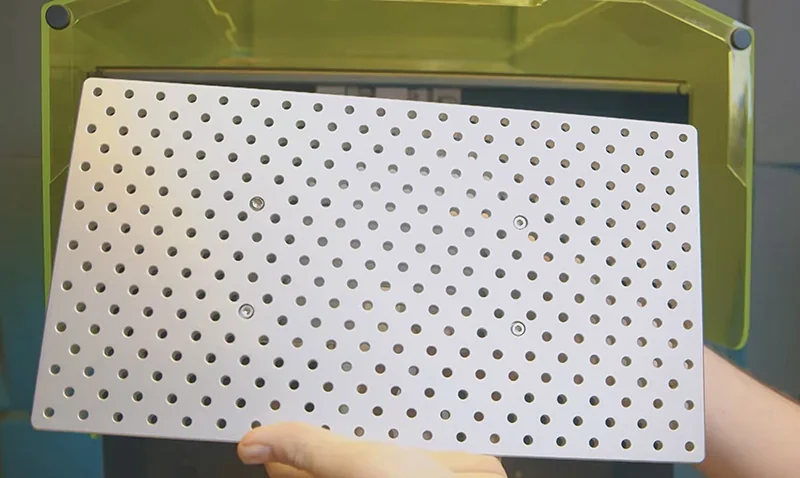

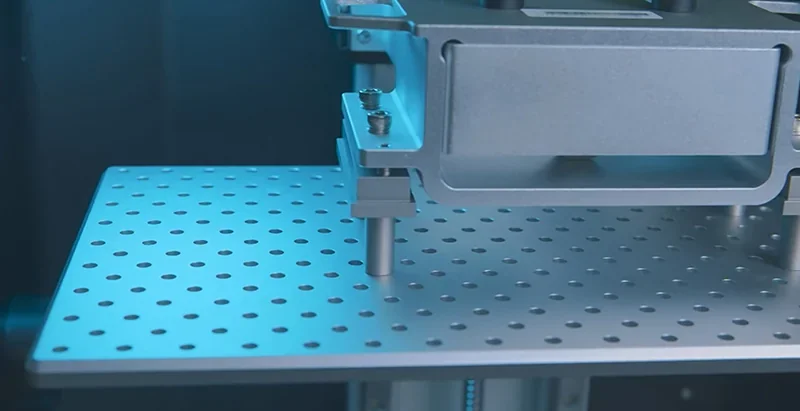

The Sonic Mega 8K S features a 330 × 185 mm perforated aluminum build plate and a 330 × 185 × 300 mm build volume, 10 cm shorter than the original Mega 8K.
Build platform features:
Drainage holes improve resin flow
Factory pre-calibrated leveling
Resin Drip hanger on Z-arm for drainage
Redesigned leveling system for easier manual adjustmen
The build plate’s holes improve resin flow and adhesion but can trap resin after printing, requiring careful cleaning.
What is the light source of the Phrozen Sonic MEGA 8K S?
The Sonic Mega 8K S is an LCD resin printer with a 15-inch 8K monochrome screen (7680 × 4320) and a 405nm ParaLED Matrix 3.0 light source for even curing. It delivers 43-micron XY resolution with 4.2–5.8 light intensity across the plate and cures all layers simultaneously, so print time doesn’t depend on object quantity.
How does the Phrozen Sonic MEGA 8K S handle resin storage and feeding?

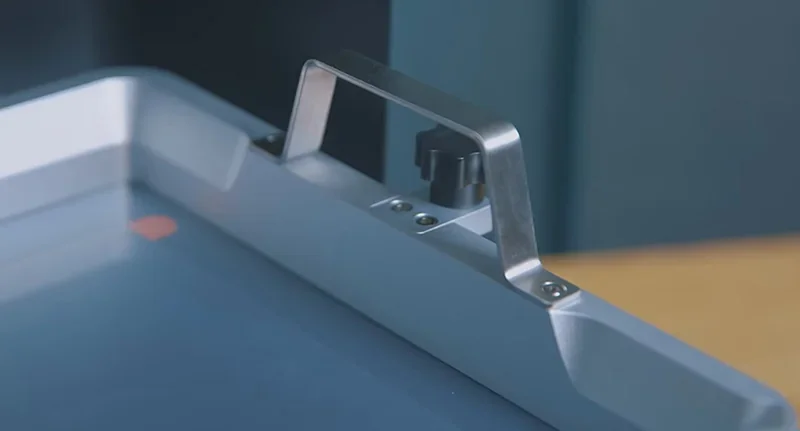

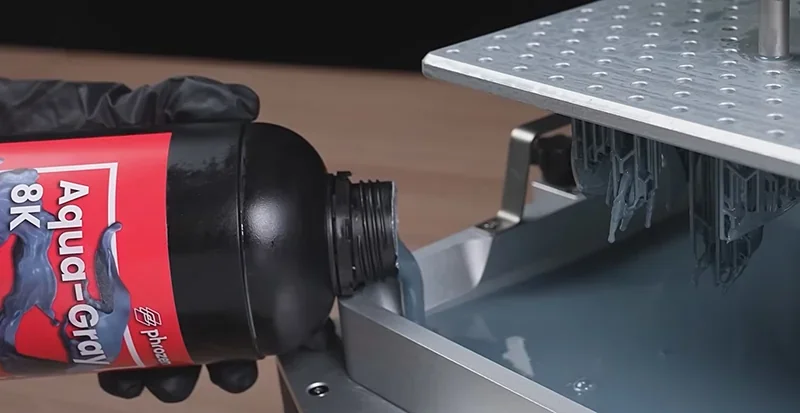

The Sonic Mega 8K S uses a large metal resin vat with ACF release film, reducing release forces and enabling faster printing than traditional FEP film.
The Sonic Mega 8K S supports an optional Pump & Fill system that auto-detects low resin, refills from bottles, and pumps excess back after printing. It integrates with the mainboard and is managed through the touchscreen.
What is the mainboard of the Phrozen Sonic MEGA 8K S?

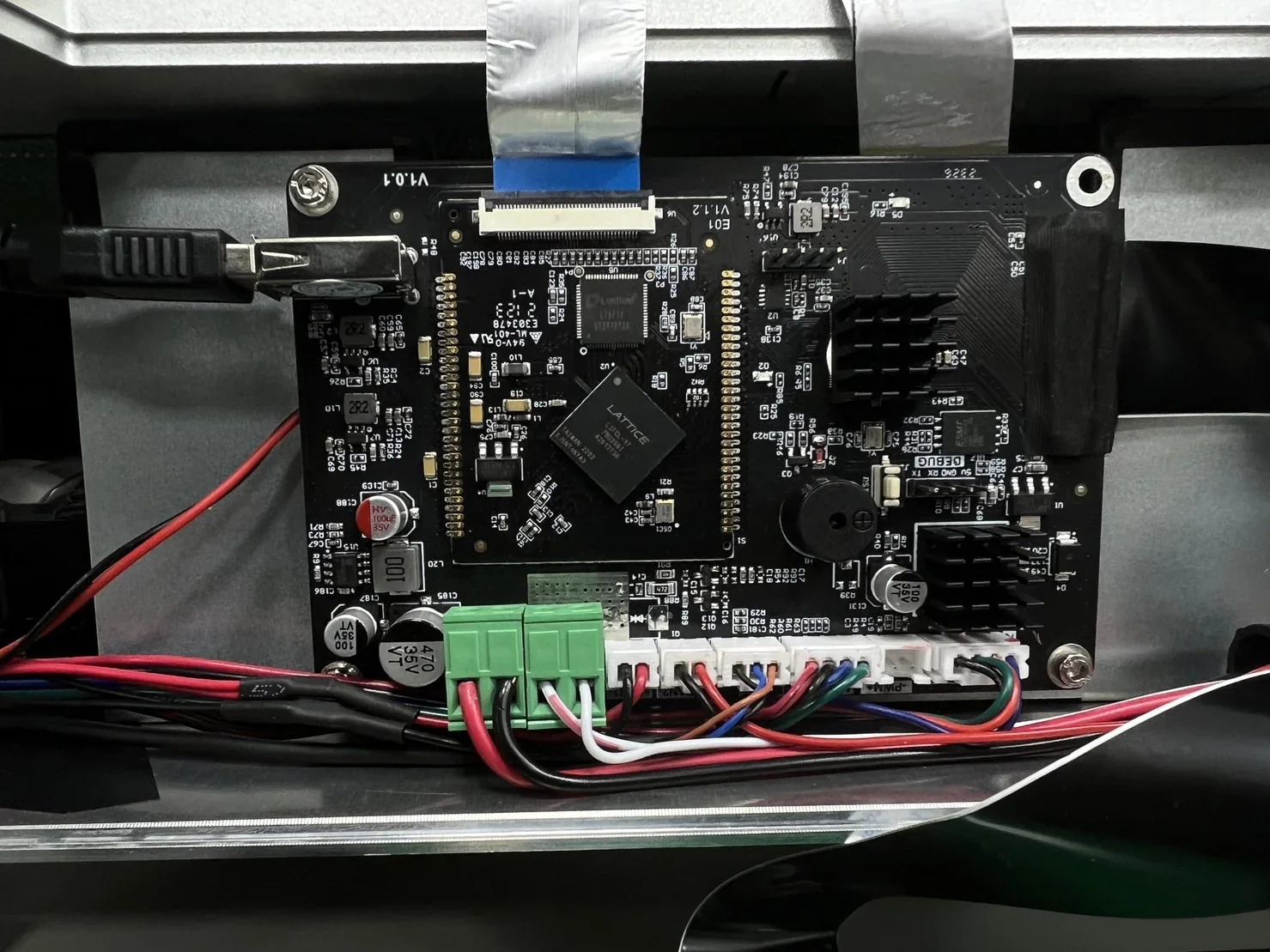

The Phrozen Sonic MEGA 8K S features an upgraded mainboard that supports advanced printing at up to 600 layers per hour, the Pump & Fill system with servo and sensor connections, and runs Phrozen OS with a 3.5-inch touchscreen interface.
What are the power supply specifications of the Phrozen Sonic MEGA 8K S?
The Sonic Mega 8K S runs on AC100–240V, 50–60Hz, with up to 240W power use. The power switch and inlet are rear-mounted.
Power system details:
Max consumption: 240W
Input: AC100–240V, 50–60Hz

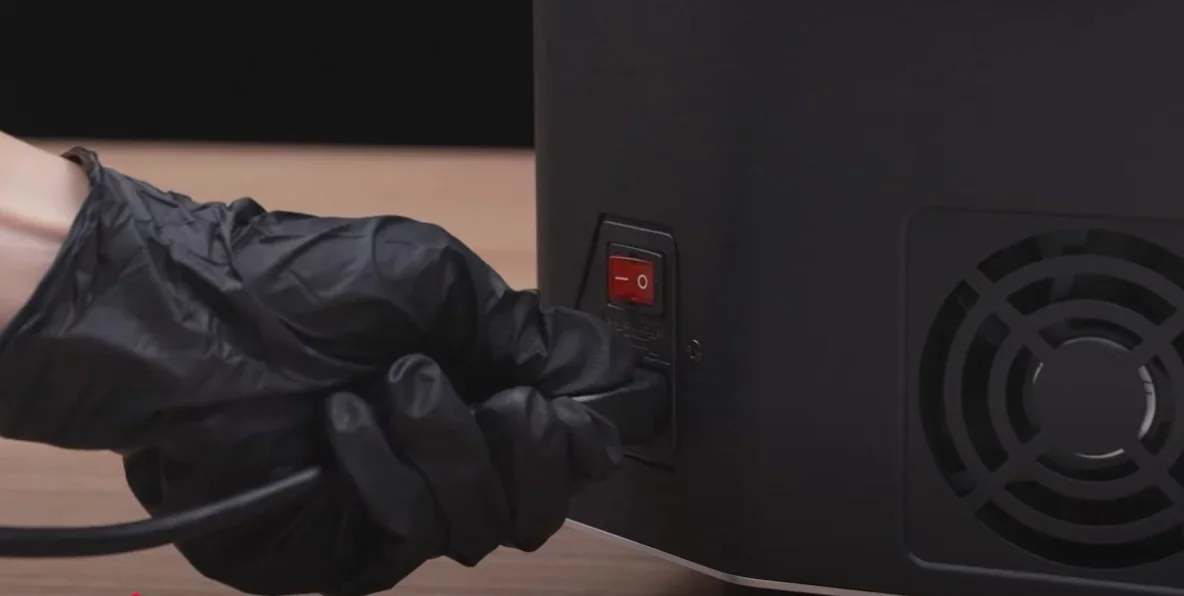

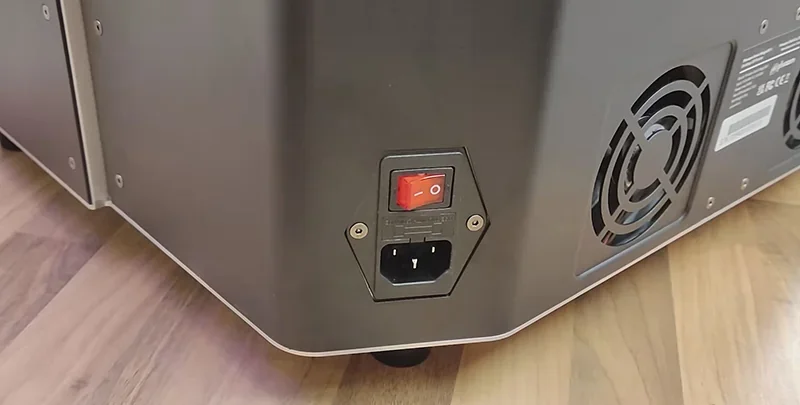

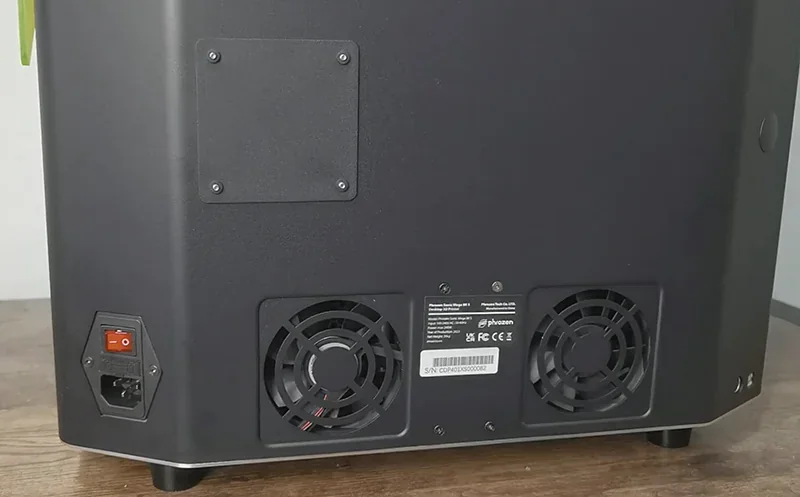

Rear power switch and inlet
The 240W power supply powers the Sonic Mega 8K S’s 15-inch LCD, UV LED array, dual fans, stepper motors, and electronics.

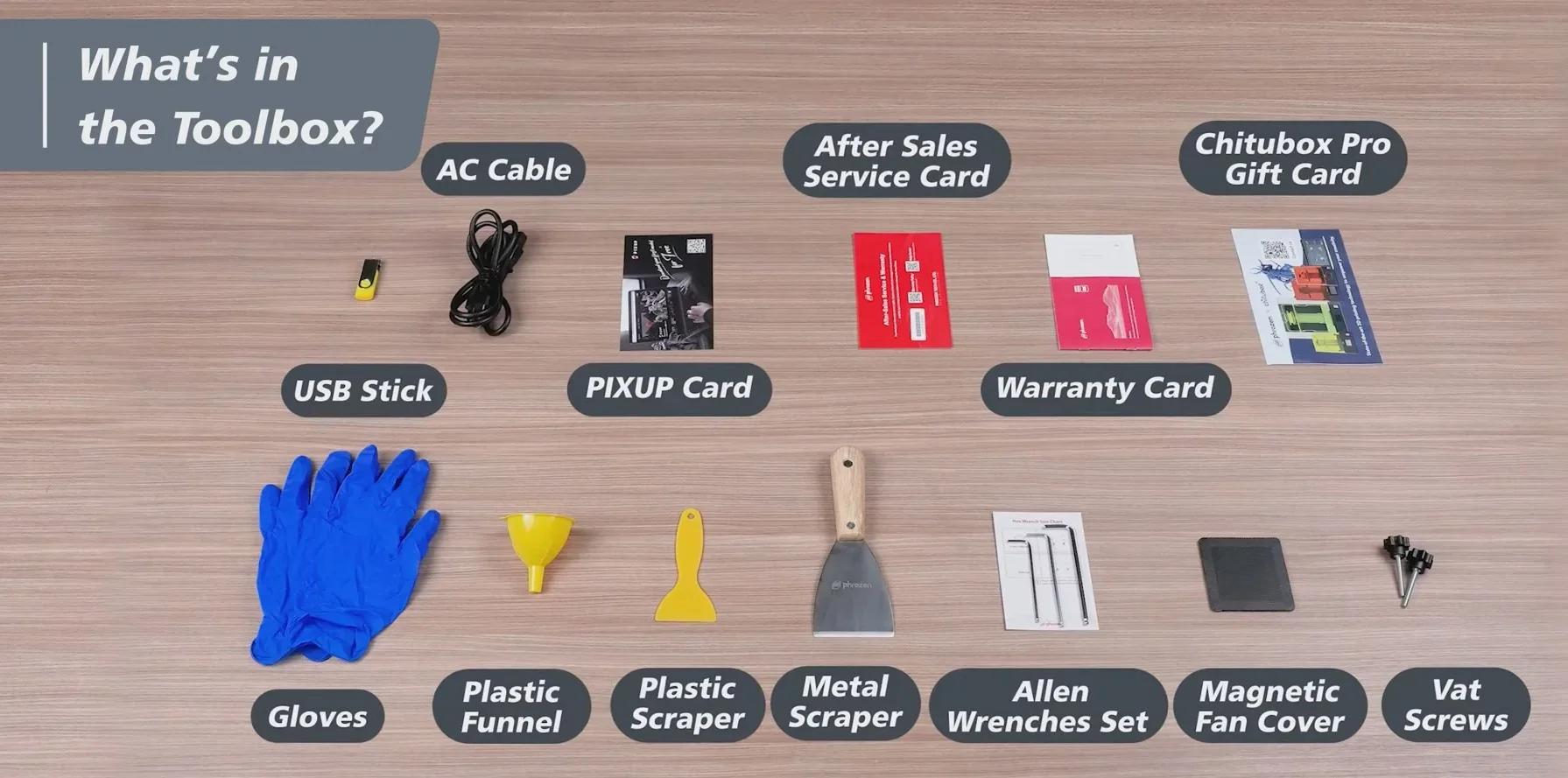

What comes included in the box with Phrozen Sonic MEGA 8K S?
Sonic Mega 8K S 3D printer (assembled)
Resin vat (pre-installed)
Build plate (pre-installed)
Metal scraper (build plate)
Plastic scraper (vat)
Funnel
Disposable gloves
Allen key set
Power cord
USB thumb drive
The Sonic Mega 8K S ships fully assembled with a pre-calibrated build plate and tools like scrapers, a funnel, and a USB drive. Resin is not included and must be bought separately.
Note: Package contents may vary by manufacturer. Confirm included items with a Top3DShop sales representative before ordering.
What upgrades and accessories are available for the Phrozen Sonic MEGA 8K S?
The Phrozen Sonic MEGA 8K S offers upgrades and accessories including the Wash Mega S washing station for large prints, Cure Mega S UV curing station, Pump & Fill automated resin feeder, 15-inch 8K LCD replacement, durable aluminum resin vat, perforated aluminum build plate, and an LCD screen protector, all designed to enhance printing, post-processing, and maintenance efficiency.
Accessory
Function
Target User
Price (USD)
Wash Mega S
Print washing
Cleaning needs
$270+
Cure Mega S
UV post-curing
Post-processing
$370+
Pump & Fill
Auto resin feeder
Automation users
$160+
LCD Replacement
15" 8K screen swap
Repair/upgrade
$370+
Aluminum Resin Vat
Resin vat replacement
Vat replacement
$210+
Build Plate
Build plate replacement
Plate replacement
$160+
LCD Screen Protector
Screen protection
All users
$20+
Phrozen Wash Mega S

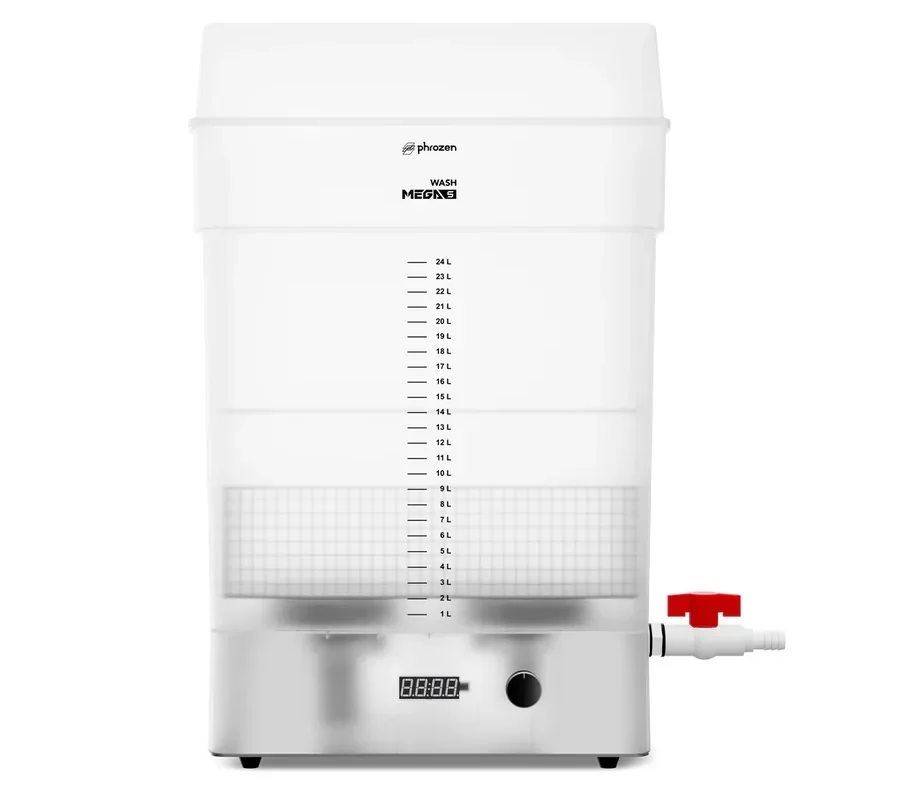

The Phrozen Wash Mega S is a 25L washing station for large resin prints, with dual-speed vortex cleaning (275/300 rpm), auto-reverse, a 10-minute timer, and a side valve for alcohol disposal. It fits 12.8–15-inch build plates, models up to 35 cm tall, has a 33 × 19 × 30 cm capacity, and weighs 7.5 kg.

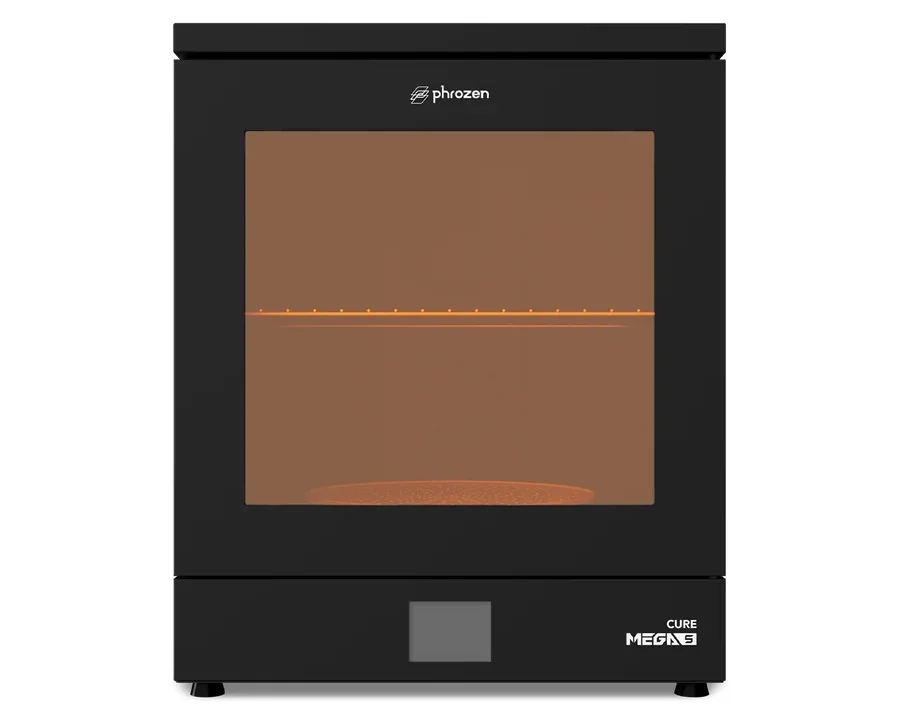

Phrozen Cure Mega S
The Phrozen Cure Mega S is a 70W UV curing station for prints up to 35 × 30 cm. It uses 405 nm LEDs, a 360° turntable, and dual 1700 rpm fans, with cure-only, fan-only, or combined cycles (1–120 min). Features include an interior light, detachable batch rack, and a 39.5 × 47.5 × 48.6 cm, 15 kg build for stability.
Phrozen Pump & Fill

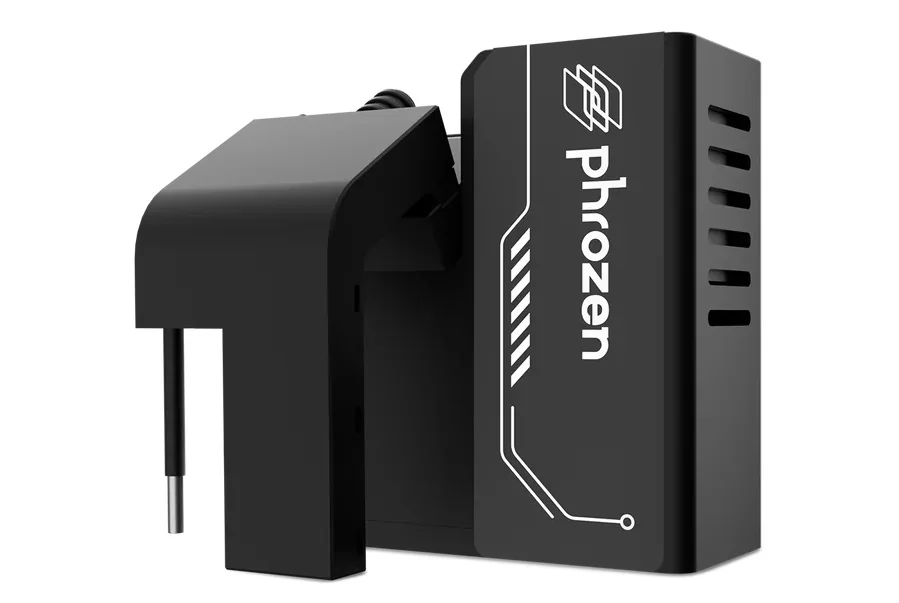

The Phrozen Pump & Fill, for the Sonic Mega 8K S and Mighty Revo, automates resin refills, pumps leftovers back, and supports manual vat cleaning. It fits 1 kg bottles up to 210 mm tall × 90 mm wide, uses a peristaltic tube (replace every 6 months), includes an install kit, and requires firmware updates plus menu activation.
Phrozen LCD

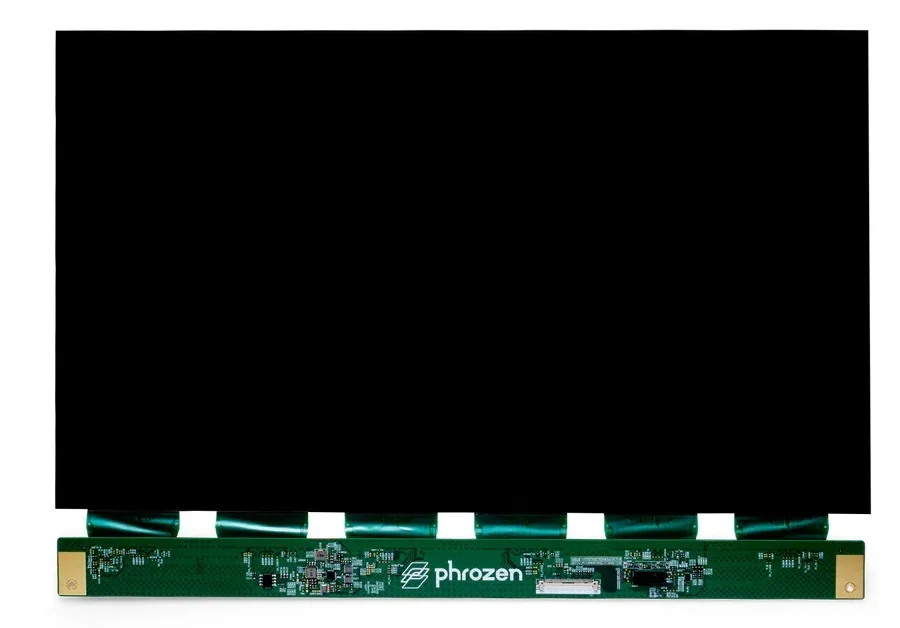

The Phrozen LCD for the Sonic Mega 8K S is a 15-inch 8K monochrome screen with high light transmission and heat resistance, lasting ~3,000 hours. It cures fast with high quality across 330 × 185 mm. Installation requires front casing removal, cable disconnection, screen placement, film removal, taping, and Z-axis recalibration.
Phrozen Aluminum Resin Vat

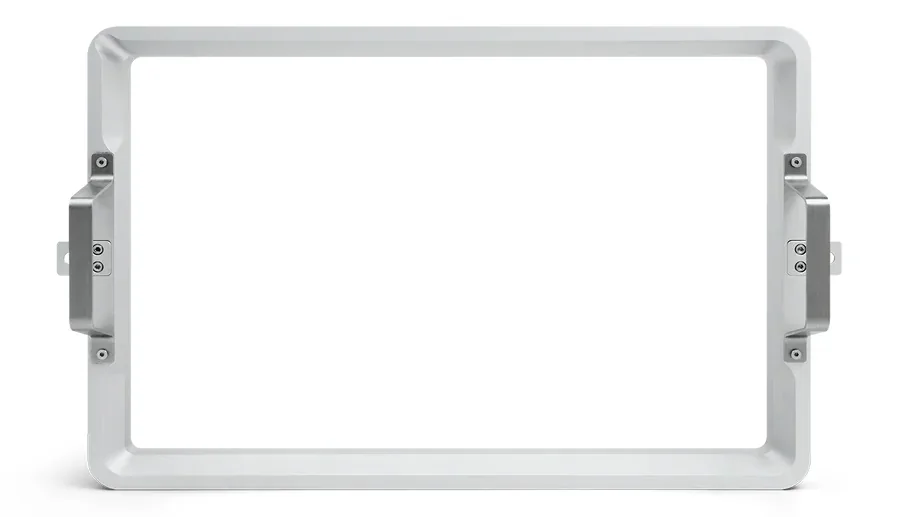

The Phrozen Aluminum Resin Vat for the Sonic Mega 8K S is a CNC-machined anodized metal vat with pre-installed FEP film, a pour spout, and handles. Sized 267.2 × 403.2 × 32 mm (outer) and 237.2 × 373.2 × 32 mm (inner), it works with all resins, is more durable than plastic, and maintains precision over repeated use.
Phrozen Building Plate
The Phrozen Building Plate for the Sonic Mega 8K S is a 15-inch aluminum replacement with a 4-point, one-click calibration system. Its perforated, anodized surface reduces suction on large prints while staying lightweight, durable, and rigid.
Phrozen 15" LCD Screen Protector
The Phrozen 15" LCD Screen Protector for the Sonic Mega 8K S is a 332 × 188 mm PET film that protects the LCD from resin, scratches, and UV damage while preserving light transmission. It comes with an install kit, requires Z-axis recalibration, and ships factory-installed with replacements available.
What maintenance does the Phrozen Sonic MEGA 8K S require?
Resin Filtration: Filter resin to remove cured particles that may damage FEP
Build Plate Cleaning: Wipe with paper towels, soak in 95% IPA for 15–60 min

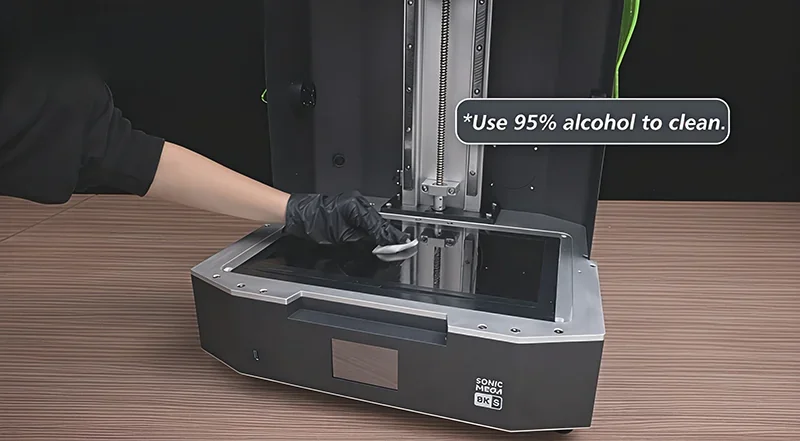

Surface Cleaning: Use 95% alcohol and lint-free wipes on exterior, vat, and plate
Every 3 Months (Quarterly)
Z-Axis Ball Screw Lubrication:
Check for unusual sounds/vibrations
Dry clean with microfiber cloth during movement
Apply lithium grease (Shell Alvania or REACH_151 EP)
Wipe excess with microfiber cloth
As Needed (Condition-Based)
LCD Cleaning: Use 95% alcohol wipes or scotch tape for residue
FEP Film Replacement: Replace if damaged to protect LCD
Screen Protector Replacement: Swap if protective film is damaged
Critical Maintenance Notes
Environment: Keep in dry, ventilated space on flat surface, away from sunlight
Safety: Wear gloves, mask, goggles, and long sleeves during maintenance
Lubrication: Do not use WD-40 or rust removers on Z-axis components
Calibration: Recalibrate Z-axis after replacing build plate, Z-rod, LCD, or screen protector
The Sonic Mega 8K S is pre-calibrated for immediate use with no initial setup needed.
What support and warranty come with the Phrozen Sonic MEGA 8K S?
The Sonic Mega 8K S printer includes a 12-month warranty for the main body, Z-axis, build plate, resin vat, and LED module. The mono-LCD has a 3-month warranty, while consumables like ACF film are excluded.
Phrozen provides support through their Help Center and email (support@phrozen3d.com), offering guides, troubleshooting, and repair tutorials with photos and videos. Warranty parts are shipped free, with DIY repairs encouraged to reduce downtime.
After warranty, replacement parts are available from Phrozen and resellers, with full maintenance guides. Support requests should include order or serial number plus photos or videos for faster troubleshooting.
Full warranty terms: https://phrozen3d.com/pages/warranty-policy
How much does the Phrozen Sonic MEGA 8K S 3D printer cost?
The Sonic Mega 8K S, priced at $809.00, is a professional 3D printer with large build volume, 8K resolution, and high efficiency. Built for industrial use, it can print 80 miniatures per batch, replacing multiple smaller printers and reducing labor. With TR300 resin, it prints up to 10× faster than mid-sized models while maintaining 43 µm resolution. Buy the Phrozen Sonic Mega 8K S from Top3DShop for reliable Phrozen support.
Average print speed
400 layers/hr
Connectivity
Front USB Port
Layer thickness
0.01-0.30 mm
Power requirements
AC100-240V；50-60Hz
Print size
47.2 x 38 x 56.6 cm
Release film
ACF Film
Slicer software
CHITUBOX V1.9.6 or above
XY resolution
43 µm
Design
Technology Resin 3D Printer - LCD Type
Operation
3.5" in Large Touch Panel
Print volume
33 x 18.5 x 30 cm
Printer Weight
26 kg
System
Phrozen OS
System Power
Max 240 W
Light source
405nm ParaLED Matrix 2.0
