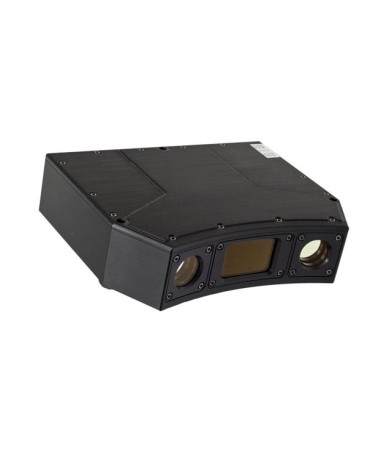

Polyga C210 3D Scanner

The Polyga Compact C210 is an industrial-grade desktop 3D scanner designed to yield highly accurate results. Like other models in the lineup, the device is equipped with fast high-resolution cameras and projector, increasing scan speed while providing detailed outputs. The professional scanner features simplicity and comfort in use, being a plug-and-play, factory-calibrated system. It is capable of collecting two million points per scan. The user-friendly and efficient software streamlines post-processing and improves overall performance.

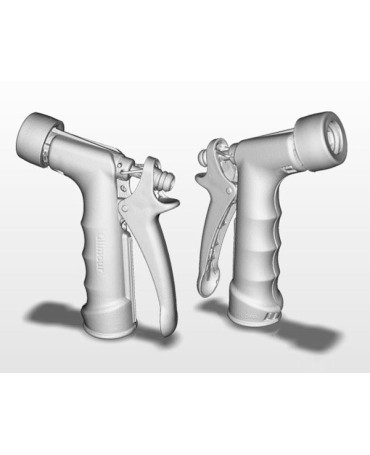

The product has a solid aluminum body and is IP67 rated, which means it is completely dustproof and water-resistant. It will be a great tool for computer and robotic vision, rapid prototyping, reverse engineering, quality inspection, 3D modeling. The device is meant to scan objects approximately the size of a shoebox. Have a look at some scans made with the Compact C210.

Specifications:

• Scan accuracy
• Scan volume
• Scanner controls
• What’s in the box
• Look and feel
• Price

Scan accuracy

The Polyga C210 is a structured-light 3D scanner that has two 2.0 megapixel cameras. The device is capable of scanning objects with an accuracy of up to 35 microns and a point-to-point distance of 0.07 mm.

Scan volume

The C210 features two scanning areas for rendering different-sized workpieces. Specifically, the field of view stands at 98 x 71 and 154 x 100 mm, with a working distance of 164 mm. The device can capture objects 5 to 30 cm sized.

Scanner controls

The device uses the proprietary FlexScan3D software and operates through a plugged computer. The program ensures fast data capture and features advanced post-processing capabilities. It also includes basic quality inspection measurement tools for deviation analysis.

The scanner supports the most common file formats: PLY, OBJ, STL, ASC, FBX. For reverse engineering purposes, you can use the XTract3D add-in for SOLIDWORKS to extract measurement information from a part and design a parametric CAD model.

What’s in the box

• Polyga Compact C210 3D scanner
• Power cable
• Network cable
• FlexScan3D software

In addition, Polyga offers a few accessories (purchased separately) to facilitate and streamline the scanning process and improve your experience:

• Lightweight rotary table
• Compact adjustment stand
• Travel case and tripod
• Connector + power adapter

Add-ons can vary depending on the model. To learn more about the supply package and available accessories for the Polyga C210, please get in touch.

Look and feel

The Polyga C210 is available in black. Its austere look makes it ideal for industrial applications.

The scanner dimensions are 1.9 x 5.7 x 7.5 inches (49 x 146 x 190 mm).

Price

To learn the current price of the Polyga Compact C210, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
