RangeVision PRO Base 3D Scanner

Available on backorder
An adaptable professional scanner
  • Great price/performance ratio
  • Small to large scan areas
  • Multiple fields of view
  • Highly-detailed scans
When purchasing with us you get:
  • FREE Delivery
  • 1 Year Warranty
  • 24/5 Customer Support
  • FREE training
This 3D scanner comes with:
  • The scanning module
  • Two cameras (2-Mpix each)
  • Selected set of scanning zones (a set of lenses + calibration panels)
  • A hard plastic box with a lodgment
Order now and we’ll ship it in 24 hours or less

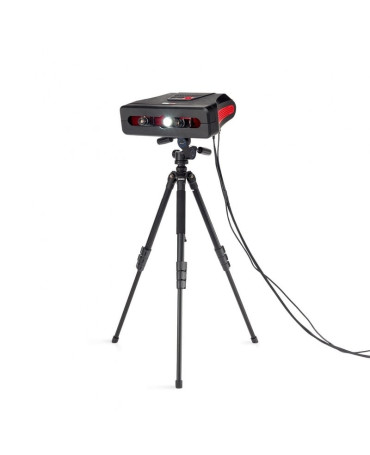

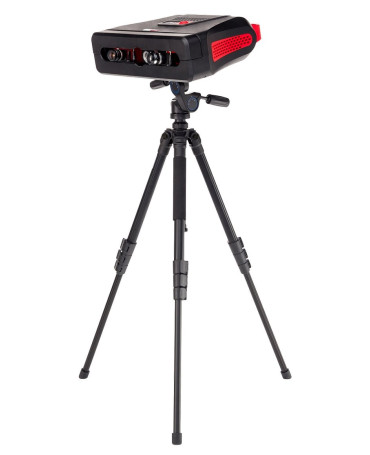

The RangeVision PRO Base is a professional structured light 3D scanner. It features four different fields of view, which make it capable of scanning objects of any size and shape. This versatile 3D scanning device has a great price/performance ratio. It can scan from small rings to large cars with an accuracy of up to 0.018mm.

The PRO Base uses blue light 3D scanning technology and benefits from superior calibration mechanisms. It is engineered with a 2MP camera, the unique feature that makes it different from the RangeVision PRO 5M. By switching from a field of view to another, it gives you the possibility to scan small, medium, or large objects with an incredible level of detail. The RangeVision PRO Base gets accurate data that can be immediately turned into ready-to-use 3D models. Its flexibility and adaptability make it ideal for several applications in multiple fields. For example, the PRO Base can be used to scan items for quality control, product design, education, and more.

The scanner comes bundled with all the necessary tools, including a portable case and the own-brand professional ScanCenter software with unlimited license and free updates. It includes built-in post-processing features to quickly align and merge your scans into a complete 3D model without the need for external software. Read our RangeVision PRO Base review to learn more about this scanner.

The PRO Base has been used to reverse engineer a propeller. Due to its shiny surfaces, the propeller has been covered with a matte spray.

Thanks to the structured-light technology, the engineers have been able to obtain high-accurate data. Look at the picture to see the result.



Specifications:

  • Scan accuracy
  • Scan volume
  • Scanner controls
  • What’s in the box
  • Look and feel
  • Price



Scan accuracy

The RangeVision PRO Base is a professional blue-light 3D scanner with multiple scanning areas. It is engineered with a 2-Mpix camera with a resolution of 0.19 to 0.03 mm. Its scanning accuracy depends on the field of view selected.

Credit: @RangeVision / Twitter

Specifically, by selecting the FOV of 460 x 345 x 345mm, the PRO Base can scan parts with an accuracy of 0.06 mm and a 3D resolution of 0.19 mm at a working distance of 900 mm.

The FOV of 300 x 225 x 225 mm has an accuracy of 0.03 mm and a resolution of 0.12 mm at a working distance of 520 mm.

With both the fields of view of 133 x 100 x 100 and 66 x 50 x 50 mm, you can get an accuracy of 0.018 mm and a 3D resolution of 0.06 and 0.03 mm at a distance of 350 mm.

Credit: @RangeVision / Twitter



Scan volume

The RangeVision PRO Base features four different scanning areas of 460 x 345 x 345mm, 300 x 225 x 225mm, 133 x 100 x 100mm, and 66 x 50 x 50mm. This makes it capable of scanning both small, medium, and large objects. For example, it has been used to scan the below-pictured car.



Scanner controls

The scanner is controlled via a USB-paired computer.

The scanner comes integrated with ScanCenter, the proprietary post-processing software. The program is really easy-to-use and includes a set of automated features for an easier scanning experience. For example, it is capable of automatically stitching fragments, filling voids, and aligning meshes.

You can export the captured data in CAM/CAD and 3D printing compatible formats (STL, OBJ, PLY) with ease.

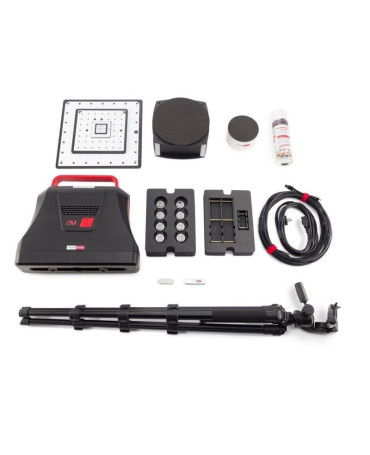

What’s in the box

  • RangeVision PRO Base
  • The scanning module
  • Two cameras (2-Mpix. each)
  • Selected set of scanning zones (a set of lenses + calibration panels)
  • A hard plastic box with a lodgment
  • A tripod
  • Digital license key
  • Set of self-adhesive markers

For some items, package content may change. In case of any questions, please get in touch.

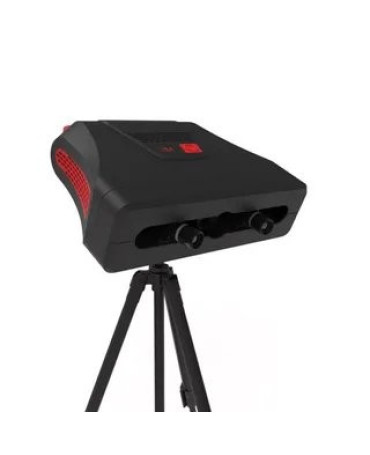

Look and feel

The RangeVision PRO Base is available in black with red trimmings. Its stylish look makes it ideal for a variety of applications, including industrial design, jewelry design, education, reverse engineering, quality inspection, and more.

The scanner dimensions are 16 x 13.8 x 4.9 inches (408 x 350 x 125 mm). It weighs 14.33 lb (6.5 kg).



Price

To learn the current price of the scanner, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
