Roboze ARGO 500 3D Printer

In Stock
Large-scale industrial FDM 3D printer for high-temp printing
  • HVP double extruder heating up to 450 °C
  • Patented beltless motion system
  • Large build volume
  • Automated remote control system
When purchasing with us you get:
  • FREE Delivery
  • Limited 1 Year Warranty
  • Local U.S. Support
  • FREE training
We Accept Purchase Orders From All Educational Institutions and Eligible Business Customers
This 3D printer comes with:
  • Pack of 10 build sheets
  • Spool of filament
  • Protective goggles
  • All the necessary tools
The estimated lead time is 5-10 business days.

The Roboze ARGO 500 is a large-scale industrial 3D printer capable of handling most demanding high-performance polymers and composites. These materials are successfully used as a more lightweight substitute for metals and metal alloys when high mechanical, chemical, and thermal properties of the finished part are required.

The ARGO 500 belongs to the Production series of Roboze industrial 3D printers and, as the name suggests, features a sizable 500 x 500 x 500 mm build volume, being the medium-size machine in the series, which also includes the and models. The ARGO 500 was designed as a truly industrial tool allowing for highly automated efficient workflow and remote operation and control of the printing process. Due to the integrated B&R PLC system, the machine saves all the information and parameters during each print and creates a data log helping certify every printed part. The remote maintenance modules help minimize downtime and allow for automatic software updates. The automated printing process also includes auto bed leveling and extruder calibration, automatic material loading, and filament runout detection.

Operation of the Roboze ARGO 500 3D printer with the integrated touchscreen.

Based on the patented Beltless System which uses XY direct mechatronic movement with rack and pinion gears instead of conventional rubber belts, the ARGO 500 provides high mechanical precision and repeatability of printing results. The high-temperature HVP dual extruder ensures continuous flow and allows printing with high-viscosity polymers. To prevent model deformation and shrinkage, the build chamber of the ARGO 500 provides homogeneous heating up to 180 °C. Polymer print sheets held on the print bed with a vacuum are used to improve first layer adhesion.

The patented Beltless System by Roboze which uses XY direct mechatronic movement.

The integrated HT filament dryer provides optimal material treatment and guarantees the consistent quality of the printed models.

The integrated HT filament dryer of the Roboze ARGO 500 3D printer.

The models below were printed with Roboze Helios PEEK 2005, featuring low thermal and electrical conductivity, high temperature resistance, and superior surface finish.

A sample model printed with Roboze Helios PEEK 2005 on the ARGO 500 3D printer.

A sample model printed with Roboze Helios PEEK 2005 on the ARGO 500 3D printer.



Specifications:

  • Print quality
  • Materials
  • Build volume
  • Printer controls and software
  • What’s in the box
  • Look and feel
  • Price



Print quality

The high-precision kinematics of the ARGO 500, combined with a high-performance extruder and thermally controlled build chamber, as well as a heated print bed with auto leveling make for industrial-grade print quality of dimensionally accurate, highly detailed models with smooth surface finish, and ensure high level of repeatability. The XY printing accuracy is 10 microns and the Z accuracy is 25 microns.

These parts were printed with Roboze Carbon PA PRO.

A sample model print with Roboze Carbon PA PRO on the ARGO 500 3D printer.

A sample model print with Roboze Carbon PA PRO on the ARGO 500 3D printer.



Materials

The high-performance double extruder with 0.4 and 0.6 mm diameter nozzles heats up to 450 °C, allowing printing with engineering thermoplastics and composites such as PEEK, Carbon Peek, Carbon PA, Ultem AM9085F, PC, Functional-nylon, ABS-ESD, PP, Flex-TPU, Strong-ABS, and Ultra-PLA. Roboze produces a wide range of high-performance filaments perfectly compatible with the company’s industrial 3D printers.

Various thermoplastics and composites the Roboze ARGO 500 3D printer is capable of printing with.



Build volume

The ARGO 500 build volume of 500 x 500 x 500 mm makes the machine suitable for producing large models or batches of smaller parts. Ideal for both prototyping and final part manufacturing, the ARGO 500 is used in a variety of industries such as aerospace, automotive, motorsport, oil and gas, and others where mechanical properties and chemical, water, or abrasion resistance of models, as well as tight tolerances are a priority.

The capacious build volume of the Roboze ARGO 500 3D printer.



Printer controls and software

The printer is operated via an 11" touchscreen and has USB, Wi-Fi, and Ethernet connectivity options. Automated operation and control functions allow for a highly efficient end-to-end manufacturing cycle.

A close-up on the 11" touchscreen featured by the Roboze ARGO 500 3D printer.

The dedicated Prometheus slicing software features versatile tools to ensure seamless workflow and speed up print preparation. The slicer features optimized profiles for Roboze 3D printers and filaments.

The interface of the proprietary Roboze Prometheus slicer developed specifically for industrial printing.



What’s in the box

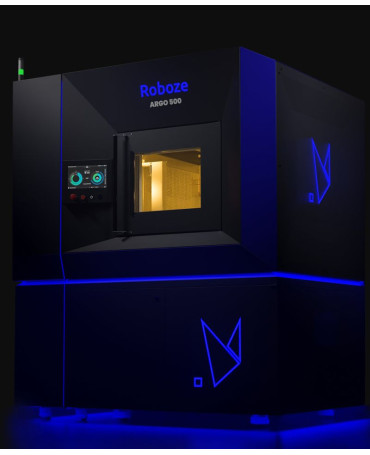

A front view on the Roboze ARGO 500 3D printer.

  • Roboze ARGO 500 3D printer
  • Thickness gauge
  • USB stick
  • Protective goggles
  • Protective gloves
  • Metal spatula
  • Tool set
  • Multipurpose and HT grease blisters
  • 2 kg spool of filament
  • Pack of 10 build sheets
  • All the necessary cables
  • User guide

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

The Roboze ARGO 500 3D printer is available in a black color scheme with blue trimmings. Its stylish look makes it ideal for any industrial application.

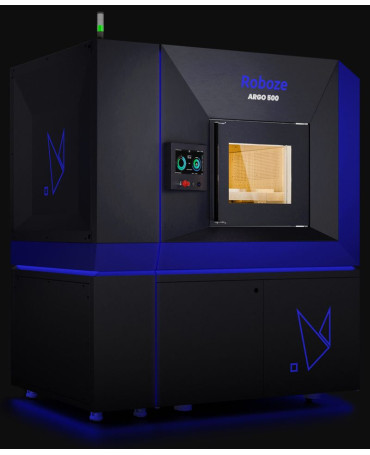

A side perspective on the Roboze ARGO 500 3D printer.

The machine dimensions are 76.2 x 56.5 x 93.5 in (1935 x 1436 x 2375 mm). It weighs approximately 3748 lb (1700 kg).



Price

To learn the current price of the Roboze ARGO 500 3D printer, click the "request a quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
