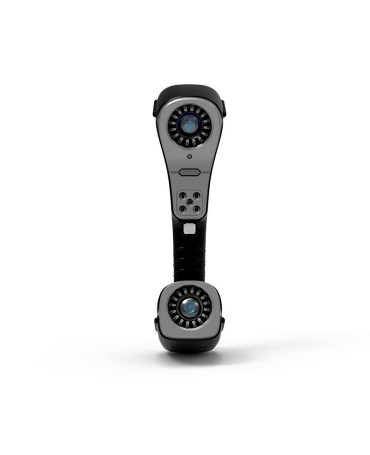

Scantech KSCAN-MagicII 3D Scanner

Available on backorder
Professional lightning-fast 3D scanner
  • Max. accuracy: 20 microns
  • Large single-scan area
  • Effortless flexibility
  • Lightning-fast scanning rate
When purchasing with us you get:
  • FREE Delivery
  • Full 1 Year Warranty
  • 24/5 Customer Support
  • FREE training
This 3D scanner comes with:
  • Calibration board
  • Waterproof case
  • Markers
  • ScanViewer software
Order now and we’ll ship it in 24 hours or less

The Scantech KSCAN-MagicII is a professional high-resolution handheld 3D scanner that employs infrared laser paired with blue laser technology, providing outstanding accuracy, a large scanning area, an unbelievable level of precision, and unmatched scanning speed. It is a faster and improved version of its predecessor, the Scantech KSCAN-Magic. The device features a futuristic and integrated design and in fact is outstandingly portable, allowing for hassle-free and effortless transportation. Thanks to its ultra-fine resolution of 0.010 mm, it can easily capture details of even the most challenging objects, including hard to reach complex surfaces, deep holes, and dead angles. Besides, its massive single-scan area of 1440 x 860 mm (3760 x 3150 mm with a built-in photogrammetry system) lets you easily one-scan capture even the largest objects. Moreover, the scanner has been integrated with optimized data algorithms which provide a high level of adaptability, meaning that the device can even scan objects with transparent, shiny, and black surfaces with ease.

The KSCAN MagicII boasts its 925 mm depth of field (2500 mm with a built-in photogrammetry system) and volumetric accuracy of 0.030 mm/m, allowing you to adjust the working distance depending on the application. Besides, this revolutionary device offers intelligent edge detection, contact probing, and pipe measurement inspection modules that expand its range of applications even further.

Thanks to a plethora of different scanning modes, namely: ultra-fast, hyperfine, large area, and deephole scanning modes and a built-in photogrammetry system, this industrial-grade scanner is an outstandingly flexible device that can be used for literally any kind of 3D scanning project.

The scanner can be used in a plethora of different applications, such as:

  • Aerospace industry
  • Automotive industry
  • Industrial production
  • Reverse engineering
  • Quality control
  • 3D modeling
  • Production of injection molds
  • Healthcare and dentistry
  • Cultural heritage preservation
  • Education, science
  • Design
  • AR/VR

Check out this precise render of a steering shaft housing. The KSCAN MagicII renders everything up to the smallest detail, which makes it a perfect device for industrial applications that require millimeter-precise renders.

How about a high-precision scan of a European-style chair?

If scanning wood-carved pieces is your kind of thing, the KSCAN MagicII would be a fine choice for you since it scans with metrology-grade precision and preserves all the decorative patterns and hollow textures.

Finally, there’s a high-definition render of a Psittacosaurus.



Specification

  • Scan accuracy
  • Scanning mode specifics
  • Scan volume
  • Scanning tips
  • Scanner controls
  • Software
  • What’s in the Box?
  • Look and feel
  • Price



Scan accuracy

The Scantech KSCAN MagicII is a professional handheld 3D scanner with outstanding accuracy and scan speed. This metrology-grade solution can deliver a maximum accuracy of 20 microns. Moreover, it offers an unbelievable precision level of just 10 microns alongside a depth of field of 925 mm, making this scanner a perfect choice for any kind of industrial or professional application.



Scanning Modes Specifics

Mode

Ultra-fast scanning

Hyperfine scanning

Large-area scanning

Deep hole scanning

Laser details

13 blue laser crosses + 1 extra blue laser line (eye safe)

7 blue parallel laser lines (eye safe)

11 parallel infrared laser lines (eye safe)

1 extra blue laser line (eye safe)

Scan speed

Up to 1,650,000 measurements/s

Resolution (point distance)

0.010 mm

Volumetric accuracy

Up to 0.010 mm + 0.030 mm/m (standalone operation)

Up to 0.010 mm + 0.020 mm/m (with a reference bar)

Up to 0.010 mm + 0.015 mm/m (with MSCAN-L15)



Scan volume

The Scantech KSCAN MagicII offers a large single-scan range of up to 1440 x 860 mm. Besides, it features an advanced built-in photogrammetry system that can prolong it up to 3760 x 3150mm, which will definitely come in handy when employed in industrial applications. Thanks to the scanner’s precision, not even the smallest detail will be left behind.



Scanning Tips

Overall tips:

  • Use the CMM K-Probe to easily scan dark, shiny, and transparent objects
  • Scan with a dark background
  • Use correct scanner settings
  • Fine-tune your scanner
  • Create a controlled environment
  • Avoid scanning moving objects



Scanner controls

To begin using the scanner, just connect it to your computer using the dedicated USB aviation cable that comes with the device and complete a simple one-click-setup.



Software

The Scantech KSCAN MagicII comes with a proprietary ScanViewer software solution. It is a free professional software suite for 3D scanning and data processing that offers a variety of advanced options for data editing. It lets you create a variety of different features, request advanced feature analysis, provide distance measurement, pipe inspection as well as perform accurate and thorough dimensional and tolerance analysis according to the scanned data, and much more.



What’s in the Box?

  • Scantech KSCAN-MagicII 3D scanner
  • Calibration board
  • USB drive
  • Power cord
  • Charger
  • Calibration board support
  • Markers
  • Waterproof case
  • ScanViewer software suite

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

The Scantech KSCAN MagicII is available in a stylish black color with gray and green trims. Its neatly-looking appearance makes it ideal for professional and industrial applications.



Price

To learn the current price of the scanner, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
