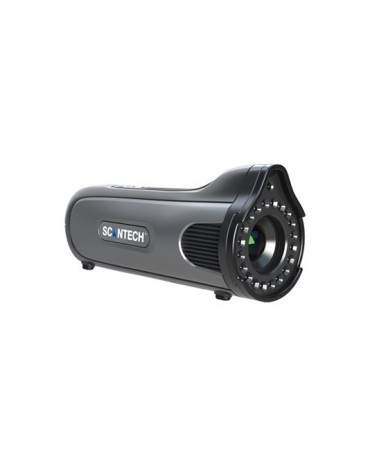

Scantech MSCAN-L15 Photogrammetry System

Available on backorder
Portable photogrammetry system
  • Ultra-precise HDR mode
  • Max. volumetric accuracy: 0.015 mm/m
  • Real-time feedback
  • Max. single-scan area: 9.4 m x 6.9 m
When purchasing with us you get:
  • FREE Delivery
  • Full 1 Year Warranty
  • 24/5 Customer Support
  • FREE training
This 3D scanner comes with:
  • Manufacturer’s warranty
  • Markers
  • Waterproof case
  • USB drive
Order now and we’ll ship it in 24 hours or less

The Scantech MSCAN-L15 is an industrial-grade photogrammetry system used to greatly improve the parameters of your 3D scanning devices. It provides increased volumetric accuracy, extends the scanning area, and accounts for a greatly improved depth of field, letting you benefit from more accurate 3D renders of large objects. The system is compatible with the Scantech PRINCE335, PRINCE775, KSCAN20, HSCAN331, HSCAN771, AXE-G7, AXE-B11, and the TrackScan-P22

Among the most important advantages of the MSCAN-L15 is its advanced data algorithms that provide a high level of adaptability, letting you use the device to perform in-depth quality control of measurements of even the largest objects. Besides, the MSCAN-L-15 boasts its high-precision HDR mode that provides reliable environmental adaptability and ensures a streamlined 3D scanning experience. It features a futuristic and integrated design and weighs just 500g, making it outstandingly portable, allowing for hassle-free and effortless transportation. It comes with a waterproof and impact-resistant case to ensure additional reliability and provide safety during transportation.

The add-on can be used in a plethora of different applications, such as:

  • Aerospace industry
  • Automotive industry
  • Industrial production
  • Reverse engineering
  • Quality control
  • 3D modeling
  • Production of injection molds
  • Healthcare and dentistry
  • Cultural heritage preservation
  • Education, science
  • Design
  • AR/VR

Check out this precise render of an airplane to see what the system is capable of:

How about a high-definition scan of car lights?



 Specification

  • Scan accuracy
  • Specs and compatibility
  • Scan volume
  • Scanning tips
  • Scanner controls
  • Software
  • What’s in the Box?
  • Look and feel
  • Price



Scan accuracy

The MSCAN-L15 is a professional 3D scanning solution with outstanding accuracy and scan speed. This metrology-grade device can deliver a maximum volumetric accuracy of 0.015 mm/m and accounts for an increased depth of field of 6.5m, making it a perfect choice for any kind of industrial or professional application that requires millimeter-precise renders of large-scale parts.



Specs and Compatibility



PRINCE335 PRINCE775

KSCAN20

HSCAN331 HSCAN771 / AXE-G7 AXE-B11

TrackScan-P22

Volumetric accuracy

0.020 mm + 0.015 mm/m (Standard mode R); 0.010 mm + 0.015 mm/m (Hyperfine mode B)

0.020 mm + 0.015 mm/m (Standard mode R); 0.010 mm + 0.015 mm/m (Hyperfine mode B)

0.020 mm + 0.015 mm/m

0.044 mm + 0.015 mm/m

Mark point positioning detection

Real-time

Depth of field

6.5 m

Scanning area

Up to 9.4 m x 6.9 m



Scan volume

The Scantech MSCAN-L15 offers a large single-scan range of up to 9,400 x 6,900 mm (9.4 x 6.9 m) that lets you efficiently scan even the largest objects.



Scanning Tips

Overall tips:

  • Use the CMM K-Probe to easily scan dark, shiny, and transparent objects
  • Scan with a dark background
  • Use correct scanner settings
  • Fine-tune your scanner
  • Create a controlled environment
  • Avoid scanning moving objects



Scanner controls

To begin using the system, just connect it to a compatible 3D scanner and start receiving precise three-dimensional renders in the blink of an eye.



Software

The Scantech MSCAN-L15 comes with a proprietary ScanViewer software solution. It is a free professional software suite for 3D scanning and data processing that offers a variety of advanced options for data editing. It lets you create a variety of different features, request advanced feature analysis, provide distance measurement, pipe inspection as well as perform accurate and thorough dimensional and tolerance analysis according to the scanned data, and much more.



What’s in the Box?

  • Scantech MSCAN-L15 photogrammetry system
  • USB drive
  • Power cord
  • Charger
  • Markers
  • Waterproof case

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

The Scantech MSCAN-L15 is available in a stylish black color with gray trims. Its neatly-looking appearance makes it ideal for professional and industrial applications.



Price

To learn the current price of the scanner, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
