Einscan Pro HD 3D Scanner [1 x Aesub Spray for Free]

Buy now and get the color camera and industrial pack for free! (Turntable + Tripod).

The EinScan Pro HD is a professional handheld Structured Light 3D scanner for high-quality 3D modeling. Being an upgraded version of the EinScan Pro, this device boasts an incredible capability in capturing high resolution scans, a large scan area, exceptional acquisition speed, and a handful of other useful features. Due to reliable lighting projection hardware and software algorithm, it shows higher efficiency at capturing complex, dark or black color, and casting metal surface with less limitations of scan objects compared to the previous generation of the Einscan Pro series. (Note: for high-quality results with these surfaces we would recommend using a 3D scanning spray such as Aesub). By adopting a new structure light projection module, the stripe pattern scanning which was traditionally used in Fixed Scan Mode is now utilized in Handheld Scan Mode. In addition, with multiple positioning methods, both scanner or object can now be moved during scanning.

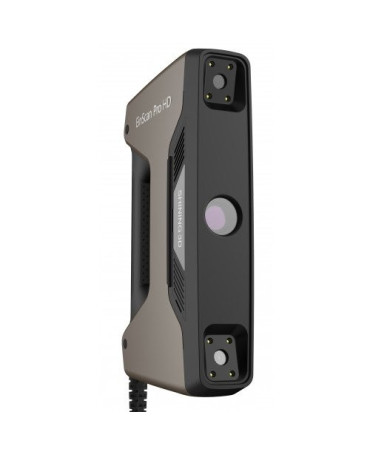

The EinScan Pro HD is a lightweight handheld 3D scanner that can easily be taken anywhere thanks to its ergonomic design. This modular device offers four different scan modes, each optimized for various professional applications delivering fast industry-grade results and unlimited scanning experience.

This Einscan model is a highly upgradeable multi-functional machine that offers optional color and industrial add-ons for unparalleled performance in a wider range of applications.

The recommended object size range for this handheld 3D scanner is between 30 and 300 cm. When using the Tripod and the Turntable Add-On Pack, you can scan fixed objects between 3 and 30 cm.

The Einscan Pro HD can be used for multiple applications, such as:

• Architecture
• Art and industrial design
• Reverse engineering
• Manufacturing
• AR, VR, high-quality 3D modeling
• Heritage preservation, artifact restoration
• Science and education
• Healthcare
• Full-body and partial human scans

Take a look at this accurate render of a sculpture. Higher resolution makes it incredibly detailed.

(Note: the STL files below is what you can achieve after post-processing the raw scans in the mesh-to-CAD editing software.)

What about scanning objects with complex geometry? Check out this precise render of a metal part. With its unparalleled accuracy, the scanner is suitable for many industrial applications.

Last but not the least, there is a render of a human face. Take a look at the incredible level of precision, all the fine details, and smooth angles — this render has captured everything up to the last wrinkle.

As you can see, with the right toolkit the EinScan Pro HD can be used to deliver well-detailed mesh and CAD files. Besides, it does this at a fast scanning speed. Proceed with the review for further specs.

Navigation

• Scan accuracy
• Scanning mode specifics
• Scan volume
• Addons
• Scanning tips
• Scanner controls
• Software
• What’s in the box
• Look and feel
• Price
• Certification

Scan accuracy

The EinScan Pro HD is a handheld 3D scanner with outstanding scanning capability, high accuracy, and fast scan speed. It provides different precision and speed levels depending on the mode selected. The Handheld Scan Mode (HD) delivers accuracy of up to 0.045 mm at a speed of up to 3,000,000 points per second (10 fps). The Rapid Scan Mode allows scanning at up to 1,500,000 points per second (30 fps) within the accuracy of up to 0.1 mm, it is meant to scan objects of large size. Finally, the Fixed Scan Mode makes it possible to capture an object in just half a second at the precision level of up to 0.04 mm. Under handheld scanning mode by marker alignment, the volumetric accuracy is up to 0.045mm+0.3mm/m. The optimal operating distance of the scanner is 510 mm.

Scanning modes specifics

Scan volume

The EinScan Pro HD offers a large single scan range starting from 209 x 160 mm and up to 310 x 240 mm with a point distance between 0.2 and 3 mm.

Addons

For better efficiency and new possibilities of the scanning process, you can order the product with the Industrial and/or Color Packs.

The Color Pack add-on provides you with an additional HD camera that lets you take full-color high-quality scans while also capturing the texture of a scanned object.

The Industrial Pack add-on includes an automatic turntable and a tripod. These dedicated products complete a setup for rapidly-paced scanning of small and medium-sized objects with ultimate high efficiency.

Multiple positioning methods, including feature alignment, marker alignment, turntable coded targets alignment, manual alignment, and texture alignment (available with Color Pack), greatly enhance the scanning efficiency without additional preparation.

Scanning tips

Overall tips:

• Apply a matte spray to easily scan shiny, dark and casting metal surface as well as transparent objects
• Scan with a dark background
• Use correct scanner settings
• Fine-tune your scanner
• Create a controlled environment
• Avoid scanning moving objects

The Handheld Rapid Scan mode is designed for:

• A fast scanning experience
• Scanning objects with good geometry with feature alignment
• Scanning large and heavy objects

The Handheld HD Scan mode is designed for:

• Higher accuracy and precision
• Scanning large and heavy objects

The Fixed Turntable Scan mode is designed for:

• Providing remarkable accuracy and impressive high resolution for fine details
• Objects between 3 and 30 cm
• Objects that weigh less than 5 kg

The Fixed without Turntable Scan mode is designed for:

• High accuracy and resolution
• Objects too big or too heavy to be placed on the turntable

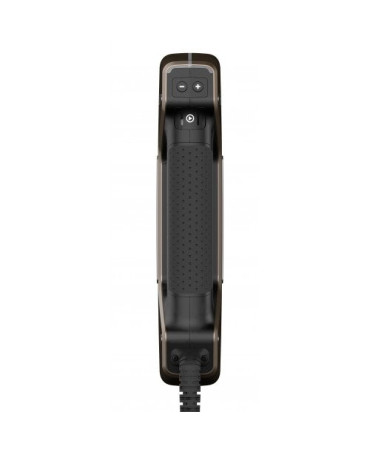

Scanner controls

To begin using the product to your heart’s content, just connect it to your computer with the dedicated USB aviation cable and complete the guided setup.

Software

The EinScan Pro HD comes with a highly efficient proprietary ExScan Pro software solution. It is a professional software for high-quality professional-grade experience with high scanning speed and data transmission that offers a variety of advanced options for data editing, modeling, and reverse engineering. For instance, it features point clouds generation, meshing, texture alignment, and quality post-processing.

Moreover, the product is supplied with the Solid Edge SHINING 3D Edition. It is a 3D design software that can be used to assist with reverse engineering, generative design, convergent and synchronous modeling.

As for mesh editing tools, we strongly recommend acquiring the Geomagic Essentials software for its many tools to analyze and clean mesh data. Scan data is often-times imperfect, meaning there might be holes and imperfections in the data that you'll be scratching your head on how to fix. The ExScan software and SolidEdge does have a toolkit for fixing meshes but it is not as extensive or automatic as the tools in Geomagic Essentials. You will save a lot of time with the full Scan to CAD process with Geomagic Essentials in between, not to mention it is much more effective at working with large files. The standard CAD software suites such as Solidworks, Autodesk Inventor, etc. tend to have problems with large-sized mesh files.

There are two ways the Geomagic Essentials can help with reverse engineering. If your focus is on solid modeling, you can use the GE to extract CAD data (surfaces and solids) and curve data (wire-frame geometry) from triangular meshes (scan data). The region and feature extraction toolkit will help you extract faces or bounded surfaces and export into an IGES or STP format. The curve drawing tools will help you extract wire-frame geometry and export to IGES format. These two datasets along with the scan file are essential for efficiency in a reverse engineering workflow. The NURBS surfacing tool also helps create a lightweight CAD model that you can export to an STP file for SolidWorks. This is especially helpful if your focus is on free-form modeling because you can freely manipulate the surface data in the Geomagic and most CAD programs.

Having such powerful tools at your disposal, you will be in a strong position to execute even complex projects with higher scanning efficiency.

What’s in the box

Credit: youtube.com

• EinScan Pro HD handheld 3D scanner
• Checklist
• USB drive
• Phone screen mount
• Calibration board
• Calibration board support
• Power cable
• Cable clip and marker remover
• Markers

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

The EinScan Pro HD product is available in a stylish gray-beige color with black trims. Its neatly-looking appearance makes it ideal for both professional and everyday applications.

The scanner weighs just 2 lb (1.13 kg) and has a package size of 15 x 14 x 5 inches (37 x 36.5 x 13.5 cm), making it a portable and easy-to-carry device.

Price

The price of the handheld 3D scanner EinScan Pro HD is $7,699.00 which is reasonable considering its multi scan modes, exceptional versatility with less limitations, fast scan speed, high-speed data transmission, high resolution and accuracy.

Certification

Due to quality service, Top 3D Shop has been awarded by Shining 3D and acknowledged as Gold EinScan Expert.
