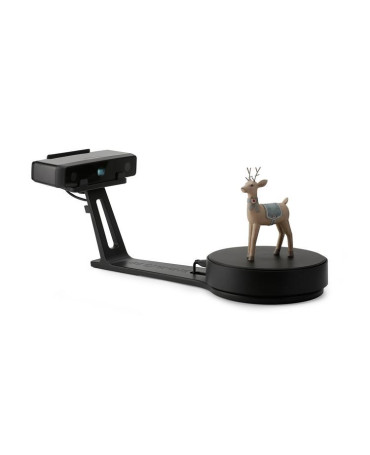

Shining 3D EinScan-SE 3D Scanner

EinScan-SE is a desktop-based 3D scanner manufactured by Shining 3D. It adopts the structured light 3D scanning technology for safer use. It comes in a compact and portable package, you’ll only need to unbox it and put the main units together. You will be ready to scan in less than two minutes. Considering its price/performance ratio, it has been awarded “Best Value 3D Scanner in 2019” by All3DP.

EinScan-SE is the Elite model of the EinScan lineup. It is the counterpart of the EinScan-SP, the higher-end EinScan’s Platinum model. Sold at an affordable price, it can scan objects both with or without color through two monochrome cameras. It is easily accessible and simple to use. The auto-calibration features and the two scan modes (fixed and auto) provide high accuracy and versatility.

The scanner works at a decent speed. It is able to perform a single scan in 10 seconds and a complete, 360-degree scan from 1.25 min to 11.45 min, depending on the step size selected for a full rotation (from 8 to 180) and the HDR settings used. The multiple scans can be easily aligned by the dedicated software.

EinScan-SE is currently employed by professional designers, makers and online sellers for multiple uses, including reverse engineering, digital cataloging, and more. Keep on reading for a deeper review.

One user 3D scanned an authentic canteen of the Second World War belonging to the Wehrmacht (German armed forces until 1945). The canteen has been digitized in four shots. Look how accurate and finely detailed it is.

Credit: @lafactoria3d / instagram

3D scanning will surely make your life easier. Look at the pic. Creating a custom-fit tail-light for your car models will be as easy as 1-2-3.

Credit: @onetenprints / instagram

Specifications:

• Scan accuracy
• Scan volume
• Scanner controls
• What’s in the box
• Look and feel
• Price

Scan accuracy

EinScan-SE is a professional desktop 3D scanner with a single shot accuracy of 0.1 mm. It is able to detect a variety of colors and textures delivering accurate geometries and good quality scans. The scan is sensitive to the light and works better in darkness. Shiny objects, glass or transparent surfaces cannot be scanned.

The EinScan-SE is equipped with a standard tripod thread. This gives you the possibility to mount it to an optional tripod for steadier scans of fixed objects or faces.

Scan volume

The automatic scan setting lets you capture objects up to 200 x 200 x 200 mm, while the fixed scan mode can reach up to 700 x 700 x 700 mm.

Scanner controls

The scanner is controlled via a USB-tethered computer.

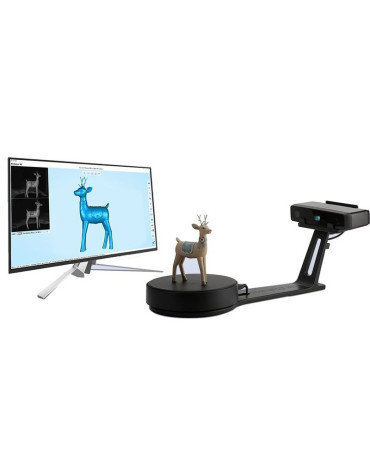

The scanner comes bundled with the official, simple-to-use EinScan software. It features an intuitive interface that will comfortably guide you to the scanning and editing process. Also, it provides ready-to-print mesh files compatible with the majority of 3D printers. You can export them with a high, medium or low polygon resolution. The software is really stable but its calculating speed strongly depends on your computer specs. According to All3DP, it is able to finish a mesh with 2-million triangles in 15 minutes with an Intel i7-4829K and 3.70GHz. It offers several fully-automated features, including automatic calibration, one-click scanning, auto-meshing to watertight 3D models, auto-alignment and fusion for direct mesh generation. It enables Cloud access for online file saving and sharing.

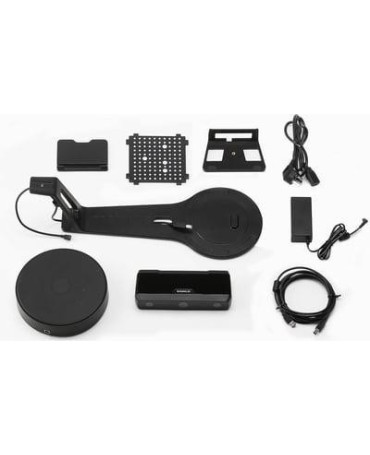

What’s in the box

• EinScan-SE 3D scanner
• Calibration board
• Turntable
• Stand
• Power cable
• USB cable

For some items, package content may change. In case of any questions, please get in touch.

Look and feel

EinScan-SE 3D scanner is available in matte black. Its stylish look makes it ideal for education, product design, reverse engineering, and digital industry.

The scanner dimensions are 22.4 x 8.3 x 8.3 inches (570 × 210 × 210 mm). It weighs 5.4 lb (2.5 kg).

Price

The price of the EinScan-SE 3D scanner is $1,399.00, which is reasonable considering its functionality and usability.

Сertification

Warranty

Standard warranty

Shining 3D warrants for a period of Twelve (12) months standard warranty from the date of original purchase.

It includes:

• Coverage of labor and part costs of repairs due to malfunctioning or defects in manufacturing.
• Shipping conditions – Customer pays for inbound (return) shipping and associated costs, for goods delivered to Shining 3D Technology, Inc., after a grace period of 90 days, part of Shining 3D’s DOA policy.
• Shining 3D covers for outbound shipment airport-to-airport or port-to-port, notincluding custom fees, handling, import duties at the destination point.
• Free software upgrades while customer is under warranty.  Customers must request and obtain a “Return Material Authorization” or RMA prior to returning any piece of equipment back for service.
• It is available for purchase separately after the first included year, as an extended warranty.

Premium Warranty

Available as an upgrade of the Standard Warranty at point of sales, or when renewing an existing plan.

It includes:

All points covered under the standard warranty and,

• Coverage of labor costs of repairs due to malfunctioning or defects in manufacturing.
• Priority service scheduling.
• Shipping both ways, inbound and outbound. It excludes re-export, re-import duties or custom fees.
• 5% discount on purchases of accessories that were not included in initial purchase
• 1% discount on purchase of Premium Warranty renewal for subsequent year.
