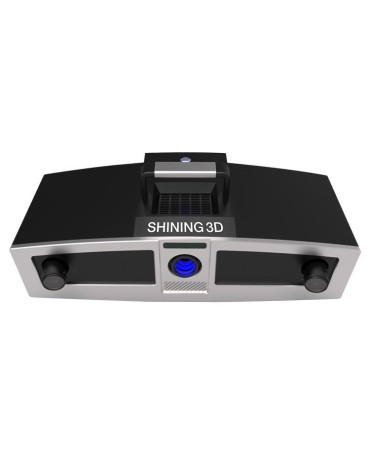

Shining 3D OptimScan 5M Plus 3D Scanner

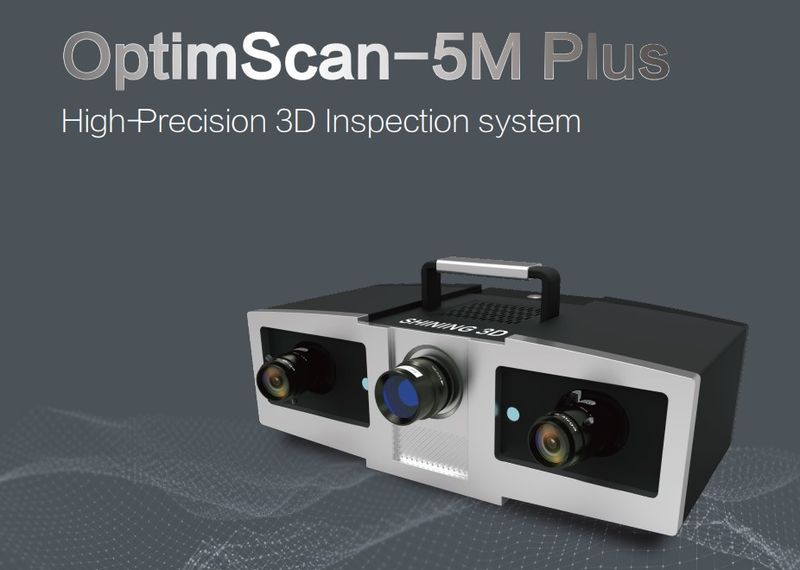

The Shining 3D OptimScan 5M Plus is an industrial metrology-grade 3D scanner primarily designed for inspection and other professional applications. It uses a narrow-band structured blue light source, two high-resolution 5.0MP cameras, and 1080p projection to generate high-speed, accurate scanning results in any environment conditions. Engineered with three sets of lenses, the 5M Plus features adjustable resolution and multiple scan ranges for reliable capturing of both large and small objects, making it more flexible and adaptable.

Alongside impressive scan speed, the OptimScan 5M Plus offers a single shot accuracy of up to 0.005 mm suitable for precise dimension inspection and measurement. Scan quality is further enhanced through the function of environmental vibration detection, which effectively ensures high-precision data. Intelligent software algorithms as well as the specialized HDR function allow capturing dark colors, complex shapes, bright and reflective surfaces with ease.

The OptimScan 5M Plus is supplied with a dedicated tripod for a stable and comfortable scanning experience. Ergonomic and portable, the device supports autonomous scanning with a turntable, no manual interaction involved. All the mentioned features will make the OptimScan 5M Plus perfect for engineers, designers, small manufacturers, and customizing experts.

To experience the power of detailed data visualization with the Shining 3D OptimScan 5M Plus 3D scanner, feel free to explore the following models for reference.

OptimScan-5M Plus Data 01 by Shining 3D on Sketchfab

OptimScan-5M Plus Data 02 by Shining 3D on Sketchfab

(Note: the STL files above are what you can achieve after post-processing the raw scans in the mesh-editing software.)

Specifications:

• Scan accuracy
• Scan volume
• Scanner controls and software
• Applications
• What’s in the box
• Look and feel
• Price

Scan accuracy

The Shining 3D OptimScan 5M Plus is a high-precision inspection 3D scanner that allows you to acquire metrology-grade accurate 3D data valuable for professional spheres of application. The device can achieve a scan accuracy of 0.005 mm and offers a point distance range from 0.04 to 0.16 mm. The 5M Plus model adopts two 5.0MP cameras for high resolution and scan quality, which lets you obtain accurate results at a consistent speed of ≤1.5 s.

Equipped with three sets of high-resolution industrial lenses and paired with high-end OptimScan software, the 5M Plus boasts adjustable resolution capabilities. This allows for scans of varying precision levels, catering to diverse needs. For more information, check out the next section.

The integrated HDR function helps the OptimScan 5M Plus scan high-contrast objects, such as black and white surfaces, to obtain complete data without sacrificing quality.

Scan volume

The Shining 3D OptimScan 5M Plus comes with three sets of lenses that feature different scanning ranges. This allows one to capture objects of various sizes effortlessly, with high detail and consistent data quality. The table below contains detailed information on each set.

Scanner controls and software

The Shining 3D OptimScan 5M Plus is operated via computer. The scanner includes a USB 3.0 interface and supports multiple data formats like ASC, STL, OBJ, and others compatible with the mainstream 3D design software.

The 5M Plus model comes with the dedicated OptimScan software that will guide you through the whole scanning process, from calibration to 3D scanning and data editing. The program features a user-friendly interface in combination with intelligent algorithms that can effectively process and optimize scanning data. Due to AI data cleanup, the device provides outstanding results and improves work efficiency with the rapid scanning speed of less than 1.5 seconds for a single scan. To reduce alignment errors and get high-quality precise data, the system integrates the "one-click" automatic markers alignment module and the GREC global deviation control module.

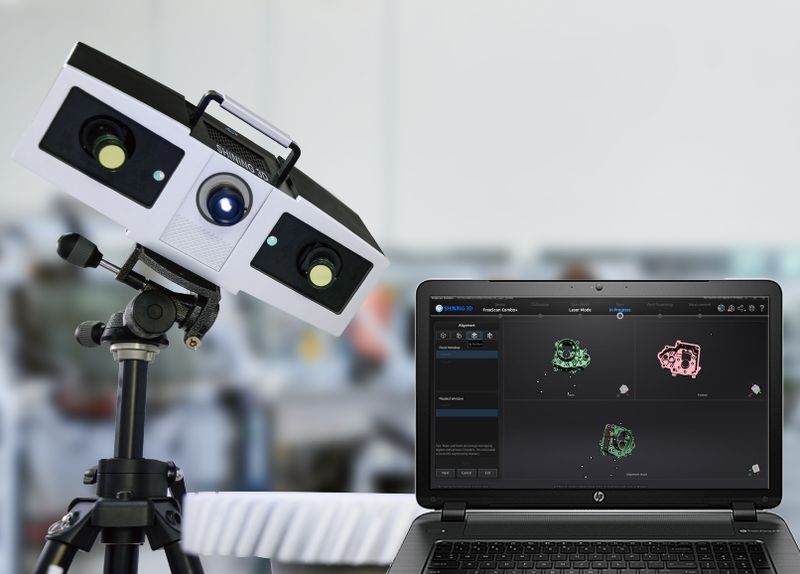

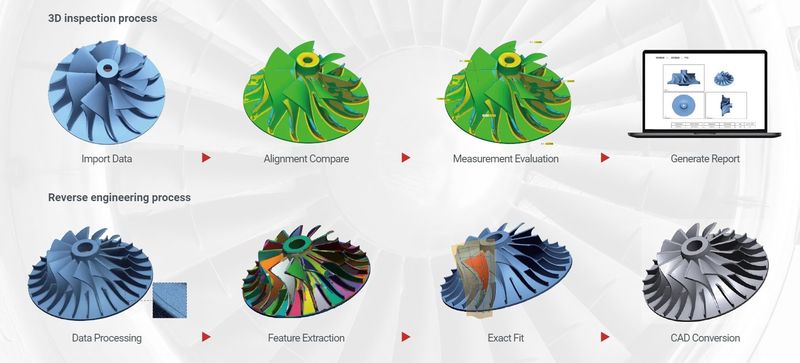

In addition, as a professional inspection solution, the OptimScan 5M Plus supports standard reverse engineering or 3D inspection software for further stages of your working process. The picture below illustrates the scanner’s workflow with third-party softwares.

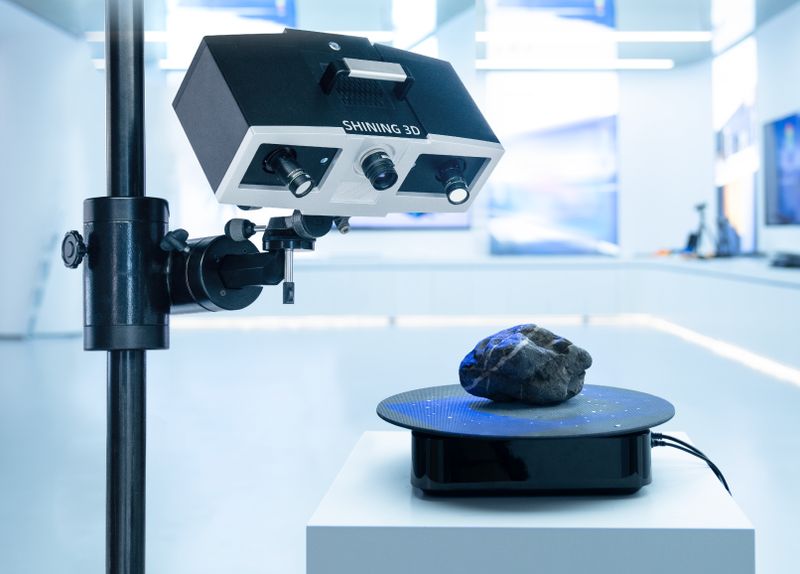

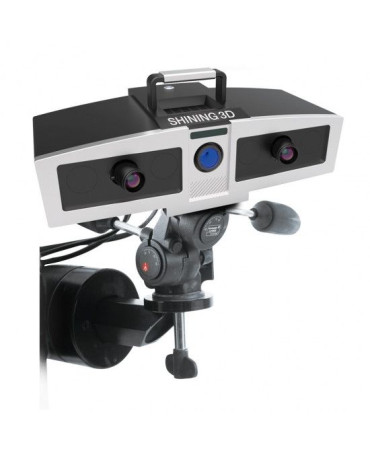

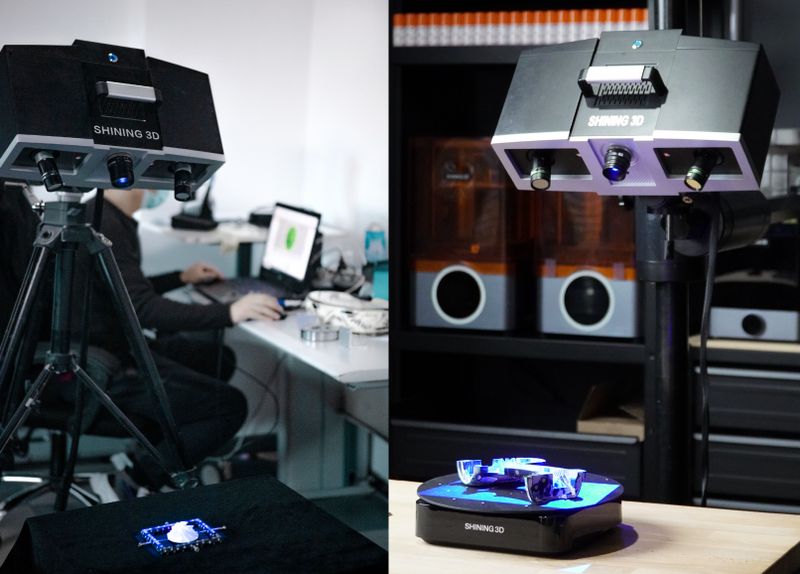

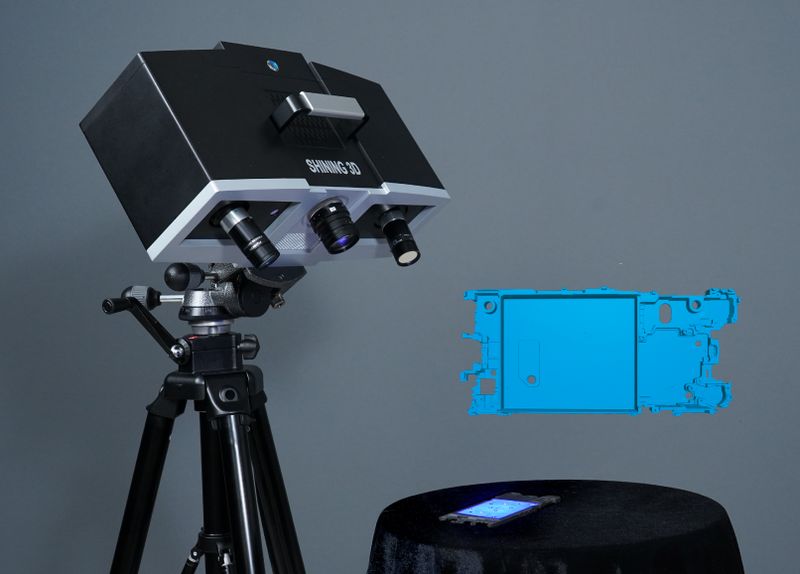

For a reliable scanning experience, the OptimScan 5M Plus 3D scanner comes supplied with a sturdy tripod and a tripod head. With the tripod, turntable (not included), and OptimScan software, one can perform scanning in Fixed Scan and Auto Scan modes by choice.

Applications

Deeply integrated into your workflow, the Shining 3D OptimScan 5M Plus 3D scanner can significantly enhance efficiency and help you achieve remarkable results in various professional spheres.

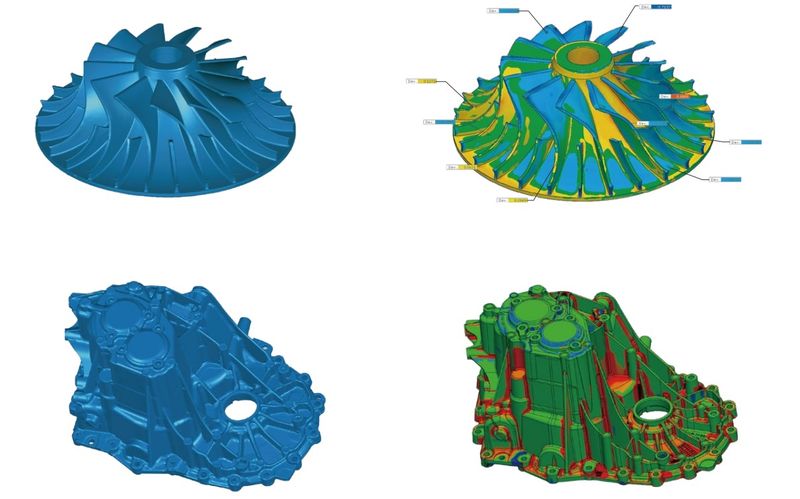

• Aerospace: The OptimScan 5M Plus provides highly detailed and accurate data due to its high-resolution camera, blue LED DLP projector, and high-end 3D reconstruction algorithm. It is a reliable option for the inspection and quality control of small, precise parts.
• Automotive: With a 5MP metrology-grade camera, adjustable scanning range and high accuracy up to 5 microns, the OptimScan 5M Plus can effectively handle the inspection for the hole position and surface analysis.
• Electronic and Electrical: Thanks to its high-resolution camera and blue LED phase shift projector, the OptimScan 5M Plus offers exceptional accuracy and detail. The 5M Plus scanner is a great choice for quality inspection of electronic components like mobile phone back covers and panels.
• Engineering Machinery and Other Transportation: With three adjustable scanning ranges and a high-resolution camera, the 5M Plus can scan parts of various sizes with supreme accuracy and detail. It is an ideal tool for checking weld scars and hole positions.

What’s in the box

• Shining 3D OptimScan 5M Plus 3D scanner head
• 3 sets of high-resolution optical and camera lenses
• Power cord
• Power adapter
• Data cable
• USB 3.0 hub
• Tripod
• Tripod head
• 3 calibration boards
• 3 sets of markers (6 / 3 / 1 mm)
• Software dongle
• USB flash drive (software + user manual)
• Black flannel cloth
• Cleaning cloth
• Quality certification
• Carrying case

For some items, package content may change. In case of any questions, please get in touch.

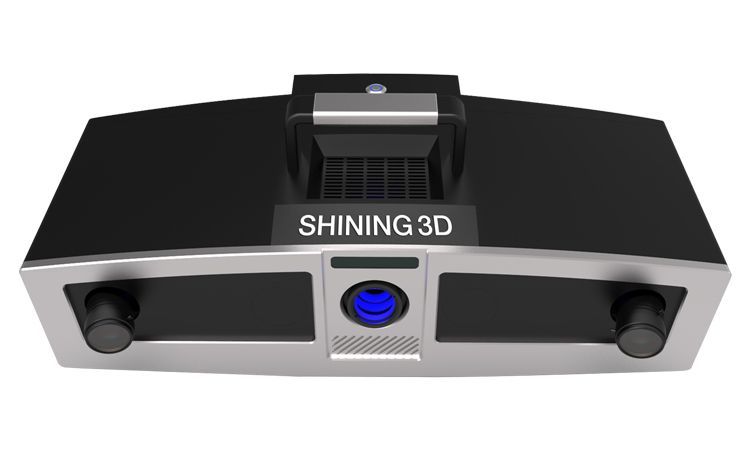

Look and feel

The Shining 3D OptimScan 5M Plus 3D scanner is available in black and gray palette. Its stylish look makes it ideal for product design, reverse engineering, metrology inspection, quality control, etc.

The scanner dimensions are 17.1 x 11.8 x 7.9 in (435 x 300 x 200 mm). It weighs approximately 15 lbs (6.8 kg).

Price

To learn the current price of the Shining 3D OptimScan 5M Plus 3D scanner, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
