Uniz zSLTV-15 3D Printer

In Stock
One of the fastest SLA industrial printers
  • Uni-Directional Peel technology
  • Massive build area: 345.6 × 194.4 × 400mm
  • Ultra-large file support
  • High accuracy and resolution
When purchasing with us you get:
  • FREE Delivery
  • Full 1 Year Warranty
  • 24/7 Customer Support
  • FREE Training
This 3D printer comes with:
  • 5000 (±300) Lux blue LED array
  • Liquid cooling system
  • Uniz software for printing management
  • Automatic resin level control
Price: $19,999.00
Order now and we’ll ship it in 24 hours or less

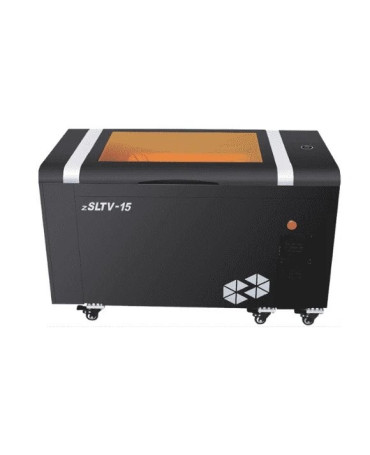

The Uniz zSLTV-15 is an industrial LCD/SLA 3D printer powered by the self-developed UDP technology. Launched by the American 3D printer manufacturer Uniz, the Uni-Directional Peel technology has been designed to speed up the traditional SLA process, increasing the overall printing capacity without losing quality. According to the manufacturer, the zSLTV-15 is one of the fastest SLA industrial printers commercially available. Its thoughtful features make it particularly suitable for professional users.

The Uniz zSLTV-15 boasts a build volume of 345.6 × 194.4 × 400mm, a really large area when talking about resin 3D printing. It features a fully-enclosed, rock-solid construction made from machine metal sheets. It is engineered with a powerful liquid cooling mechanism. Thanks to its resin cartridge system alongside the automatic self-filling and transfer mechanism, it grants clean operation in any industrial environment. The zSLTV-15 is a workhorse ideal for industrial applications in a variety of fields, including aerospace and automotive.

If you are seeking a large-format LCD-based 3D printer, the Uniz zSLTV-15 is a great pick. You will never have to worry about printing sizes and material choices.



Specifications:

  • Print quality
  • Materials
  • Build volume
  • Printer controls
  • What’s in the box
  • Look and feel
  • Price



Print quality

The Uniz zSLTV-15 is an industrial LED-LCD resin 3D printer powered by the own-brand UDP SLA technology. This professional-grade printer is capable of producing large-sized isotropic prints with an XY resolution of 86 microns and a Z layer thickness from 10 to 300 microns. With an accuracy of 30 microns, it allows producing high-quality resin parts with a layerless smooth surface finish.

The proprietary UDP technology reduces the up-and-down peel to a one-directional peel action. In this way, it is capable of manufacturing the parts continuously, increasing the print speed of the zSLTV-15 from 200mm/hr in normal mode up to 600 mm/hr in UDP mode. Also, with its polymer film natural peel separation mechanism, it doesn’t require the use of pure oxygen or exotic separation materials.



Materials

The Uniz zSLTV-15 prints with 405nm liquid resin with UDP denomination. It features an automatic material self-filling and transfer mechanism system, which takes care of the material feeding from the tank to the bottle during printing. In this way, it facilitates material replacement and makes for cleaner operation.

The integrated liquid cooling system effectively cools down the parts making for faster print speed, higher resolution, and greater accuracy.

The company provides a variety of zUDP functional resins, giving you a wide material choice.



Build volume

The large build area of 13.6 × 7.65 × 15.75 inches (345.6 × 194.4 × 400 mm) lets you print large high-resolution parts in one go.



Printer controls

The printer can be operated from a PC via USB or Ethernet connection.

The Uniz zSLTV-15 comes integrated with the own-brand software, which runs on Windows 7 and above and on Mac OS X 10.7 and above. This easy-to-handle program works with STL, OBJ, AMF, 3MF, and UNIZ file formats. The software comes packed with advanced model repair features and supports ultra-large files (more than 1GB). It lets you manage multiple printers at the same time being perfect for workflow automation.



What’s in the box

  • Uniz zSLTV-15 3D printer
  • 5000 (±300) Lux blue LED array
  • Liquid cooling system
  • USB, Ethernet connectivity
  • Automatic resin control
  • Uniz software

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

The Uniz zSLTV-15 3D printer comes with a black design with white trimmings. Its stylish look makes it ideal for automotive and aerospace industries.

The printer dimensions are 53.1 x 23.6 x 27.6 inches (1,350 × 600 × 700mm). It weighs 220 lb (100 kg).



Price

The price of the Uniz zSLTV-15 is $19,999.00, which is reasonable considering its functionality, smart technologies, and massive build volume.
