UR5 collaborative robot

In Stock
An agile, affordable cobot
  • Flexible and lightweight
  • Seamless integration
  • TÜV certified for safety use
  • Cost-effective
When purchasing with us you get:
  • FREE Delivery
  • Full 1 Year Warranty
  • 24/5 Customer Support
  • FREE training
This robot comes with:
  • Control box with teach pendant
  • Mounting brackets for the control box
  • Key for opening the control box
  • User’s manual
Order now and we’ll ship it in 24 hours or less

The UR5, also known as UR5e, is a powerful and flexible collaborative robot arm developed by Universal Robots. It is part of the cost-effective, multifunctional e-series, which includes the UR3, the UR10, and the latest UR16. As a cobot, it has been designed to safely work with human operators. TÜV certified, it automatically stops when bumping into a force of down to 50 Newton. The product arrives in two different packages. It doesn’t require particular tinkering to be assembled. You will get it up and running in half a day. It is simple to program and reprogram, being capable of performing different tasks in short times. This flexibility makes it ideal for shop-floor applications.

With 6 degrees of freedom and a payload capacity of 5kg, this sleek arm provides you with high flexibility and adaptability. It enables the effective optimization of collaborative processes, including packaging, palletizing, picking, and placing. It can be integrated into a variety of industries hassle-free. Also, it offers fast payback times boosting your productivity. Keep reading the complete review.

Linatex is a company that manufactures plastic components. It produces several different products in small batches. For this reason, it required an affordable cobot quick and easy to reprogram. The UR5 turned out to be the perfect solution for their requirements.



Specifications:

  • Processing quality
  • Applications
  • Working range
  • Robot controls
  • What’s in the box
  • Look and feel
  • Price



Processing quality

UR5 is a 6-axis table-top collaborative robot. It provides 0.1mm repeatability being capable of performing repetitive and complex tasks with extreme precision over time. With a sturdy structure and safety sensors, it is ideal for collaborative works being able to lift products of up to 5 kg.



Applications

The UR5 is a multi-tasking, universal robot. Easy-to-program and redeploy, it provides you with extreme flexibility. You can comfortably implement it in different production steps and quickly employ it in new tasks in case of need.

The robot is widely used to perform different operations, including:

  • pick and place
  • injection molding
  • CNC machine tending
  • packaging, palletizing
  • quality inspection, lab analysis and testing
  • assembly and screw driving
  • polishing, gluing, dispensing and welding



Pick and place

Ideal to automate repetitive and dull activities, the UR5 is an efficient tool for pick-and-place tasks, especially for small-volume production. Engineered with a computer vision system, it is capable of recognizing different parts, pick and sort them.

It can even pick some delicious strawberries for you.



Injection molding

The cobot can be an effective aid when handling injection molds. Indeed, this might be a dangerous operation for human workers. The UR5 reduces the risk of injuries while granting extreme efficiency and speed. Also, it works autonomously without the need for human supervision. It can even work while your employees are at home. It is adopted in plastic and polymer production.



CNC machine tending

Working beside industrial machines might also be dangerous. Even in this case, the UR5 can replace employees for machine tending. Fast and accurate, it is capable of effectively complete the job autonomously.



Packaging and palletizing

Ideal for loading and unloading operations, the cobot can lift medium-weight products freeing operators from repetitive yet hard tasks.



Quality inspection, lab analysis, and testing

A cobot is capable of repeating the same movements for hours granting high repeatability and consistent results over time. Equipped with a built-in vision camera, it can perform non-destructive testing and 3D measurements for quality inspection, lab analysis, and testing.



Assembly and screw driving

The infinite rotation of the end joint allows assembling and screwing parts together.

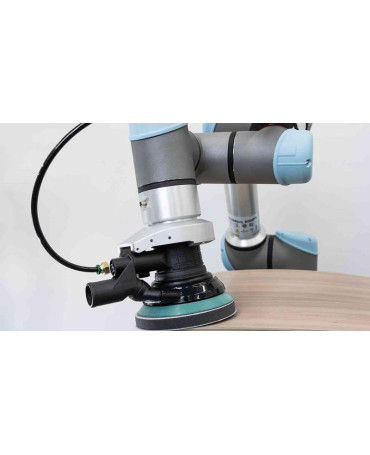

Polishing, gluing, dispensing and welding

Force control, flexibility, repeatability and accuracy enable consistent operation while delivering uniform product quality. They allow performing various tasks, including polishing buffing, sanding, gluing, dispensing and welding.



Working range

The UR5 features a working radius of up to 850mm. It can perform any task within its reach, letting you employ your workers in more important activities.



Robot controls

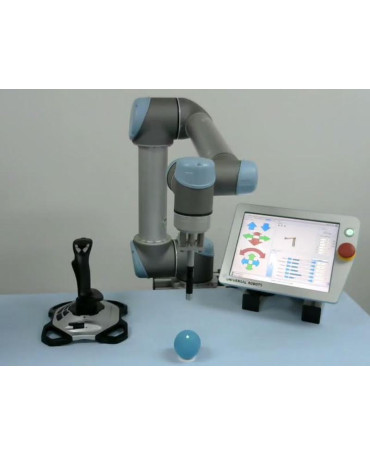

You can program and operate the robotic arm via a control box with a teach pendant. It supports both 3D visualization and manual teaching. Move the arm manually or through the on-screen arrow keys to teach it the path to follow.



What’s in the box

  • UR5 Robot arm
  • Control box with teach pendant
  • Mounting bracket for the control box
  • Mounting bracket for the teach pendant
  • Key for opening the control box
  • Mains cable compatible with your region
  • Tool cable
  • Stylus pen with laser
  • UR production test certificate
  • User’s manual

For some items, package content may change. In case of any questions, please get in touch.



Look and feel

UR5 is composed of natural gray aluminum and steel parts along with light blue plastic elements. Its stylish look makes it ideal for almost any low-to-medium-weight industrial applications.

The robot footprint is Ø 5.9 inches ( Ø 149 mm). It weighs 45.4 lb (20.6 kg).



Price

The price of the UR5 is $0.00, which is reasonable considering its functionality and adaptability.
