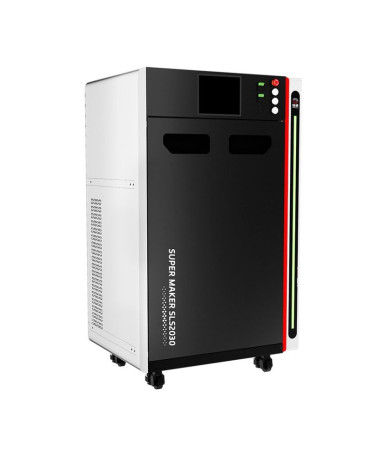

The SuperMaker SLS2030 is an industrial-grade nylon SLS 3D printer made by the Chinese-based Zongheng3D company. It represents an advanced machine with high heating capacity aimed at rapid prototyping and small batch production needs within various demanding industries. Being an SLS device, it is able to create complex shapes and designs without structural support that cannot be made by conventional methods. Doing this with remarkable precision and ease, the printer becomes an essential asset for businesses looking for a flexible and efficient solution with high ROI.
A fairly compact industrial machine, the SuperMaker SLS2030 is equipped with a sufficient forming chamber ready for efficient manufacturing. To provide a uniform heated environment as well as rapid cooling time, the printer is supplied with a smart temperature control system with a multi-zone heater. Its powerful fiber laser ensures an even energy distribution with a better energy penetration. Thus, the machine provides improved accuracy with feature details of 0.3 mm. It also reduces electricity and nitrogen consumption by 50% compared to its industrial counterparts.
In contrast to many other industrial SLS solutions, the Zongheng3D SuperMaker SLS2030 features a major benefit in terms of dimensions and material efficiency while providing the same printing accuracy and overall quality. Plus, it is a budget-friendly solution that effectively compensates for the cost of production.
By utilizing the SuperMaker SLS2030, one can save on material costs, improve production efficiency, and reduce the need for traditional production lines. All this makes the printer perfect for multiple professional applications, including rapid prototyping, functional testing, end-use production, custom design for automotive, marine and military, scientific research, mold production, healthcare. For instance, the machine can be used to make ready-to-use, patient-specific medical devices from PA12, which is biocompatible and can be easily sterilized.
The SuperMaker SLS2030 can sinter layers with a minimum thickness of 100 micron. Compared to standard laser sintering systems, it is equipped with a potent 40W fiber laser instead of the CO₂ one as well as a high-precision digital galvo system to ensure exceptional accuracy and detail of produced parts.
Furthermore, the printer boasts impressive temperature capabilities. The SuperMaker SLS2030 applies a heated chamber maintaining temperature up to 190 °C. Thanks to a multi-zone heater with independent control, the machine is capable of effectively reducing the risk of deformation during printing. Thus, it ensures a uniformly heated environment and allows one to smoothly print with high-performance materials.
The Zongheng3D SuperMaker SLS2030 is compatible with TPU and nylon powders, such as PA11 and PA12. While the former provides remarkable durability and flexibility, the latter makes for high detail and great dimensional accuracy. Thus, the printer allows one to produce a variety of items with different properties that meet requirements of diverse industries. In addition, the machine supports GF.
Due to the replaceable pull-out feed box, the SLS2030 ensures effective material management and utilization. The reliable powder feeding system that controls the amount of material for each project also reduces production costs by eliminating the need for production lines.
The SuperMaker SLS2030 3D printer features a capacious forming size of 7.9 x 7.9 x 11.8 in (200 x 200 x 300 mm). The printer is able to process small-to-medium-sized parts as well as batches of multiple items, speeding up the production cycle while reducing the cost per part. This makes the SuperMaker SLS2030 a high-yield production-ready machine with the maximum volume molding rate of 3000 cm³/h.
The SuperMaker SLS2030 can be operated via a large built-in LCD screen with a clear menu structure and user-friendly interface.
The machine is powered by in-house developed operational software. Apart from various manual and automatic control methods, it provides online real-time modification of construction parameters, 3D visualization, and advanced diagnostic functions.

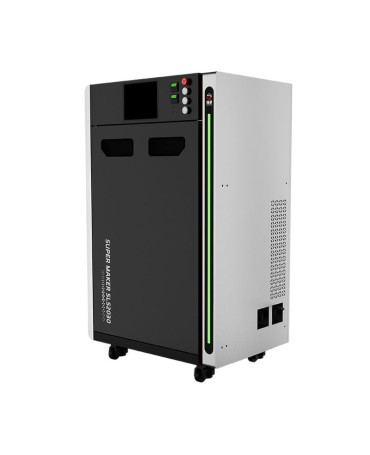

The SuperMaker SLS2030 3D printer is available in a white-and-black color scheme. Thanks to the integrated indicator light bar, the printer status is always clear. With its stylish look and ergonomic design, the SuperMaker SLS2030 is ideal for a variety of demanding applications in multiple spheres, from prototyping to manufacturing.
The printer dimensions are 39.4 x 31.5 x 66.9 in (1000 x 800 x 1700 mm). It weighs approximately 1102.3 lbs (500 kg).
To learn the current price of the Zongheng3D SuperMaker SLS2030 3D printer, click the "request the quote" button and fill in the form. We will contact you as soon as possible and send you all the details.
